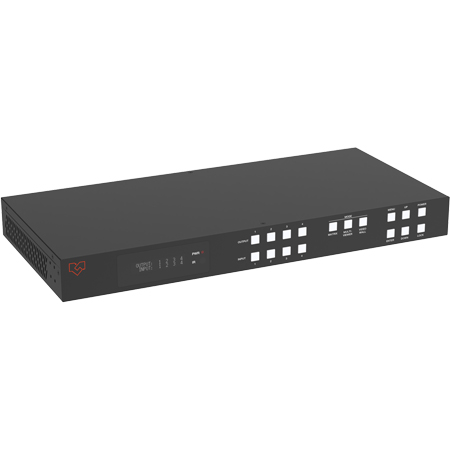

VigilLink VLVW-SMX44MV 4x4 18Gbps HDMI 2.0 4K60 Matrix w/ Seamless Switching/Videowall/Multiviewer - HDCP 2.2 Compliant

ITEM #: VGL-VLVW-SMX44MV MFG #: VLVW-SMX44MV

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$2,312.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLVW-SMX44MV - Overview

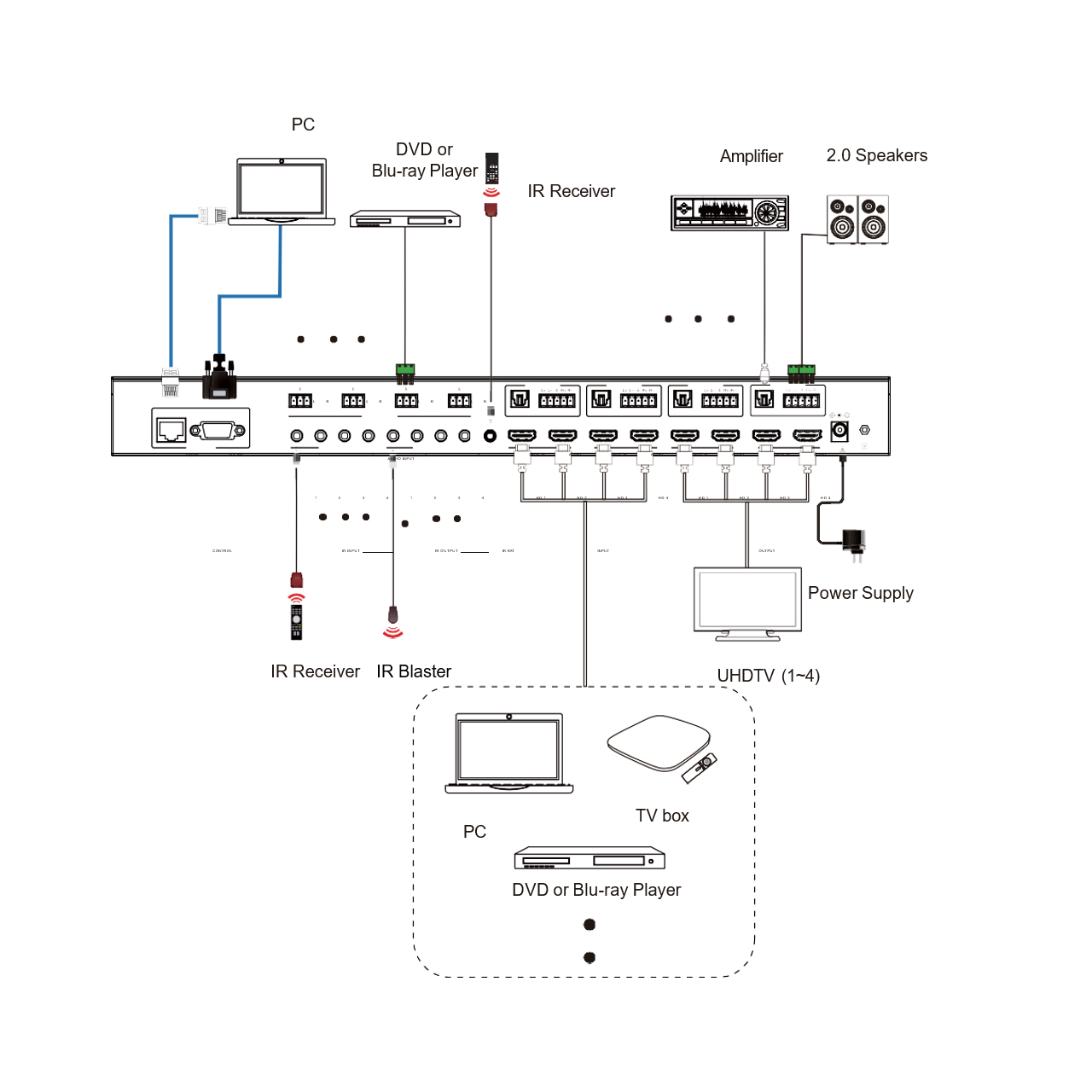

Introducing VigilLink's VLVW-SMX44MV 18Gbps 4x4 Seamless Matrix! Designed to streamline your video transmission needs, this solution effortlessly connects 4 HDMI sources to 4 HDTV displays. With versatile video wall and multi-viewer functions offering various display modes, along with support for a 4x4 IR matrix and audio embedding/de-embedding, it ensures a seamless viewing experience.

Enjoy stunning video resolution up to 4K @ 60Hz 4:4:4, with each source individually scalable for tailored presentations.

Experience smooth picture transitions without frame loss, thanks to seamless switching.

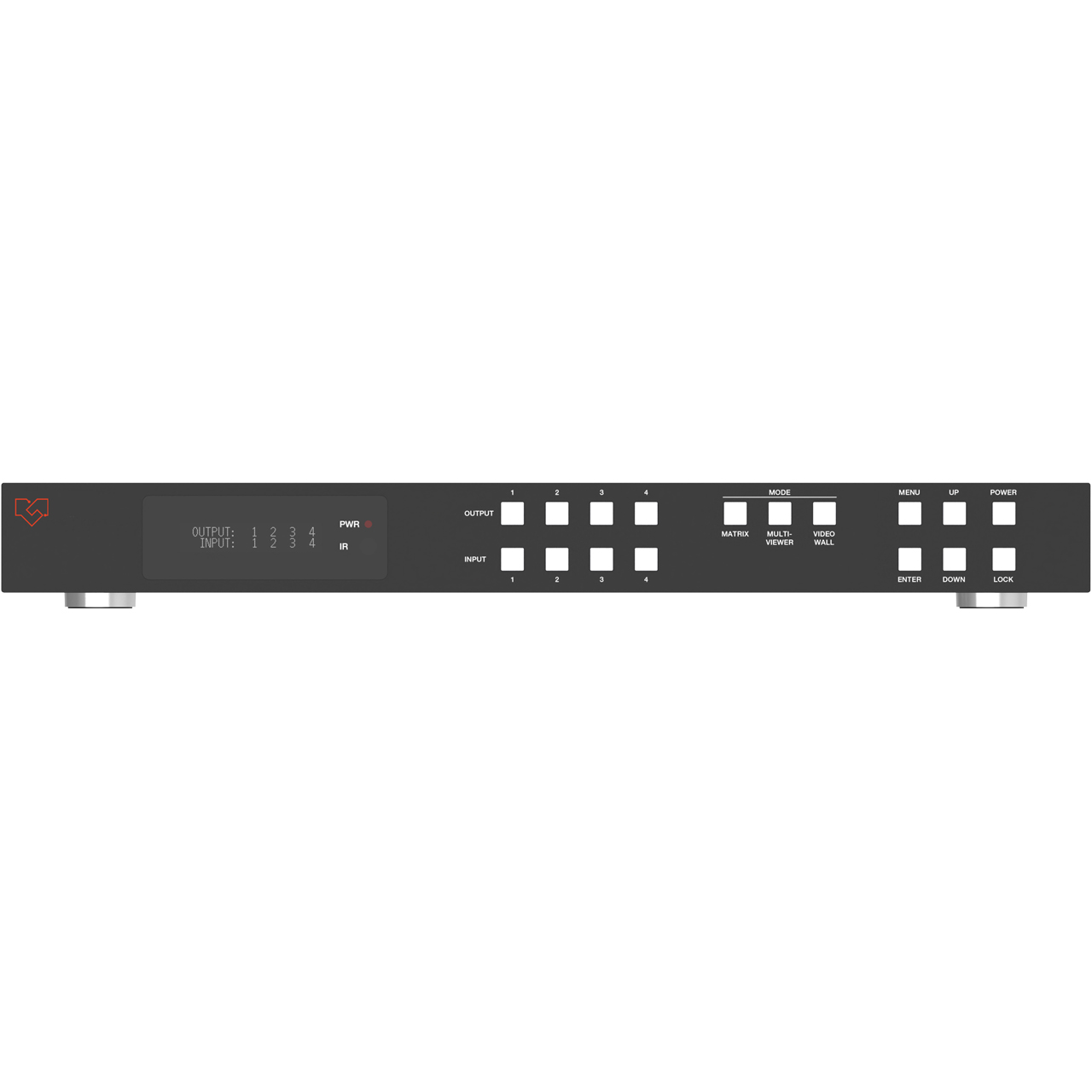

Control is at your fingertips with front panel buttons, IR remote, RS-232, and Web GUI options.

  • Features:

    • HDCP 2.2 compliant
    • Supports video resolution up to 4K @ 60Hz 4:4:4and 18Gbps video bandwidth, as specified in HDMI 2.0
    • Supports 12 display categories in multi-viewer mode and 9 splicing modes in video wall mode.
    • HDMI audio format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS- EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
    • Supports CEC control and multiple video resolution output
    • Advanced EDID management
    • Control via front panel buttons, IR remote, RS-232, and Web GUI


  • Specifications:

      Technical
    • HDMI Compliance: HDMI 2.0
    • HDCP Compliance: HDCP 2.2
    • Video Bandwidth: 594MHz/18Gbps
    • Video Resolution: 480i - 1080p @ 50/60Hz, 4K2K @ 24/30Hz, 4K2K @ 60Hz
    • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
    • Color Depth: 8/10/12-bit
    • Audio Format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS- 96/24, DTS High Res, DTS-HD Master Audio
    • IR Level: 12Vp-p
    • IR Frequency: Wideband 20K - 60KHz
    • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

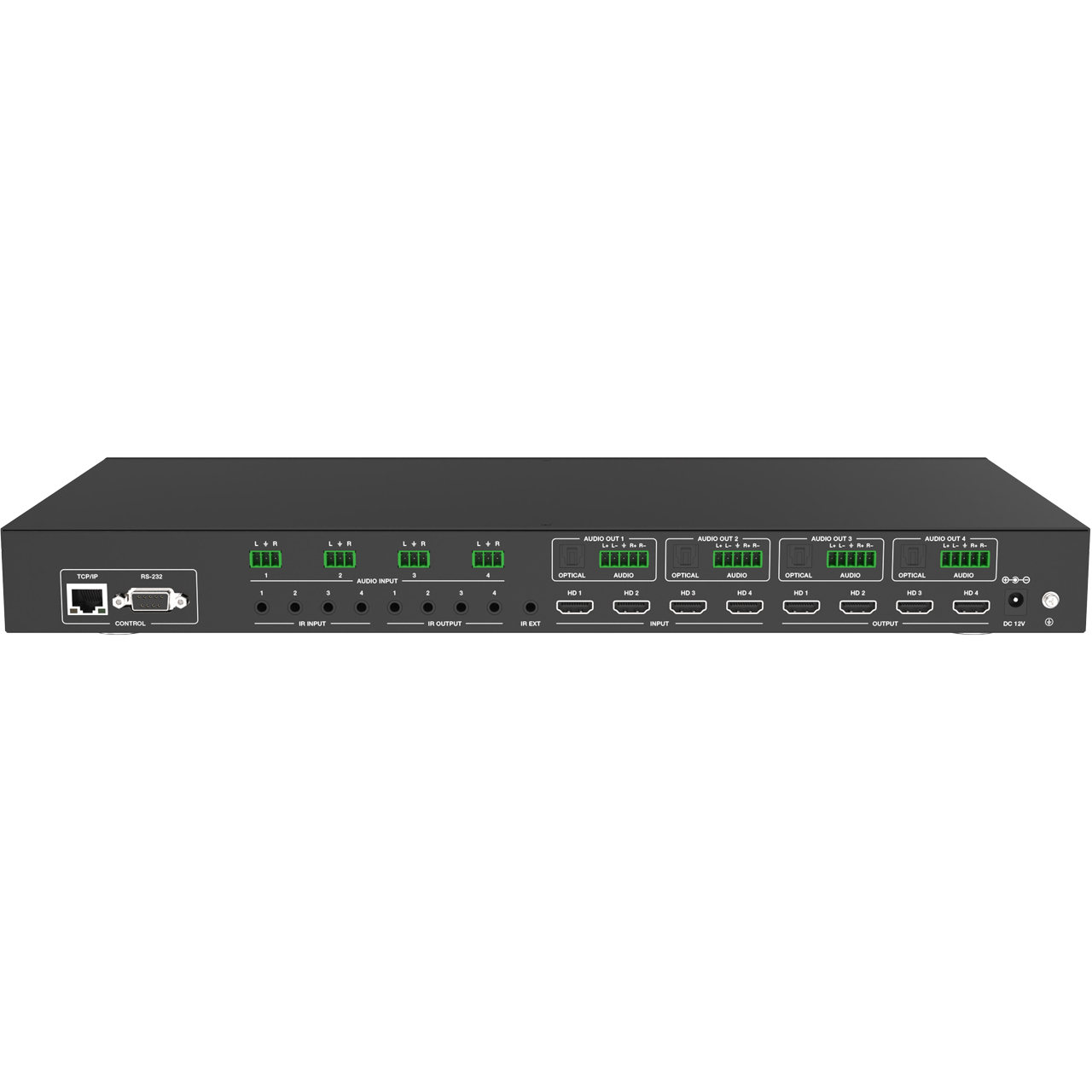

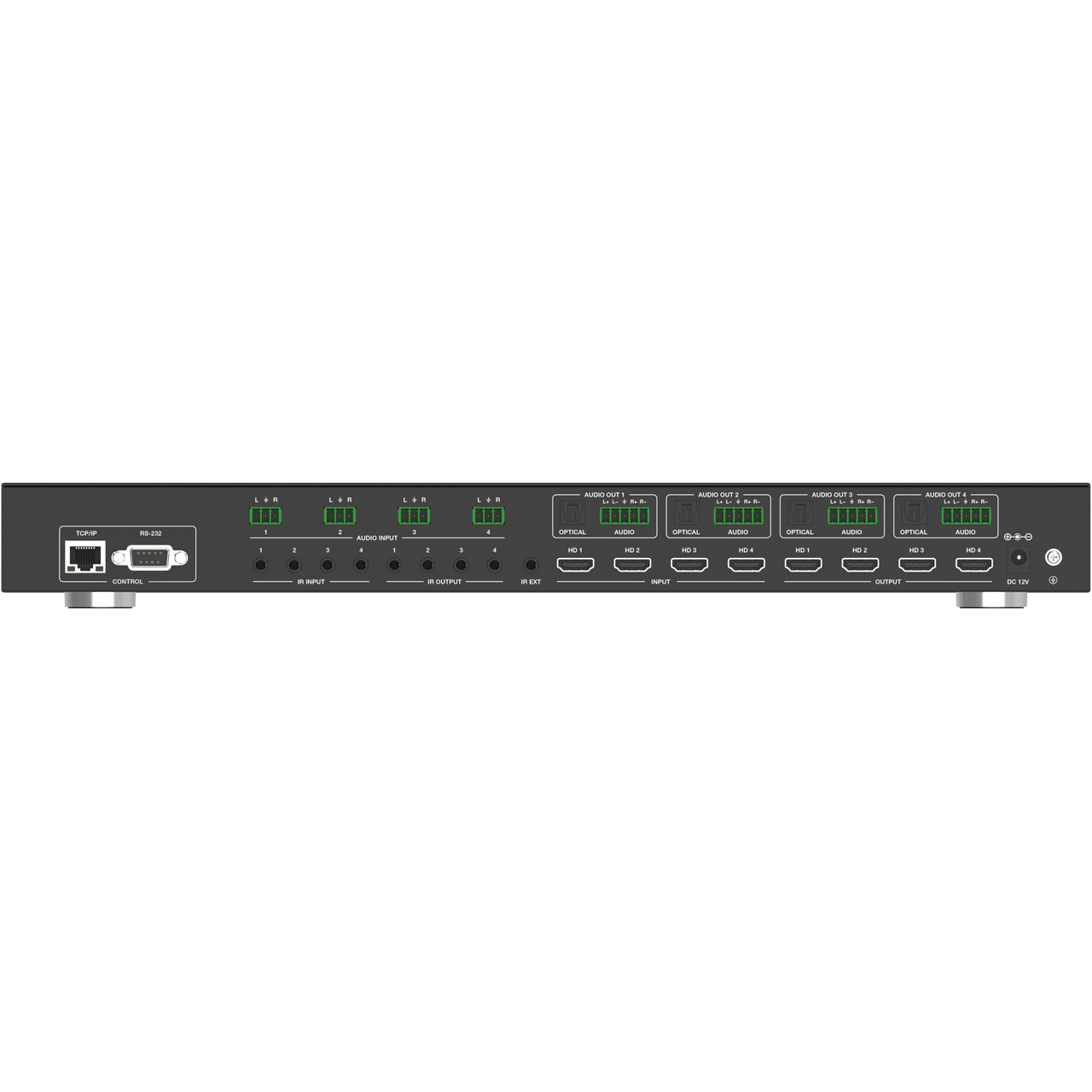

      Connection
    • Input Ports:
      - 4x HDMI INPUT (Type A, 19-pin female)
      - 4x L/R AUDIO INPUT (3.81mm, 3pin Phoenix Connector)
    • Output Ports:
      - 4x HDMI OUTPUT (Type A, 19-pin female)
      - 4x OPTICAL AUDIO OUT (S/PDIF)
      - 4x L/R AUDIO OUT (3.81mm, 5pin Phoenix Connector)
    • Control Ports:
      - 1x TCP/IP (RJ45)
      - 1x RS-232 (D-Sub 9)
      - 1x IR EXT (3.5mm, Stereo Mini-jack)
      - 4x IR INPUT (3.5mm, Stereo Mini-jack)
      - 4x IR OUTPUT (3.5mm, Stereo Mini-jack)

      Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions: 17.32" x 8.00" x 1.75" (440mm x 203mm x 44.5mm)
    • Weight: 5.62lbs (2.55kg)
    • Power Supply:
      - Input: AC 100V - 240V, 50/60Hz
      - Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)
    • Power Consumption: 25W (Max)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (No condensation)


  • Item Includes:

    • 1x 18Gbps 4x4 Seamless Matrix
    • 1x 12V/2.5A Locking Power Adapter
    • 5 x 12V IR Wideband Receiver Cable (1.5m)
    • 4x IR Blaster Cable (1.5m)
    • 1x RS-232 Serial Cable (1.5m, male to female head)
    • 4x 5pin-3.81mm Phoenix Connector
    • 4x 3pin-3.81mm Phoenix Connector
    • 8x Machine Screw
    • 2x Mounting Ear
    • 1x User Manual


  • Warranty:

    • 6 Years
