VigilLink VLWP-UHCI150-TR 4K60 2x1 USB-C / HDMI 2.0 Auto-Switching HDBaseT 2.0 Wall Plate Transmitter & Receiver System

Name: VigilLink VLWP-UHCI150-TR 4K60 2x1 USB-C / HDMI 2.0 Auto-Switching HDBaseT 2.0 Wall Plate Transmitter & Receiver System
Brand: VigilLink
SKU: VGL-VLWUHCI150TR
Price: 589.00 USD
Availability: Backorder

ITEM #: VGL-VLWUHCI150TR MFG #: VLWP-UHCI150-TR

VigilLink

Our Price:

$589.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VLWP-UHCI150-TR - Overview

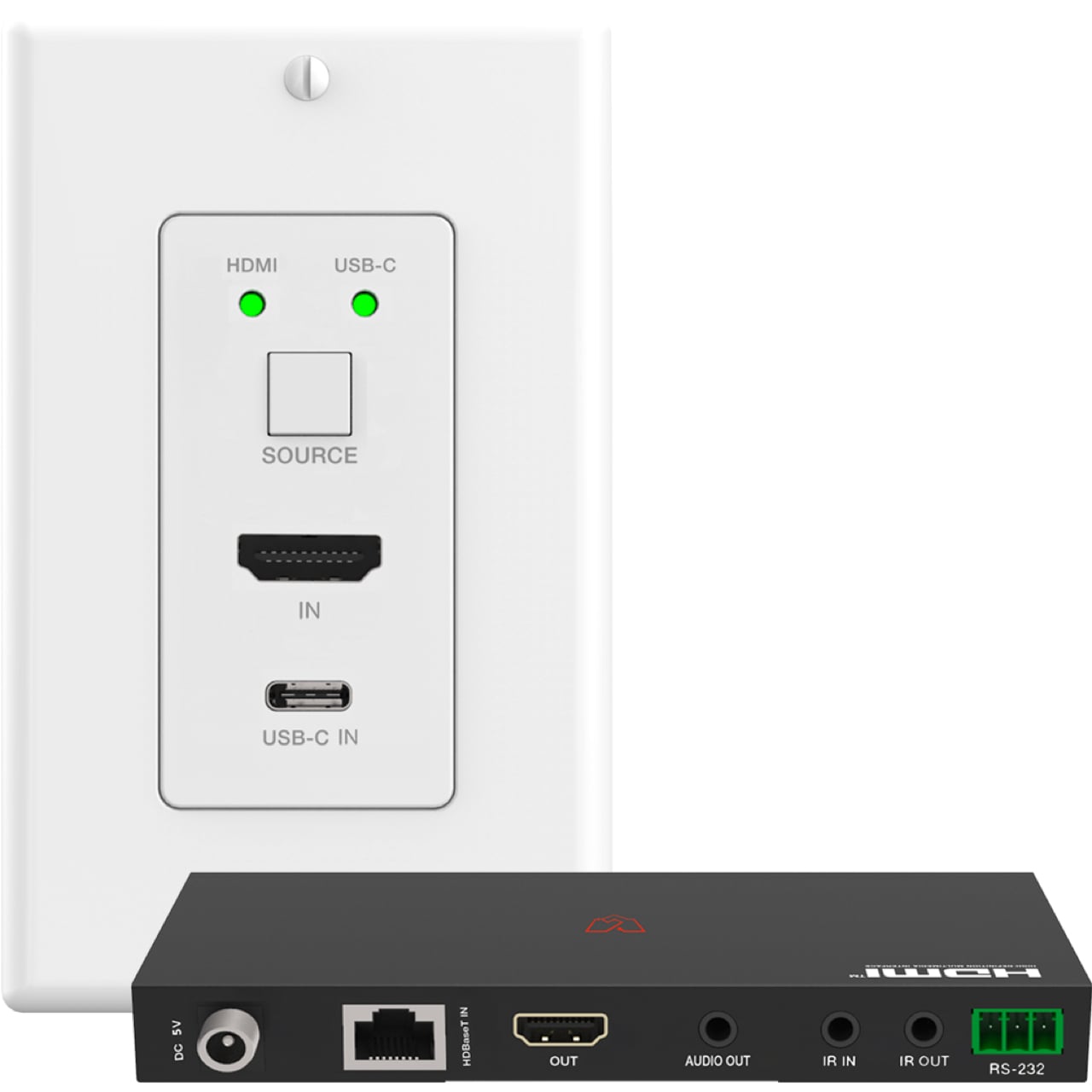

The VigilLink VLWP-UHCI150-TR is a versatile, single-gang HDMI/USB-C wall plate extender set designed to simplify AV signal distribution in professional environments. It extends high-resolution video signals up to 492 feet (150m) for 1080p@60Hz, and up to 394 feet (120 meters) for 4K@60Hz (4:4:4) over a single CAT6/6A cable.

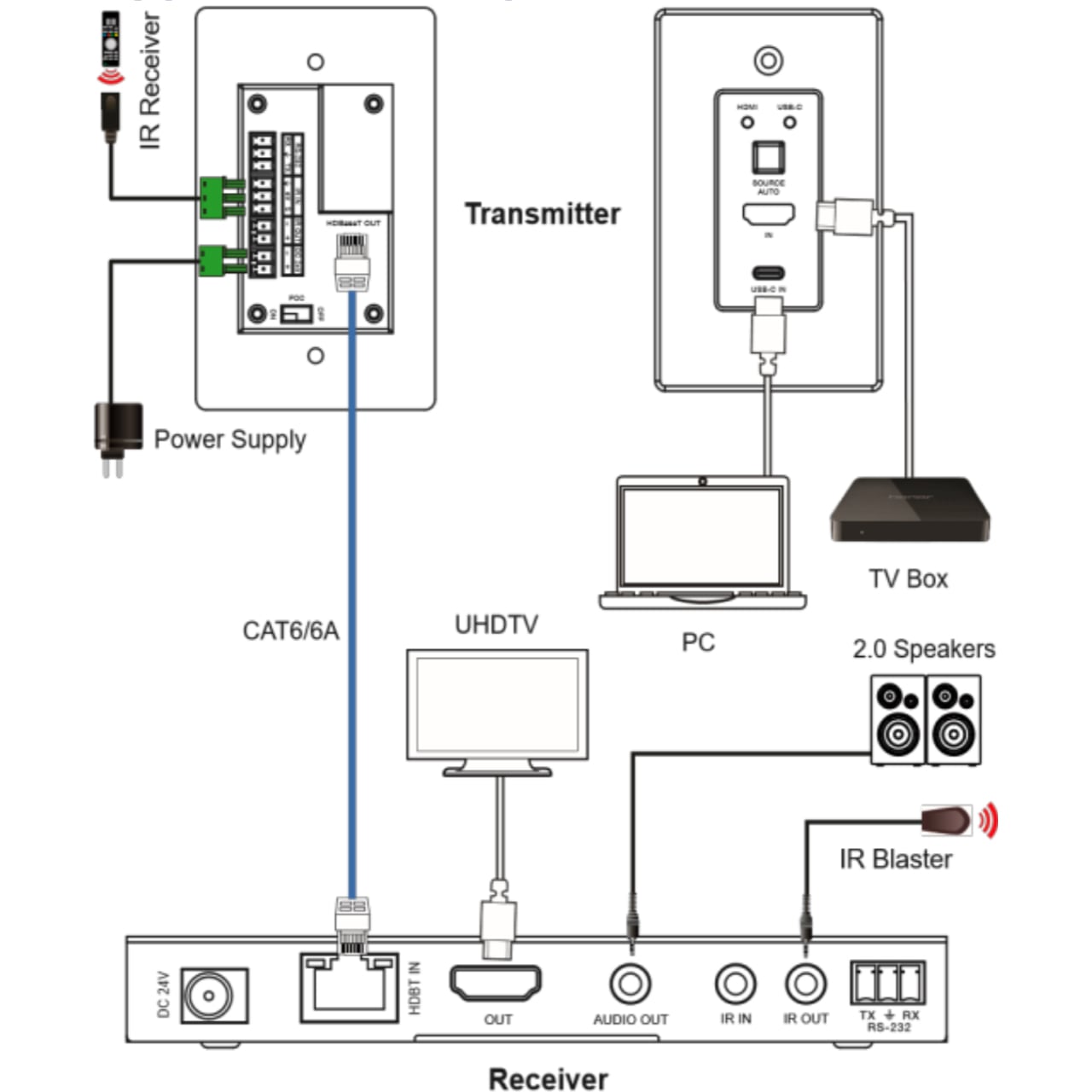

The wall plate transmitter features 1x HDMI and 1x USB-C input, with support for both manual and automatic source switching, ensuring seamless transitions between connected devices. The receiver offers 1x HDMI output and a 3.5mm analog audio de-embedding output for integration with external audio systems.

With support for bi-directional Power over Cable (PoC), IR, and RS-232 control signal pass-through, this extender offers flexible deployment options, eliminating the need for multiple power sources or complicated wiring. Ideal for enterprise video conferencing, classrooms, command centers, and collaborative meeting spaces, the VLWPUHCI150-TR delivers powerful performance in a clean, wall-mounted form factor.

Features:
- HDMI 2.0, HDCP 2.2 compliant

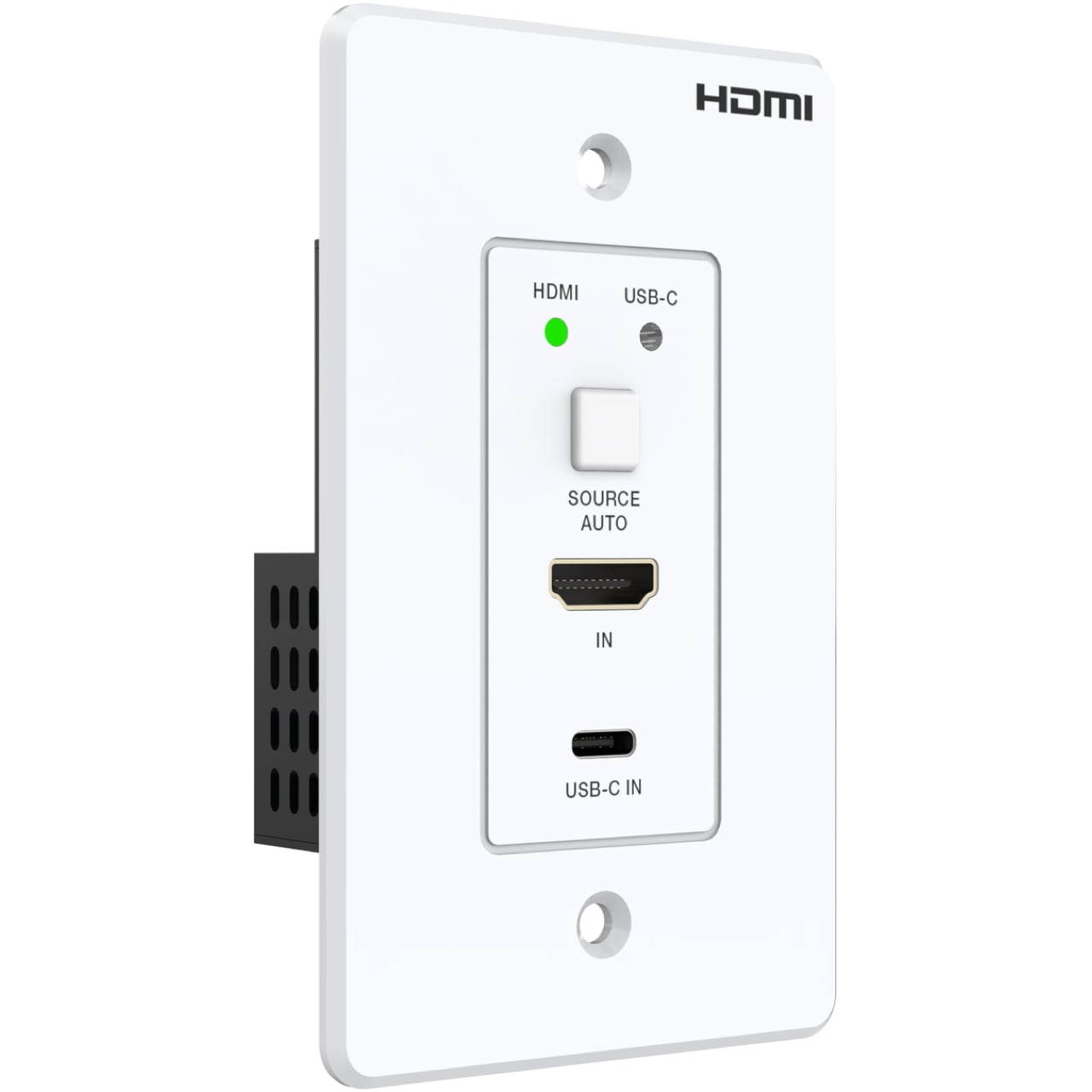

- Single gang US size wall plate supports two inputs: 1x HDMI and 1x USB-C
- Resolution up to 4K2K@60Hz 4:4:4, 18Gbps
- Supports both auto switching and manual switching
- The maximum transmission distance via CAT6/6A cable is up to:
- 394ft (120m) for 4K2K@60Hz 4:4:4 signal
- 492ft (150m) for 1080P@60Hz 4:4:4 signal
- Supported audio formats: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
- Support for HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
- Bi-directional IR, RS-232 and CEC control signal transmission
- Support bi-directional PoC
Specifications:
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.2
- Video Bandwidth: 18Gbps
- Video Resolution:
  - Up to 4K2K@60Hz 4:4:4
  - Including all 3D TV formats
  - Including all resolution in computer, such as 1920x1200
- Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- Color Depth: 8/10/12-bit
- HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
- HDMI Audio Formats: LLPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
- L/R Audio Format: LPCM 2.0CH
- IR Level: 5Vp-p
- IR Frequency: Wideband 20K-60KHz
- Transmission Distance:
  - Up to 394ft (120m) for 4K2K@60Hz 4:4:4 via CAT6/6A cable
  - Up to 492ft (150m) for 1080P@60Hz 4:4:4 via CAT6/6A cable
- ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

  Connection
- Transmitter Inputs:
  - 1x USB-C In (USB Type C, 24-pin female)
  - 1x HDMI In (HDMI Type A, 19-pin female)
- Transmitter Outputs: 1x HDBT Out (RJ45)

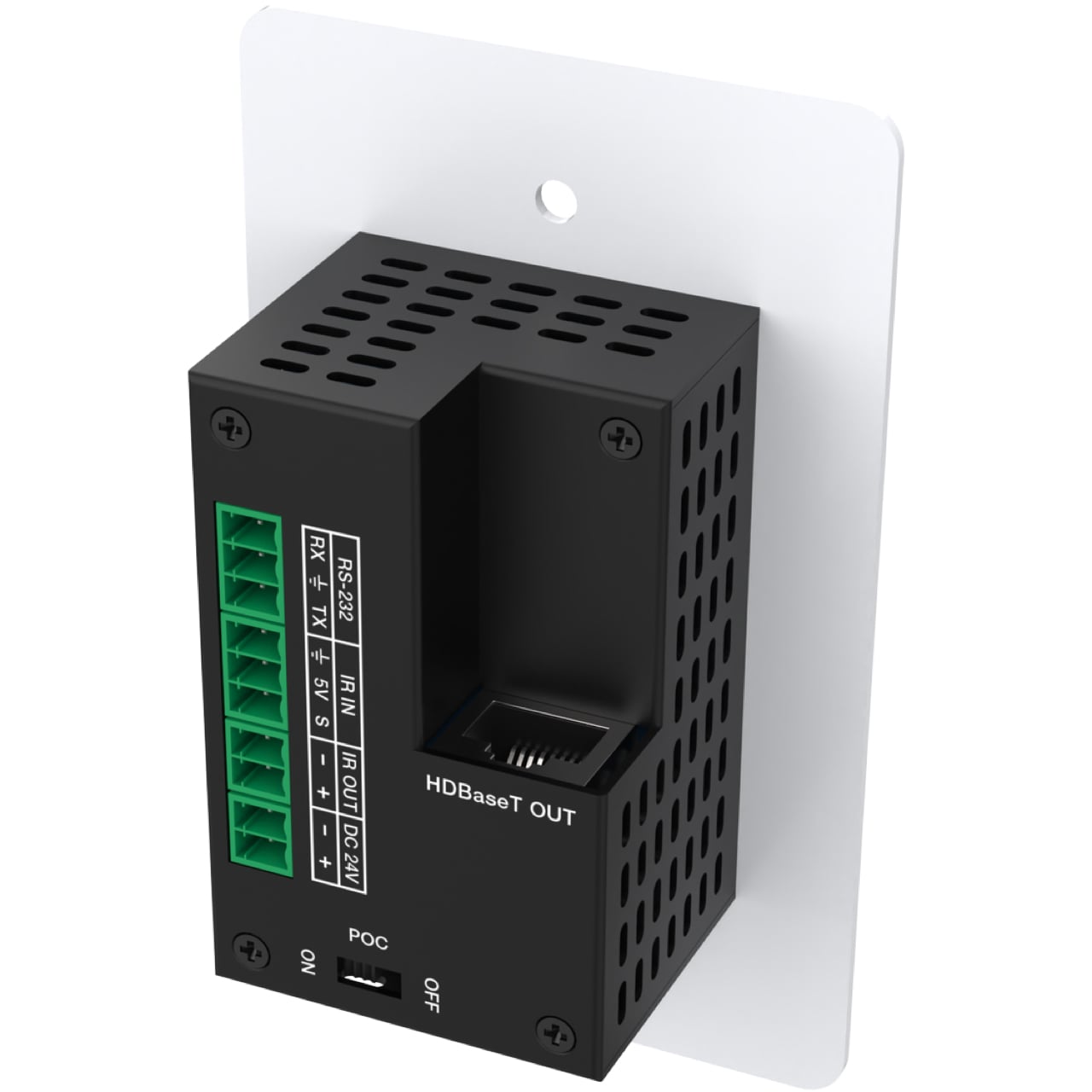

- Transmitter Controls:
  - 1x RS-232 (3-pin 3.5mm phoenix connector)
  - 1x IR In (3-pin 3.5mm phoenix connector)
  - 1x FW (Micro USB, Update port)

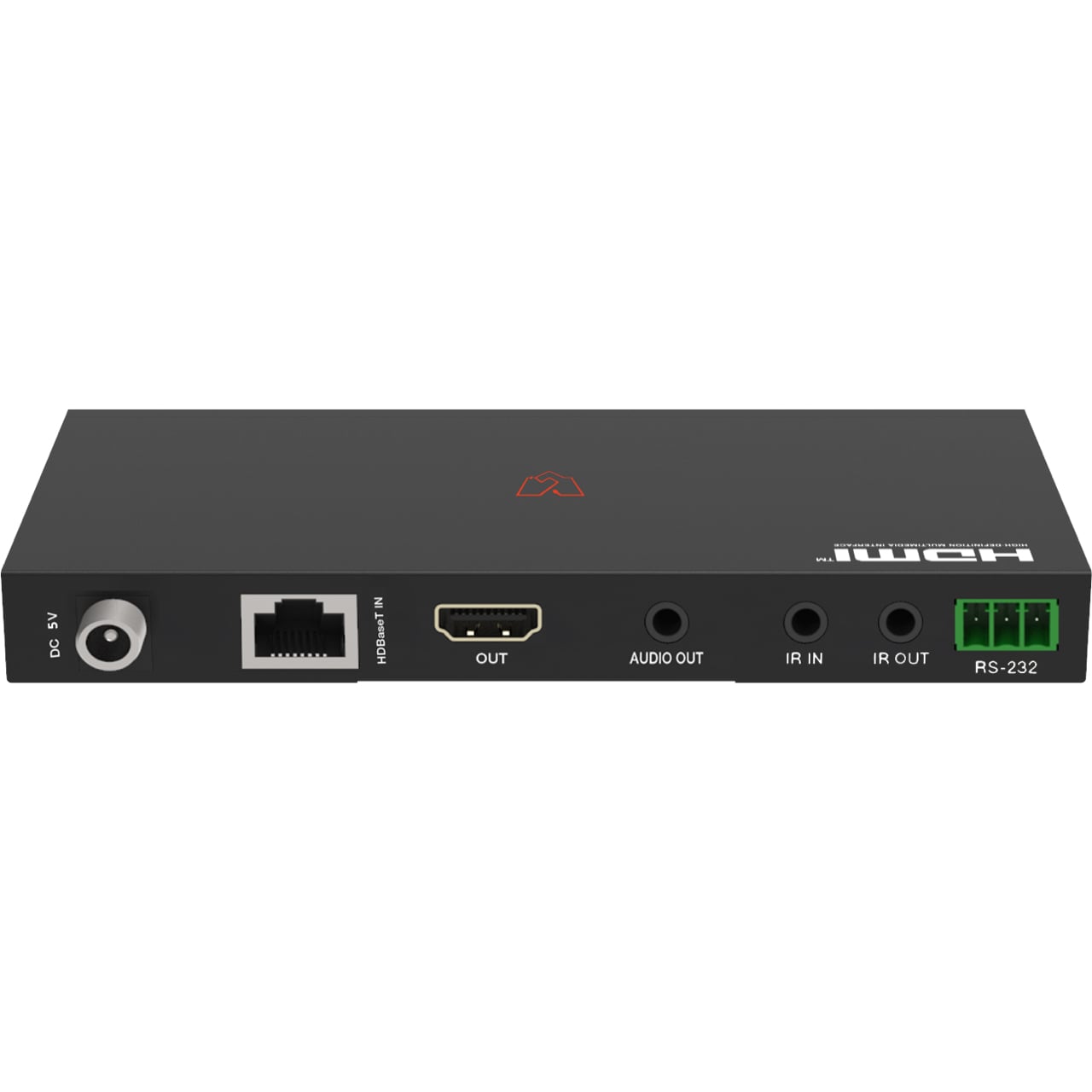

- Receiver Inputs: HDBT In (RJ45, 8-pin female)
- Receiver Outputs:
  - 1x HDMI Out (Type A, 19-pin female)
  - 1x Audio Out (Phoenix jack)
- Receiver Controls:
  - 1x IR In (3.5mm stereo mini-jack)
  - 1x IR Out (3.5mm stereo mini-jack)
  - 1x RS-232 (3-pin phoenix connector)
  - 1x Service (Micro USB, Update port)

  Mechanical
- Housing: Metal Enclosure
- Dimensions:
  - Transmitter : 2.8" x 1.2" x 4.9" (69.8mm x 30mm x 114mm)
  - Receiver: 7.9" x 2.5" x 0.7" (140mm x 65mm x 18mm)
- Weight:
  - Transmitter: (203g)
  - Receiver: (155g)
- Power Supply:
  - Input: AC 100-240V 50/60Hz
  - Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)
- Power Consumption:
  - Wall Plate: 4.5W (Max)
  - Receiver: 4.7W (Max)
Item Includes:
- 1x 4K60 2x1 HDBT Extender (Transmitter)
- 1x 18Gbps HDMI over HDBaseT Extender (Receiver)
- 1x 24V/1A Multinational Power Supply
- 1x IR Blaster Cable (4.9ft)
- 1x IR Wideband Receiver Cable (4.9ft)
- 1x 2-pin 3.5mm Phoenix Connector (Male)
- 2x 3-pin 3.5mm Phoenix Connector (Male)
- 1x 3-pin 3.81mm Phoenix Connector (Male)
- 2x Mounting Ear
- 4x Machine Screw (KM3*4)
- 1x User Manual
Warranty:
- 6-Year Limited Warranty
GTIN:
0810119590114
