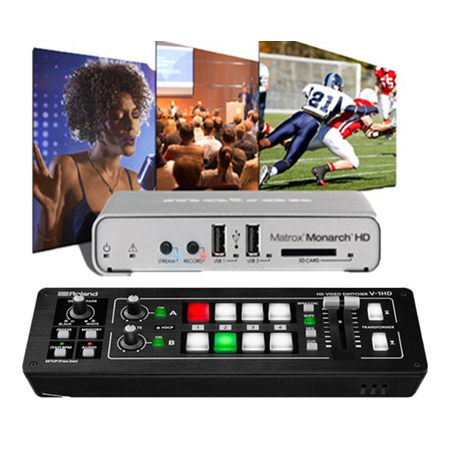

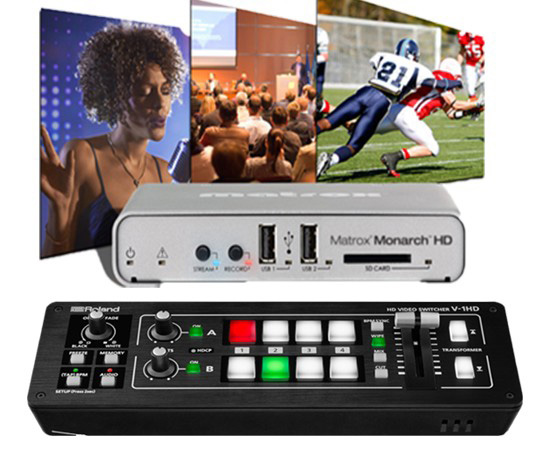

A Video Streaming Kit with Roland V-1HD Switcher and Matrox Monarch HD Video Streaming and Recording Appliance


free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    VIDSTREAMKIT-1 - Overview

    Roland V-1HD Portable Compact HD Switcher and Matrox Monarch HD Professional Video Streaming and Recording Appliance. The Perfect HD Live Production and Streaming Bundle!

    A bundle that pairs the power of the Roland V-1HD Video Switcher with the Matrox Monarch HD, a professional video streaming and recording appliance. Super easy to use and set up, this bundle is perfect for getting started with multi-camera live streaming!

    Not only does the Monarch allow you to stream your productions, you can attach portable USB drive to it such as our G-Tech G-Drive RAW and record your video in the native resolution.

    The Roland V-1HD Video Switcher is a compact and portable four channel video switcher with both hardware and connected PC / iPad control that supports four HDMI inputs at resolutions of up to 1080p along with a 12 channel audio mixer with audio embedding and de-embedding from HDMI. The V-1HD supports professional compositing effects such as picture-in-picture and keying allowing for graphic insets, titling or even "green screen" and is ideal for news broadcast or corporate training productions. For creative live event video switching, the V-1HD includes an advanced video effects for transforming video into creative visuals to support all kinds of performances.

    Matrox Monarch HD is a small, easy-to-use video streaming and recording appliance designed for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing. By separating the task of recording from streaming in a single integrated unit, Matrox Monarch HD ensures that the Content Delivery Networks (CDNs) are focused on delivering quality video to your audience while you control the quality of the archive.

    From any HDMI input source such as a camera or switcher, Matrox Monarch HD generates an H.264-encoded stream compliant with RTSP or RTMP protocols. While encoding the video at bitrates suitable for live streaming, Matrox Monarch HD simultaneously records a high-quality MP4 file to an SD card, a USB drive, or a network-mapped drive. Matrox Monarch HD is remotely controlled using any computer or mobile device with a web browser.

    • Features:

      • ROLAND V-1HD
      • Support for video cameras, action cameras, smart phones, tablet computers and other HDMI devices
      • 4 HDMI inputs
      • Supports up to Full HD 1080p
      • Easy to use interface
      • Picture-in-picture and split functions
      • Two EFFECTS knobs deliver genuine visual performance
      • Full 12 Channel Audio Mixer Included
      • Easy to Operate with hardware controls
      • Two HDMI outputs
      • Remote Control via USB or MIDI Connection

      • Record master quality video while streaming
      • Ready to edit and upload with MP4
      • Connect with HDMI
      • Robust appliance
      • Easily reach your audience
      • Record to anything
      • Remote command and control
    • Specifications:

      • ROLAND V-1HD

      • Video Processing: 4:2:2(Y/Pb/Pr), 8-bit
      • Output Connectors: HDMI OUTPUT: Type A(19pins) / HDMI PREVIEW: Type A(19pins) *HDCP Supported
      • Input Formats: HDMI: 720/59.94p,720/50p(FORMAT switch = 720p) HDMI: 1080/59.94i,1080/50i,1080/59.94p, 1080/50p(FORMAT switch = 1080i or 1080p) *The input interlaced video signal is converted to progressive video signal by internal processing. *The video signal frame rate is selected by SETUP parameters (59.94 or 50).
      • Output Formats: HDMI: 720/59.94p,720/50p(FORMAT switch = 720p) HDMI: 1080/59.94i,1080/50i(FORMAT switch = 1080i) HDMI: 1080/59.94p,1080/50p(FORMAT switch = 1080p) *The video signal frame rate is selected by SETUP parameters (59.94 or 50).
      • Video Effects: Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types), TRANSFORMER(11 types) EFFECTS: NEGATIVE, EMBOSS, COLORIZE, COLORPASS, POSTERIZE, SILHOUETTE, MONOCOLOR, FINDEDGE, FLIP, [email protected], [email protected], [email protected], [email protected], PinP(1/4)@, PinP(1/2)@, SPLIT(H-STRETCH)@. SPLIT(H-CENTER)@, SPLIT(V-STRETCH)@, SPLIT(V-CENTER)@ *@ marked Effects are effected common to A-BUS and B-BUS.
      • Audio
      • Audio Processing: Sampling rate: 24bit/48kHz
      • Input Connectors: Digital: HDMI OUTPUT (HDMI Type A 19 pins), HDMI PREVIEW (HDMI Type A 19 pins) Analog: AUDIO OUT (RCA pin type), PHONES (Stereo mini type)
      • Input Level: AUDIO IN: -10 dBu (Maximum : +8 dBu), MIC: -41 - -13dBu (Maximum : -1 dBu)
      • Input Impedance: AUDIO IN: 15 k ohms, MIC:10 k ohms
      • Output Impedance: AUDIO OUT: 1k ohms, PHONES: 10 ohms
      • Audio Effects: EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
      • Others
      • Other Connectors: USB: B Type (for remote control from PC), MIDI: IN, OUT/THRU
      • Other Functions: MEMORY (8 types), FREEZE (input video captured), BPM SYNC (auto transition synchronized to tempo), OUTPUT FADE (WHITE/BLACK)
      • Power Supply: AC Adaptor
      • Current Draw: 1.5A
      • Power Consumption: 18W
      • Dimensions: 313 (W) x 102 (D) x 59 (H) mm / 12-1/3 (W) x 4 (D) x 2-1/3 (H) inches
      • Weight: 1.2 kg (excluding AC adaptor) 2 lbs 10-2/5 oz
      • Accessories: Owner's Manual, AC Adaptor, Power Cord, Cord Hook


        Inputs and Outputs
      • HDMI Video Input Progressive:
      • 1920x1080 @ 60/59.94/50/30/29.97/25/24/23.98 Frames per second
      • [email protected] 60/59.94/50 Frames per second
      • HDMI Video Input Interlaced:
      • 1920x1080i 29.97/25 frames per second
      • Video Input Format is Auto-Detected
      • HDMI Video Output: Preview output of video input signal. 2 Frame delay from input to output.
      • Audio Input: Processes first two channels of audio embedded in HDMI input signal. Unbalanced analog stereo input via 1/8" (3.5mm) jack. Line Level
      • Audio Output: Passthrough of all embedded audio channels in HDMI signal. Unbalanced analog stereo output via 1/8" (3.5mm) jack - passthrough of input. Line Level
      • Physical
      • Dimensions: 5.60 in. long (14.2 cm) 4.30 in. deep (10.9 cm) excluding inserted SD-CARD 4.40 in. deep (11.2 cm) including inserted SD-CARD 1.22 in. (3.1 cm) high including rubber feet
      • Weight: 0.66 lbs (300 grams) excluding power supply
      • Operating conditions: 32 to 104 deg. F (0 to 40 deg. C), 20 to 80% relative humidity (non-condensing)
      • Power: Line Voltage: 100-240V AC, 0.5A
      • Frequency: 50-60 Hz
      • Input: External AC/DC adapter - IEC320-C8
      • Output: +5VDC, 3A max
      • Total power consumption: 15 Watts
      • DIN4 Locking Power Connector
      • Transport and Storage:
      • Max Operating Altitude: 3000 meters
      • Max Transport altitude: 12,000 meters
      • Storage Humidity 5 to 95% relative humidity (non-condensing)
      • Regulatory: FCC Class B, CE Mark Class B, ACMA C-Tick Mark, VCCI; RoHS Directive 2002/95/EC
