Roland Systems Group UVC-01 USB 3.0 Video Capture Device

ITEM #: RSG-UVC-01 MFG #: UVC-01

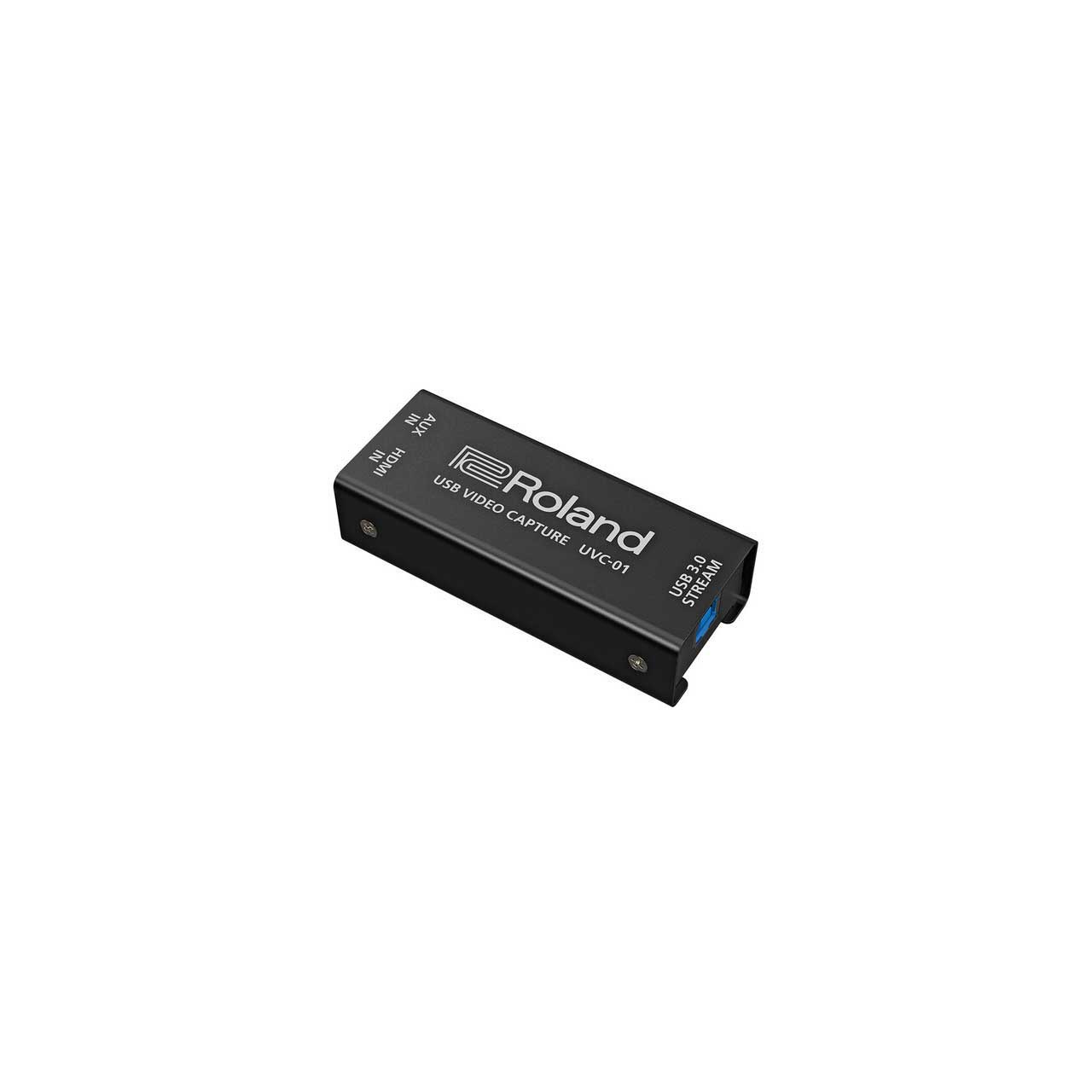

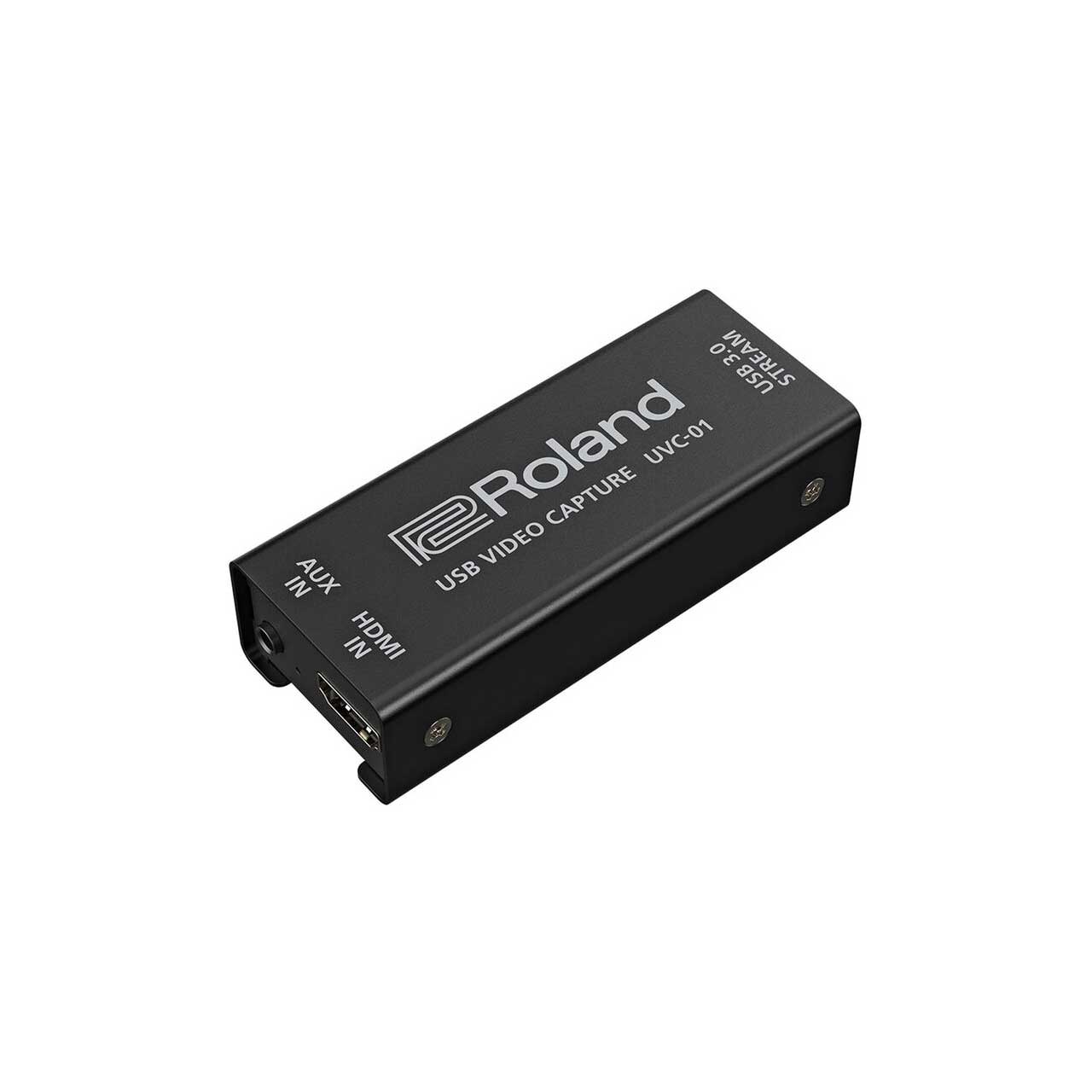

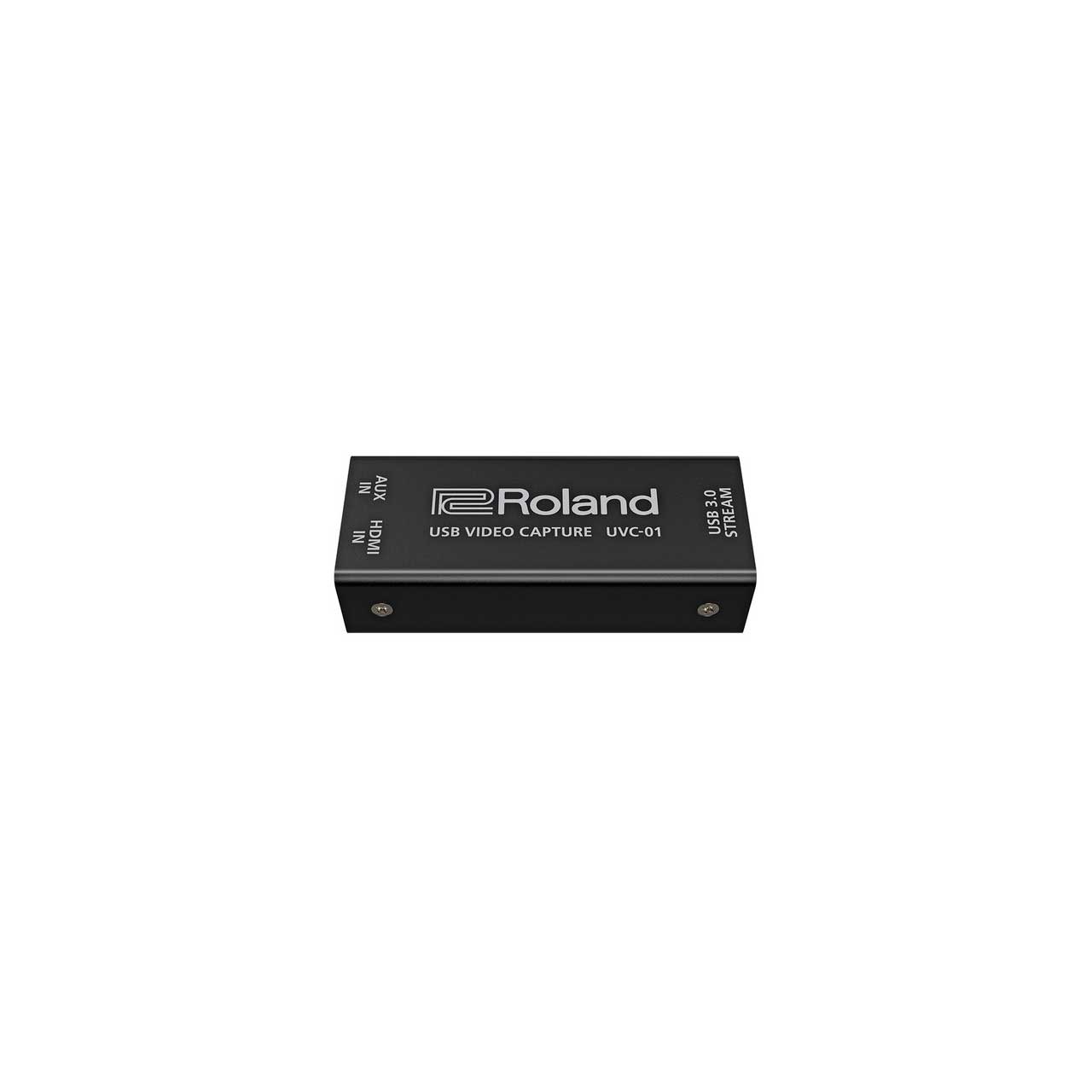

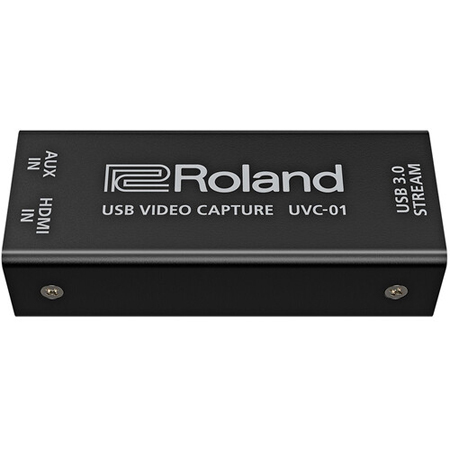

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$249.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    UVC-01 - Overview

    Plug-and-Play for Flawless Recordings and Livestreams
    For online content creators, musicians, and gamers to businesses, schools, and houses of worship, livestreaming is an essential medium for communicating with people around the world. With the UVC-01, it's never been easier to add high-quality livestreaming capabilities to your Roland V-series video switcher or favorite HDMI-equipped camera or camcorder.

    Just connect to the UVC-01 via HDMI, plug into your computer's USB 3.0 port, and start streaming to Facebook Live, YouTube, and other popular platforms. Offering plug-and-play operation in a rugged, pocket-size design, the UVC-01 is ready for action everywhere you go.

    Quality You Can Count On
    Backed by more than two decades of professional A/V product development, Roland's UVC-01 drives your livestream with uncompressed 1080p HD image quality, ultra-smooth 60 FPS motion, and low-latency encoding. And thanks to its hardware-based design, it just works every time you need it-efficiently, consistently, and reliably.

    Plug In and Stream
    Once connected, the UVC-01 automatically shows up as a source in your streaming software, with no drivers or fussy setup required. Like a dedicated webcam, it encodes HDMI to USB video class and USB audio class formats, letting you instantly stream at superspeed USB 3.0 with any service, platform, or application that accepts a webcam as its A/V source.

    A Sound Solution
    With the UVC-01, stereo audio is embedded in the HDMI feed along with video. And thanks to the dedicated audio input, it's possible to blend a secondary sound source as well. For example, you can play bumper music from your smartphone, or use Roland's GO-MIXER Pro to combine a mic and instruments for impactful musical performances.

    Reach More People
    By delivering your message to in-person and online audiences at the same time, you can achieve a wider reach with minimal extra effort. Using a Roland professional video switcher in tandem with a UVC-01, it's simple to create these hybrid productions. Just connect the UVC-01 to the second output of your switcher and simultaneously broadcast live action to your preferred streaming platform.

    Capture and Distribute
    In some situations, you may want to record a presentation ahead of time and distribute it online after the fact. With the free Roland Live Recorder (Windows) and Video Capture for VR (Mac) applications, you can capture high-quality video and audio through the UVC-01 in real time, ready for upload to video sharing sites.

    • Features:

      • High-quality HDMI to USB 3.0 video encoder
      • Plug-and-play USB webcam operation for Mac and Windows computers
      • Seamlessly works with all Roland V-series switchers with an HDMI output
      • Also works with most HDMI-equipped cameras and camcorders
      • Uncompressed 1080p HD at 60 FPS for engaging livestreams
      • Dedicated analog audio line input for live music versatility
      • Powered via USB

    • Specifications:

      • Input:
      • Video Input Connectors: 1 x HDMI
      • Input Video Format: HDMI:
        1080p: 50/59.94/60 fps
        1080i: 50/59.94 fps
        720p: 50/59.94/60 fps
        UXGA (1600 x 1200): 60 fps
        SXGA+ (1400 x 1050): 60 fps
        FWXGA (1366 x 768): 60 fps
        SXVGA (1280 x 1024): 60 fps
        WXGA (1280 x 800): 60 fps
        XGA (1024 x 768): 60 fps
        SVGA (800 x 600): 60 fps
        VGA (640 x 480): 60 fps
        576p: 50 fps
        576i / 625 lines: 50 fps
        480p: 59.94 fps
        480i / 525 lines: 59.94 fps
      • Audio Input Connectors: 1 x 1/8" / 3.5 mm TRS Stereo Analog
      • Input Audio Format: LPCM (Linear Pulse-Code Modulation): 48 kHz LPCM (Linear Pulse-Code Modulation): 44.1 kHz
      • Embedded Audio Input: HDMI

        Output:
      • Output Video Format: USB Type-B
        1080p: 60 fps
        WUXGA (1920 x 1200): 60 fps
        720p: 60 fps
        HD+ (1600 x 900)
        WUXGA+ (1680 x 1050)
        UXGA (1600 x 1200)
        WXGA+ (1440 x 900)
        FWXGA (1366 x 768)
        1360 x 768
        WXGA (1280 x 800)
        SXGA (1280 x 1024)
        XGA+ (1152 x 864)
        XGA (1024 x 768)
        1024 x 576
        960 x 540
        856 x 480
        SVGA (800 x 600)
        PAL (768 x 576)
        720 x 576
        720 x 480
        VGA (640 x 480)
        640 x 360
        QVGA (320 x 240)
      • Output Audio Format: LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
      • Embedded Audio Output: HDMI

        Environmental:
      • Operating Temperature: 32 to 104°F / 0 to 40°C

        General:
      • Dimensions: 3.5 x 1.5 x 0.9" / 90 x 37 x 23 mm
      • Weight: 3.4 oz / 96 g
      • Warranty Length: Limited 1-Year Warranty

    • Warranty:

      • Limited 1 Year Warranty

    • GTIN:

      0761294518014
