Gepco VSD2001 RG6 4.5GHz High Definition SDI Coax Cable 1000 Ft Orange

ITEM #: VSD2001-1000 OE MFG #: VSD2001-1000 OE

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$924.90

Our Price:

$605.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    VSD2001-1000 OE - Overview

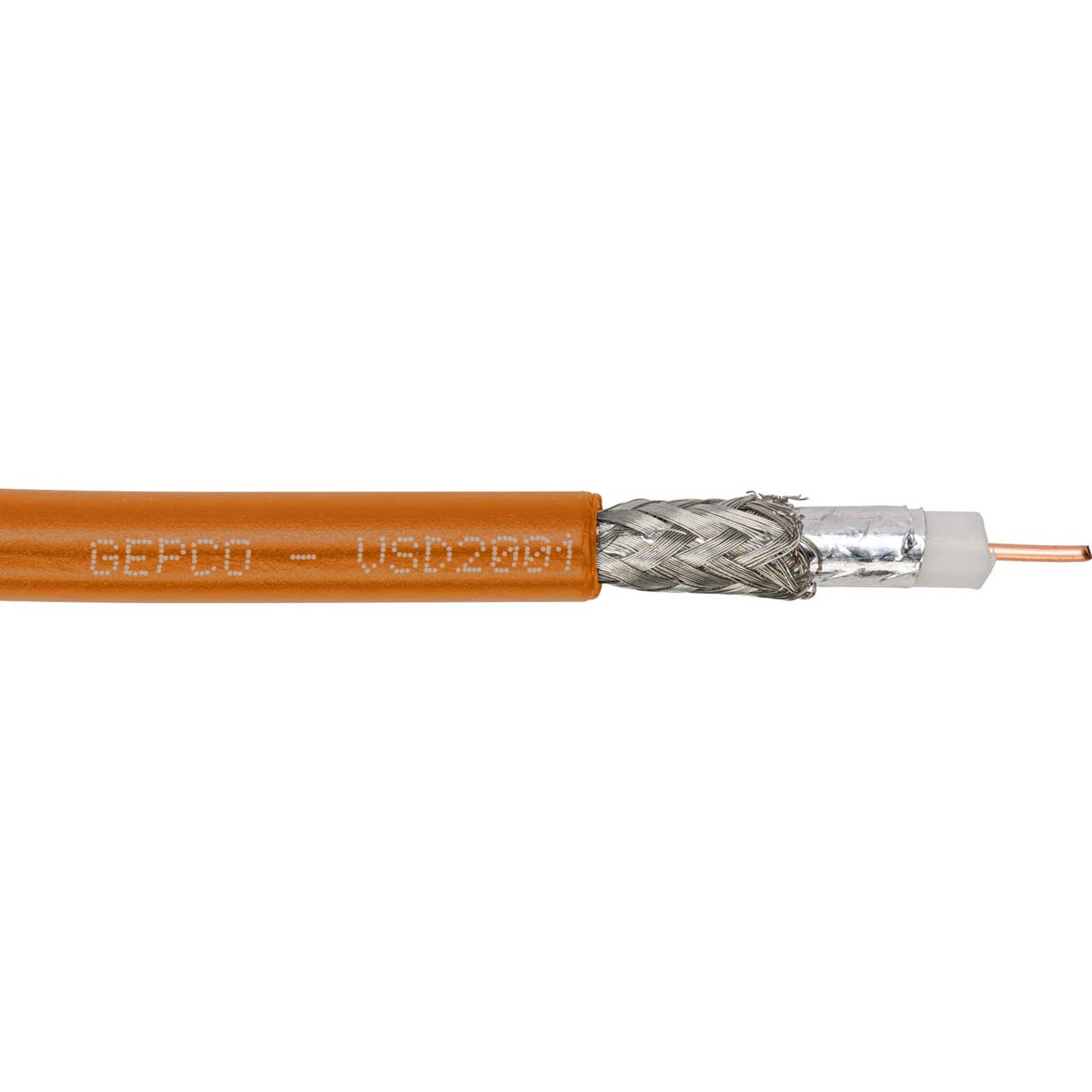

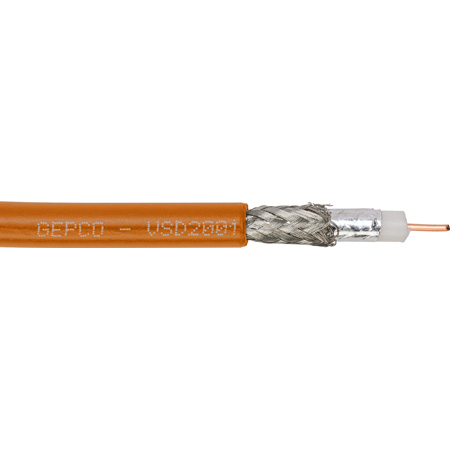

    The Gepco Brand high-definition video coax series has been engineered to feature a 4.5 GHz bandwidth (for HDTV transmission), a gas-injected foam dielectric, lower attenuation, more RG types, excellent crush resistance, easy termination and a flexible jacket. The gas-injected dielectric and precision process control are critical factors in achieving superior electrical performance including faster velocity of propagation, tight impedance tolerance, low attenuation and low structural return loss across the entire 4.5 GHz bandwidth. Conductive elements consist of a stranded or precision-drawn solid copper center conductor and either a 92% or 95% braid with 100% foil shield for complete broadband shielding. The series contains a wide range of sizes to accommodate short-distance rack wiring or extended-distance point-to-point interconnect.

    • Specifications:

      • Conductor: 18 AWG Solid Bare Copper RG Standard: RG6 Nominal O.D.: 0.272" Insulation: Gas-inected Foam EP .180" Shield: 95% TC Braid, 100% Foil Jacket: PVC UL Type: CMR

    • GTIN:

      0612825390213
