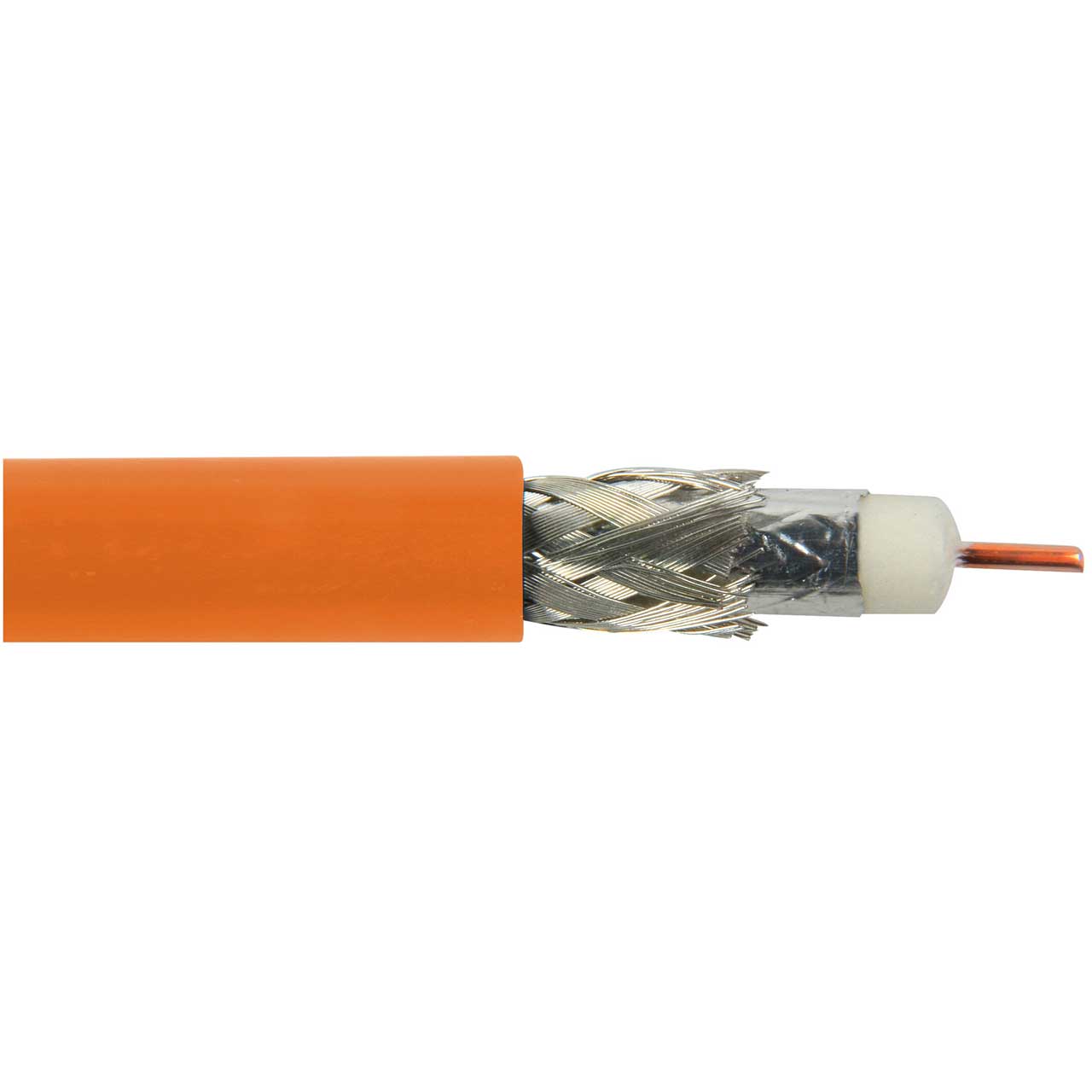

Belden 1694A 0031000 CMR Rated 6G-SDI RG6 75 Ohm Digital Coaxial Video Cable 18AWG - Orange - 1000 Ft

ITEM #: BL-1694A-1000OE MFG #: BL-1694A-1000OE

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,331.50

Our Price:

$589.00

Availability: In Stock
iAvailability Description Popup


    BL-1694A-1000OE - Overview

    Perfect for Digital Video, 6 Gb/s UHDTV and HD-SDI 1080p

    Belden's 1694A is a 75 Ohm RG-6, 18 AWG, HD-SDI, CMR rated Coaxial Cable with a Solid Bare Copper Conductor, PE Insulation, Foil and 95% Tinned Copper Braided Shield in a PVC Jacket.

    Applications
    Digital Video
    6 Gb/s UHDTV
    HD-SDI 1080p
    Video Surveillance
    Cable and satellite signal transmission

    • Features:

      • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
      • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
      • Easy Identification: Cable jackets feature footage room and zone markings

    • Specifications:

      • Number of Coax: 1
      • RG Type: 6
      • AWG: 18
      • Stranding: Solid
      • Conductor Material: BC - Bare Copper
      • Conductor Nom. Diameter: 0.040 in
      • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
      • Nom. Insulation Diameter: 0.180 in (4.57 mm)
      • Outer Shield Material Trade Name: Duofoil®
      • Outer Shield Material: Unshielded
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Overall Cable Diameter (Nominal): 0.274 (6.96mm)
      • Plenum (Y/N): N
      • Nom. Characteristic Impedance: 75 +/- 1.50
      • Plenum Number: BL-1695A
      • Environmental Suitability: Indoor/Outdoor, Indoor, UV Resistance

    • Item Includes:

      • 1694A 0031000 Digital Coaxial Cable 18AWG - Orange - 1000 Foot

    • Warranty:

      • Limited 10 Year Warranty

    • GTIN:

      0612825358251
