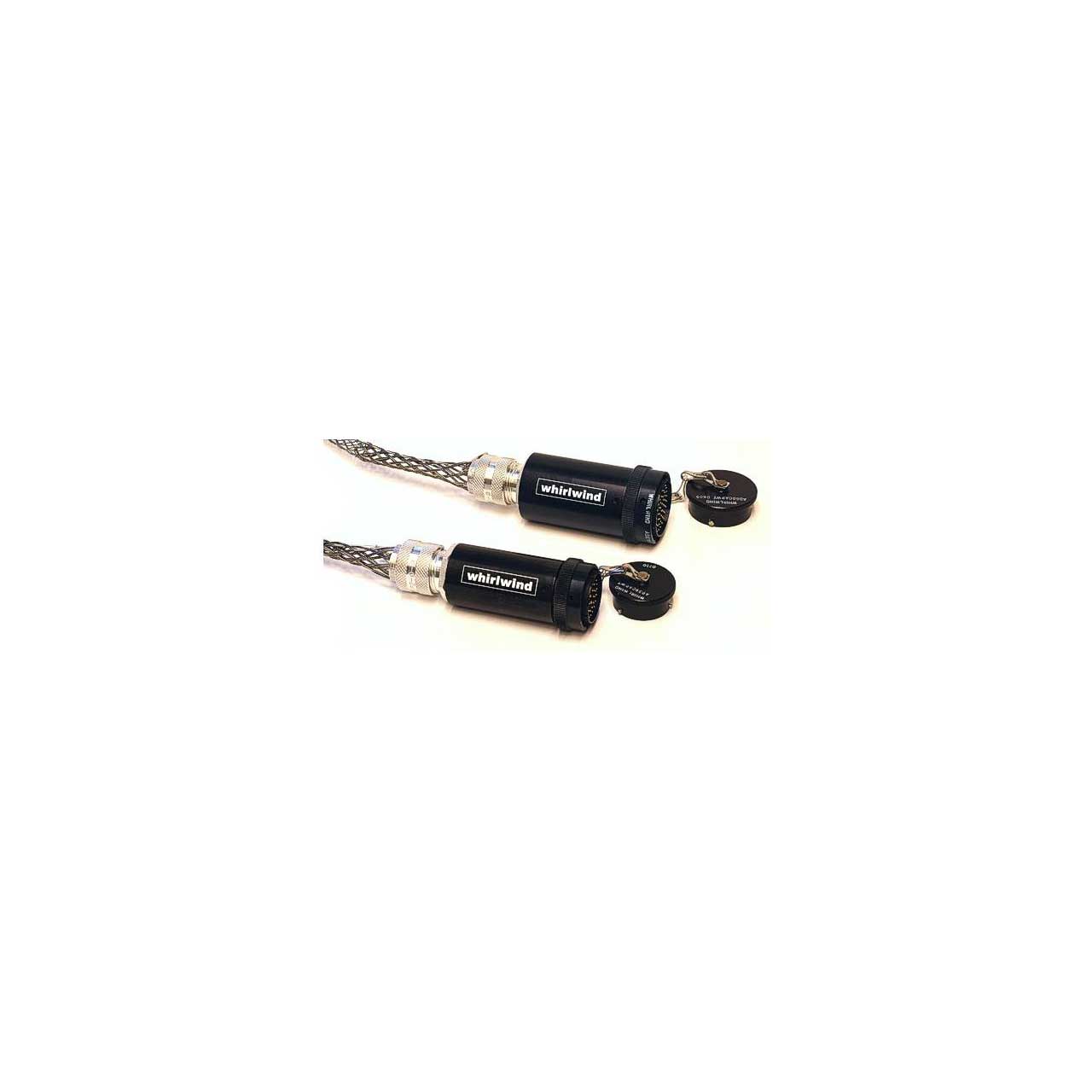

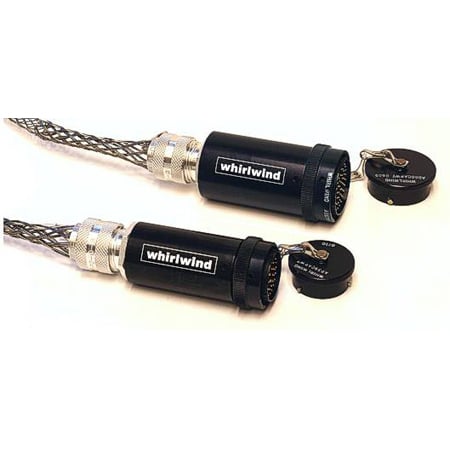

Whirlwind W2IM 61 Pin Inline Male Connector

ITEM #: W2IM MFG #: W2IM

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$403.48

Our Price:

$384.26

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    W2IM - Overview

    In addition to MASS and MicroMASS connectors, Whirlwind offers a second compact line of multipin connectors. This smaller series is used on multipair cables from 6 to 20 pairs, and is based on the proven military 1/4 turn quick-disconnect MIL-26482 series.

    This style comes in two sizes: W1 (which has 39 solder type contacts and is used for cables with 12 pairs or fewer), and W2 (which has 61 solder type contacts and is used on 16 and 20 pair cables). Each size has a male connector and a female connector. The male pins are fixed in a shell that has a locking ring attached. The female socket contacts are mounted in a receptacle shell that mates with and accepts the locking ring of the male connector.

    W2IM - Required Accessories
