Wohler iAM-AUDIO-2 Versatile Audio Monitoring from multiple Sources with Touch Screen Control and Graphical Metering

ITEM #: WOH-IAM-AUDIO-2 MFG #: IAM-AUDIO-2

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email

Items similar to the WOH-IAM-AUDIO-2

IAM-AUDIO-2 - Overview

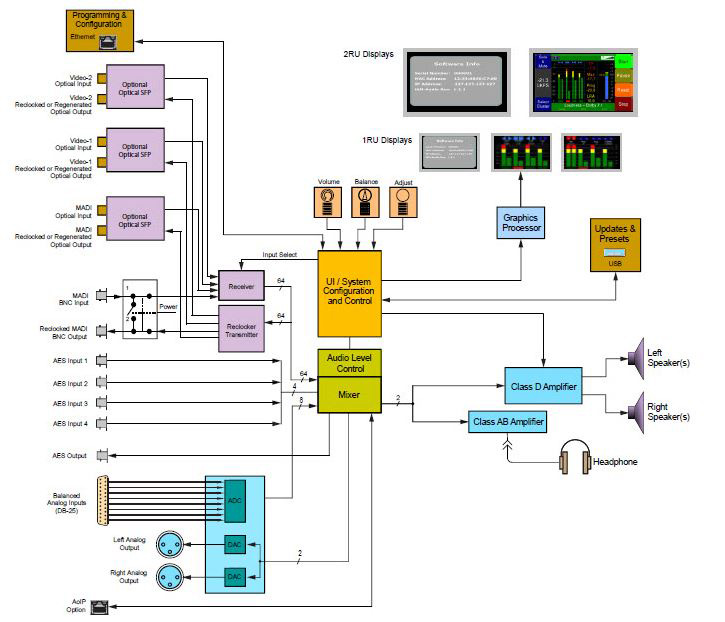

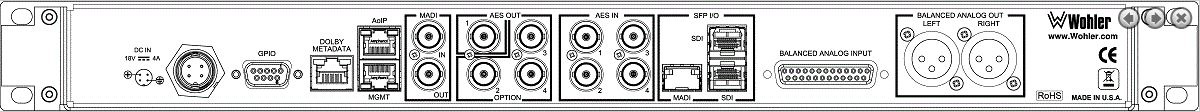

The Wohler iAM-AUDIO-2 is a 2RU multichannel multi-source audio monitor with multiple standard copper connections and multiple SFP module options facilitating high density coax and optical fiber connections. An optional module will allow decoding of Dolby D, DD+, and E streams. It has options for VoIP formats including MPEG2/4 TS and SMPTE 2022-6, 3G/HD/SD-SDI, and a growing range of additional I/O options via an SFP interface. Refer to the Specifications section of this manual or contact Wohler Sales for more information.

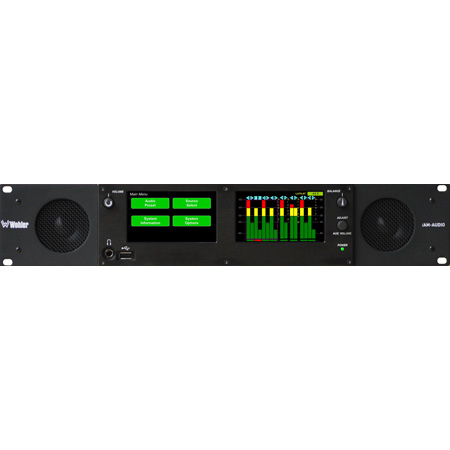

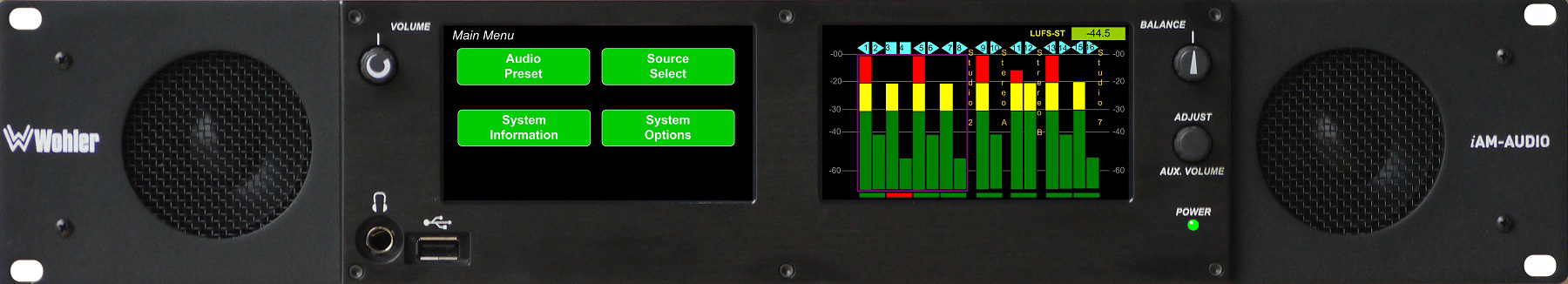

The iAM-AUDIO is compact and simple to operate. It has touch screen LCD displays providing high resolution meters, menus and basic monitor controls. Any channel (or group of channels that are clustered together) from any source stream may be audibly monitored and summed with the other selected channels to provide flexible monitoring capabilities.

Setups are created and configured using a web browser over a network connection to the integral web server of the iAM-AUDIO. Setup configurations can easily be copied to other iAM-AUDIO units.

Each iAM-AUDIO can be configured with Presets, which are complete monitoring configurations. Very little about the configurations of those predefined setups can be changed from the front panel. This prevents less experienced or hurried operators from making accidental setup changes that could compromise their usage of the unit. It also reduces operator training to a minimum.

IAM-AUDIO-2 - Required Accessories

    IAM-AUDIO-2 - Recommended Accessories
