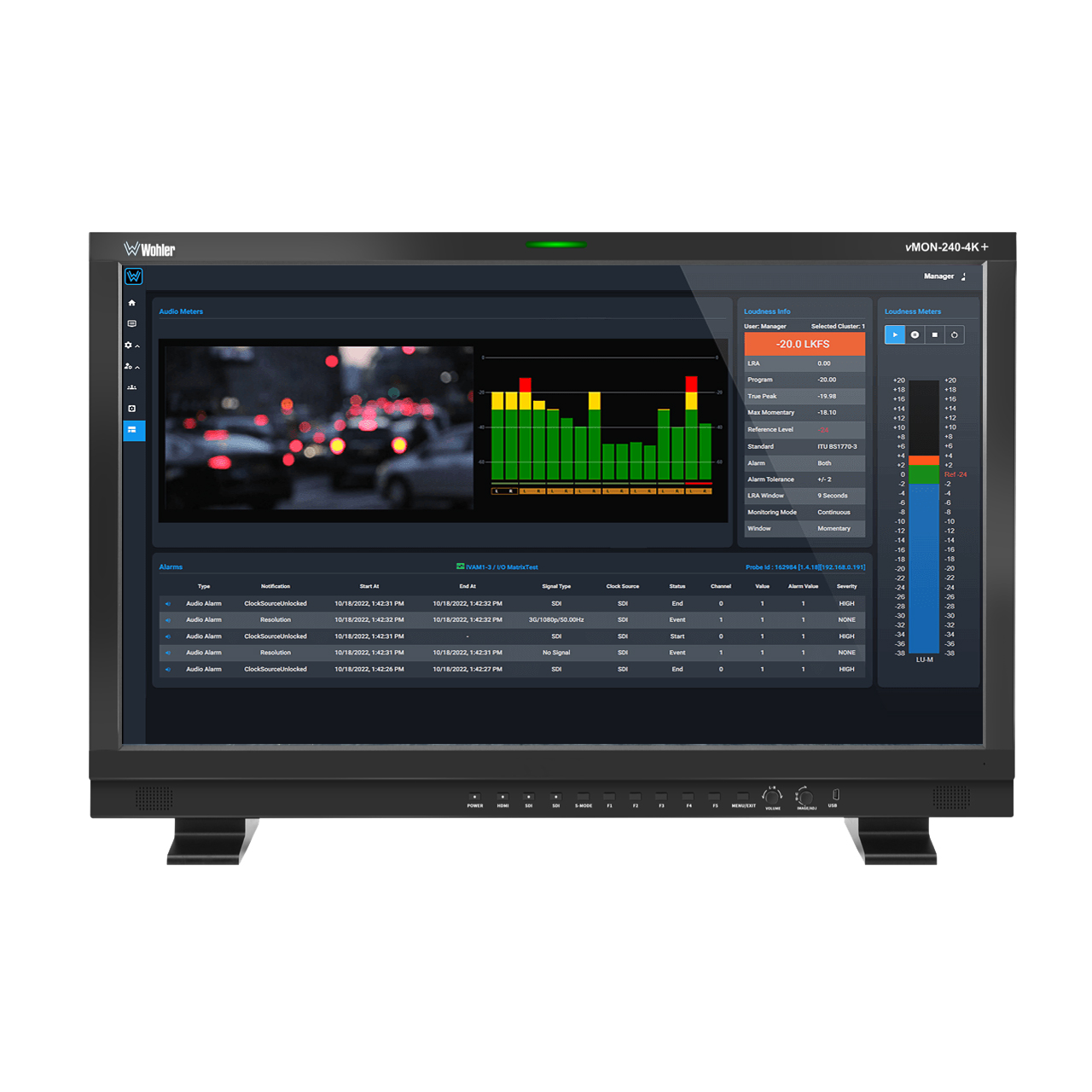

The Wohler vMON-240-4K+ is a 24" 4K HDR monitor with 2x12G/6G/3G/HD/SD-SDI and 2x3G/HD/SD-SDI inputs and outputs. It is a full-featured video monitor ideal for mobile trucks, news and transmission control rooms, production/post-production and video surveillance applications. The vMON-240-4K+ comes standard with in-monitor level metering, selectable video vectorscope/histogram, safe area and aspect ratio markers, IMD labeling, tally, and built-in color bars, as well as a variety of picture controls and productive video features such as zoom controls and focus assist.
The monitor has 1000 Nits brightness. Quad-link supports up to a 4096x2160 60p signal. The 4K HDR display supports PQ(ST2084) and HLG and is a cost effective 4K monitoring choice for a variety of 4K and FHD workflows. It supports a large variety of professional broadcasting features such as Quad Split, Waveform, Histogram, Darkness Check, making vMON-240-4K+ a brilliant 24-inch monitor in 4K production workflow.

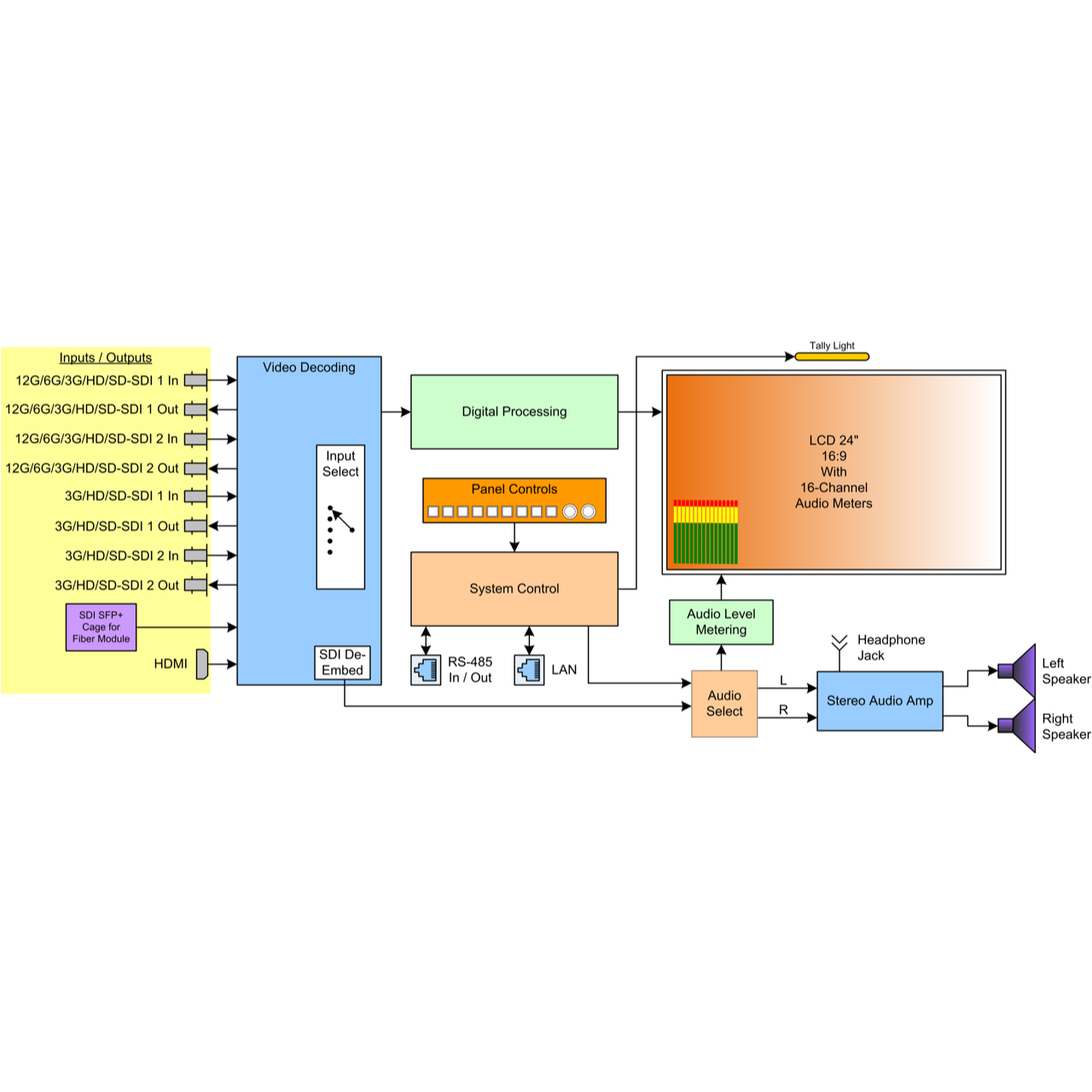

All standard frame rates and resolutions are supported from 12G-SDI, 6G-SDI, 3G-SDI, and HDMI input sources, and each SDI input has a looped output. Up to 16 audio channels may be selected for visual monitoring using on-screen bar graph style level meters. Monitoring speakers on the front panel allow the selected screen to be audibly monitored, while a 3.5mm headphone jack provides optional private monitoring.
