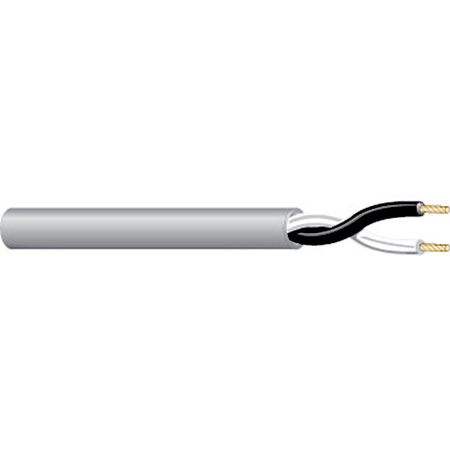

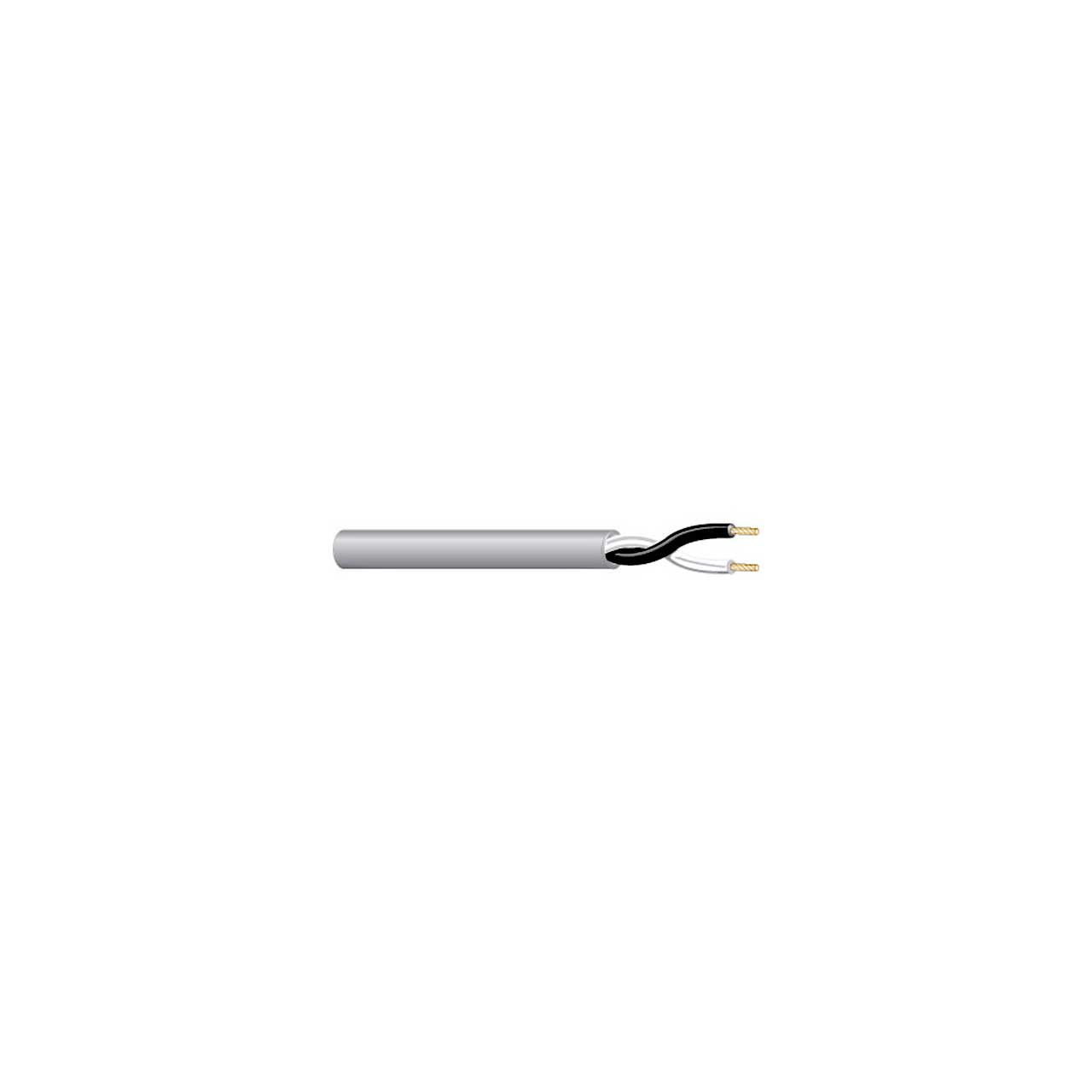

West Penn 226-1000-WE 14 AWG Twisted Paircable with Overall Jacket - Unshielded - White - 1000 Foot

ITEM #: WP-226-1000-WE MFG #: 226-1000-WE

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$423.50

Our Price:

$355.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

226-1000-WE - Overview

The West Penn 226-1000-WE is a 1000ft roll of 14 gauge Commercial grade speaker cable with PVC jacket and insulation and 2 bare copper conductors.

  • Specifications:

    • Number of Conductors: 2
    • AWG Size: 14
    • Conductor Stranding: 19x27
    • Conductor Type: Bare copper
    • Nominal DCR: 2.7Ω/1000ft
    • Cabling Lay Length: 4"
    • Twists/Foot: 3 twist/ft
    • Insulation Type: PVC
    • Insulation Thickness: 0.012 in
    • Insulation Color Code: 1. Black, 2. White
    • Shield Type: None
    • Jacket Type: PVC
    • Jacket Thickness: 0.017"
    • Nominal Cable O.D.: 0.23"
    • Plenum: No
    • NEC UL Rating: CL3R, FPLR
    • RoHS Compliant: Yes
    • Pull Tension: 79lbs
    • Bend Radius: 2.07"
    • Cable Weight: 42lbs
    • UL Flammability: UL1666 Vertical Shaft
    • Operating Range: -4° to 140°F
    • UL Voltage Rating: 300


  • GTIN:

    0612825043843
