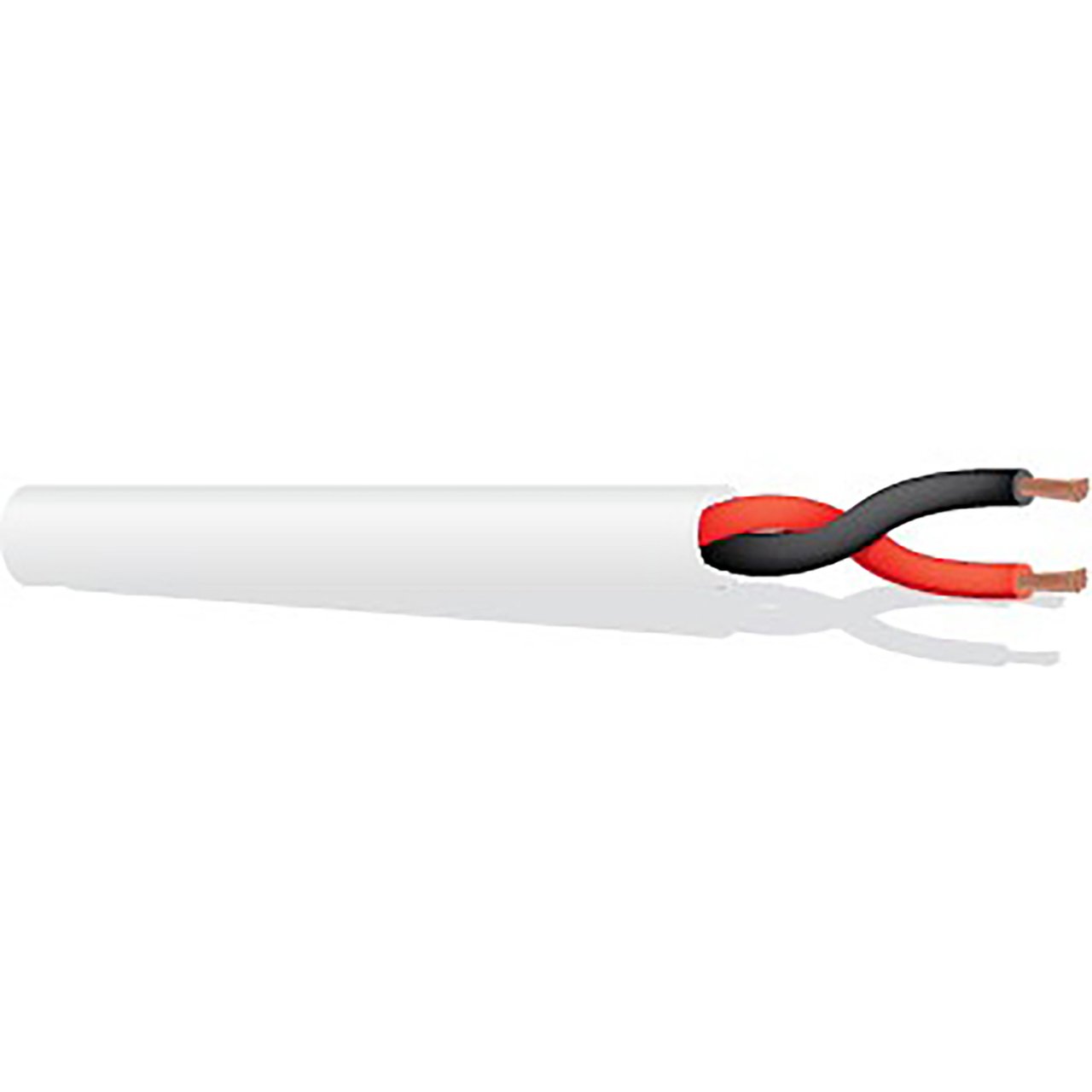

West Penn Wire 25225B-500 - 16 GA Unshielded Plenum Speaker Cable - 500 Feet - White

ITEM #: WP-25225B-500WE MFG #: 25225BWH0500

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$167.55

Our Price:

$139.67

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


25225BWH0500 - Overview

The West Penn Wire 25225BWH500 is a plenum speaker cable features 16/2 Stranded bare copper conductors and unshielded with an overall jacket. The first speaker cable designed to give high definition sound quality and meet all the requirements of plenum applications. These cables feature Oxygen Free Copper multi-stranded conductors which generate outstanding sound reproduction. Meets all NEC fire codes.

Normal applications include indoor within ducts, plenums and other spaces used for environmental air for Intercom, Security, Sound, Audio, Background music enviornments.

  • Specifications:

      Conductor Parameters
    • Number Of Conductors: 2
    • AWG Size: 16
    • Conductor Stranding: 19x29
    • Conductor Type: Bare copper
    • Nominal DCR: 4.2 Ohm/1000ft
    • Cabling Lay Length: 3'
    • Twists / Foot: 4 twist/ft

      Insulation Parameters
    • Insulation Type: Plenum PVC
    • Insulation Thickness: 0.008"
    • Insulation Color Code: 1. Black 2.Red

      Overall Construction Parameters
    • Jacket Type: Flexible Plenum
    • Jacket Thickness: 0.015"
    • Nominal Cable O.D.: 0.176"
    • Plenum: Yes
    • NEC CL Rating: CMP
    • RoHS Compliant: Yes
    • Pull Tension: 54lbs
    • Bend Radius: 1.583"
    • Cable Weight: 25lbs

  • Item Includes:

    • 1x West Penn Wire 25225BWH500 500' plenum speaker cable
