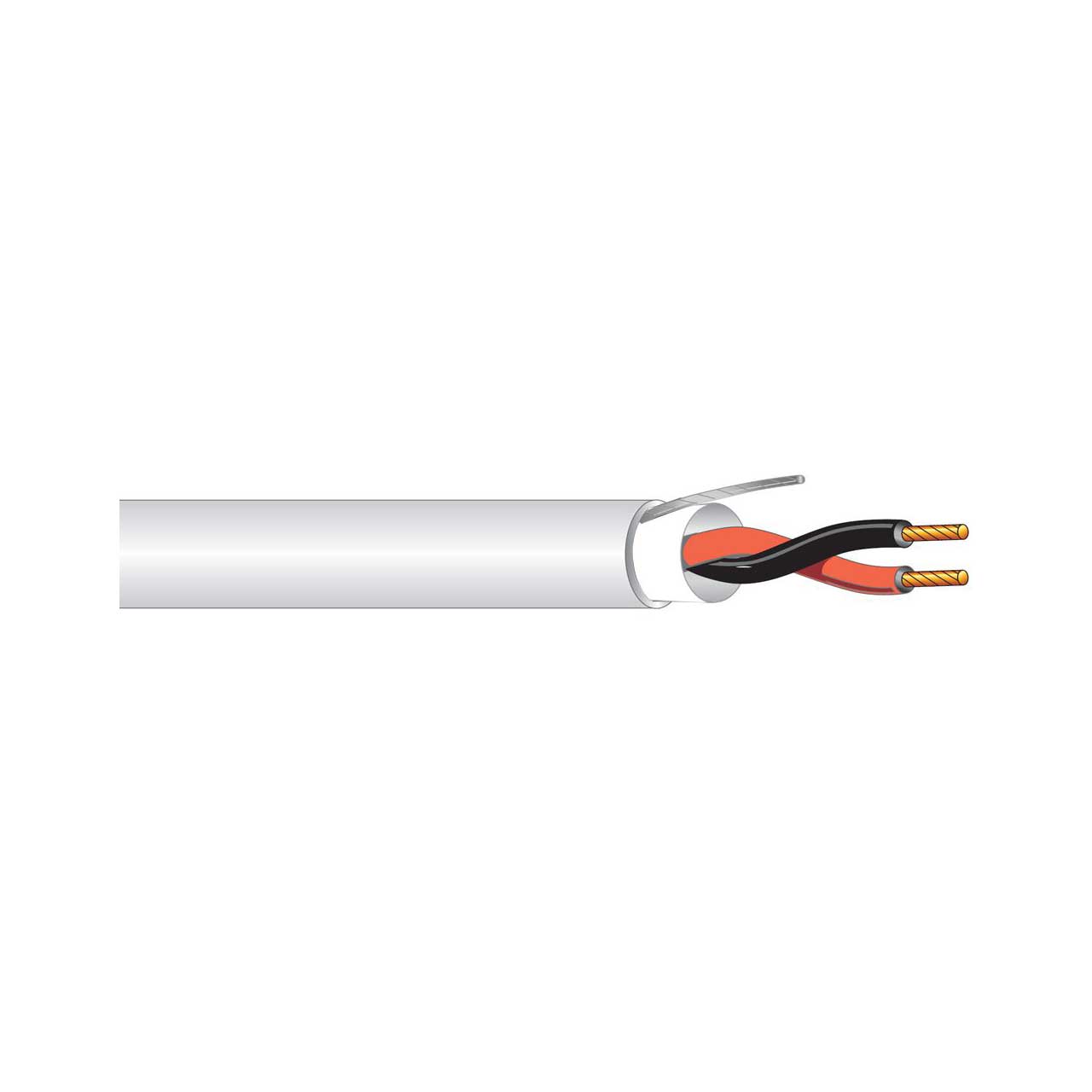

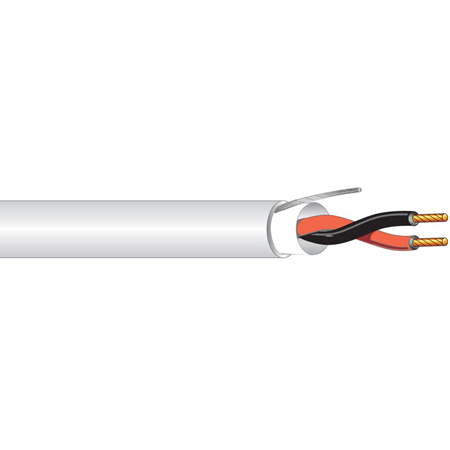

West Penn 25291B 1 Pair 22G Stranded Shielded Plenum Communication Cable - White - 1000 Foot

ITEM #: WP-25291B-1000WE MFG #: 25291BWH1000

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$141.00

Our Price:

$119.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    25291BWH1000 - Overview

    The 25291BWh2000 from West Penn is a 22/2 Stranded bare Plenum Communication Cable with copper conductors, shielded with an overall jacket, 1000'.

    • Specifications:

      • Construction Parameters:
      • Conductor: 22 AWG Bare Copper
      • Stranding: 7x30
      • Insulation Material: Flex Plenum PVC
      • Insulation Thickness: 0.070'' Nom.
      • Number of Conductors: 2
      • Shield: 100% Aluminum Polyester Foil
      • Drain: Stranded Tinned Copper
      • Jacket Material: Flex Plenum PVC
      • Jacket Thickness: 0.015'' Nom.
      • Overall Cable Diameter: 0.124'' Nom.
      • Approximate Cable Weight: 12 Lbs/1M' Nom.
      • Flame Rating: NFPA 262 Flame Test

        Electrical & Environmental Properties:
      • Temperature Rating: -10°C To +60°C
      • Operating Voltage: 300 V RMS
      • Max.Capacitance Between Conductors: @ 1 KHz 55 pf/ft Nom.
      • Capacitance Between Conductors to Shield: @ 1 KHz 99 pf/ft Nom.
      • DC Resistance per Conductor: @ 20deg C 17 Ohms/1M' Nom.
      • Insulation Colors: Black, Red
      • Jacket Color: Gray, Violet, Blue, Black, White
      • RoHS Compliant: Yes
