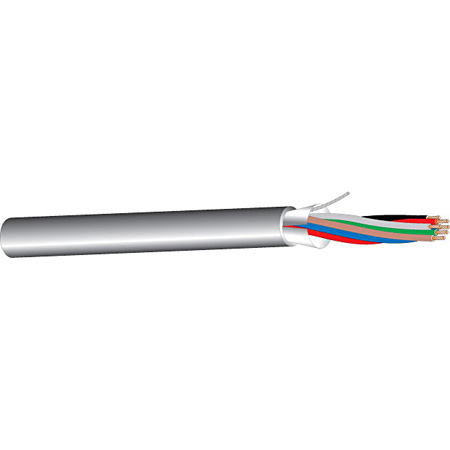

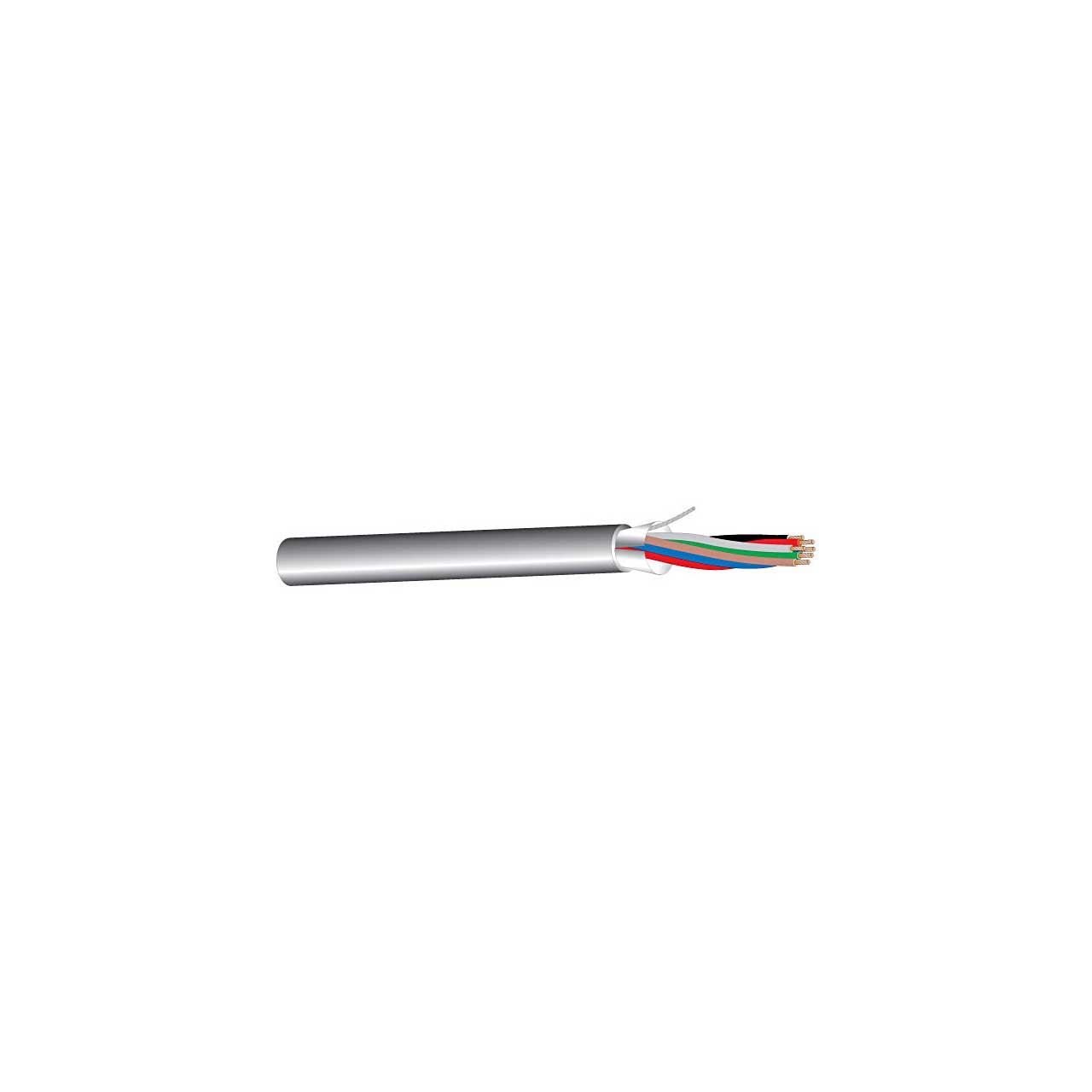

West Penn 253270BGY1000 22/6 Stranded Bare Copper Conductors Shielded with an Overall Jacket - 1000 Foot - Gray

ITEM #: WP-253270BGY1000 MFG #: 253270BGY1000

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$298.20

Our Price:

$250.42

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

253270BGY1000 - Overview

22/6 Stranded bare copper conductors, shielded with an overall jacket. Rated for Plenum use, and suitable for intercom systems, security systems, sound, audio and background music applications. 1,000' spool

  • Specifications:

    • Conductor
    • Number of Conductors: 6
    • AWG Size: 22
    • Conductor Stranding: 7x30
    • Conductor Type: Bare copper
    • Nominal DCR: 17 Ohm/1000ft

      Insulation
    • Insulation Type: Plenum PVC
    • Insulation Thickness: 0.007 in
    • Insulation Color Code: 1.Black,2.Red,3.White,4.Green,5. Brown,6.Blue

      Shielding
    • Shield Type: Overall 100% Aluminum Foil
    • Drain Wire Type: Tinned Copper
    • Drain Wire AWG: 24 AWG
    • Electrical
    • Nom. Cap. Between Conductors: 54 pF/ft
    • Nom. Cap. Conductor to Shield: 97 pF/ft

      Overall Construction
    • Jacket Type: Flexible Plenum
    • Jacket Thickness: 0.015 in
    • Nominal Cable O.D.: 0.162 in
    • Plenum: Yes
    • NEC UL Rating: CMP
    • RoHS Compliant: Yes
    • Bend Radius: 1.458 in
    • Cable Weight: 25 lbs


  • GTIN:

    0612825048510
