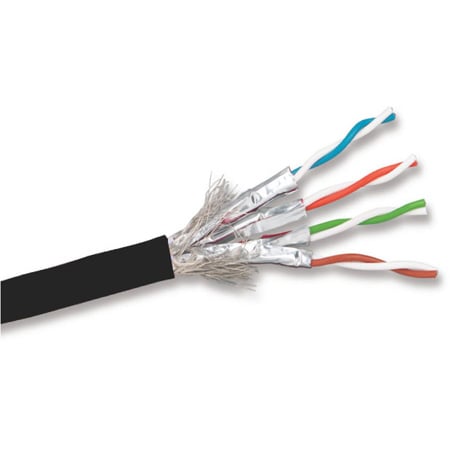

West Penn 254247F 4 Pair 22G Shielded Cat7 Cable CMP - Black - 1000 Foot

254247FBK1000 - Overview

• Specifications:

  • Conductor Parameter
  • Number of Pairs: 4
  • AWG Size: 22
  • Conductor Stranding: Solid
  • Conductor Type: Bare Copper
  • Nominal DCR: 24.6Ω/1000'

    Insulation Parameter
  • Insulation Type: Foam FEP
  • Insulation Thickness: .018"
  • Insulation Color Code: 1: Blue,WH-Blue 2: Orange,WH-Orange 3: Green,WH-Green 4: Brown, WH-Brown

    Shielding Parameter
  • Shield Type: Individually Al. Foil + 65% Tinned Copper Overall Shield

    Electrical Characteristics
  • Nominal Impedance: 100Ω
  • Nom. Cap. Between Conductors: 17 pF/ft
  • Nominal Velocity of Propagation (VP): 79%
  • Delay Skew: 25 ns/100m
  • UL Flammability: NFPA 262
  • CSA Flammability: FT6
  • Operating Range: -4° to 221°F (-20° to 105°C)
  • UL Voltage Rating: 300V

    Overall Construction Parameters
  • Jacket Type: Flexible Plenum
  • Jacket Thickness: .025"
  • Nominal Cable O.D.: .305
  • Plenum: Yes
  • NEC UL Rating: CMP
  • RoHS Compliant: Yes
  • ANSI/TIA Category: Category 7 - ISO11801 Class F
  • TIA Test: Category 7
  • Pull Tension: 25Lbs
  • Bend Radius: 3.05"
  • Cable Weight: 54Lbs


• GTIN:

  0612825401308
