Carries single-link 4K Ultra-HD video signals up to 12 GHz

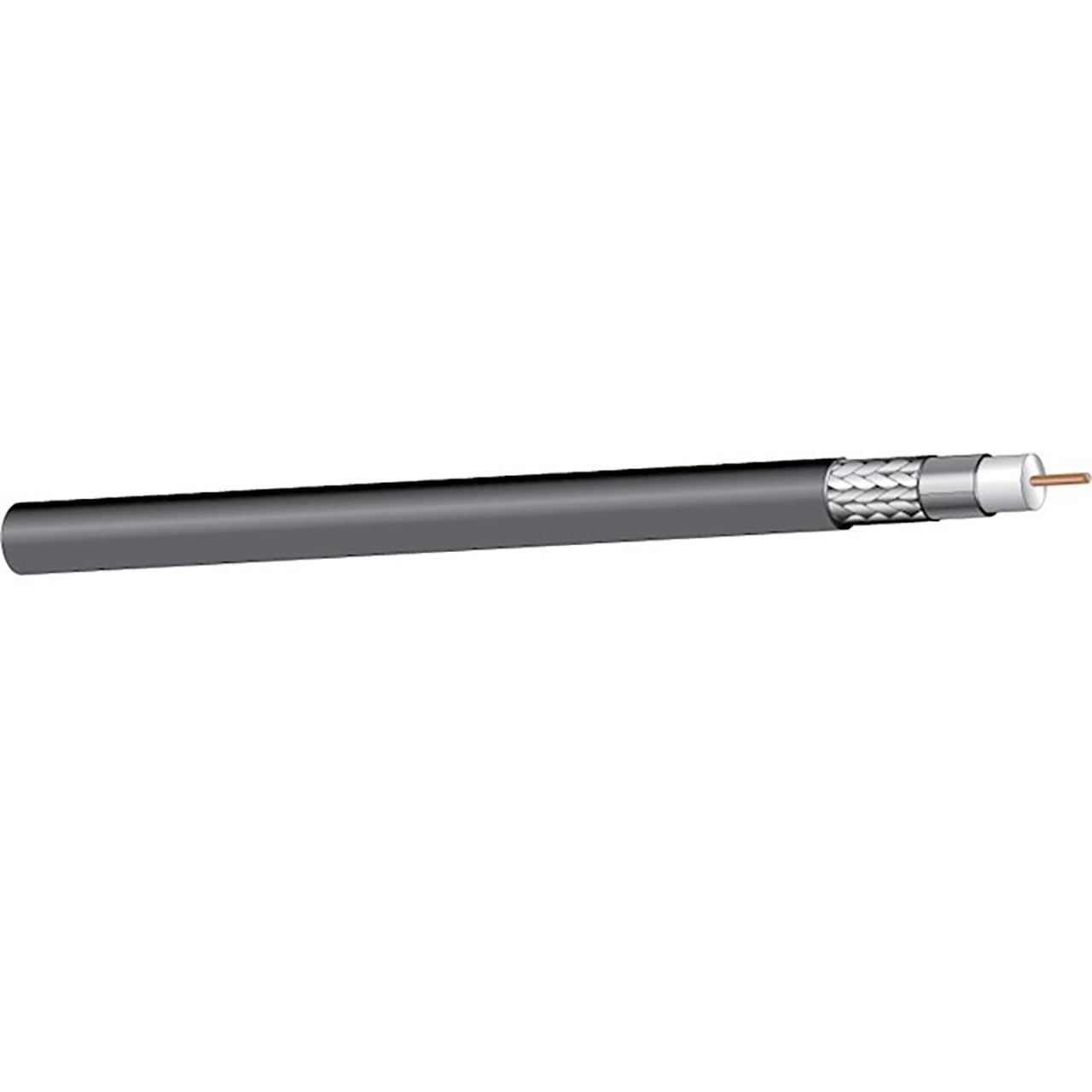

The West Penn 256450 is a high-performance 75Ω RG6/U 12Ghz HD-SDI CMP coxial video transmission cable for use in high-definition broadcast applications.
-
Conductor Parameter- Number of Conductors: 1
- AWG Size: 18
- Conductor Stranding: Solid
- Conductor Type: SC - Silver Copper
- Nominal DCR: 6.4Ω/1000ft
- RG Size: RG6/U
Insulation Parameter - Insulation Type: FEP - Fluorinated Ethylene Propylene (Foam)
- Insulation Thickness: 0.168
Shielding Parameter - Shield Type: 100% Tape Tri-Laminate (Alum+Poly+Alum)
- Shield Type 2: 95% Tinned Copper Braid
Electrical Characteristics - Nominal Impedance: 75Ω
- Nom. Cap. Between Conductors: 16.1pf/ft
- Nom. Vel. Of Prop: 83%
Overall Construction Parameters - Jacket Type: PVC
- Nominal Cable O.D.: 0.229
- Plenum: Yes
- NEC UL Rating: CMP
- RoHS Compliant: Yes
- Pull Tension: 69bs/f
- Bend Radius: 2.7"
- Cable Weight: 41lbs
Overall Electrical/Optical Characteristics - UL Flammability: NFPA 262
- Operating Range: 32°:F - 167°:F
- UL Voltage Rating: 300V
-
- 1x West Penn 256450 RG6/U 12Ghz HD-SDI CMP Coxial Video Transmission Cable - Black - 1000 Foot Put-Up
