West Penn CN-BNC6-12G-50 12G HD-SDI BNC Compression Style Connectors - 50 Pack - For West Penn 6450 RG6/U 12G Cable

ITEM #: WP-CN-BNC6-12G50 MFG #: CN-BNC6-12G-50

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$211.64

Our Price:

$167.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

CN-BNC6-12G-50 - Overview

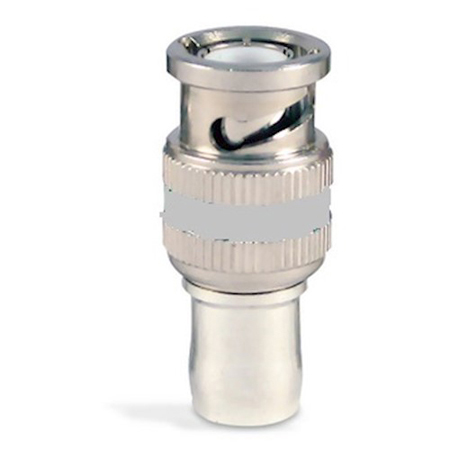

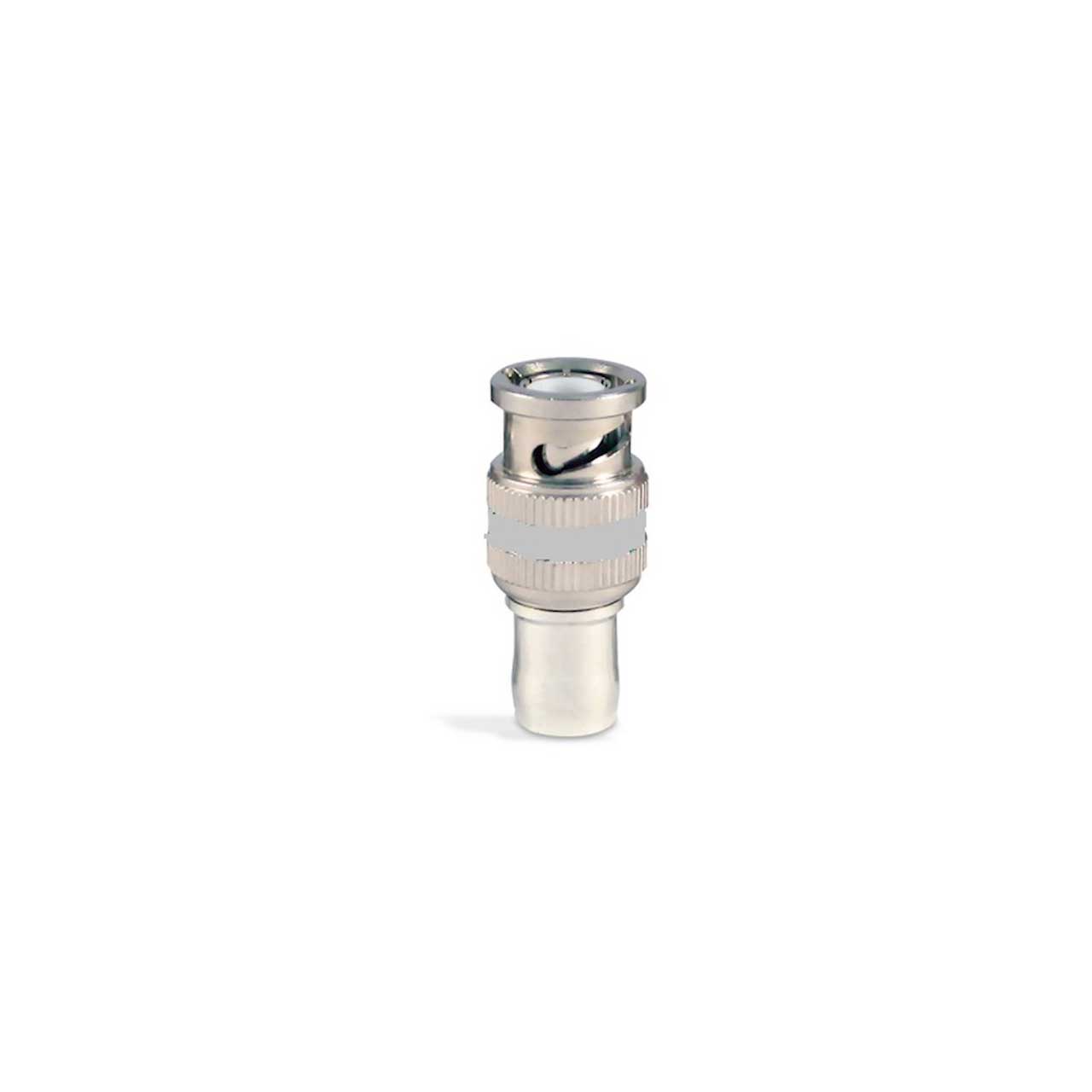

West Penn CN-BNC6-12G-50 is a 12Ghz BNC male 1 piece compression connector that will fit on the new West Penn 12Ghz HD-SDI cables, 6450 and 256450.

  • Specifications:

    • Connector Material
    • Nut Brass: Nickel Plated
    • Body Brass: Nickel Plated
    • Contact Brass: Gold Plated
    • Insulator: PTFE
    • Package Quantity: 50

      Specifications & Dimensions
    • Cable Specifications: RG6/U 18AWG
    • Connectors: BNC Male 1pc. Compression
    • Physical Characteristics: Compression Style Connector
    • Electrical/Optical Characteristics: 75 Ohms

      Return Loss
    • Frequency/Minimum Return (RL):
      5-1485MHz/15dB
      1485-3000MHz/10dB
      3000-6000MHz/7dB
      6000-12000MHz/4dB
      Electrical Characteristics Notes: SMPTE 2082-1 Return Loss or better

      Tools
    • Strip Tool: TL-59/6
    • Compression Tool: CPLCRBC-BR

      Environmental Characteristics
    • Environmental Space: Indoor
    • EU Directive 2000/53/EC (ELV): Yes
    • EU Directive 2011/65/EU (ROHS II): Yes
    • EU Directive 2012/19/EU (WEEE): Yes
    • EU Directive 2015/863/EU: Yes
