West Penn 4245OSPBK CAT5e Outdoor/UV & Water Resitant UTP Cable - 24/2 Solid BC - 1000 Feet - Black

ITEM #: WP-4245OSPBK MFG #: 4245OSPBK

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$328.10

Our Price:

$299.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    4245OSPBK - Overview

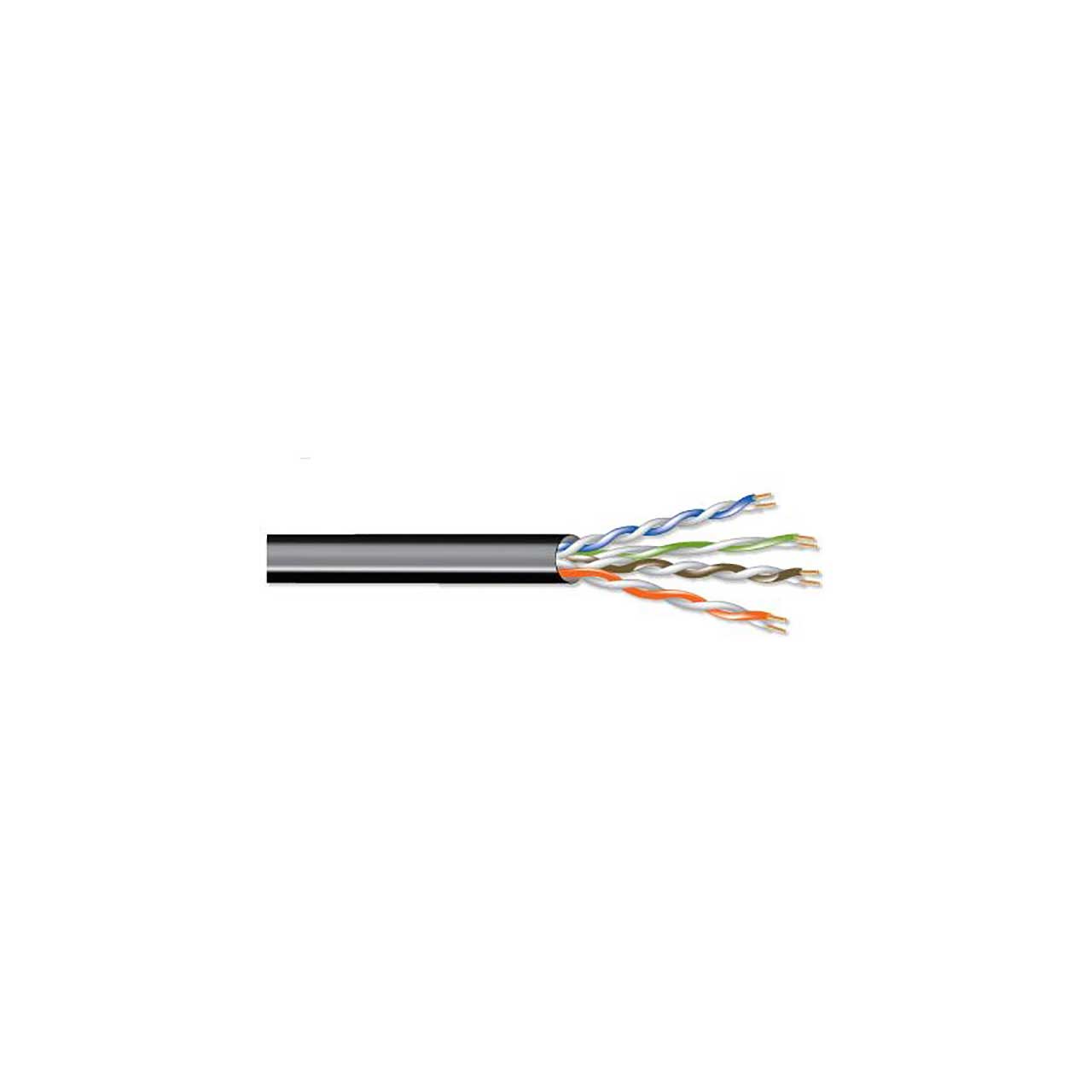

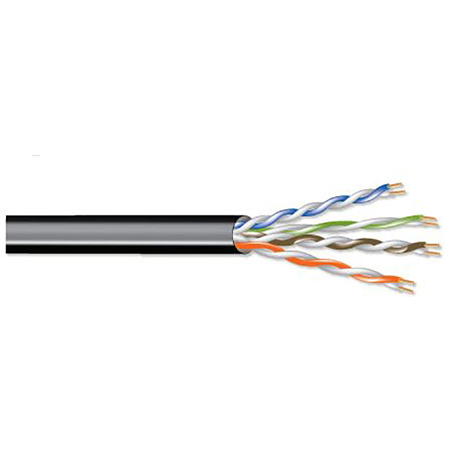

    West Penn 4245OSPBK is a CAT5e Outdoor/UV and Water Resitant 4 Pair UTP Cable. It's 24AWG with 24/2 Solid BC. Designed for harsh conditions the cable is fully water blocked and has a sunlight resistant jacket. It's perfect for 10/100 BaseT Ethernet, IP CCTV, Digital Integration, and HDBaseT. This Cable is rated for use outdoors in ducts and aerial lashing.

    • Features:

      • Number Of Pairs 4
      • AWG Size 24
      • Conductor Stranding Solid
      • Conductor Type Bare Copper
      • Nominal DCR 26 Ohm/1000f
      • Insulation Type Polyolefin
      • Insulation Color Code 1.Blue,WH-Blue 2.Orange,WH-Orange 3.Green,WH-Green 4.Brown, WH-Brown
      • Shield Type Unshielded Twisted Pair (UTP)
      • Flooding Compound Yes - Water Blocking Compound
      • Nominal Impedance 100 Ohm
      • Nominal Capacitance Between Conductors 14 pF/f
      • Total Number of Conductors 8
      • Jacket Type UV Resistant PE
      • Nominal Cable O.D. 0.255 in
      • Plenum No
      • NEC UL Rating Outdoor
      • ANSI/TIA Category Category 5E TIA/EIA 568C.2
      • TIA Test ANSI/TIA-568-C.2
      • Pull Tension 35 lbs
      • Bend Radius 1.275 in
      • Cable Weight 34 lbs
      • Nominal Velocity of Propagation (VP) 72 %
      • Delay Skew 45 ns/100m
      • Operating Range -20 to 75 Deg C
      • UL Voltage Rating 300
