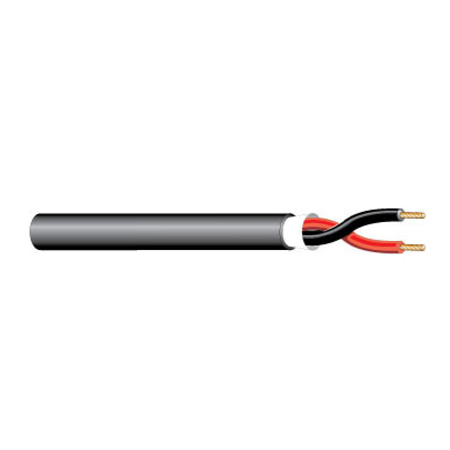

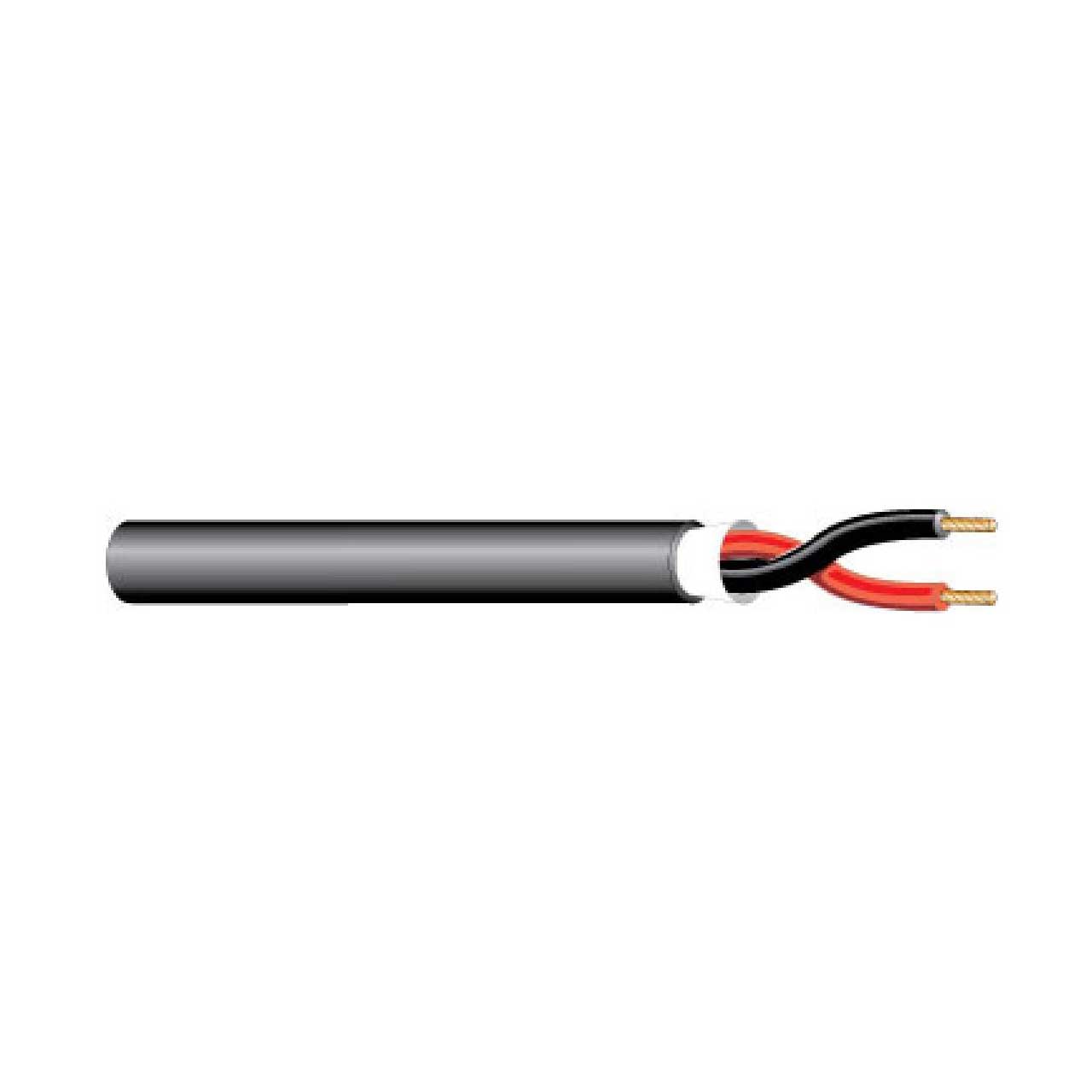

West Penn AQC226 1 Pair 14 AWG Unshielded Aquaseal Stranded BC Audio Cable - Gray - 1000 Foot

AQC226GY1000 - Overview

AQC226GY1000 - Overview

West Penn Wire Aquaseal® In Conduit Cables offer a two ply tape for ultimate protection against water infiltration into the cable.

AQC226GY1000 - Details

• Specifications:

  • Number of Conductors: 2.
  • AWG Size: 14.
  • Conductor Stranding: 19 x 27.
  • Conductor Type: Bare Copper.
  • Nominal DCR: 2.7 Ohm/1000ft.
  • Insulation Type: PVC.
  • Insulation Thickness: 0.015 in.
  • Insulation Color Code: 1. Black 2.Red.
  • Shield Type: Aquaseal Water Blocking Tape.
  • Nom. Cap. Between Conductors: 34 pF/ft.
  • Jacket Type: UV Resistant PVC.
  • Jacket Thickness: 0.025 in.
  • Nominal Cable O.D.: 0.294 in.
  • Plenum: No.
  • NEC UL Rating: CL3, FPL.
  • RoHS Compliant: Yes.
  • TIA Test: TIA455-82 Water Penetration Test.
  • Pull Tension: 82 lbs.
  • Bend Radius: 2.646 in.
  • Cable Weight: 48 lbs.
