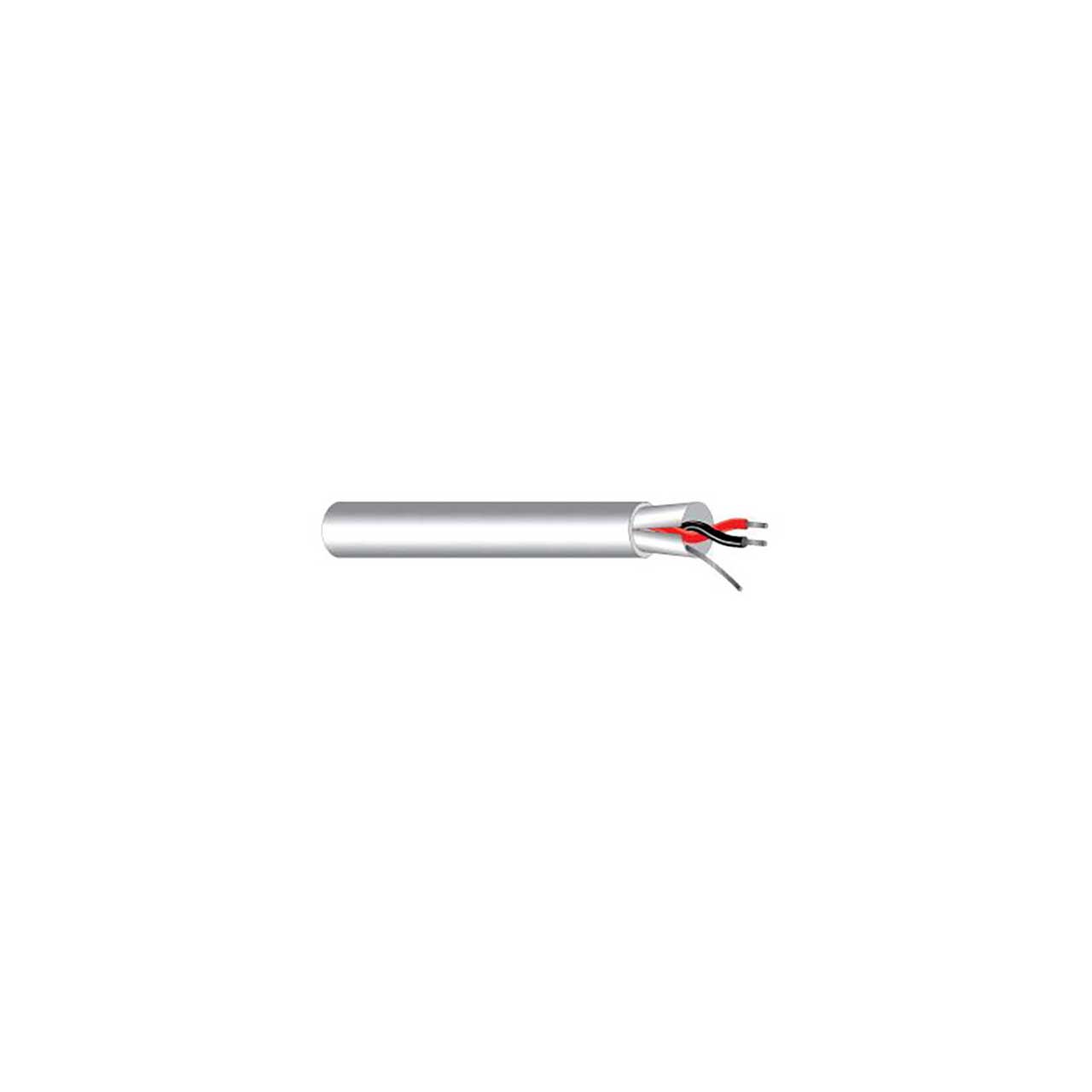

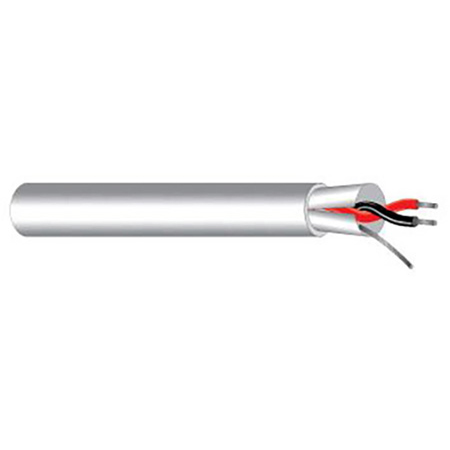

West Penn D2401BK1000 24G Stranded Shield Data PVC Ethernet Cable - 1000 Feet

ITEM #: WP-D2401BK1000 MFG #: D2401BK1000

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$154.50

Our Price:

$125.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    D2401BK1000 - Overview

    The D2401 by West Penn is a 1 Pair 24 AWG Serial Data and Audio bulk cable. This unterminated cable is 1000 feet long.

    • Specifications:

      • Conductor
      • Number of Pairs: 1
      • AWG Size: 24
      • Conductor Stranding: 7x32
      • Conductor Type: Tinned Copper
      • Nominal DCR: 26 Ohm/1000 ft

        Insulation
      • Insulation Type: Polyolefin
      • Insulation Thickness: 0.013in
      • Insulation Color Code: 1. Black, 2.Red

        Shielding
      • Shield Type: Individually Shielded
      • Drain Wire Type: Tinned Copper
      • Drain Wire AWG: 24 AWG

        Overall Construction
      • Jacket Type: PVC
      • Jacket Thickness: 0.030 in
      • Nominal Cable O.D.: 0.160 in
      • Plenum: No
      • NEC UL Rating: CM
      • RoHS Compliant: Yes
      • Pull Tension: 28 lbs
      • Bend Radius: 1.44 in
      • Cable Weight: 16 lbs

        Overall Electrical/Optical Characteristics
      • Nominal Impedance: 100 Ohm
      • Nom. Cap. Between Conductors: 14.5 pF/ft
      • Nom. Cap. Conductor to Shield: 26 pF/ft
      • Nominal Velocity of Propagation (VP): 72 %
      • UL Flammability: UL1685
      • Operating Range: -20° to 60° C
      • UL Voltage Rating: 300


    • GTIN:

      0612825352907
