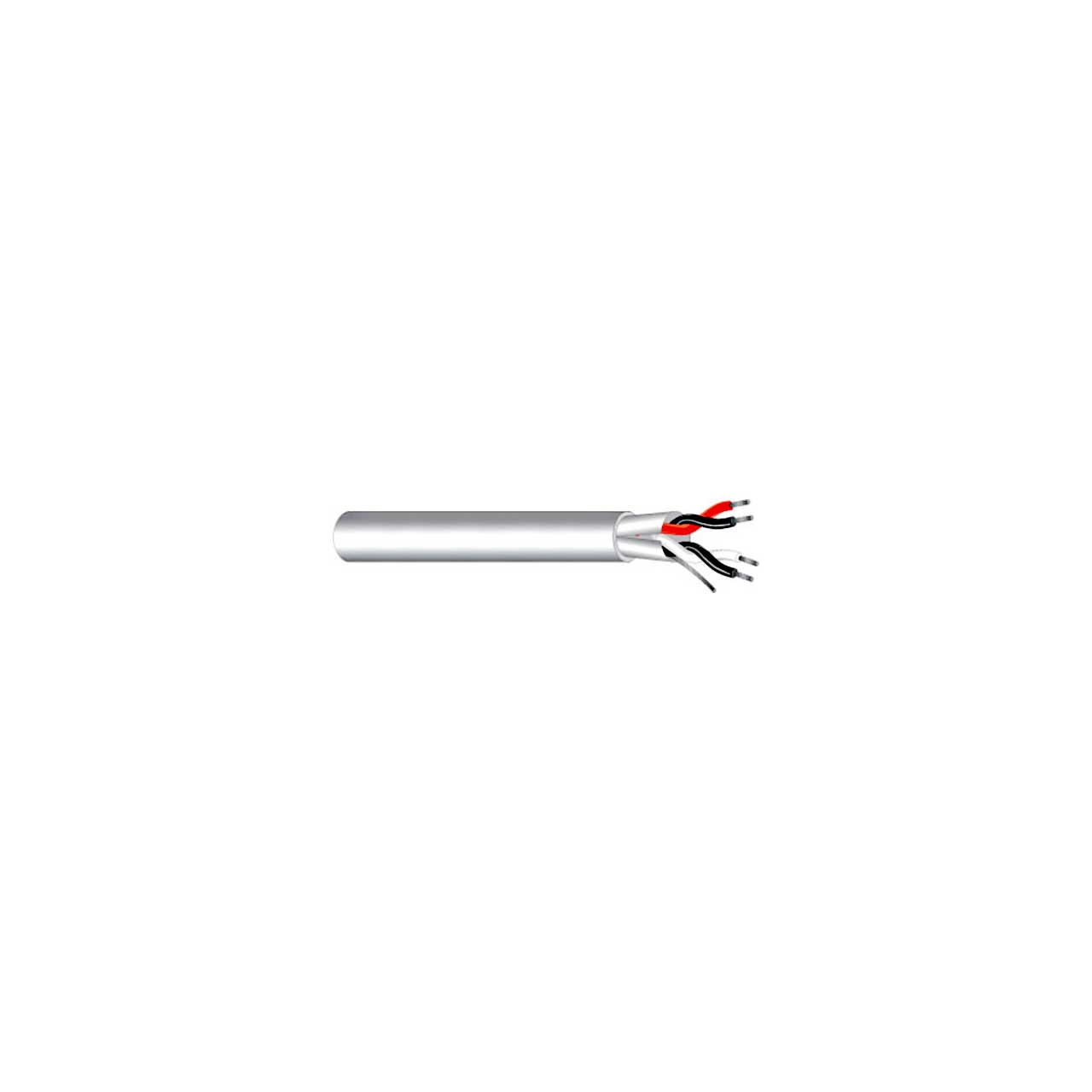

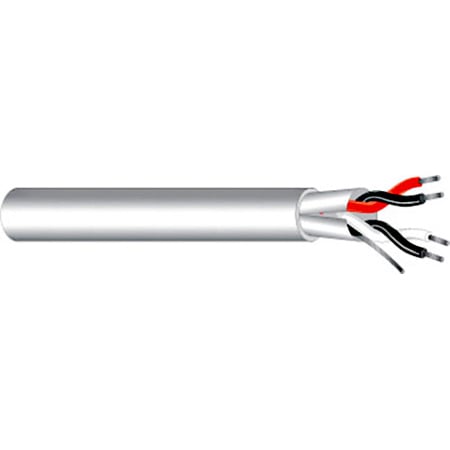

West Penn D252402GY0500 2 pair 24AWG Shielded CMP Rated Serial Data and Control Low Capacitance Cable

D252402GY0500 - Overview

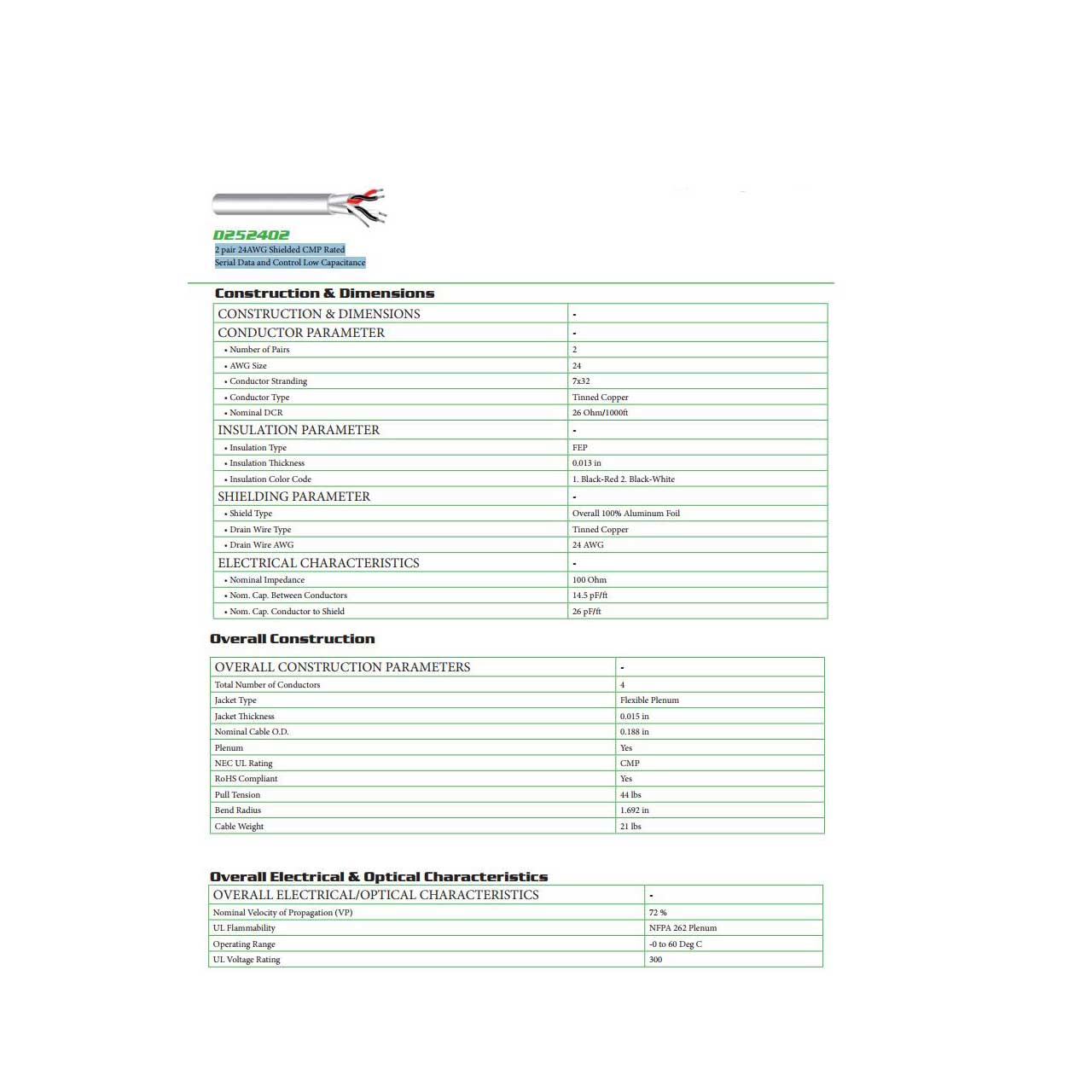

• Specifications:

  • Number of Pairs: 2
  • AWG Size: 24
  • Conductor Stranding: 7x32
  • Conductor Type: Tinned Copper
  • Nominal DCR: 26Ω/1000ft
  • Insulation Type: FEP
  • Insulation Thickness: 0.013"
  • Insulation Color Code: 1. Black-Red, 2. Black-White
  • Shield Type: Overall 100% Aluminum Foil
  • Drain Wire Type: Tinned Copper
  • Drain Wire AWG: 24 AWG
  • Nominal Impedance: 100Ω
  • Nom. Cap. Between Conductors: 14.5pF/ft
  • Nom. Cap. Conductor to Shield: 26pF/ft
  • Total Number of Conductors: 4
  • Jacket Type: Flexible Plenum
  • Jacket Thickness: 0.015"
  • Nominal Cable O.D.: 0.188"
  • Plenum: Yes
  • NEC UL Rating: CMP
  • RoHS Compliant: Yes
  • Pull Tension: 44lbs
  • Bend Radius: 1.692"
  • Cable Weight: 21lbs
  • Nominal Velocity of Propagation (VP): 72%
  • UL Flammability: NFPA 262 Plenum
  • Operating Range: -4° to 140°F
  • UL Voltage Rating: 300


• GTIN:

  0612825027782
