    YOLOBOXPRO - Overview

    The YoloBox Pro is a video switcher, encoder/streamer, monitor, recorder and audio mixer all in one. With built-in restreaming service and native support YOLOBOXPRO integrates directly with YouTube/Facebook/Twitch to add graphic overlays (logos, lower-thirds, picture in picture, scoreboard, rolling captions) and featuring comments to the stream, Side-By-Side, Split-View and much more.

    YoloBox Pro brings the professional features and processing power required for the most demanding live broadcasts.

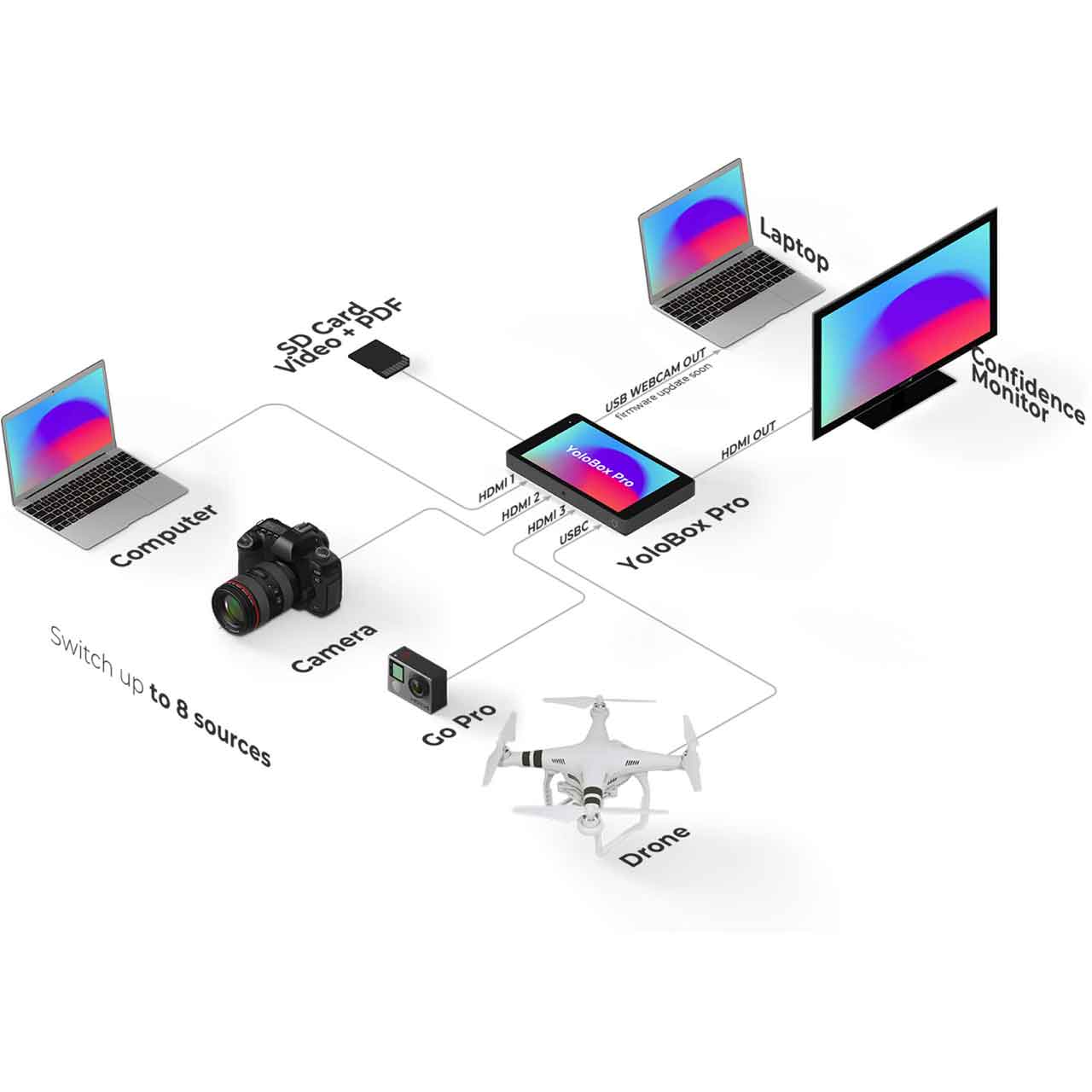

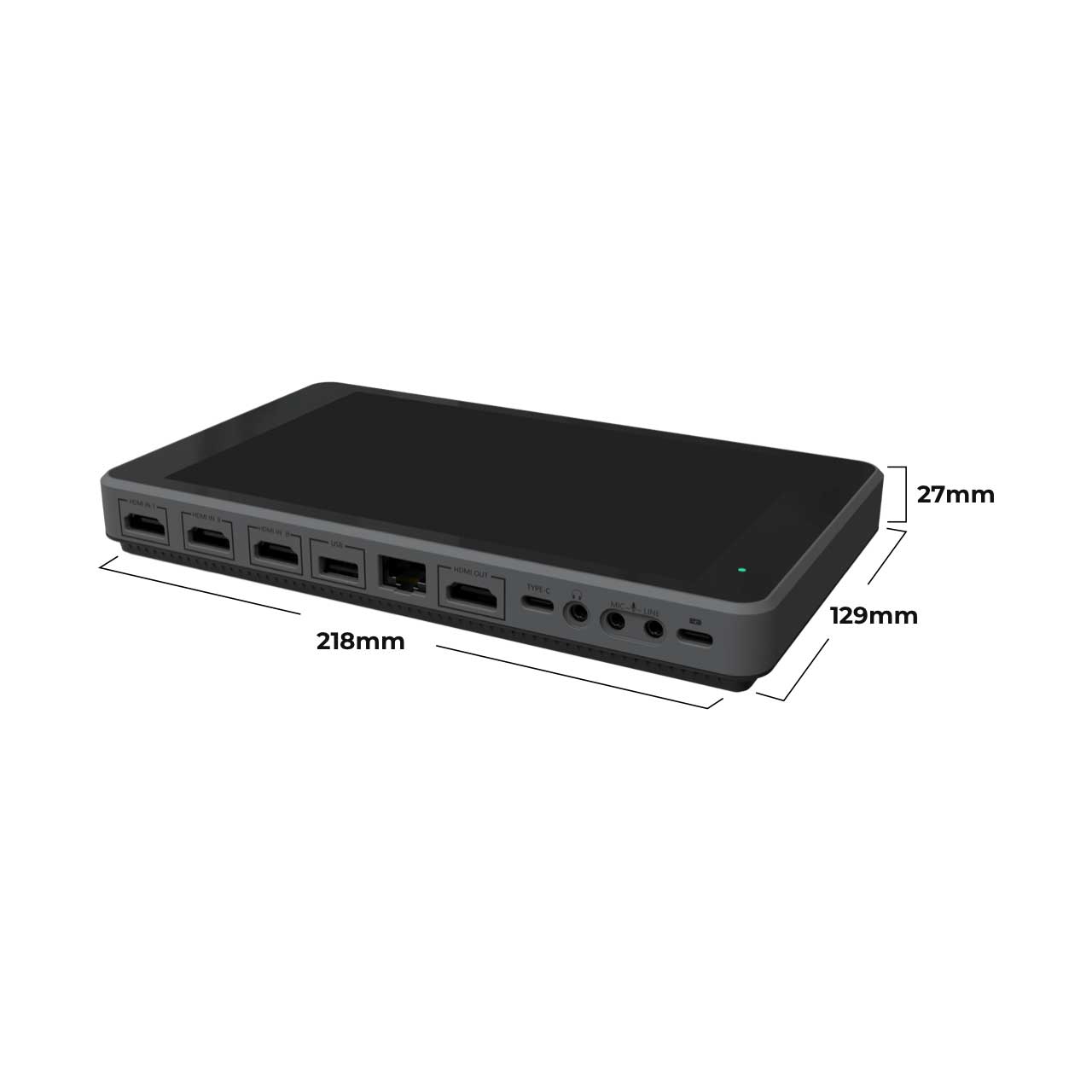

    The YoloBox Pro is 8-inches large and light weighing only 1.65 pounds (750g) and features 3 HDMI inputs, 1 HDMI output and 1 full-featured USBC. That allows you to switch up to 8 sources, and up to four physical local cameras. The Pro supports your choice of input resolutions 720p and 1080i/p, as well as streams of 540p, 720p, and 1080p60 via the H.264 codec. With an HDMI output, you can display your stream locally on an any HDMI device.

    The YoloBox Pro provides you with a large LCD touchscreen interface for easy streaming and control. Easily see the streaming image as well as the input streams while the LCD display also presents the control interface. That allows you to switch sources of information with a simple touch. It also has a line-level audio input, and a separate headphone audio out. You can record your stream directly in the .mp4 format to an optional SD card, up to 128 GB in size, using the built-in SD card slot. The line-in allows you to connect with the synthesizer and mic-in can be connected to the microphone for recording.

    The device works as a switcher, with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and it can record to optional SD cards.

    You can brand your live stream by adding logos/watermarks/rolling captions
    Customized PiP options, including Interview mode, allow you to bring a unique look and feel to your stream
    Engage with your audience in real time via feature comment overlays
    The customizable scoreboard feature displays a real-time-controlled scoreboard for professional looking results
    Built-in lower-thirds templates can be edited or you can add your own

    You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card.

    Simultaneous Streaming
    YoloBox will first push your feed to the YoloLIV platform, from where it automatically forwards your feed to a maximum of 3 destinations simultaneously.

    Streaming Platforms
    Major streaming platforms such as Facebook live, YouTube, and Twitch are directly integrated, you can simply login your social account and stream.

    SD Card Input
    Roll in pre-recorded videos for intro, countdown, B-rolls, or special segments from an SD media card.

    You can load a PDF as a local source to your YoloBox

    Battery Life
    The internal battery can power your YoloBox for approximately 3 hours. The YoloBox charges via the USB connection, which is used for power only.

    • Features:

      • 3 x HDMI, 1 x USB In, 1 x SD card, 1 x PDF; 1 x HDMI out; 1 x SIM card; Mic-in/Line-in;
      • Live switch up to 8 sources
      • Direct integration with YouTube/Facebook/RTMP(s)
      • Built-in simultaneously streaming
      • Stream via Ethernet, Wi-Fi, LTE 4G
      • Import pictures/videos from SD card
      • Add logos/watermarks/rolling captions to the stream
      • Feature comment overlays to the Stream
      • Add and edit customizable scoreboard, built-in lower-thirds
      • Load PDF as an extra source locally
      • Records internally to SD card
      • Battery life up to 3 hours
    • Specifications:

      • Ports
      • HDMI IN: Video input
      • USB IN: Video input
      • (Please note in some usb webcams, only video can be captured.)
      • HDMI OUT: Video input
      • Ethernet: Connect to Internet by Ethernet cable
      • AUDIO IN: Connect with lavalier microphone or mixer
      • TYPE-C 3.0: A fully functional interface supports input/output
      • TYPE-C: Power connector
      • LINE IN: Stereo, connect to electric guitar or synthesizer
      • MIC IN: Mono, connect to microphone for recording
      • AUDIO OUT: Connect with headphone for sound monitor
      • Sim Card Slot: Insert SIM Card to get into Internet
      • HOTSHOE: Mount YoloBox with camera
      • SD Card: Insert SD card for local assets
      • Power Button: Turn on and turn off

        Encoded Format
      • Video Encoded Format: H.264
      • Audio Encoded Format: AAC (44.1k)
      • Video Recorded format: MP4
      • Audio Input Format: 32kHz/44.1kHz/48kHz/16-bit/16kHz
      • Video Input Format: 1080i/ 720p/ 1080p
      • Live Broadcast Resolution: 540P/720P/1080P

        Video Storage
      • Storage Card Type: SD Card
      • Storage Card Capacity: Expanded to 128G in FAT32, exFAT, NTFS format

        Network Connection
      • WiFi: 2.4G/5G

      • Power Interface: Type C, Quick Charge 3.0
      • Battery Capacity: 10000mAh
      • Rated Voltage: 5V-3A; 9V-2A; 12V-1.5A

      • Network Protocol: RTMP(S)

        Working Environment
      • Operating Temperature: -10°-40°C
      • Storage Temperature: 5°-40°C
    • GTIN:
