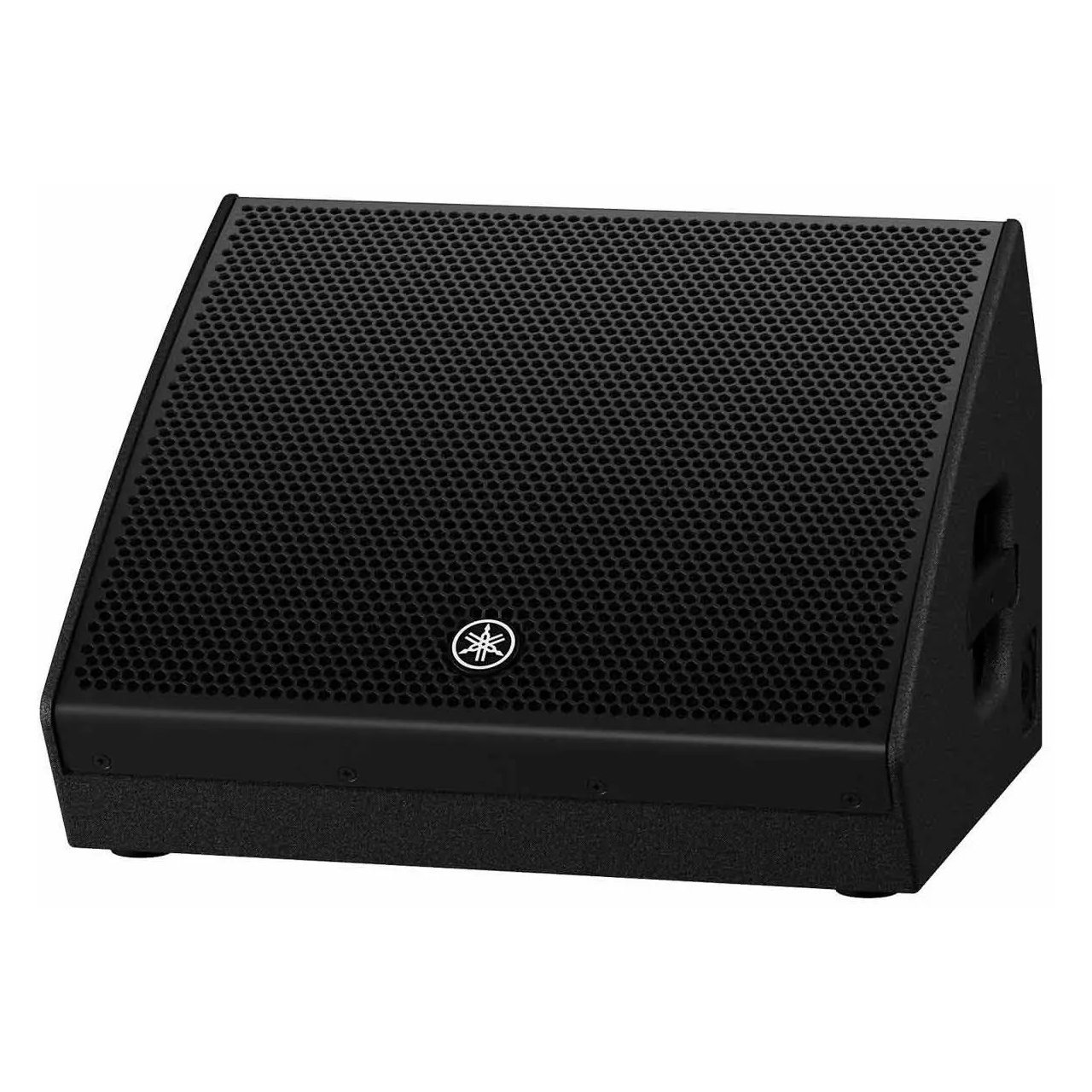

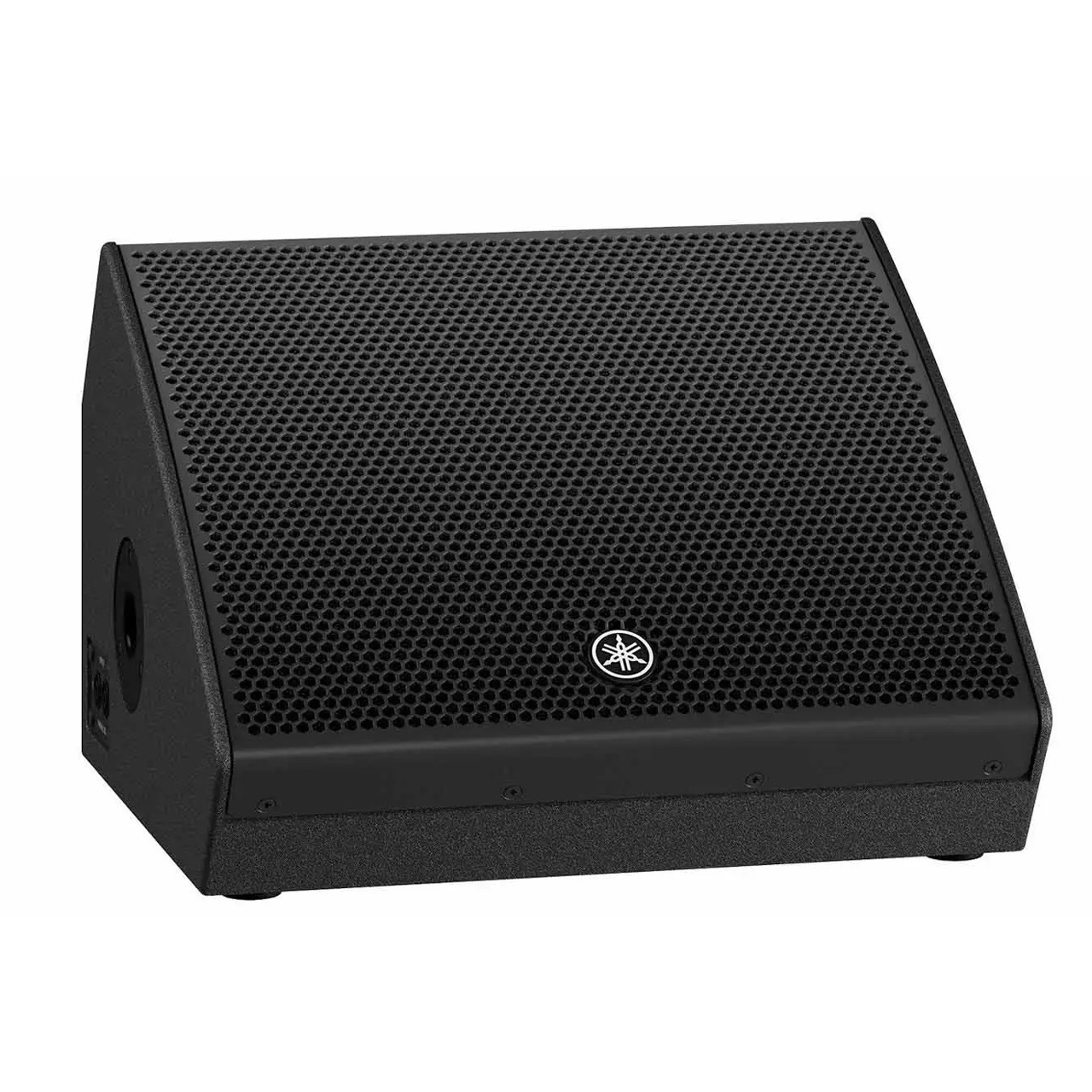

Yamaha CHR12M-V2 2-Way Coaxial 1000W 12 Inch Passive Floor Monitor/Loudspeaker with 123dB SPL Output

ITEM #: YMH-CHR12M-V2 MFG #: CHR12M-V2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$782.00

Our Price:

$614.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CHR12M-V2 - Overview

The CHR12M-V2 is a 2-way loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space-saving coaxial configuration, perfect for use as a floor monitor. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha's high-end CZR Series, the CHR12M-V2 offers best-in-class sound quality and durability.The CHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CHR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings. (*Supported firmware is Ver1.63 or later.) Depending on the venue, sometimes your mix can fall prey to low ceilings or other room attributes that can impede a clear, even mix and detract from the audience's listening experience significantly.

  • Features:

    • The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
    • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
    • Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
    • A pole socket for use on a stand
    • Yamaha DSP-equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

  • Specifications:

    • Speaker type: 2-way Speaker, Bass-reflex
    • Frequency range (-10dB): 61 Hz - 20 kHz
    • Coverage area: H90° x V90°
    • Crossover: 1.8 kHz
    • Nominal Impedance: 8 Ω

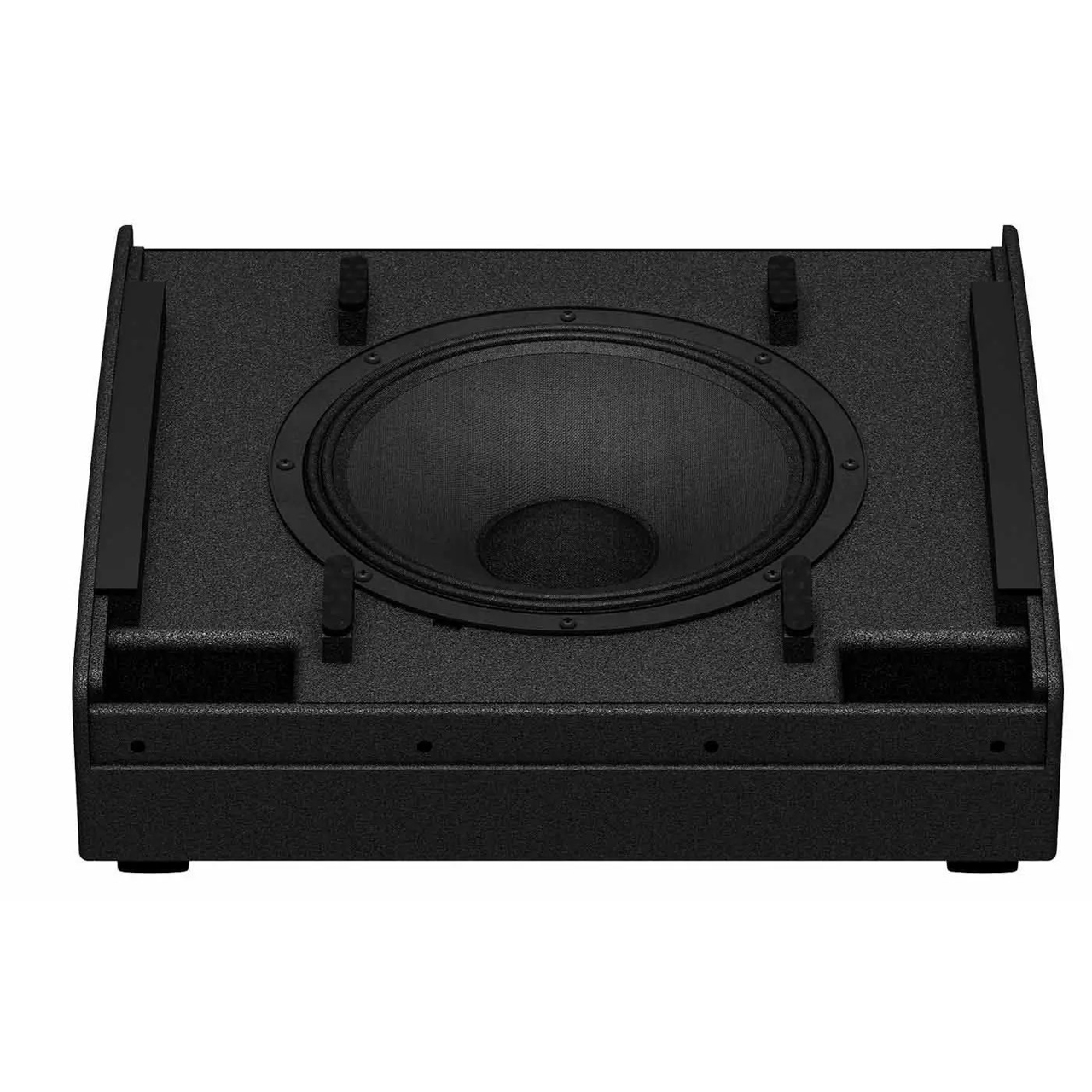

    • Components: Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite HF: Diaphragm: 1.75", Type: 1" throat
      compression driver, Magnet: Ferrite
    • SPL: Sensitivity (1W; 1m on axis): 93 dB SPL, Peak: 123 dB SPL
    • Power rating: Noise: 250 W, PGM: 500 W, PEAK: 1000 W

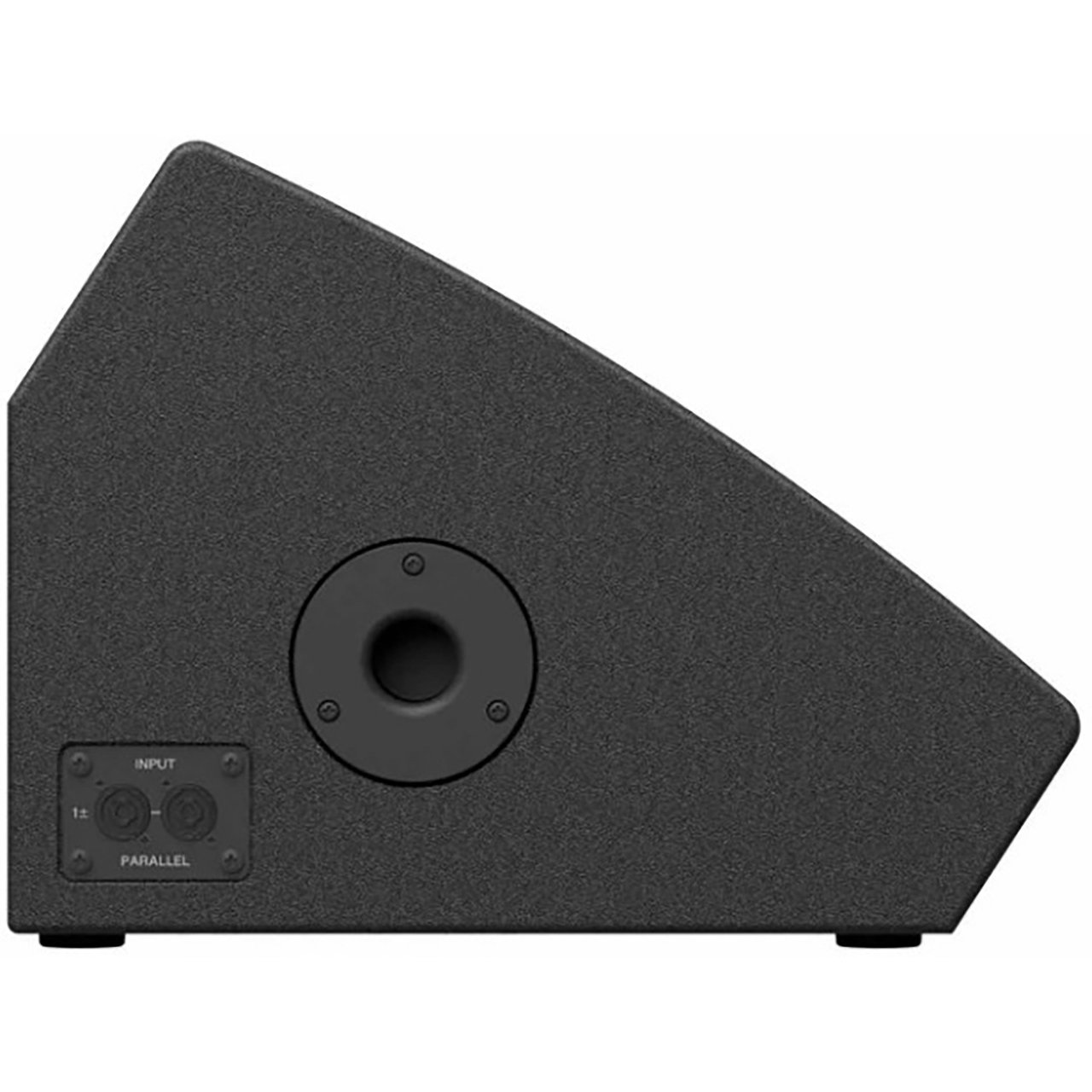

    • I/O Connectors: SpeakON NL4MP x 2 Parellel
    • Cabinet material: Plywood
    • Finish: Durable Polyurea Painting, Black

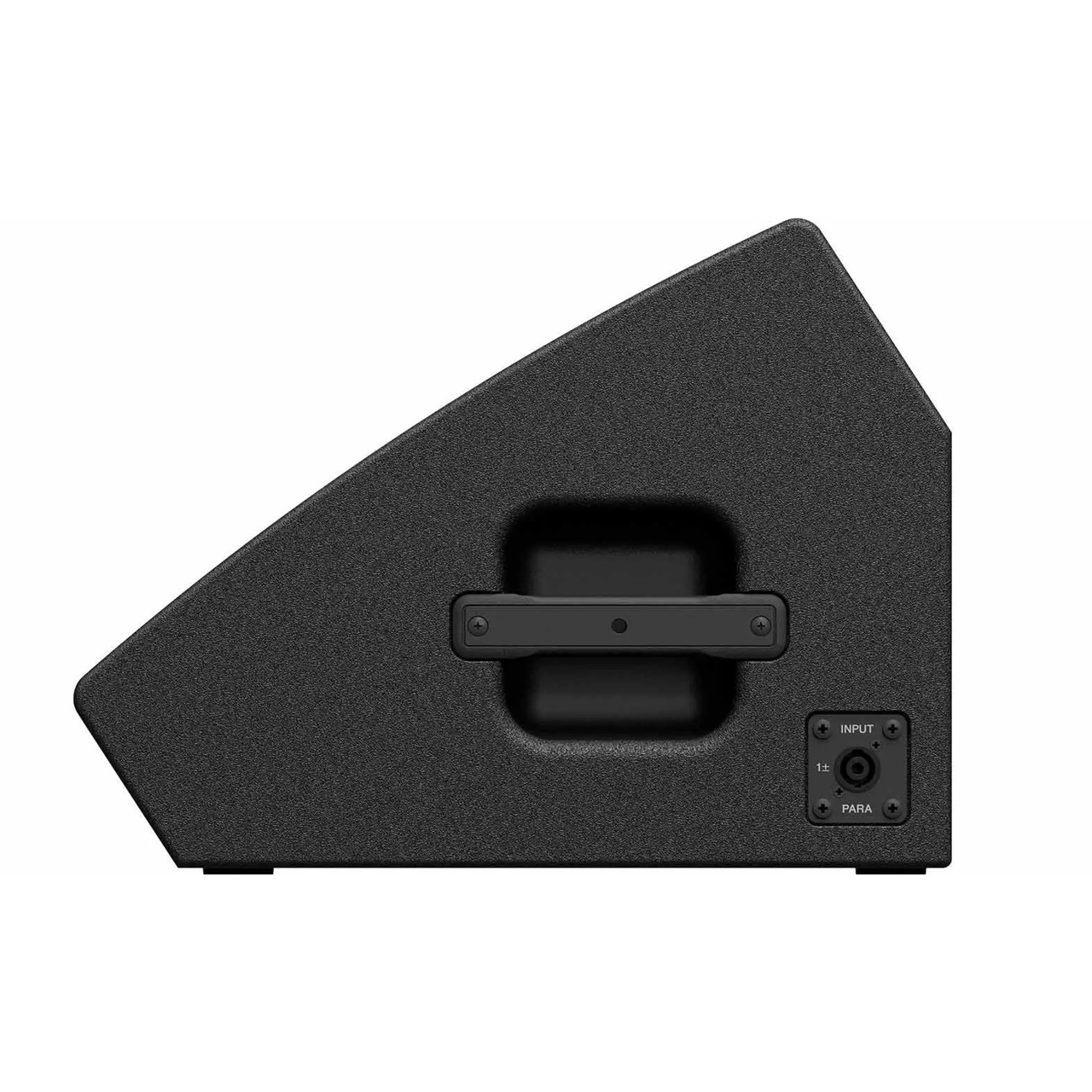

    • Handle: Side x1
    • Floor Monitor Angle: 57°
    • Pole socket: F35 mm x1 (Bottom)
    • Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
    • Net weight: 15.6 kg (34.4 lbs)
