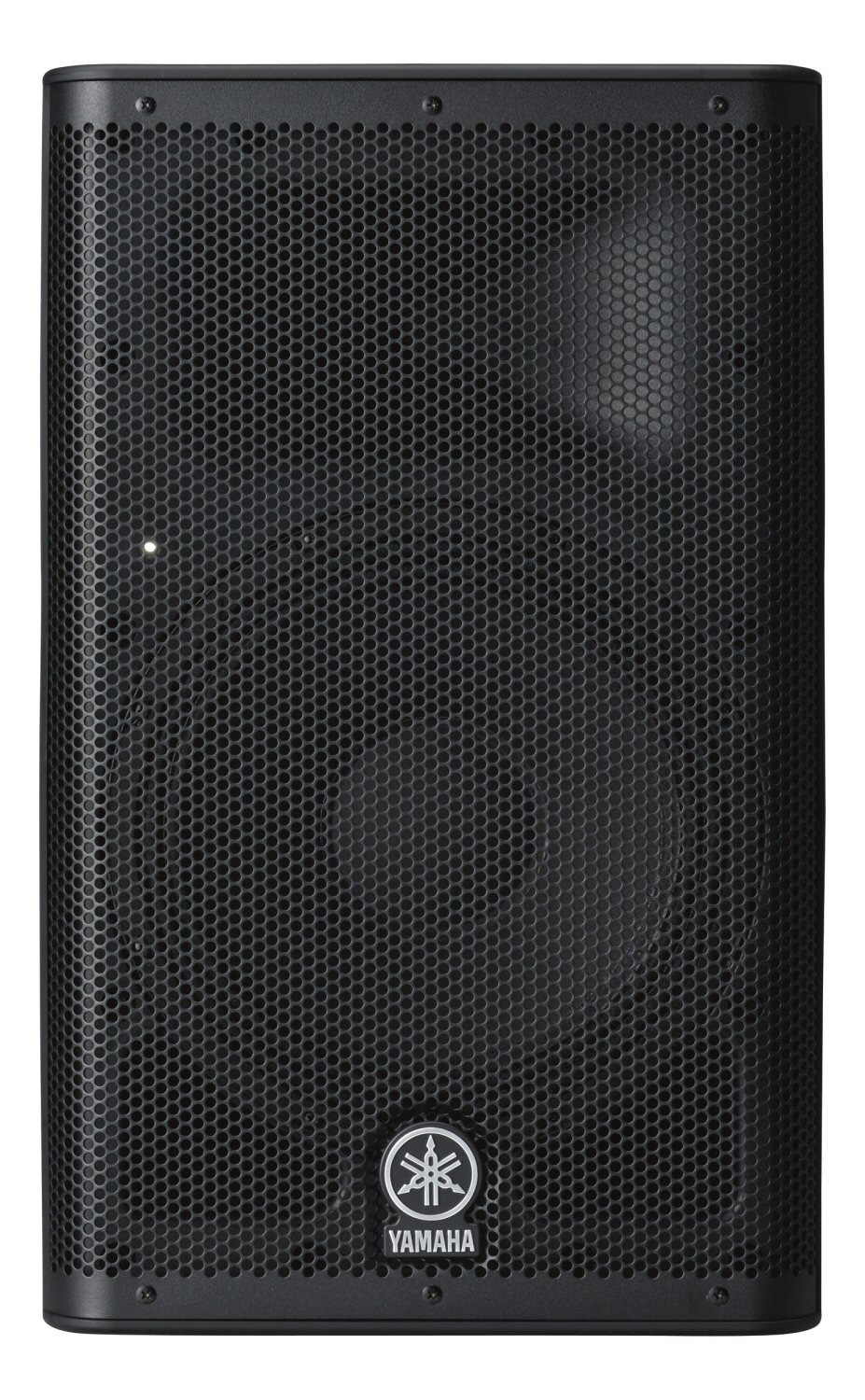

Yamaha DXR8 8 Inch 2-way Bi-amp Powered Speaker - Priced Each

ITEM #: YMH-DXR8 MFG #: DXR8

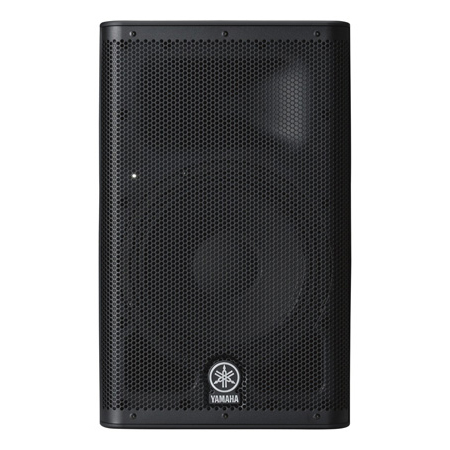

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the YMH-DXR8

DXR8 - Overview

Performance runs in the family, and like the acclaimed DSR Series before it, DXR Series loudspeakers offer superb high-definition sound and class-leading sound pressure levels-yet in a more compact and extremely functional design that provides a level of versatility unmatched by any speaker in its class today. The DXR Series is comprised of four full-range models perfectly suited for front-of-house sound, monitors, simple amplification, rigged applications and more. Combining the series with our newly designed DXS subwoofers will further elevate your system's performance, giving you versatile control of its thunderous bottom end. With the perfect balance of raw power and innovative speaker technologies, you can depend on DXR Series speakers to deliver the full power of your performance to every member of your audience.

Everything from the detailed management of crossover, EQ and time alignment to the limiter settings, protection functions and precise dynamic control of the sound, was subjected to endless simulation, in-house and field testing to ensure that these speakers produce the highest level of sound quality at the highest output levels possible. Combined with Yamaha's advanced analog signal processing and acoustic technologies, the "Power of "D" delivers ultimate performance.
Ultra-Precise 48Bit DSP Processing for High-Definition Sound

All full range models feature Yamaha's proprietary FIR-X tuning utilizing linear phase FIR* filters for the crossover network. FIR-XT tuning simultaneously optimizes frequency and phase response while adjusting the time alignment between the HF and LF transducers. This creates a very smooth response around the crossover point, providing much better clarity and imaging than what is possible with typical crossovers.

All signals are precisely processed by a 48bit (76bit accumulator) high-performance processor for high definition sound quality. All full-range models employ high-precision 24bit discrete A/D and D/A converters with superior S/N ratio and dynamic range.
Intelligent Dynamic Control for Consistent Clarity at Any Output Level

D-CONTOUR is an intelligent multi-band compressor that gives you powerful and consistent sound throughout all output levels. By constantly monitoring the output of multiple frequency bands and calculating the optimum EQ adjustments for each, even the maximum sound output maintains outstanding clarity and musicality. With the DXR Series, D-CONTOUR provides a more detailed tuning of your sound with two different settings: FOH/ MAIN mode or MONITOR mode. FOH/MAIN mode boosts low-frequency to compensate for low-end that is typically missing when speakers are used in suspended applications or mounted on a speaker stand. MONITOR mode is completely optimized for floor monitor application by intelligently taming down the low-frequency that adds up due to floor reflection, smoothing out a wide range of frequency bands to give you stunning clarity for monitoring your sound. Both of these presets were perfected by performing countless listening tests with skilled sound engineers, giving you a multi-band compressor that performs dynamically, delivering consistent sound with low distortion at any output level.

In a typical system comprising passive loudspeakers, power amps and signal processors, trying to set optimal parameters for each component can be a daunting task. One of the advantages of active loudspeakers is that the combination of transducers and amps can be perfectly optimized. During the development of the DSR, DXR and DXS series, we measured and tested the durability of each transducer and the overall amp output through countless indoor and outdoor listening tests. Based on the test results, we were able to set the optimal limiter point for each model using precise DSP control.

  • Features:

    • Ultra-Precise 48Bit DSP Processing for High-Definition Sound
    • Intelligent Dynamic Control for Consistent Clarity at Any Output Level
    • Extensive DSP Protection Functions for Maximum Output
    • High-Efficiency 1100W Class-D Amplifiers
    • Intelligent Onboard 3-Channel Mixer
    • Superior Components. Unequaled Performance.
    • Durable, Compact ABS Enclosures
    • Symmetrical Enclosure Design for Mirror-Mode Floor Monitoring
    • Dual-Angle Pole Mount Socket
    • Rigging Points for Standard Eye-Bolts and Optional U-Brackets

  • Specifications:

    • Speaker type 8" 2-way, Bi-amp powered speaker, Bass-reflex type
    • Frequency Range (-10dB): 57Hz - 20kHz
    • Nominal coverage: H-90 Degrees, V-60 Degrees
    • Components LF Diameter: 8" cone, Voice Coil:2", Magnet:Ferrite
    • Components HF: Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
    • Crossover: FIR-X tuning (linear phase FIR filter)
    • Output Power: Dynamic: 1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) Maximum output level (1m; on axis) 129dB SPL
    • I/O Connectors: INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1), LINK OUT: XLR x 1
    • Processors: D-CONTOUR :FOH / MAIN, MONITOR, OFF
    • Power Requirements: 100V - 240V, 50Hz/60Hz
    • Power Consumption: 90W
    • Flying and Mounting Hardware: Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
    • Pole Socket: 35mm with 2-way features (0 or 7 degrees)
    • Dimensions W 11" x H 18" D 11"
    • Net weight: 13.5kg (29.8lbs)
    • Accessories UB-DXR8
    • Material: ABS (Matte Finish, Black)

  • GTIN:

    0086792961828
