Simple L2 Network switch with PoE

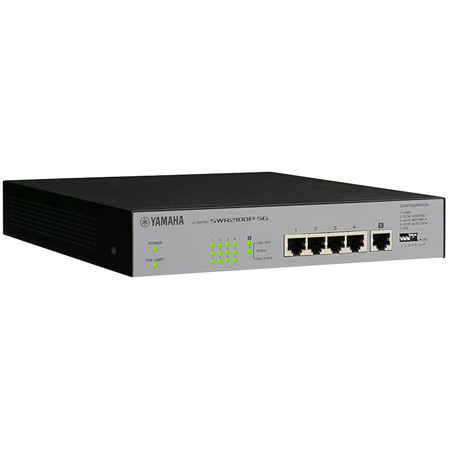

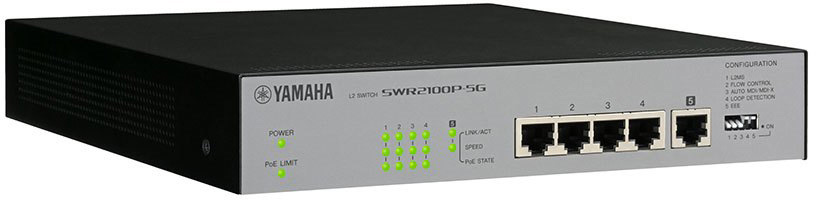

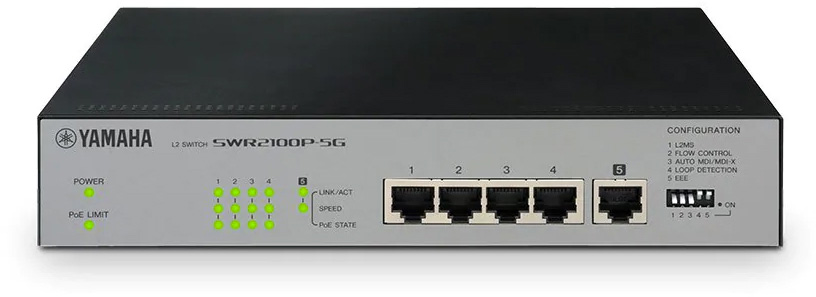

Yamaha has used its knowledge of both IT and pro audio to provide "SWR2100P series" simple L2 switch that has been optimized for networked audio installations. The SWR2100P-5G switch can take advantage of "Yamaha LAN Monitor" a dedicated Windows application that provides 'network visibility' for comprehensive monitoring and control.
SWR2100P series switches not only make it easier to design and install audio network systems, but result in more convenient and controllable installations as well. A combination of MRX7-D and XMV devices is ideal for large-scale applications such as shopping centers. In this system, Dante compatible PGM1 units can be added to provide multiple remote paging stations. In the setup shown, a PGM1 unit located in the 3rd floor office is set up as a master station that will take priority over all other PGM1 units for emergency announcements. The VXC3F and VXS5 speakers allow high-impedance connections, making it possible to distribute multiple speakers over a wide area for broad coverage. A tap on the speakers allows output wattage to be easily changed to create the desired BGM and announcement balance, even after installation.
