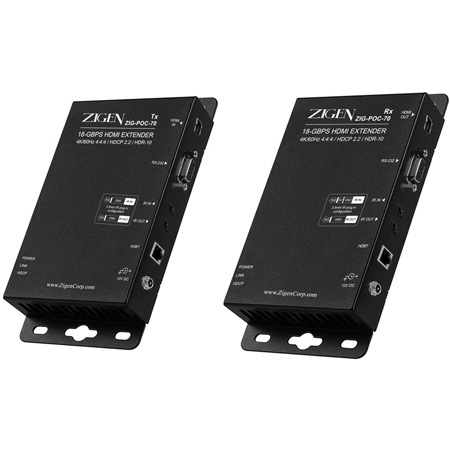

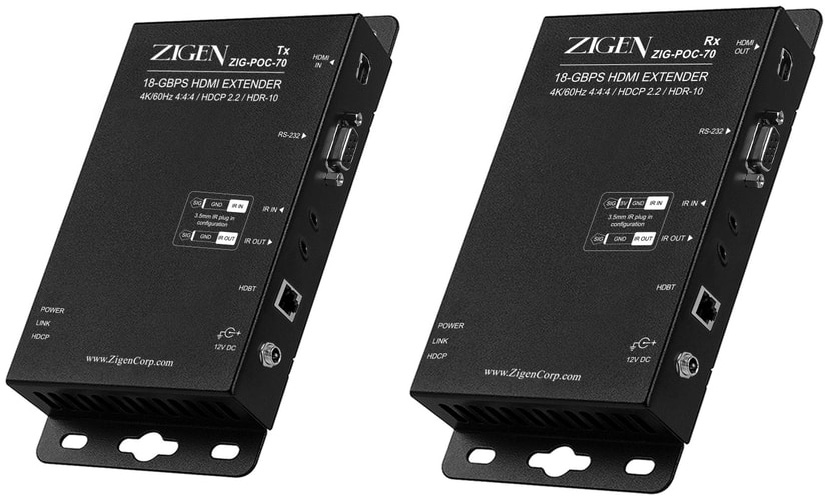

Zigen ZIG-POC-70MKII 4K60Hz 18G HDBaseT HDMI Extender Set - 12-V POC with Bi-Directional IR & RS232 - Supports HDR-10

ITEM #: ZIG-POC-70 MFG #: ZIG-POC-70MKII

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email

Items similar to the ZIG-POC-70

ZIG-POC-70MKII - Overview

The ZIG-POC-70MKII is the latest innovative product from Zigen. 4K/60Hz 4:4:4 HDMI extender over single UTP/STP, with Bi-Directional IR and RS232. Robust and cost effective - the ZIG-POC-70 is ideal for all your residential HDMI distribution.

The ZIG-POC-70MKII is designed for power to be sent either from Tx side or Rx side. It is ideal when cascading multiple extenders for longer reach and or when powering these extenders from Tx side is not ideal.

Applications: Any project requiring extension of 4K/60Hz 4:4:4 HDMI signal over long distances from equipment rack to display: Cinema, Classrooms, Conference Rooms, Video Distribution and more. Projects requiring extension of IR, RS232.

  • Features:

    • HDBaseT technology
    • Extend HDMI signals up to 70 meters/230 feet by using Cat-6a
    • Supports HDR-10
    • Supports HDMI 2.0
    • HDCP 2.2 compliant
    • Supports CEC pass-through
    • Supports RS-232 (Bi-direction transfer)
    • Supports all frequency band IR control (Bi-direction transfer)
    • Cat-6A is recomended
    • 4K/60Hz, 24bpp 4:4:4
    • Supports digital video formats in 480i, 480p, 720p, 1080i, 1080p, 2K and 4K.
    • Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Atmos, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio and more.
    • Cable distance and limitations. 70-meter for 1080p and 40-meter for 4K

  • Specifications:

    • Enclosure: Aluminum
    • HDMI Connector: HDMI A-Type Female x 1
    • RJ-45 Connector: RJ-45 Jack x 1
    • RS232 Connector: DB9 Female x 1
    • IR IN: 3.5mm Stereo Jack x 1
    • IR OUT: 3.5mm Stereo Jack x 1
    • LED: LED x 3
    • DC Jack: 12-v
    • Max. Resolution: [email protected] / 4:4:4
    • Cable Distance: 4K/60Hz 40 m (Max.) 1080P/60Hz 70 m (Max.)
    • Power Adapter (Min.): DC 12-V with lock
    • Power consumption: 20W (MAX)
    • Operating Temperature: 0 ~ +50°C
    • Storage Temperature: -10 ~ +50°C
    • Relative Humidity: 0% 90%
    • External Power Supply Input: 100VAC~240VAC, 50/60Hz; 12-VDC 2A
    • Weight Tx/Rx: 182g
    • Dimensions(L x H x W): 6.5 inch x 0.7 inch x 3.3 inch

  • Item Includes:

    • 1 x Transmitter
    • 1 x Receiver
    • 1 x User manual
    • 1 x Power adapter DC 48V with lock
    • 1 x IR receiver
    • 1 x IR emitter
    • 4 x Screws
    • 8 x Foot pads
    • 2 x Captive screw connectors
