Delvcam 9.7in. SDI Monitor - Dual HDMI Input & 1 HDMI Output & V-Mount Battery Plate

Item #: DELV-SDI-10-VM   •   MFG #: DELV-SDI-10-VM




Our Price:$679.95

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

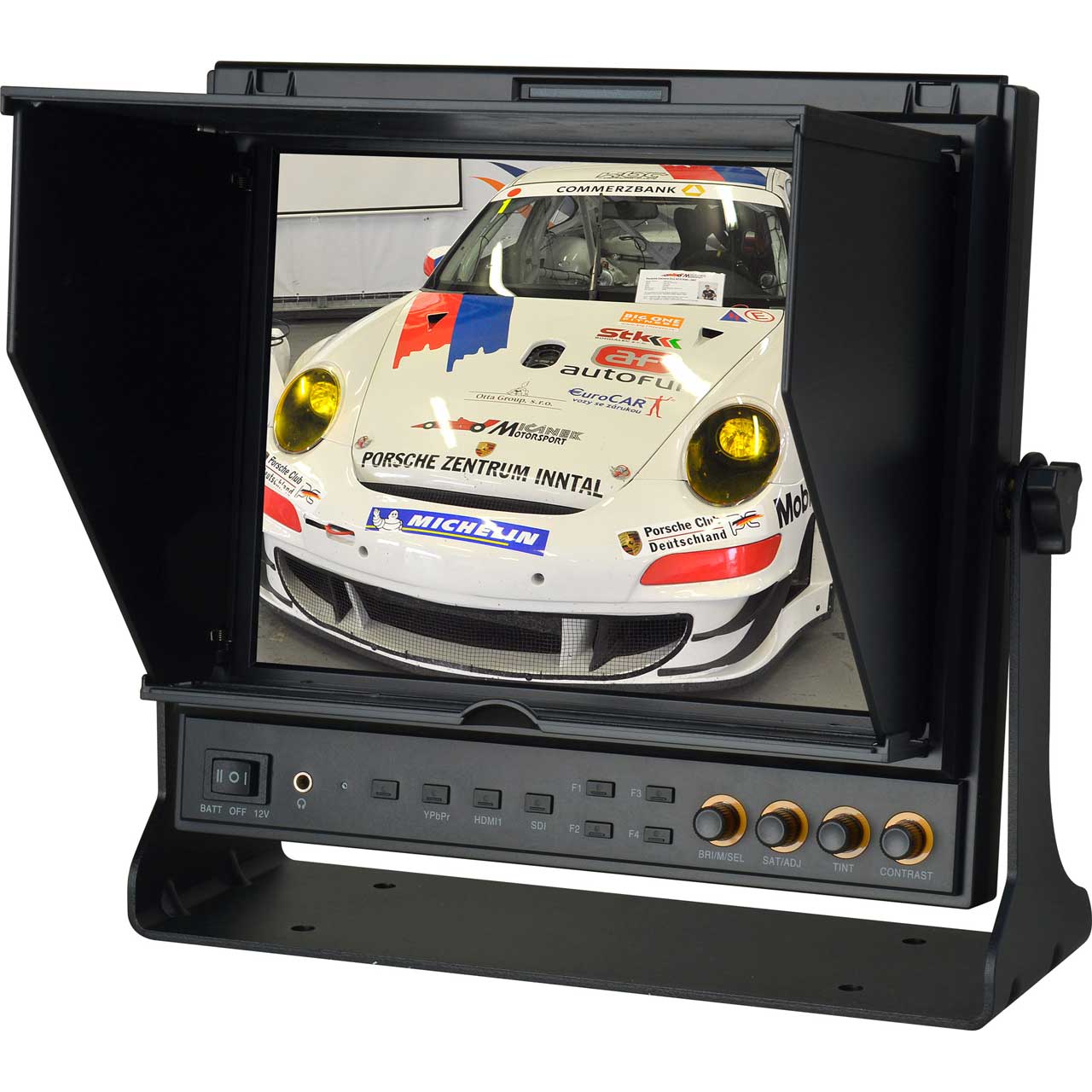

    The DELV-SDI-10-VM 9.7" LCD with a V-Mount Battery Plate is the ideal size for a small broadcast desktop monitor but large enough to pick out the finest details in a shot. These monitors are known for displaying accurate and clear images with a natively high resolution providing clarity at an aspect ratio that works well with 16:9 and 4:3 content. The 1:1 pixel mapping allows you to maintain the original resolution of your camera's output and avoid any unexpected focus issues in post-production. This monitor also offers customizable peaking, false color, histogram, and exposure, auxiliary function buttons.

    The DELV-SDI-10-VM includes an HDMI-output feature which allows you to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected. This monitor includes all the 3G-SDI connections that a broadcast professional needs. Composite and component through BNC connectors and HDMI inputs covers all the bases for common broadcast applications. It even includes one HDMI output, so no extra expensive HDMI splitters are required.

    The smart sun hood folds away to be a screen protector for the LCD, ideal for broadcast environments where mini monitors are exposed to a great deal of movement!


    • Features

      • IPS panel 178° wide viewing angles,
      • High resolution: 1024x768,
      • High brightness: 400cd/m2,
      • High contrast: 600:1,
      • 3G-SDI & HDMI input,
      • Wide voltage: DC 7-24V,
      • TALLY interface & 5V charging,
      • Comply with IP52 standard!

    • Specifications

      • DISPLAY
      • Panel 9.7" LED backlit
      • Physical Resolution 1024x768, support up to 1920x1080
      • Aspect Ratio 4:3
      • Brightness 400cd/m2
      • Contrast 600:1
      • Viewing Angle 178°/178°(H/V)

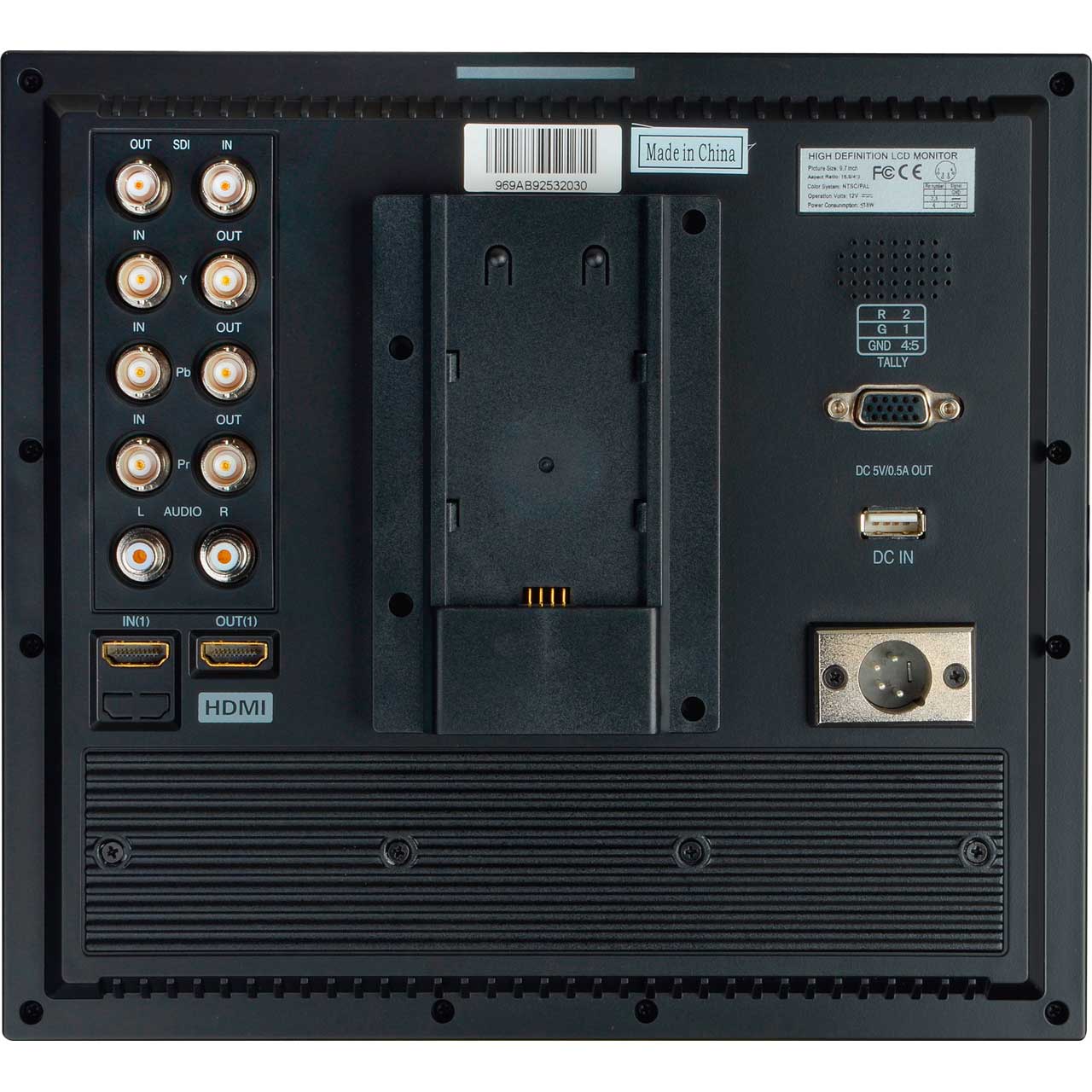

      • INPUT
      • 3G-SDI 1
      • HDMI 1
      • YPbPr 3(BNC)
      • TALLY 1
      • AUDIO 2(L/R)
      • OUTPUT
      • 3G-SDI 1
      • HDMI 1
      • YPbPr 3(BNC)
      • USB 1(5V for charging)
      • AUDIO
      • Speaker 1(build-in)
      • Ear Phone Slot 1
      • POWER
      • Current 1500mA
      • Input Voltage DC 7-24V(XLR)

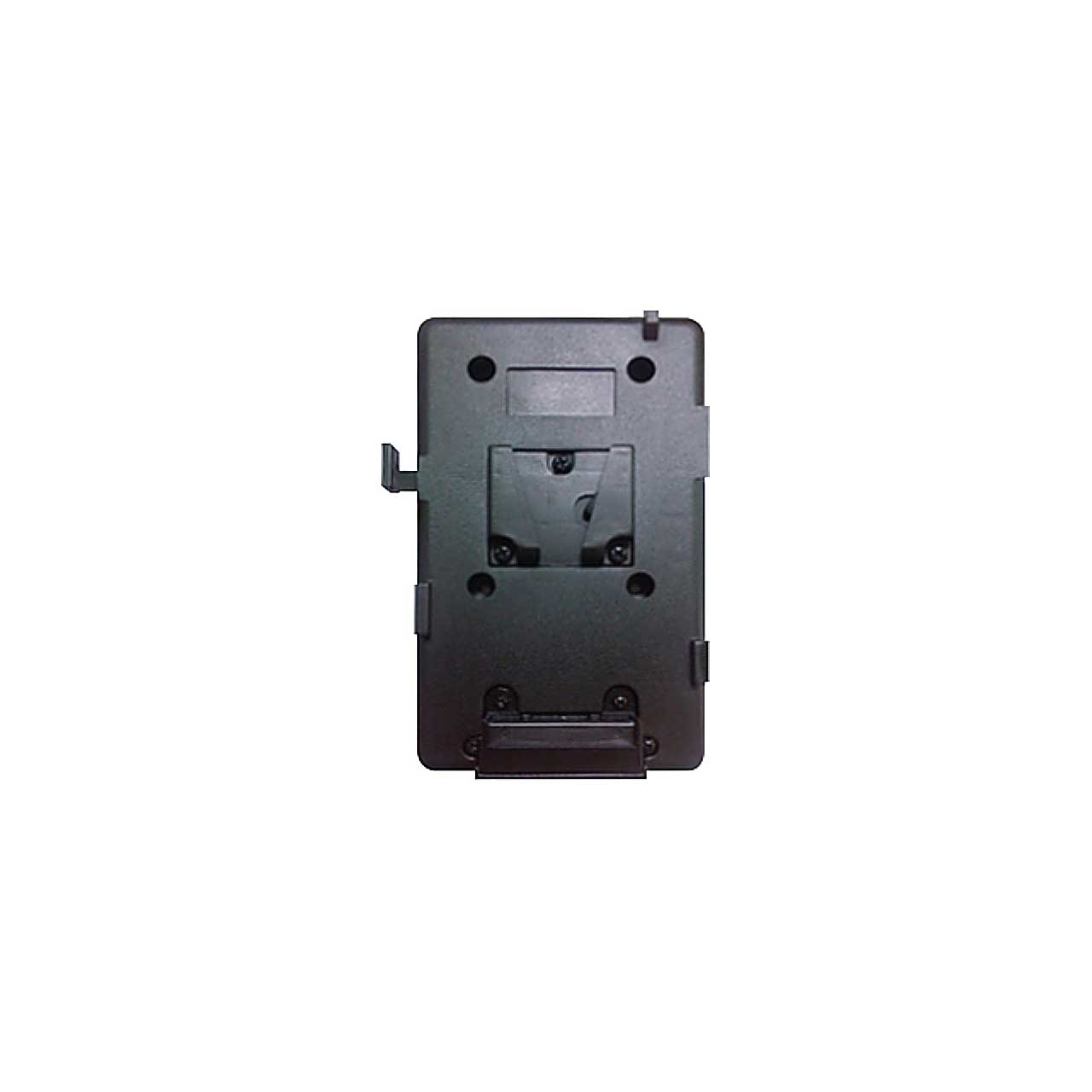

      • Battery Plate: V-mount
      • F970 / QM91D / DU21 / LP-E6
      • Power Consumption =18W
      • ENVIRONMENT
      • Operating Temperature -20C - 60C
      • Storage Temperature -30C - 70C
      • DIMENSION
      • Dimension(LWD) 246x224x31/167.5mm (with cover)
      • Weight 1068g/1388g (with cover)

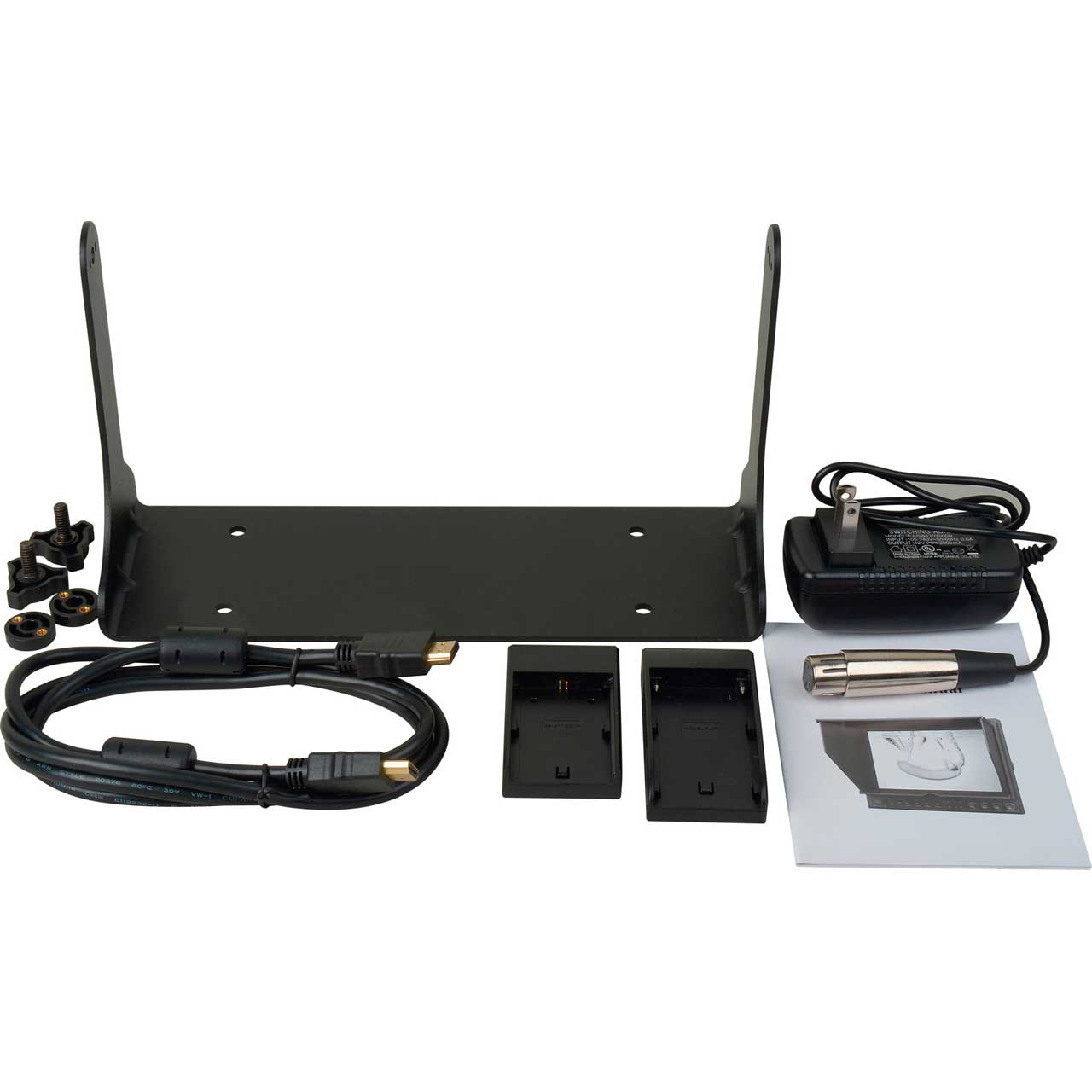

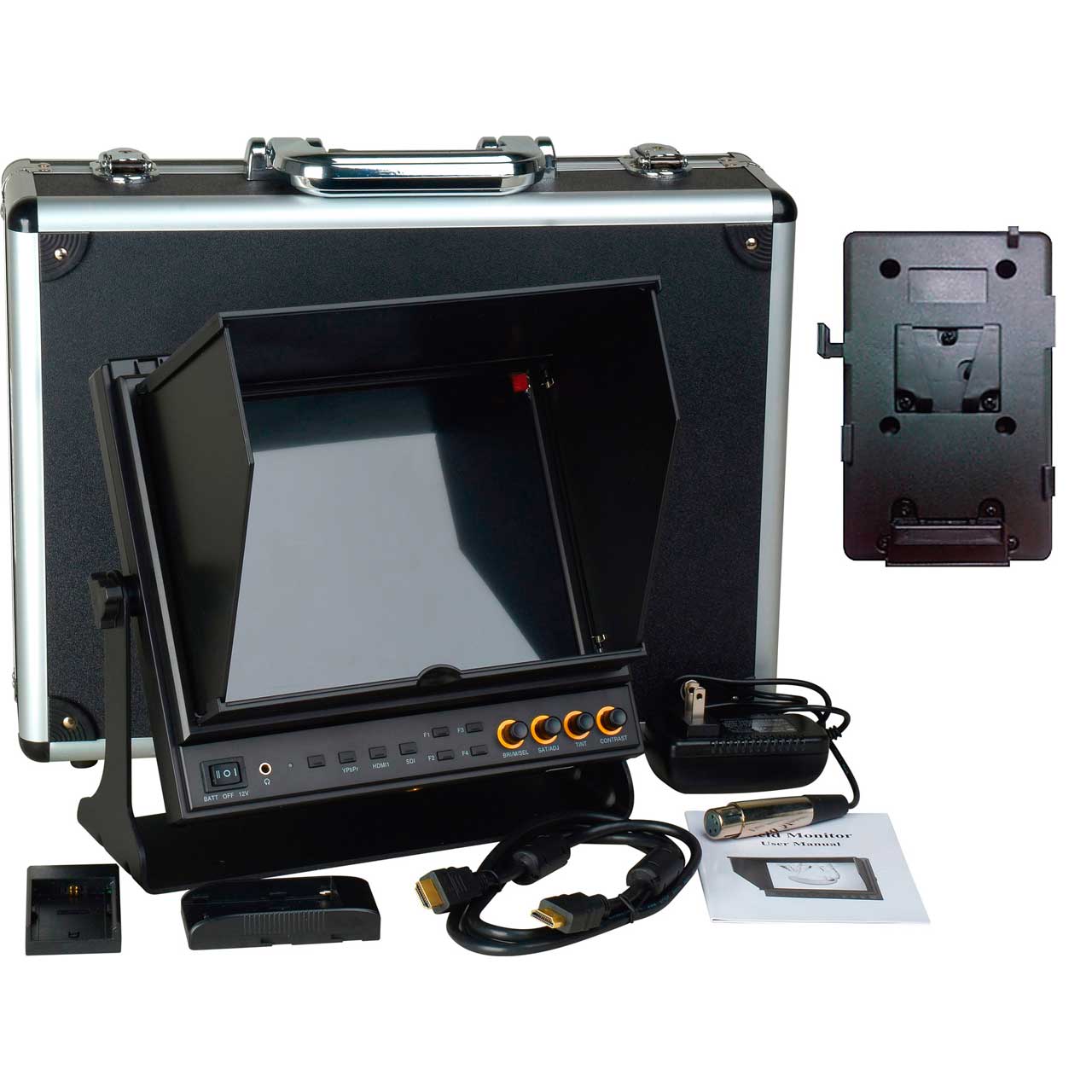

    • Item Includes

      • DELV-BPVM
      • DELV-SDI-10

    • Warranty

      • 1 Year
