Sony PVM-X2400 TRIMASTER 24 Inch 4K HDR Professional LCD Video Monitor with Quad View Support

ITEM #: SNY-PVM-X2400 MFG #: PVM-X2400

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$10,283.20

Our Price:

$9,911.94

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    PVM-X2400 - Overview

    The Sony PVM-X2400 4K HDR high-grade picture monitor incorporates the Sony specified premium LCD panel and offers 1000 cd/m2 luminance and color matching, making group monitoring easy in onset, studio and OB van's wall and 19" EIA racks, editing, mixing audio, etc.

    Acclaimed TRIMASTER Image Technology
    Sony's TRIMASTER architecture is purpose-built to get the highest performance from professional displays. Its core technologies deliver accurate color reproduction, precise imaging and remarkable consistency in picture quality. Advanced panel controls and signal processing have been refined for the ultimate experience in image reproduction.

    More Efficient Productions and HDR-to-SDR Conversion
    Move efficiently between HDR and SDR with the optional PVML-HSX1 HDR-SDR conversion license for live production. And convert color spaces, OETF, progressive to interlace, quad-link 3G to single-link 12G, and 4K to HD at the same time. Compare HDR and converted SDR images side by side and output converted pictures to other 4K or HD monitors too, via the enhanced monitor output.

    Adaptive Contrast for Quick Reviews
    Enabling you to confirm the total balance of highlights and low lights at a glance, thanks to Sony's Dynamic Contrast Drive. Backlight luminance adapts so you can easily review the balance of highlights and low lights. Enjoy better black representation during night scenes and clearer highlights in brighter, daylight filming. Access a dynamic contrast ratio of 1,000,000:1 with the press of a single function key by default (F12 key).

    Black Detail 400/500/600/700 for HDR Production
    Black Detail 400/500/600/700 is a function that creates the maximum backlight luminance of the X1800 limit to 40%, 50%, 60% and 70%. The black luminance level is naturally decreased to 40%, 50%, 60% and 70%. When selecting HDR EOTFs, you can monitor a deeper image shadow while displaying highlights in HDR at the same time. This feature is valuable for camera shading tasks in live productions, allowing precise control over camera iris and color settings. Importantly, it maintains consistent backlight luminance levels, even when the average picture levels fluctuate due to camera shading adjustments in every frame.

    Quad View Display for Multiple Looks
    Explore and compare settings, with a quad-view display that shows everything you need. Individual settings are available for EOTF (in SDR and HDR), SDI/HDMI, RGB/YCBCR, color space, transfer matrix, color temperature, contrast and brightness. Each display view can apply User 3D LUTs and it's even possible to display scopes in dual and triple picture modes.

    Fast, Easy Set-Up for Multiple Monitors
    Save time and provide a uniform experience with the ability to copy monitor set-up parameters to multiple monitors. Set the parameters for one monitor and then configure all remaining monitors via USB memory. Use Monitor Auto White Adjustment for a color temperature calibration function that quickly matches white balance across all PVM-X Series monitors.

    • Features:

      • False color and camera focus functions (from V3.0 firmware)
      • Flexible and variable area markers, aspect marker, and center marker
      • Grid display (from V4.0 firmware)
      • Zoom function
      • Yoke-mount and wall-mount capability
      • DC power Input

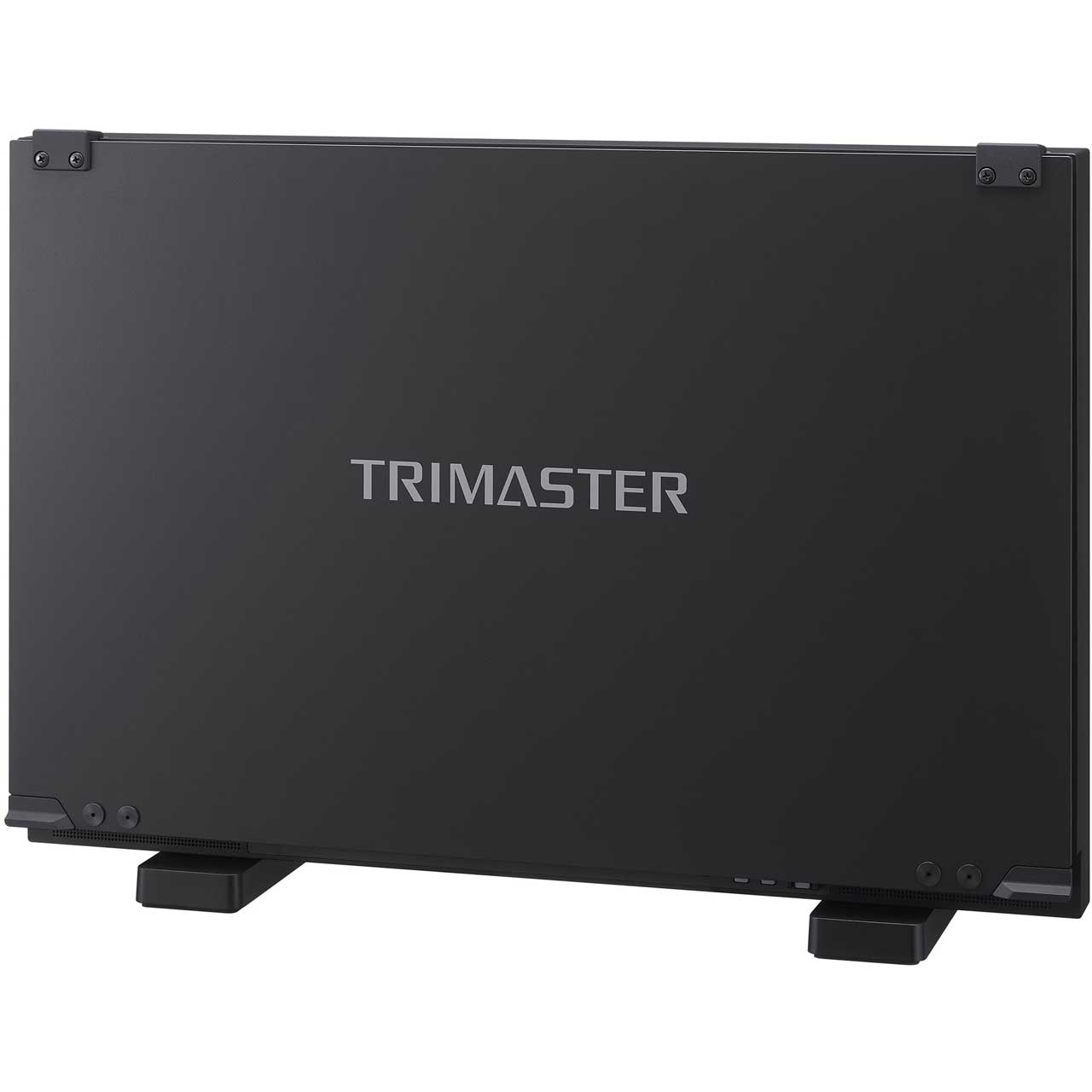

      • Optional protection kit: PVMK-PX18
      • Audio level meter display
      • Timecode display
      • User reset
      • Side-by-side view
      • Automatic HDR setting by Video Payload ID and SR Live Metadata
      • In-monitor display (from V4.0 firmware)
      • Network control function and parallel remote (from V4.0 firmware)

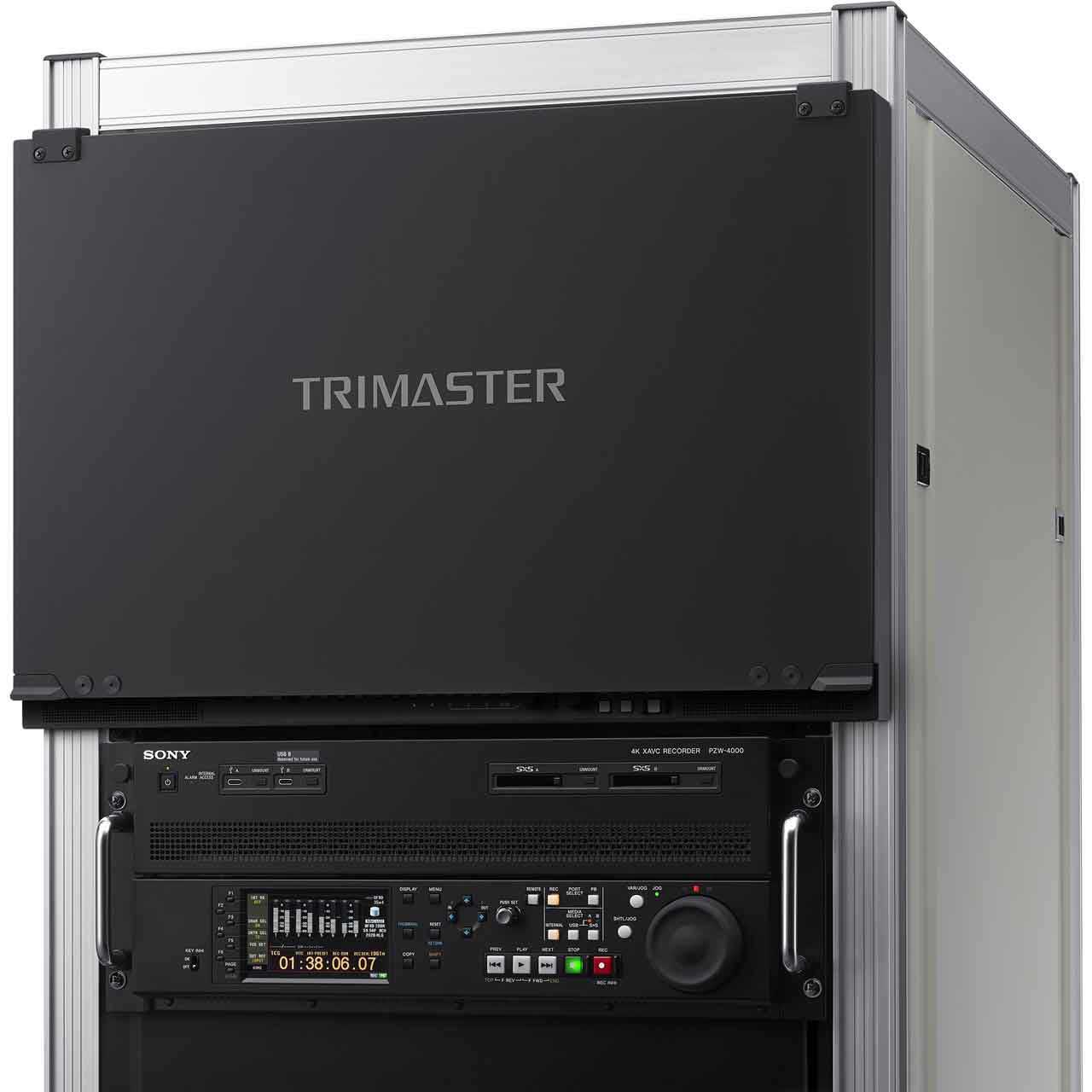

      • EIA standard rack-mount capability
      • Internal signal pattern
      • Chroma up function (from V4.0 firmware)
      • Closed caption (from V4.0 firmware)
      • Mono, blue only and R/G/B off
      • Screen saver

    • Specifications:

      • Picture Performance
      • Panel: a-Si TFT Active Matrix LCD
      • Picture Size (Diagonal): 24" (609.6mm)
      • Effective Picture Size (HxV): 21" x 11-7/8" (531.6mm x 299.1mm)
      • Resolution (HxV): 3840 x 2160 pixels
      • Aspect: 16:9
      • Display Colors: Approx. 1.07 billion colors
      • Panel Frame Rate: 48 Hz/50 Hz/60 Hz (48 Hz and 60 Hz are also compatible with 1/1.001 frame rates)
      • Viewing Angle (panel specification): 89°/89°/89°/89° (up/down/left/right contrast > 10:1)
      • Color Temperature: D60, D65, D93, DCI, and user 1-10 (5,000 K to 10,000 K adjustable)
      • Luminance (panel specification)(typical): 1000 cd/m2
      • Color Space (Color gamut): ITU-R BT.2020*2, ITU-R BT.709, DCI-P3*2, S-GAMUT3, S-GAMUT3.Cine
      • Transmission Matrix: ITU-R BT.2020 (Non-constant luminance is supported), ITU-R BT.709
      • EOTF: 2.2, 2.4, 2.6, 2.4 (HDR), S-Log3, S-Log3 (Live HDR), SMPTE ST 2084, ITU-R BT.2100 (HLG)

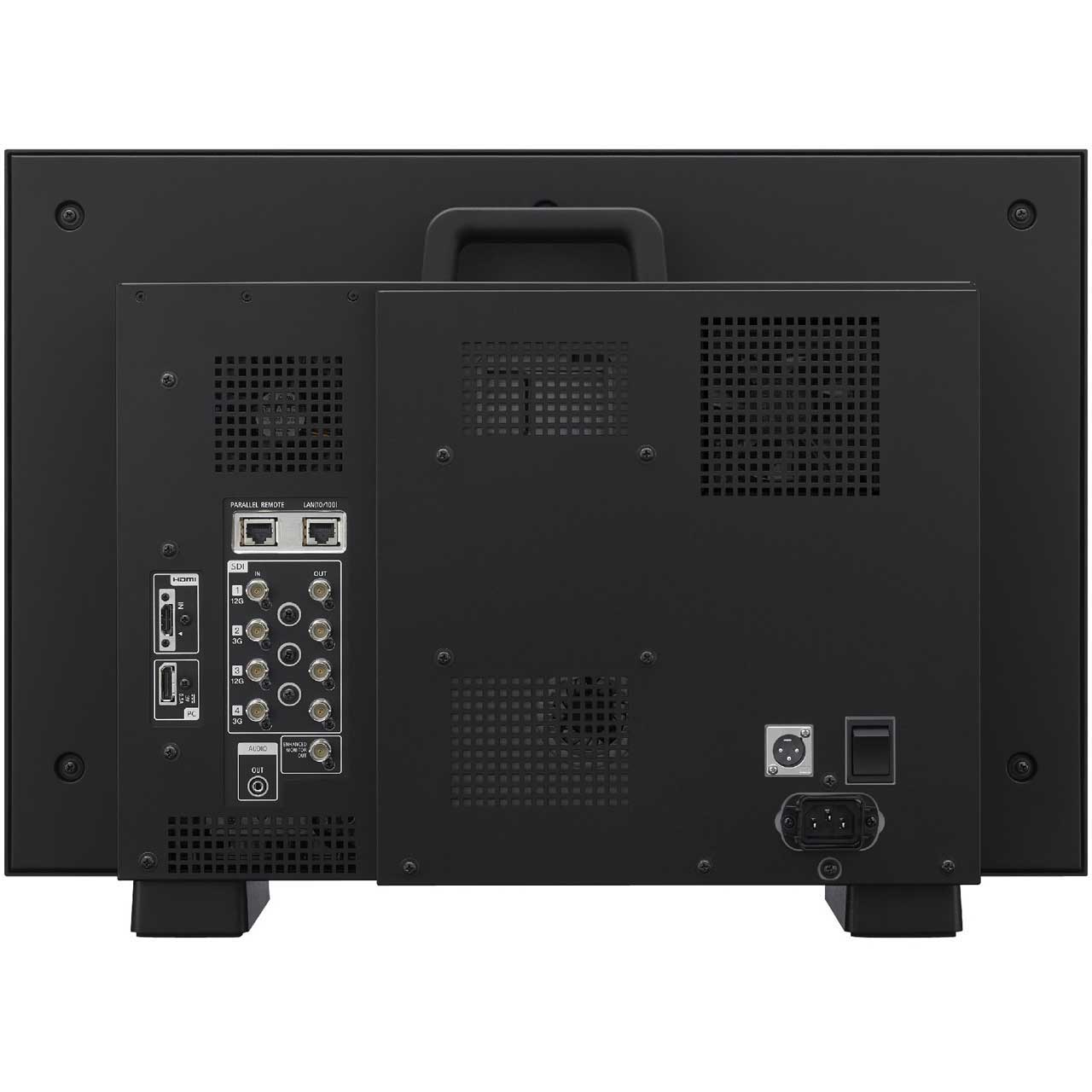

        Input
      • SDI:
        - 2x (12G/6G/3G/HD-SDI) BNC
        - 2x (3G/HD-SDI) BNC
        - Input Impedance: 75Ω unbalanced
      • HDMI Input: 1x HDMI (HDCP2.3/1.4)
      • Parallel Remote: 1x RJ-45 8-pin (Fixed pin assignment)
      • Serial Remote (LAN): Ethernet, 1x 10BASE-T/100BASE-TX RJ-45
      • DC Input: 1x XLR-type 3-pin (male), DC 22 to 32 V (output impedance 0.05Ω or less)

        Output
      • SDI Output:
        - 2x (12G/6G/3G/HD-SDI) BNC
        - 2x (3G/HD-SDI) BNC
        - Output Impedance: 75Ω unbalanced
      • Audio Monitor Output: 1x Stereo mini jack
      • Speaker (Built-in) Output: 2.0 W+2.0W (Stereo)
      • Headphone Output: 1x Stereo mini jack

        General
      • Power Requirements: AC 100 to 240 V, 2.6 to 1.0 A, 50/60 Hz, DC 22 to 32 V, 9.9 to 6.3 A
      • Power Consumption: Approx. 225 W (Maximum at AC operation)/Approx. 205 W (Maximum at DC operation)
      • Operating Temperature:
        - 32°F - 95°F (0°C - 35°C)
        - Recommended: 68°F - 86°F (20°C - 30°C)
      • Operating Humidity: 30% - 85% (no condensation)
      • Storage/Transport Temperature: -4°F - 140°F (-20°C - 60°C)
      • Storage/Transport Humidity: 0% - 90%
      • Operating/Storage/Transport Pressure: 700 hPa - 1060 hPa
      • Dimensions (WxHxD):
        - 22.36" x 15.04" x 6.24" (568mm x 382mm x 158.5mm)(without monitor stand)
        - 22.36" x 15.67" x 7.03" (568mm x 403.5mm x 178.5mm)(with monitor stand)
      • Mass: 23lbs 2oz (approx. 10.5kg)

    • Item Includes:

      • x1 AC power cord
      • x1 AC plug holder
      • x1 CD-ROM
      • x1 Before Using This Unit manual

    • GTIN:

      0027242920590
