Lilliput H7S 7 Inch 4K HDMI/3G-SDI Ultra-Bright On-Camera Monitor

ITEM #: LIL-H7S MFG #: H7S

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$299.00

Our Price:

$279.00

Availability: In Stock
iAvailability Description Popup


    H7S - Overview

    The Lilliput H7S is designed specifically for use outdoors or in high brightness environments. Boasting 4K HDMI 1.4 input, 3G SDI and pass through options, and featuring an 1800 nit (cdm²) panel, the Lilliput H7S is designed for situations when a normal monitor screen just won't cut it. The 4K HDMI 1.4 compatible input supports up to 4096 x 2160p @ 24p and 3840 x 2160p, and can loop out through to another HDMi input monitor / device.

    HDR is a technology that improves the range of color and contrast in a digital image. When activated, the monitor will reproduce a much greater dynamic range of luminosity, allowing for lighter and darker details to be displayed more easily. The Lilliput H7S supports ST2084 - 300, ST2084 - 1000, ST2084 - 10000, and HLG (Hybrid Log Gamma)

    3D LUT (Look Up Table) is a system for ensuring accurate colour representation across all connected devices in a work flow. The Lilliput H7S has 3D LUT capabilities, loaded into the device using a USB port on the lower edge of the monitor. The LUT specification is a 17 x 17 x 17 BGR .cube file.

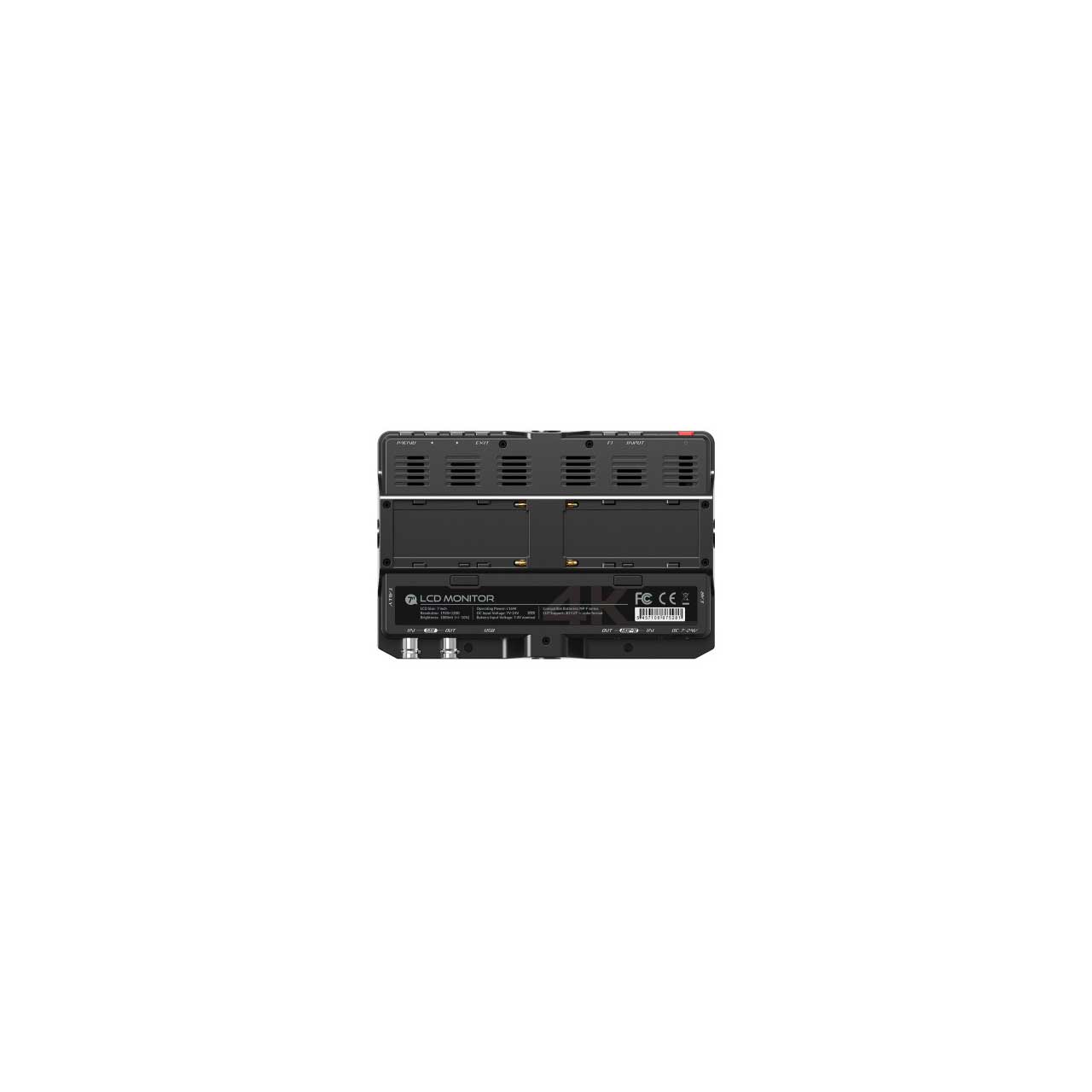

    Ultra high brightness displays are power-hungry beasts, so the need for as much power to be available is paramount. The Lilliput H7S has the capability to use two SONY NP-F970 (or compatible) batteries to allow for the maximum operating time.

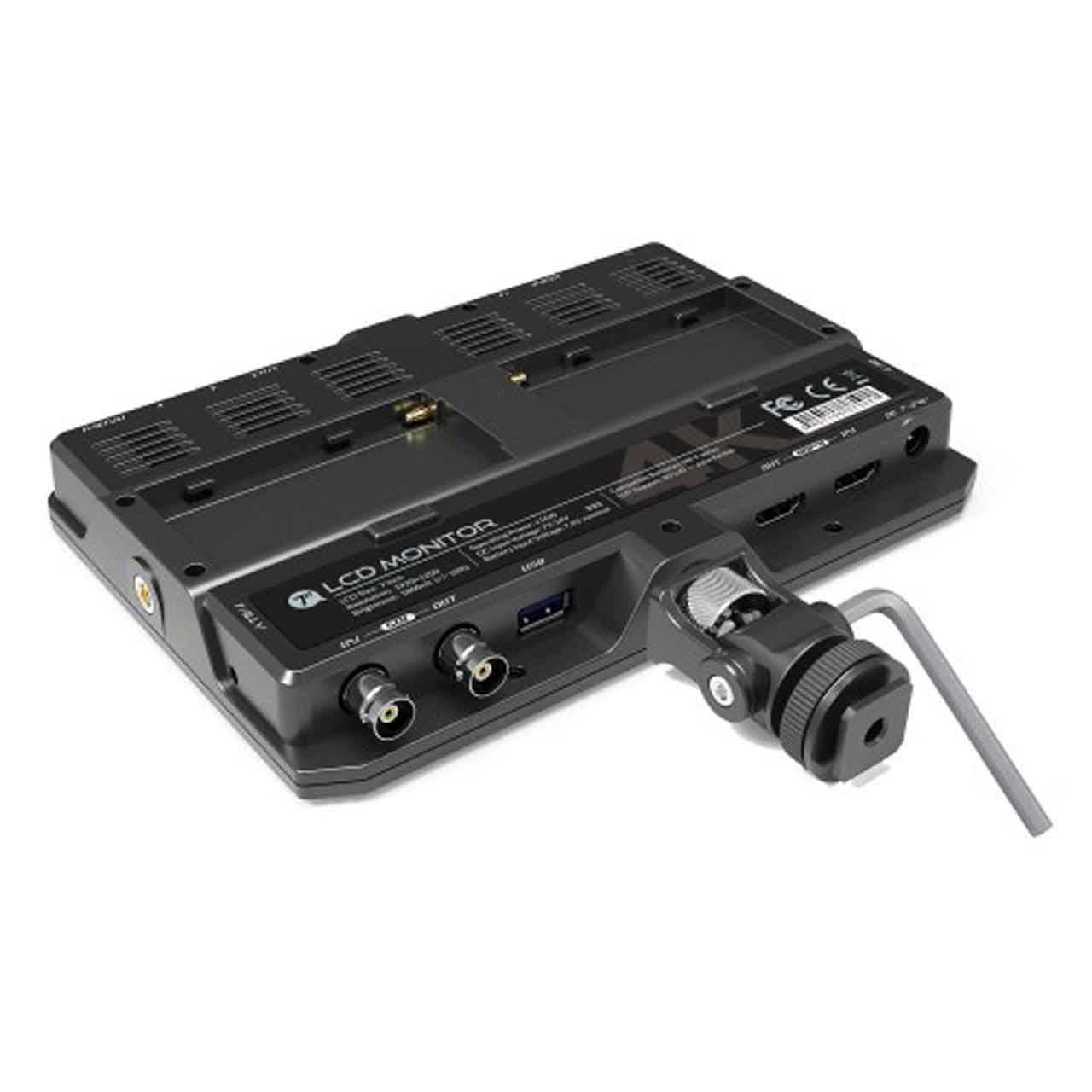

    With 1/4" BSW thread hole at the bottom of the device, the Lilliput H7S is capable of being mounted on any device that has a Hot Shoe mount attachment point. Included in the box is a mount which allows for 360° rotation on the horizontal axis and 180° tilt on the vertical axis.

    • Features:

      • 1800 nit Ultra-Bright
      • Ultimate color visibility
      • 4K HDMI & 3G-SDI
      • HDR
      • 3D LUt
      • 1/4" hot shoe mounting

    • Specifications:

      • Aspect Ratio: 16:10
      • Display: 7" LCD
      • Native Resolution: 1920 x 1200
      • Maximum Resolution: 2840 x 2160
      • Input Voltage: DC 7-24V
      • Pixel Pitch (mm): 0.07870 (H) x 0.07875 (V)
      • Power Consumption: <=16W (12V)
      • Brightness Ratio (cd/m2): 1800
      • Contrast Ratio: 1200:1
      • Video Inputs: 1x HDMI 1.4
      • Video Outputs: 1x HDMI 1.4, 1x 3G-SDI, 1x Tally
      • Audio Outputs: Speaker x1, Headphones (3.5mm) x1
      • Dimensions: (L) 225mm x (W) 155mm x (D) 23mm
      • Weight: 535 g
      • Operating Temperature: 0°C to 60°C
      • Storage Temperature: -10°C to 60°C

    • Item Includes:

      • 1x HDMI A to C cable
      • 1x Tally control line
      • 1x Mini hot shoe
      • 1x Carry bag
      • 1x User Guide
