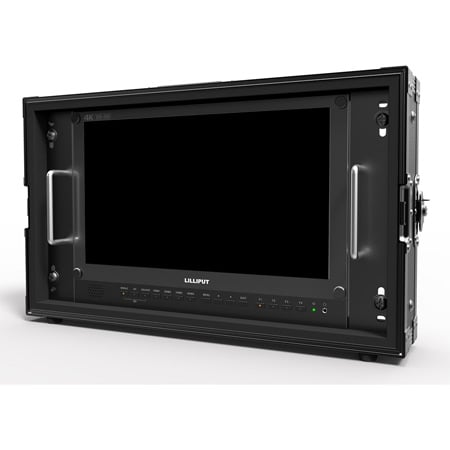

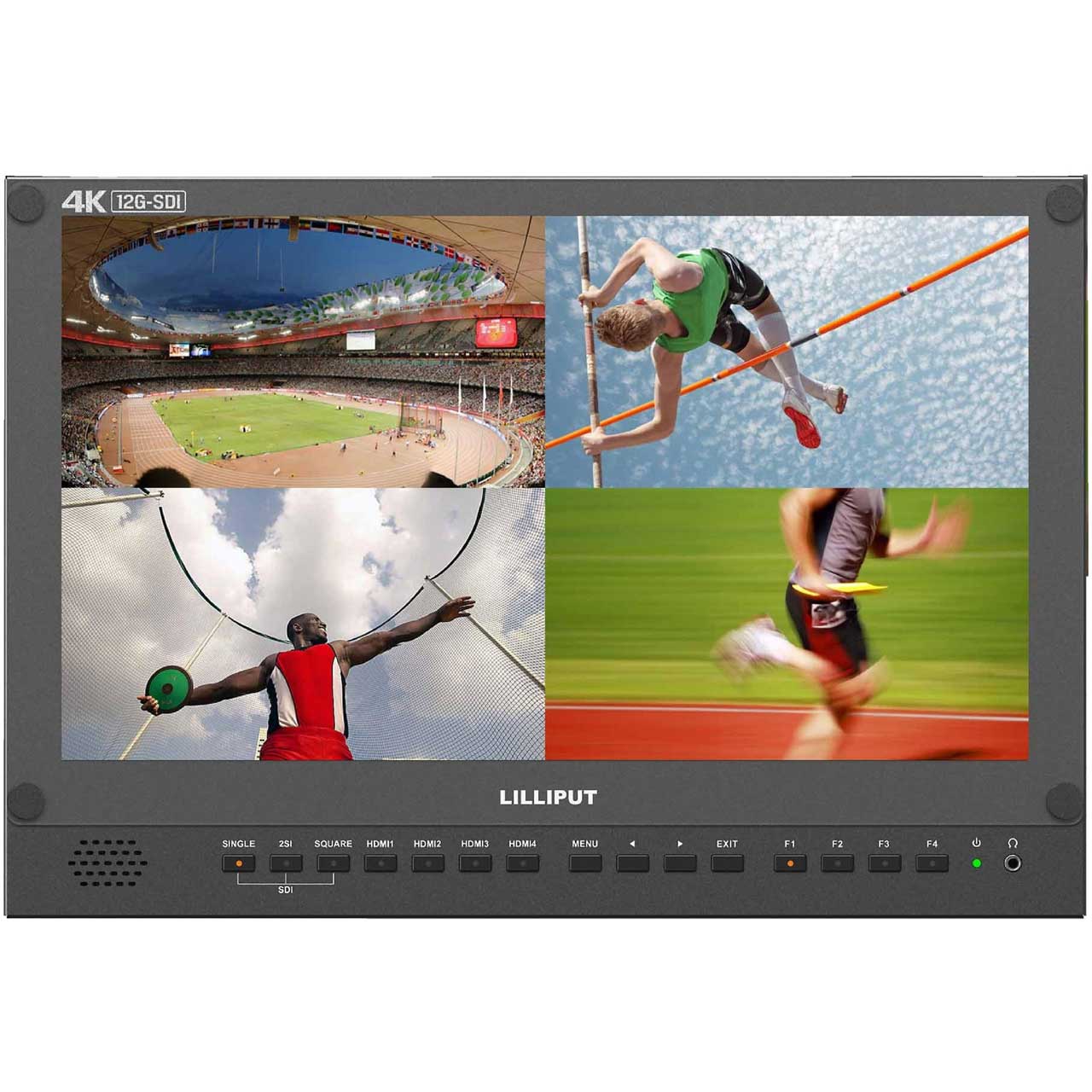

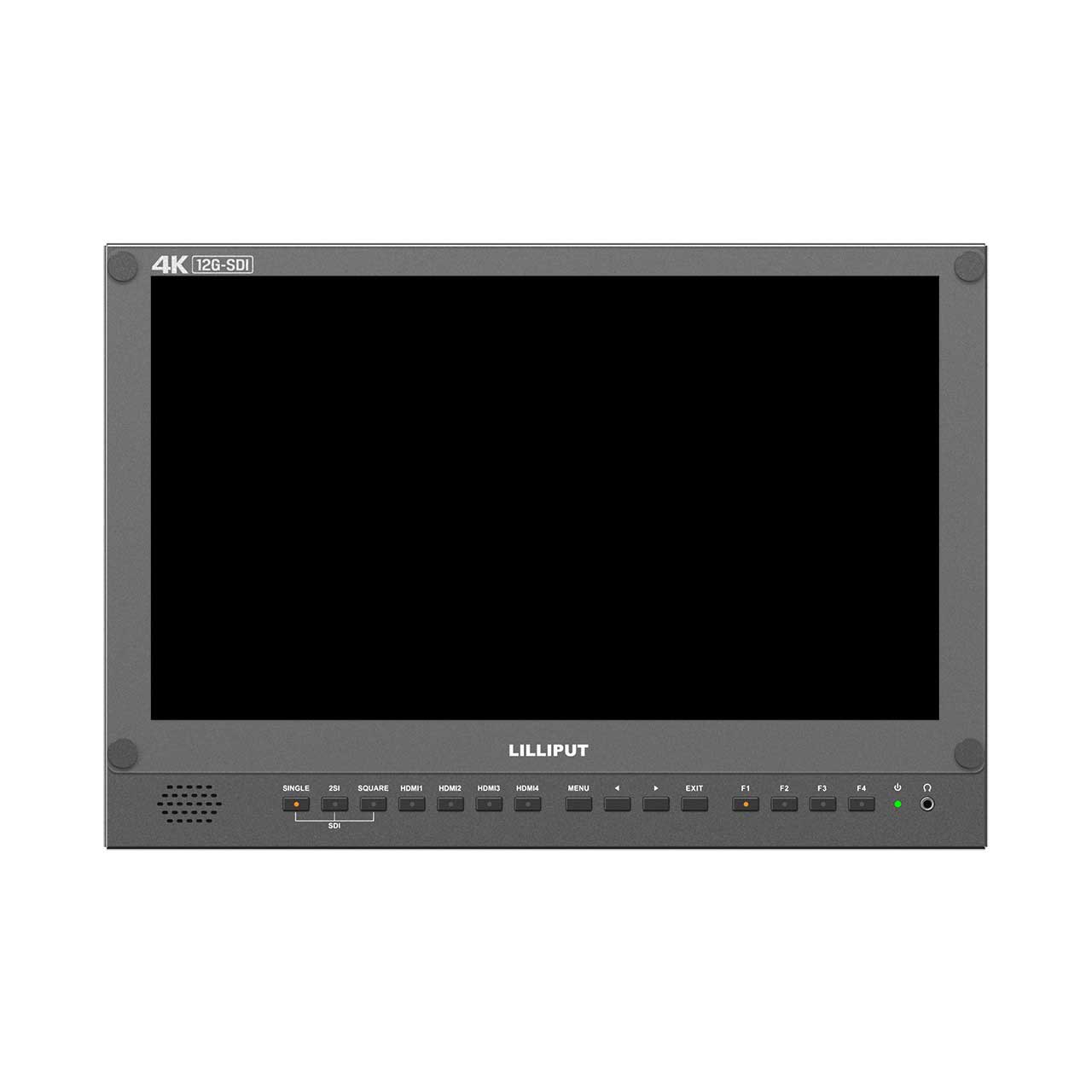

Lilliput BM150-12G-VBP 15.6-Inch 12G-SDI 4K IPS Monitor (V-Mount)

ITEM #: LIL-BM150-12GVBP MFG #: BM150-12G-VBP

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    BM150-12G-VBP - Overview

    The Lilliput BM150-12G is a 15.6" 4K resolution monitor with HDMI and SDI connectivity at 12G connectivity speeds. Designed for the professional video and film industry and is ideally suited for directors and camera operators operating 4K capable equipment. The BM150-12G has two SDI input standards - ST425-3, which uses the 4x SDI inputs to carry 1/4 of the overall screen image, and ST425-5 which allows you to knit together the 4 SDI inputs and interleave them over each other. Both of these allow for a full 4K image over the 4x 3G SDI connections

    4K Ultra-HD Resolution
    The BM150-12G monitor features the latest 4K imaging technology. Connected through by HDMI 2.0, 4K screens are Ultra HD - containing 8.3 million pixels making the resolution four times more powerful than full HD making them the ultimate in cinematic displays.

    12G SDI Input
    The BM150-6G monitor has a 6G-SDI Single link input and output loop onboard. It can support 6G bandwidth inputs, as well as being backward compatible with 3G bandwidth inputs.

    Solid Transmission Distances
    The BM150-12G has a robust signal transmission range, meaning that you can use up to a 70 meter 6G-SDI input cable, and an output cable at up to 50 meters length, offering a flexible path to SDI connectivity. We measure this by looking at the height of the "eye" in the signal wave as shown on an oscilloscope. The BM150-6G has a "tall" eye when analysed, which highlights the strength and jitter-free quality of the signal.

    Connectivity for all video standards
    The monitor comes with all of the major video standards used in commercial and the video industry. The BM150-6G connects using HDMI for 4K resolutions, and can connect using either HDMI or SDI for standard 1080p and below resolutions. This gives the ability to meet the needs of any professional display solution.

    • Specifications:

      • Screen Size (diagonal): 15.6"
      • Aspect Ratio: 16:9
      • Native Resolution: 3840 x 2160
      • Viewing Angle (degrees): 176/176
      • Brightness Ratio (cd/m2): 330
      • Contrast Ratio: 1000:1
      • Backlight: LED

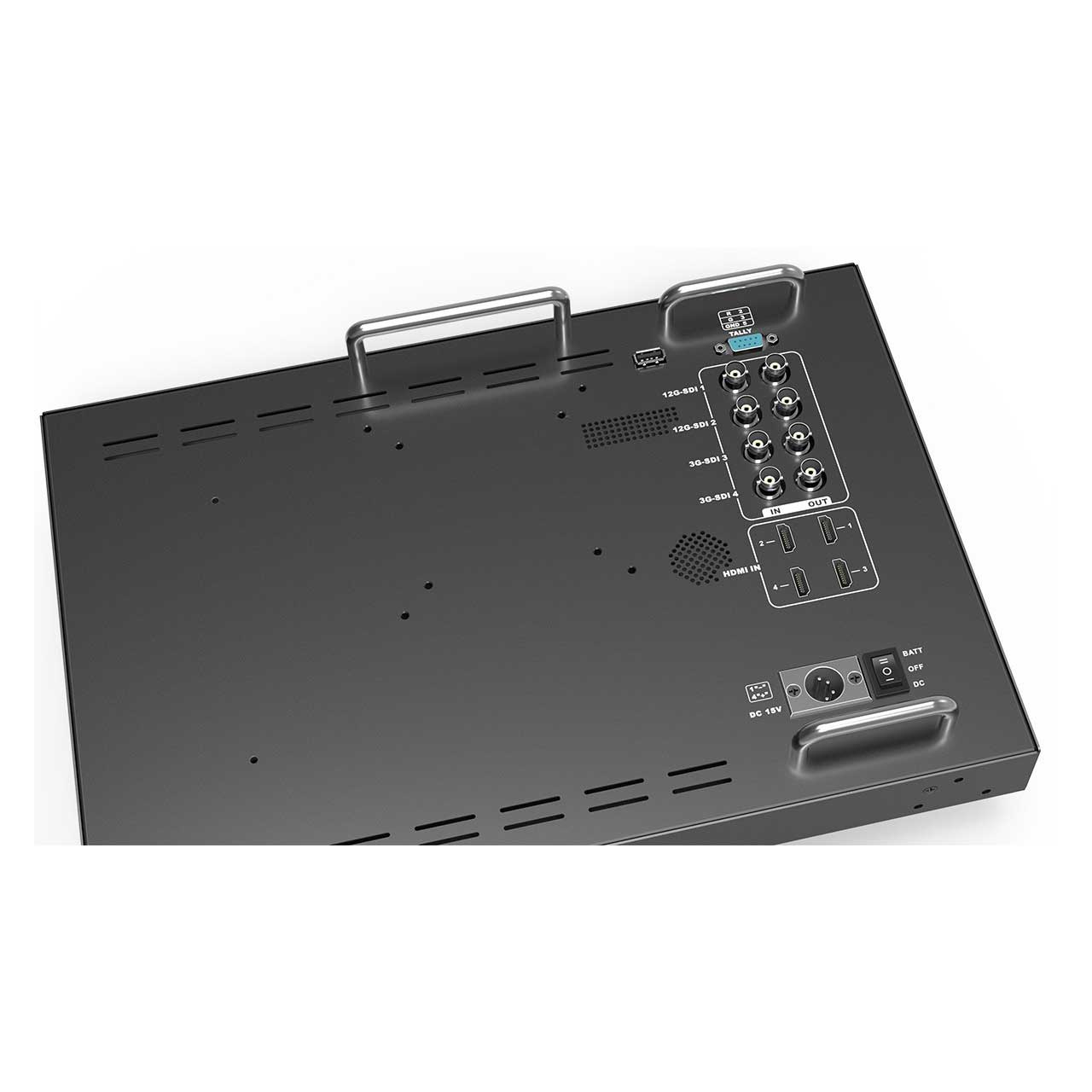

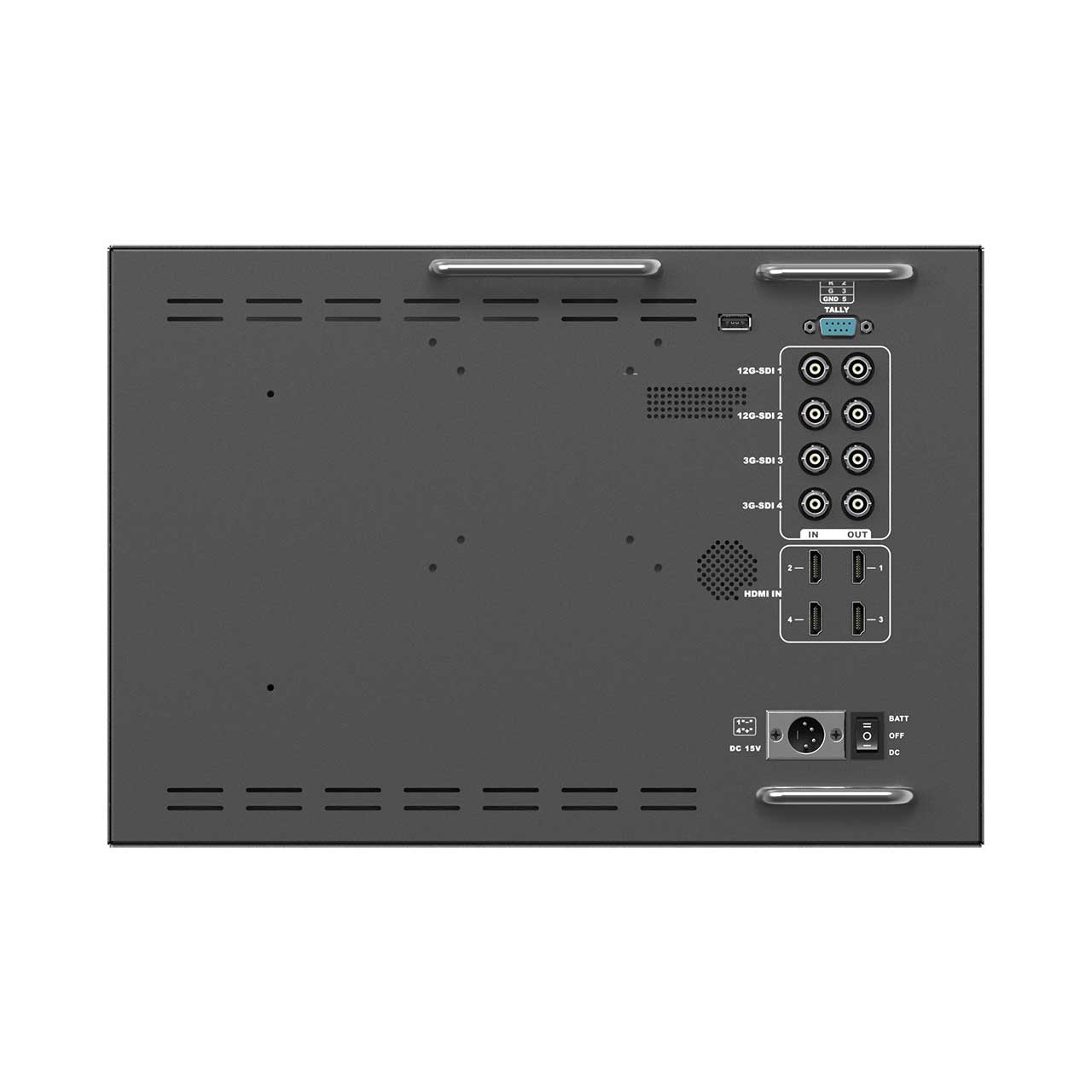

      • Video Inputs: 12G-SDI x 2 (backward compatible to 3G-SDI), 3G SDI x2,HDMI x 4 (1 x HDMI 2.0 - 4K at 60Hz, 3 x HDMI 1.4 - 4K at 30Hz), DVI x 1, VGA x 1, Tally x 1
      • Video Outputs: 3G-SDI x 1
      • Audio Outputs: Speaker x 2, 3.5mm Jack x 1
      • Input Power: DC12V - 24V (XLR)
      • Operating Temperature: -20 degrees - 50 degrees
      • Height (mm): 267 (305 in case)
      • Width (mm): 389 (524 in case)
      • Depth (mm): 38 (170 in case)
      • Weight (g): 12kg with case (3.4kg without case)
