Wohler vMON-320-8K 32 Inch 8K HDR Video Monitor with 4x 12G/6G/3G/HD/SD-SDI/HDMI and SFP+ Cage Inputs

ITEM #: WOH-VMON-320-8K MFG #: 8006-0320

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$9,295.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    8006-0320 - Overview

    The vMON Series is a full-featured range of slim, free standing video monitors ideal for mobile trucks, news and transmission control rooms, production/post-production and video surveillance applications. These monitors come standard with in-monitor level metering, selectable video vectorscope/histogram, safe area and aspect ratio markers, IMD labeling, tally, and built-in color bars, as well as a variety of picture controls and productive video features such as zoom controls and focus assist.

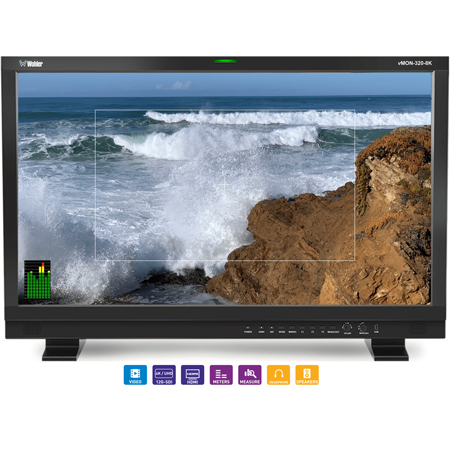

    The Wohler vMON-320-8K is a 32.5" 8K HDR monitor with 4x12G/6G/3G/HD/SD-SDI inputs and outputs and an integral HDMI 2.0 interface. It supports up to 8192×4320 60P signals. 3D LUT color calibration with a Klein K10 probe provides an excellent picture quality. The vMON-320-8K is suggested for high-end 8K, 4K and FHD outside shooting, production, studio and OB van applications.

    All standard frame rates and resolutions are supported from 12G-SDI and HDMI input sources, and each 12G-SDI input has a looping output. Up to 16 audio channels may be selected for visual monitoring using on-screen bar graph style level meters. Monitoring speakers on the front panel allow the selected screen to be audibly monitored, while a 3.5mm headphone jack provides optional private monitoring.

    The vMON-320-8K contains a vast array of Features and Benefits.

    • Features:

      • 3840 x 2160 4K resolution
      • Supports 8K SDI signals at 8192 x 4320 resolution
      • 12 Bit Video Processing, no image delay
      • 4K 12G-SDI single link signal, 4K/8K Quad link 2 Sample Interleave (2SI), Square Division (SQD)
      • 1 x SDI SFP+ module optical input cage, 1 x HDMI 2.0 input
      • Free Quad-View (border control/window adjustment), 4 x SDI/HDMI mixed inputs & frequency rates
      • 16 ch Embedded Audio Level Meters
      • 4K HDR Waveform, Vector Scope, Marker/Box Control Function
      • Picture Flip, Focus Assist, False Color, Zebra
      • Full Scan, Over Scan, Blue/Mono Only
      • Key Lock, Video Freeze
      • SDR and HDR comparison, Darkness Check
      • Color Space & EOTF Curves Auto Sensing, matching(REC709/REC2020)
      • Color Space (REC709/EBU/DCI-P3 D65/DCI-P3/REC2020/Bypass)
      • HDR: PQ (ST2084), HLG (1.0, 1.1, 1.2, 1.3, 1.4, 1.5)
      • Sony Camera Log Curves: Slog, Slog2, Slog3
      • Canon Camera Log Curves: Clog, Clog2, Clog3
      • ARRI Camera Log Curves: LogC
      • Panasonic Camera Log Curves: Vlog, Vlog (softroll)
      • Gamma (2.0, 2.2, 2.4, 2.6), HDR Area Display
      • 3D LUT Color calibration with ColourSpace & CalMAN
      • 3rd party 3D LUT files import (USER1/USER2)
      • Eight Selectable Scene Settings
      • Dynamic and Static UMD/IMD Display (TSL3.1/4.0/5.0)
      • 608/708 CC Closed Caption
      • Firmware upgrade/LUT file import via USB/Ethernet
      • GPI (selectable/markable windows)
      • Built-in Speakers

    • Specifications:

      • Meter Dynamics: 2-16 channels for each display window (source dependent)
      • Number of screens: 1
      • Color Depth: 1.07 billion
      • Diagonal Display Size: 32.5" Diagonal (719.5 mm H x 404.7 mm V)
      • Display Resolution (HxV): 3840 H x 2160 V
      • Contrast: 2000:1
      • Luminance: 400 cd/m2
      • Power Consumption: 70 Watts
      • Power Supply: 100 - 240 VAC or 12 VDC
      • Dimension Width: 29.5"
      • Dimension Height: 19.6"
      • Dimension Depth: 6.3"
      • Net Weight: 28 lbs
      • Shipping Weight: 58 lbs
      • Shipping Dimensions: 40 x 29 x 17 in (LxWxH)

    • Item Includes:

      • 1x Wohler vMON-320-8K 32 Inch 8K HDR Video Monitor with 4x 12G/6G/3G/HD/SD-SDI/HDMI and SFP+ Cage Inputs
