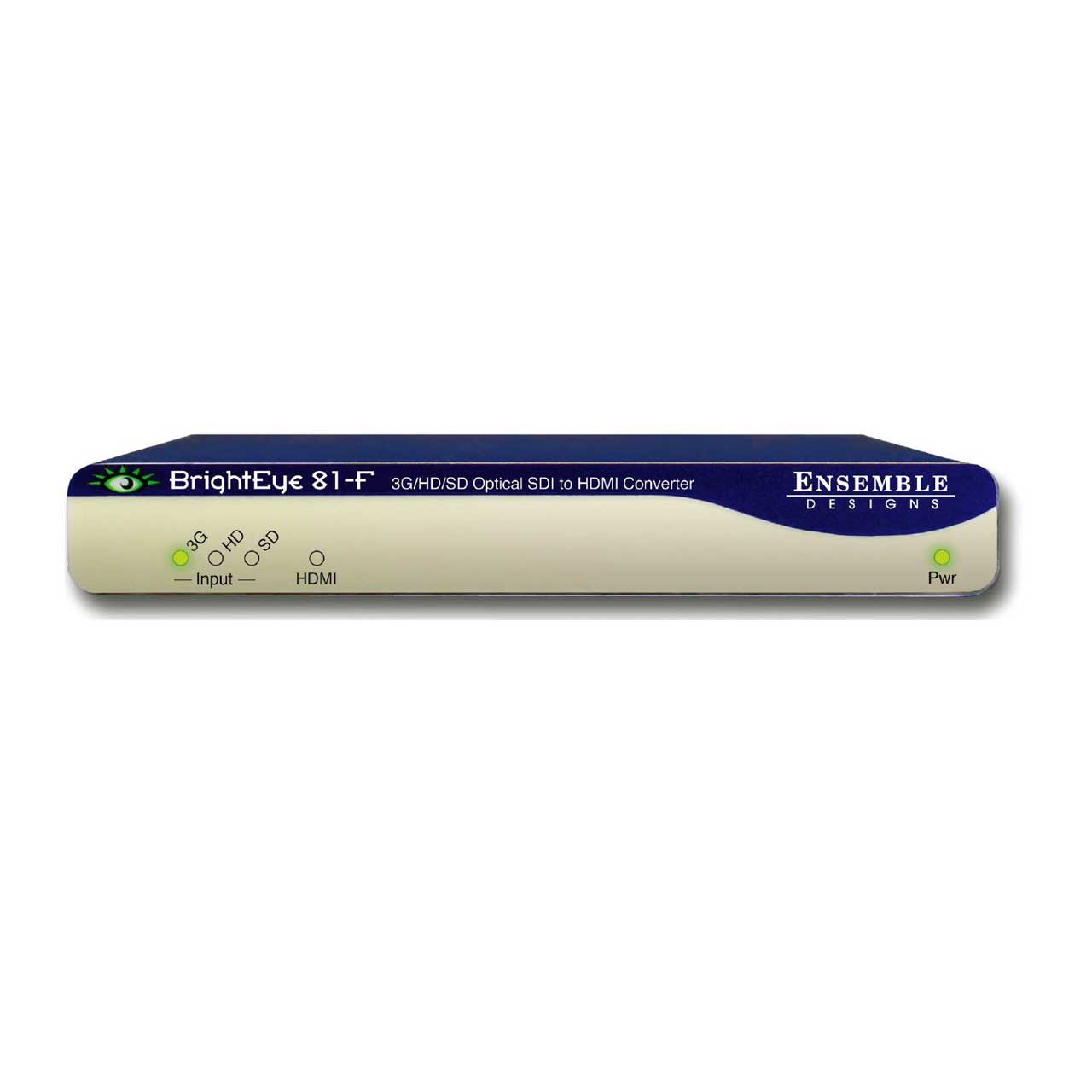

Ensemble Designs BrightEye 81-F Optical to HDMI and 3G/HD/SD SDI Electrical Converter

ITEM #: ENDE-BE81-F MFG #: BE81-F

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ENDE-BE81-F

BE81-F - Overview

Convert optical HD or SD video feeds to HDMI and electrical with the BrightEye 81-F. Convenient for feeding a video monitor, BrightEye 81-F provides a reliable way to monitor optical feeds in broadcast and mobile applications.

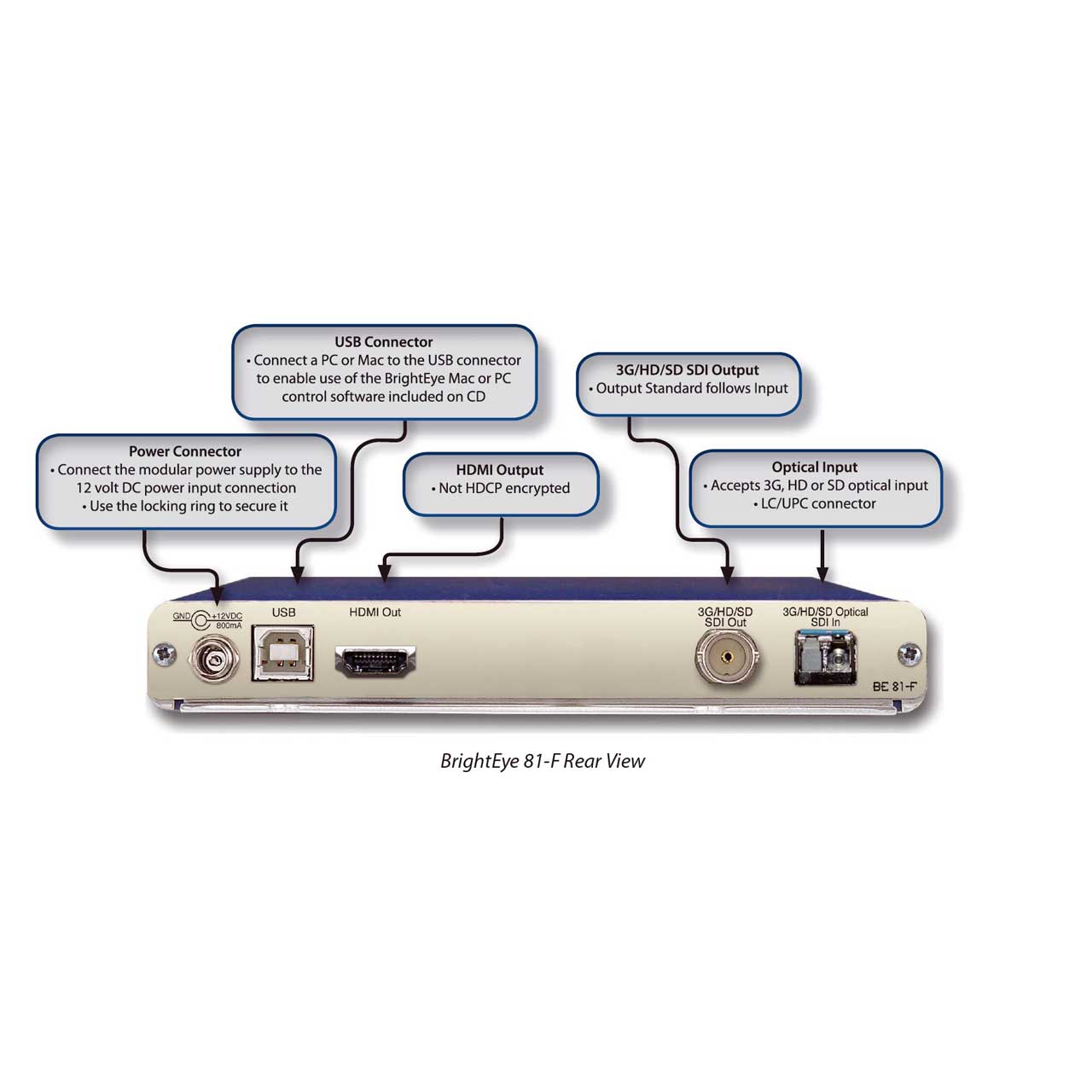

BrightEye 81-F is an optical to HDMI and electrical converter for use with standard definition video signals and 3 Gb/s and 1.5 Gb/s high definition signals. The video input is received on an optical LC connector, converted, and then output on both a BNC connector and an HDMI connector. The HDMI output is not HDCP encrypted.

For facilities using 3G, the issue of monitoring the signal becomes a challenge. A 3G video signal can be easily viewed via the HDMI output.

Signal monitoring and control is provided through the included BrightEye Mac and BrightEye PC software.

Power supply is included).

  • Features:

    • Optical to HDMI Converter
    • Optical to Electrical Converter
    • Use with Video Monitors that have HDMI Input
    • Use with HD or SD Signals
    • 3G HD, Level A and Level B Supported
    • Optical Receiver
    • Passes Embedded Audio


  • Specifications:

    • Optical Input:
    • Number One, LC/UPC
    • Type 270 Mb/s (SMPTE 297M, optical equivalent of 259M)
    • 1.485 Gb/s Gb/s HD Serial Digital (SMPTE 274M, 272M or 296M)
    • 2.97 Gb/s HD Serial Digital(SMPTE 424M, 425M), Level A
    • Wavelength 830 to 1610 nm
    • Receiver Sensitivity -18 dBm
    • Max Cable Length 20 km (For greater distances, or higher power and larger loss budgets, please contact the factory)
    • Fiber Type Single Mode
    • Multi-mode compatible with attenuation at transmit end
    • SDI Standards Supported:
    • 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
    • 720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz
    • 1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz
    • 1080sF (RP211 -14,15,16) 23.98, 24, 25 Hz
    • 1080p (SMPTE 424M, 425M), 50, 59.94, 60, Level A
    • 525i, 625i (SMPTE 259M)

      HDMI Output:
    • Number One
    • Type HDMI 1.3
    • Format HDMI 1.3

      Serial Digital Output:
    • Number One, BNC
    • Signal Type Follows input
    • Impedance 75 U
    • Return Loss >15 dB to 1.485 GHz
    • >10 dB to 2.97 GHz
    • Output DC None (AC coupled)

      General Specifications:
    • Size 5.625" W x 0.8" H x 5.5" D (143 mm x 20 mm x 140 mm) including connectors
    • Power 12 volts, 7 watts
    • (100-230 VAC modular power supply)
    • Temperature Range 0 to 40° C ambient (all specs met)
    • Relative Humidity 0 to 95° non-condensing
