Ensemble Designs BrightEye 90-A HD Up/Down Cross Convert and ARC w- Analog Audio

Manufacturer: Ensemble Designs

Item #: ENDE-BE90A   •   MFG #: BE90-A



List Price:$2,995.00
Our Price:$2,845.25

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





Don't let yesterdays gear keep you from creating tomorrows masterpiece. Ensemble Design has got your back....in High Definition no less!

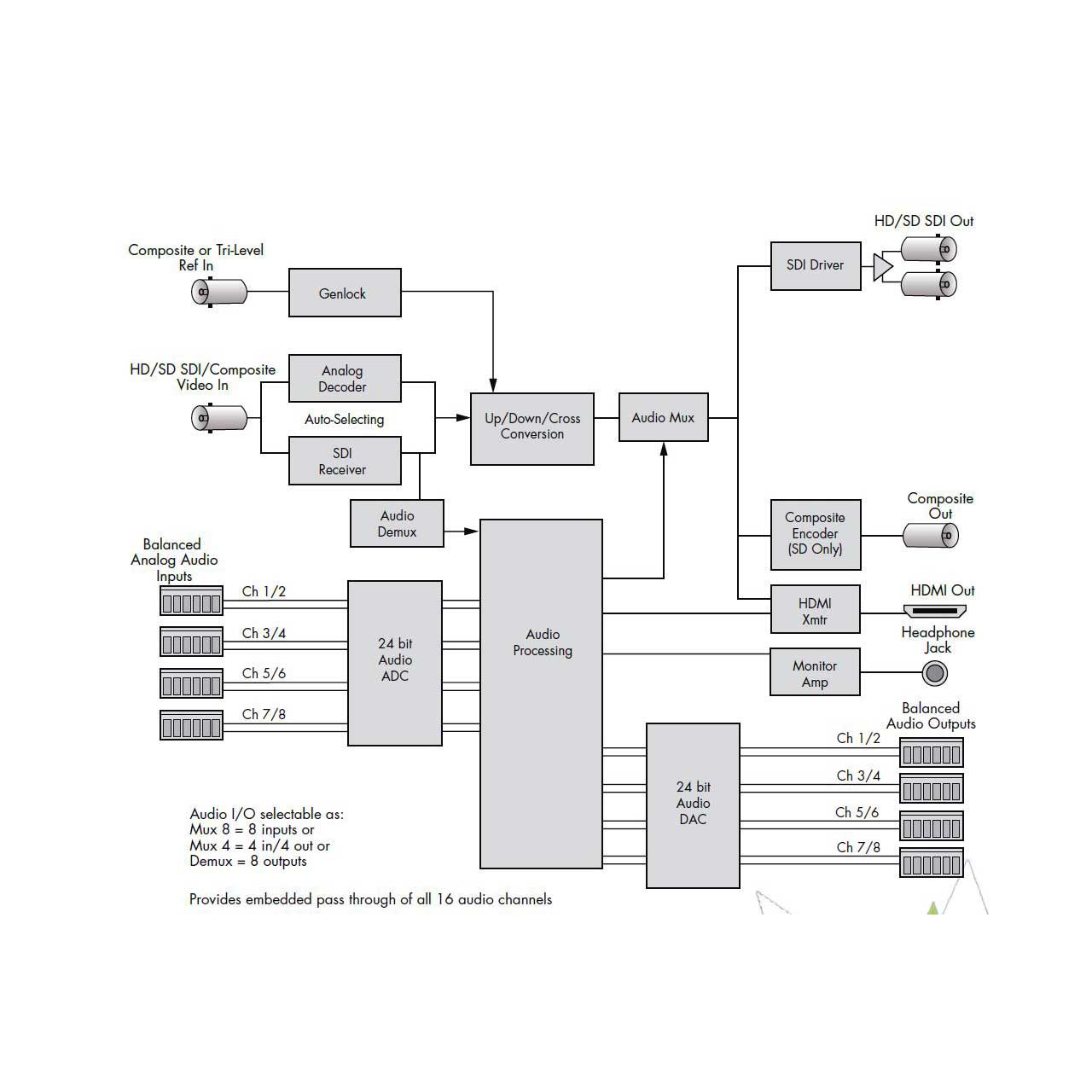

BrightEye 90-A is a versatile up/down/cross converter or aspect ratio converter for use with analog and digital video signals. Simply set the BrightEye 90-A to output your facility's preferred HD or SD standard. The BrightEye 90-A will accommodate whatever input you connect - analog composite, SD SDI or HD SDI. After setting the output standard, BrightEye 90-A automatically converts the selected input to the correct standard for your facility. BrightEye 90-A will upconvert, downconvert, cross convert, or act as an ARC, as needed. The built-in Frame Synchronizer allows you to feed asynchronous signals to the BrightEye 90-A. An external reference input allows genlock to a house reference. All vertical interval data and closed captioning is faithfully passed.

Upconverting to High Definition

Feed the analog composite or SD SDI output of a camera to a BrightEye 90-A and upconvert to HD. You can take the HD signal from the BrightEye 90-A into a switcher or projection system. Upconverting existing SD equipment lets you leverage the equipment you already have and operate in the HD domain.

While some cameras may have firewire out, using the video output and upconverting before distribution is preferable since longer cable runs can be achieved and quality is superior. Additionally, the BrightEye 90-A's reference input allows you to time the upconverted video output for use with a production switcher.

Downconverting to Standard Definition

BrightEye 90-A will downconvert any type of HD signal and provides both an SD SDI and an analog composite output suitable for broadcast or monitoring.

Cross Conversion

It's easy to convert between various HD standards, whether 720p or 1080i. Simply select the output standard you need and connect the input, that's all there is to it.

Aspect Ratio Conversion

For converting between SD 4:3 and HD 16:9, BrightEye 90-A has you covered. Just select the output standard you need and connect the input.

Audio Processing Made Simple

BrightEye 90-A handles both embedded audio and eight channels of analog audio. Sixteen channels of embedded audio are supported in BrightEye 90-A. If the incoming video has embedded audio, the audio will be safely bypassed around the video processing and lipsync will be preserved. Audio mixing is available for two of the four embedded groups of audio. The analog audio I/O ports can be configured for eight channels of incoming audio or for eight channels of audio output. The audio mixer can be used for analog audio as well. Mixer controls are accessed through BrightEye Mac or PC software.

Monitoring for Video and Audio

Audio monitoring is easy with BrightEye 90-A's convenient 3.5mm mini jack. Select the audio channels you want to monitor from the front panel and plug in a headset.

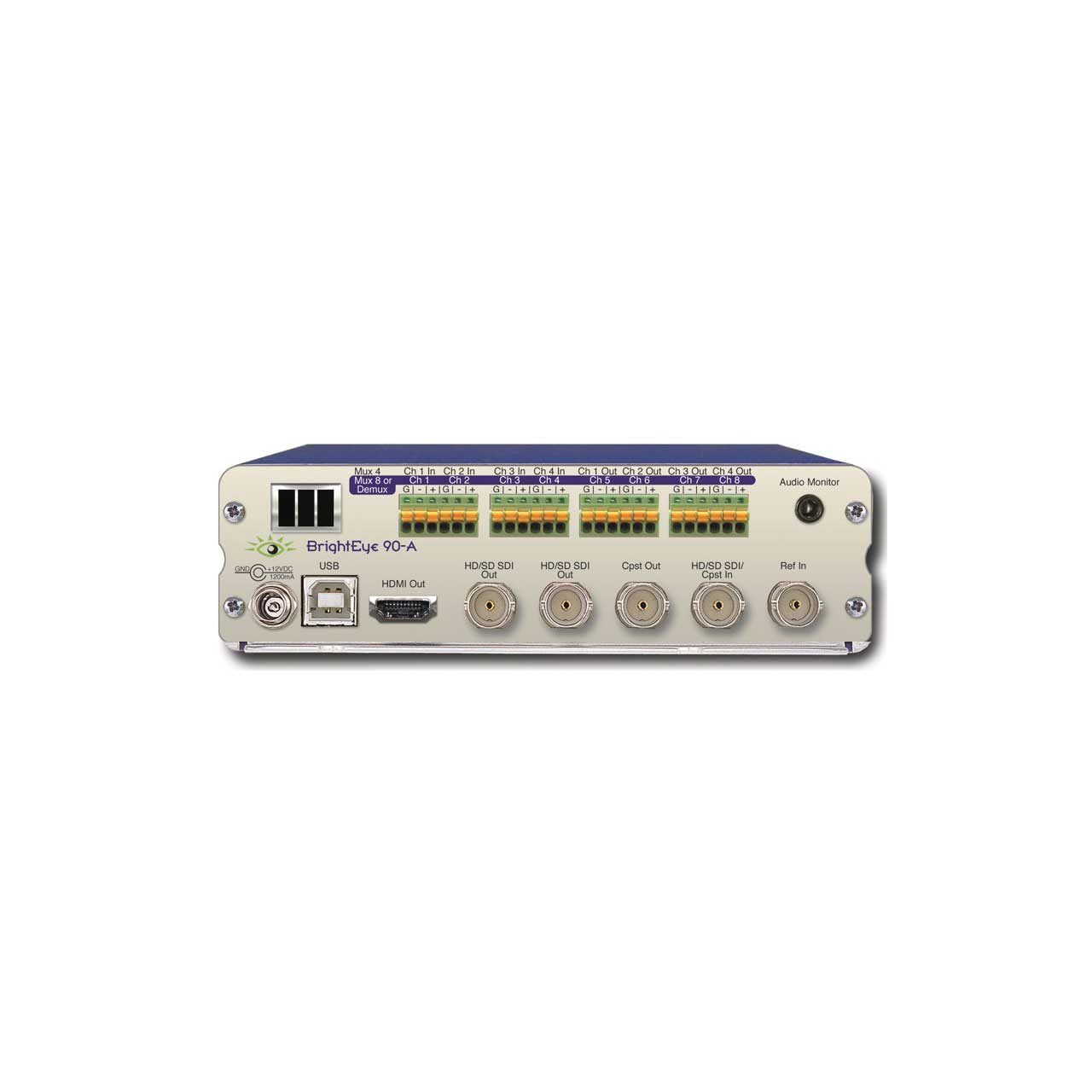

The HDMI connector on the rear of the unit provides a future proof monitoring interface. Plug it into most computer monitors for confidence monitoring of your feed.Front Panel and Software Control

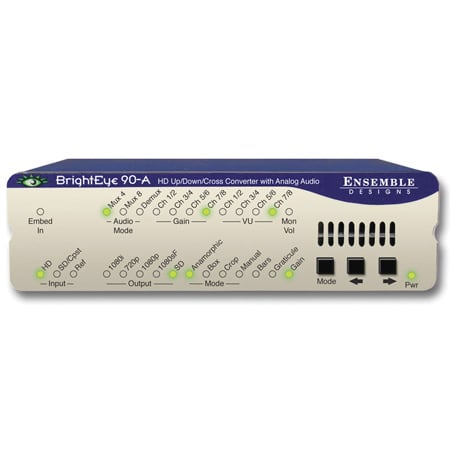

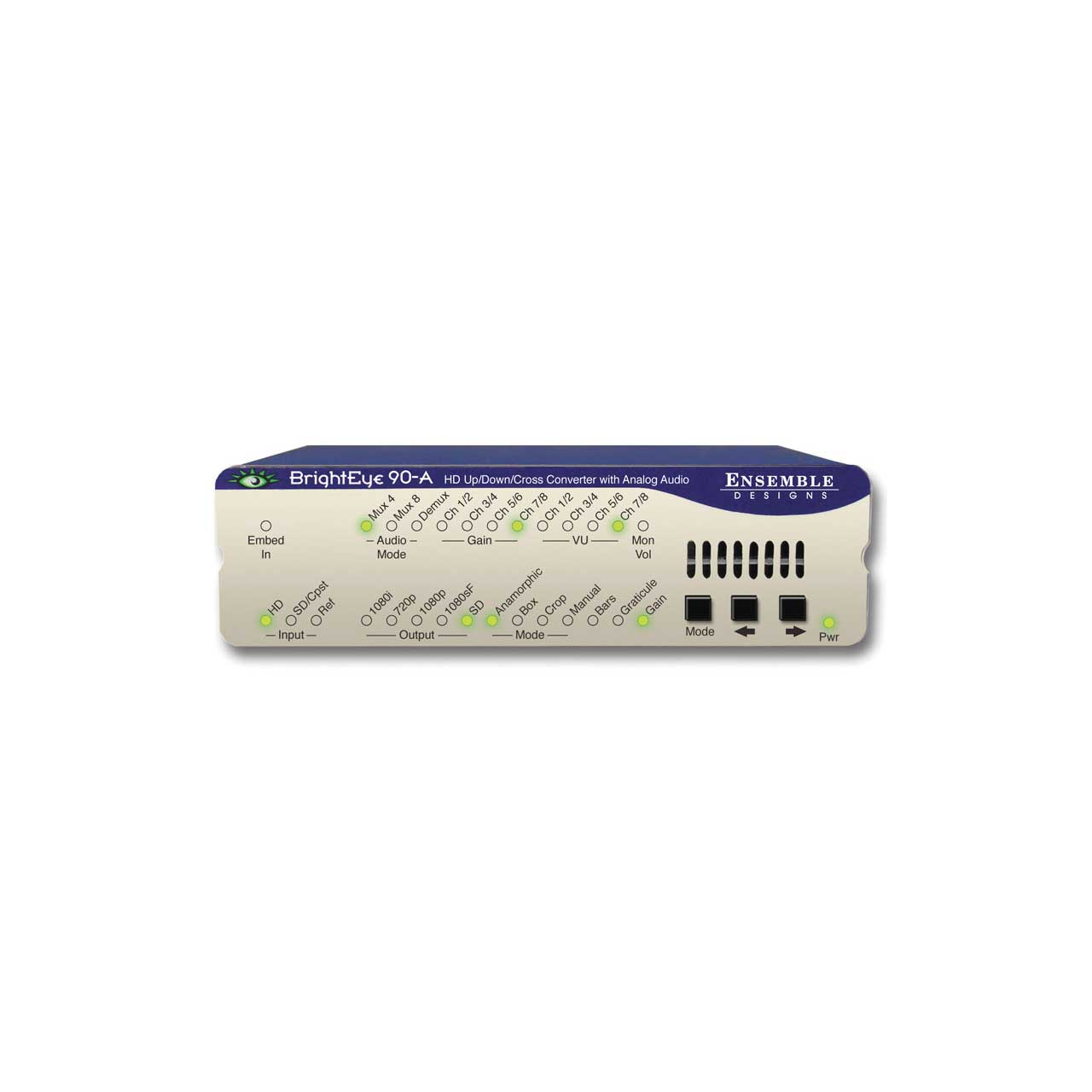

Input selection, gain control, and test pattern controls are provided through the front panel interface. Audio presence LEDs indicate which channels are detected. Controls for crop, letterbox and pillarbox are accessed from the front panel or BrightEye Mac or PC software. Video and audio levels and the audio mixer can be adjusted through BrightEye Mac or PC software.

Power supply is included.


  • Features

    • Use with cameras and projection systems
    • Turn analog camera into digital HD source
    • HD and SD digital and analog composite video I/O
    • Analog audio I/O
    • Analog audio monitor output
    • Mirror output mode for on-camera talent
    • Graticule and Safe Title generator
    • HDMI output
    • Frame sync
    • 12 and 16 bit processing
    • Passes embedded audio

  • Specifications

    • Open Data Sheet tab for detailed specifications.
