EV XCS312-BLK Triple-12 Inch Cardioid Bass Element
  • EV XCS312-BLK Triple-12 Inch Cardioid Bass Element
  • EV XCS312-BLK Triple-12 Inch Cardioid Bass Element
  • EV XCS312-BLK Triple-12 Inch Cardioid Bass Element
  • EV XCS312-BLK Triple-12 Inch Cardioid Bass Element
  • EV XCS312-BLK Triple-12 Inch Cardioid Bass Element

Questions? Ask a Markertek Expert:
800-522-2025 Email

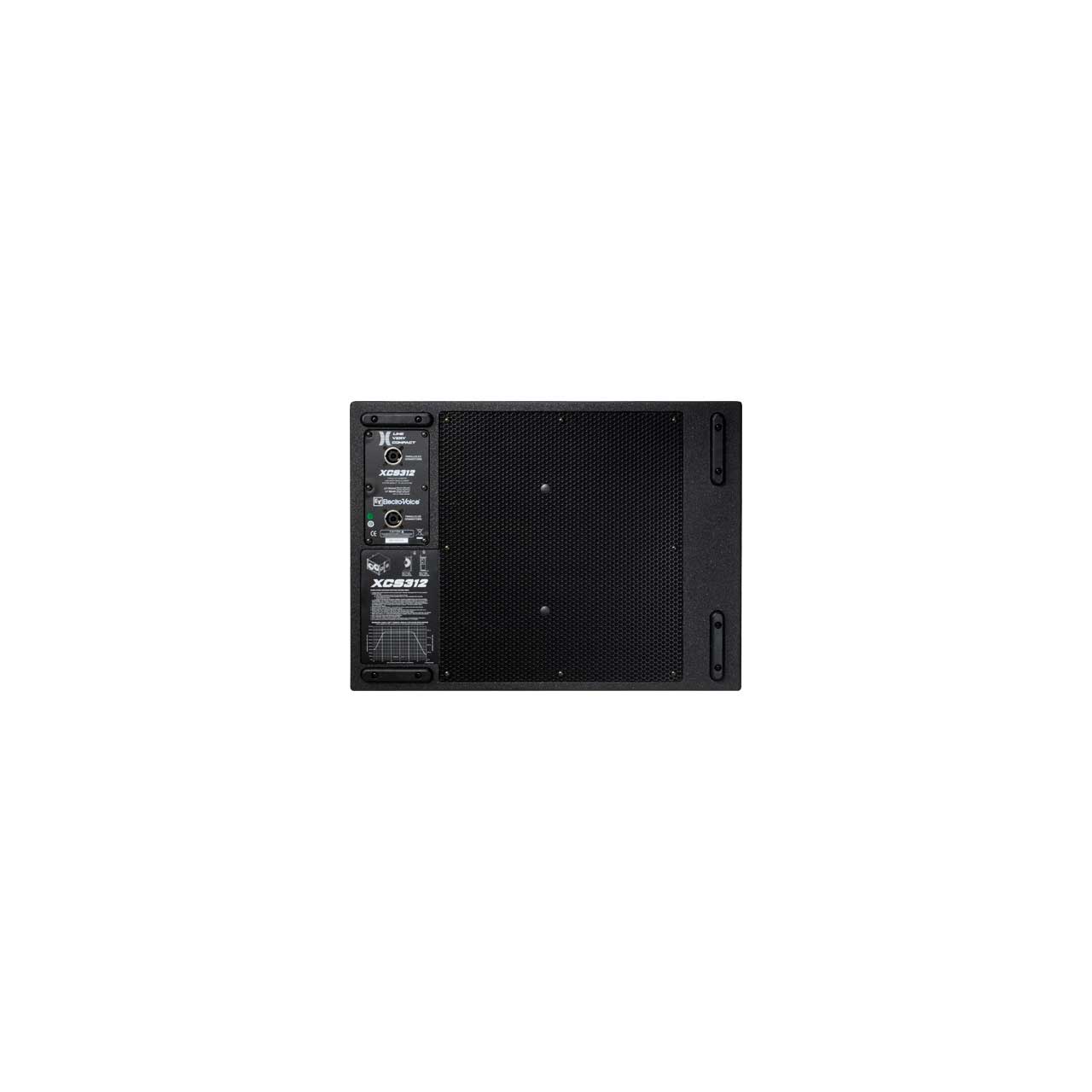

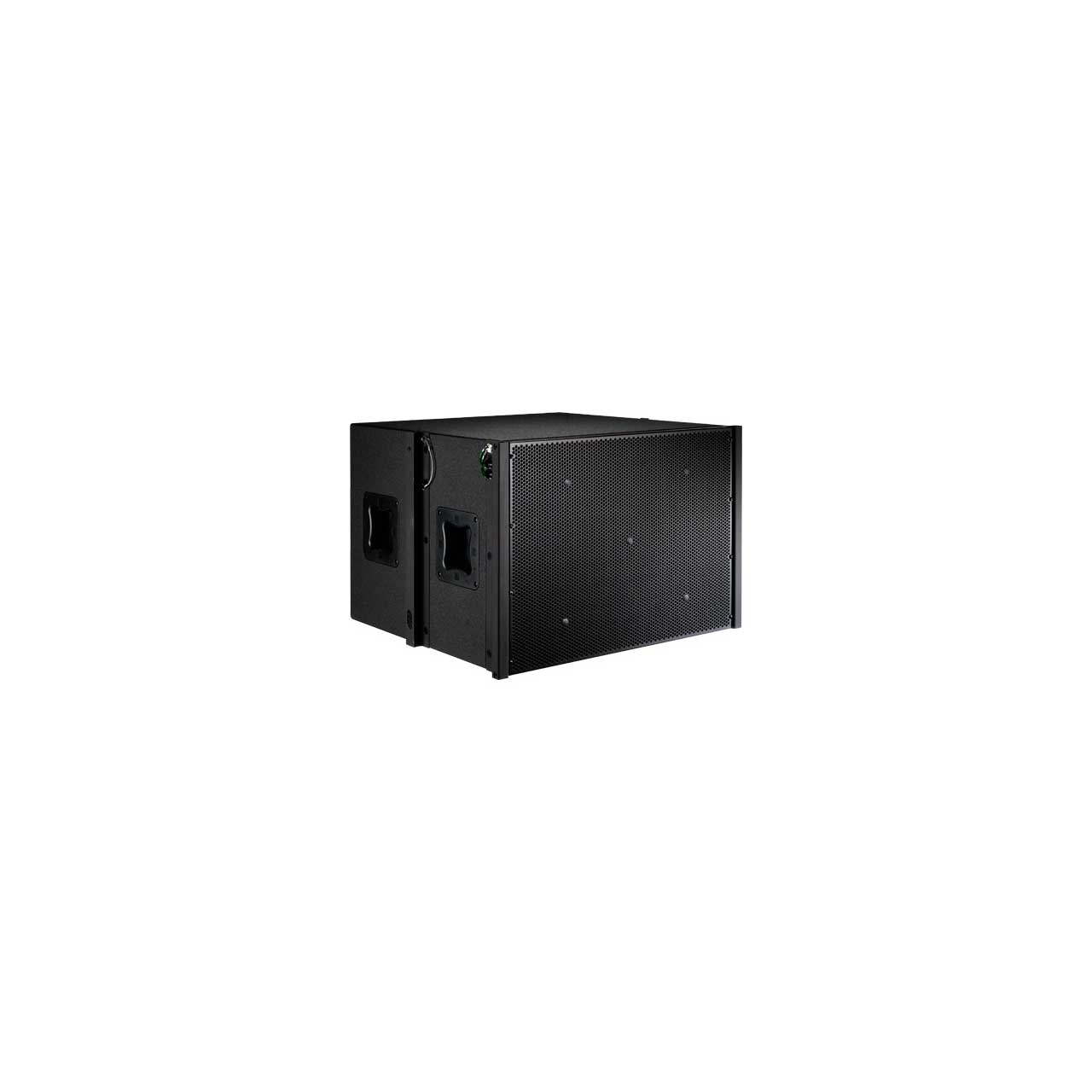

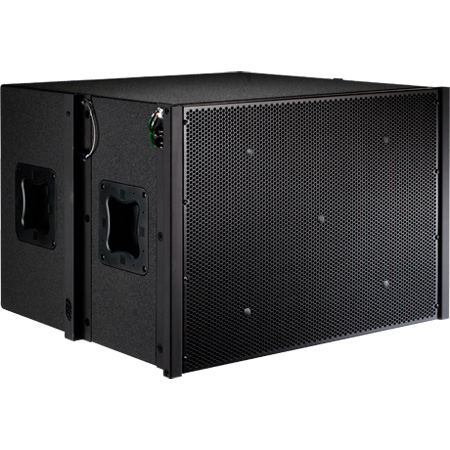

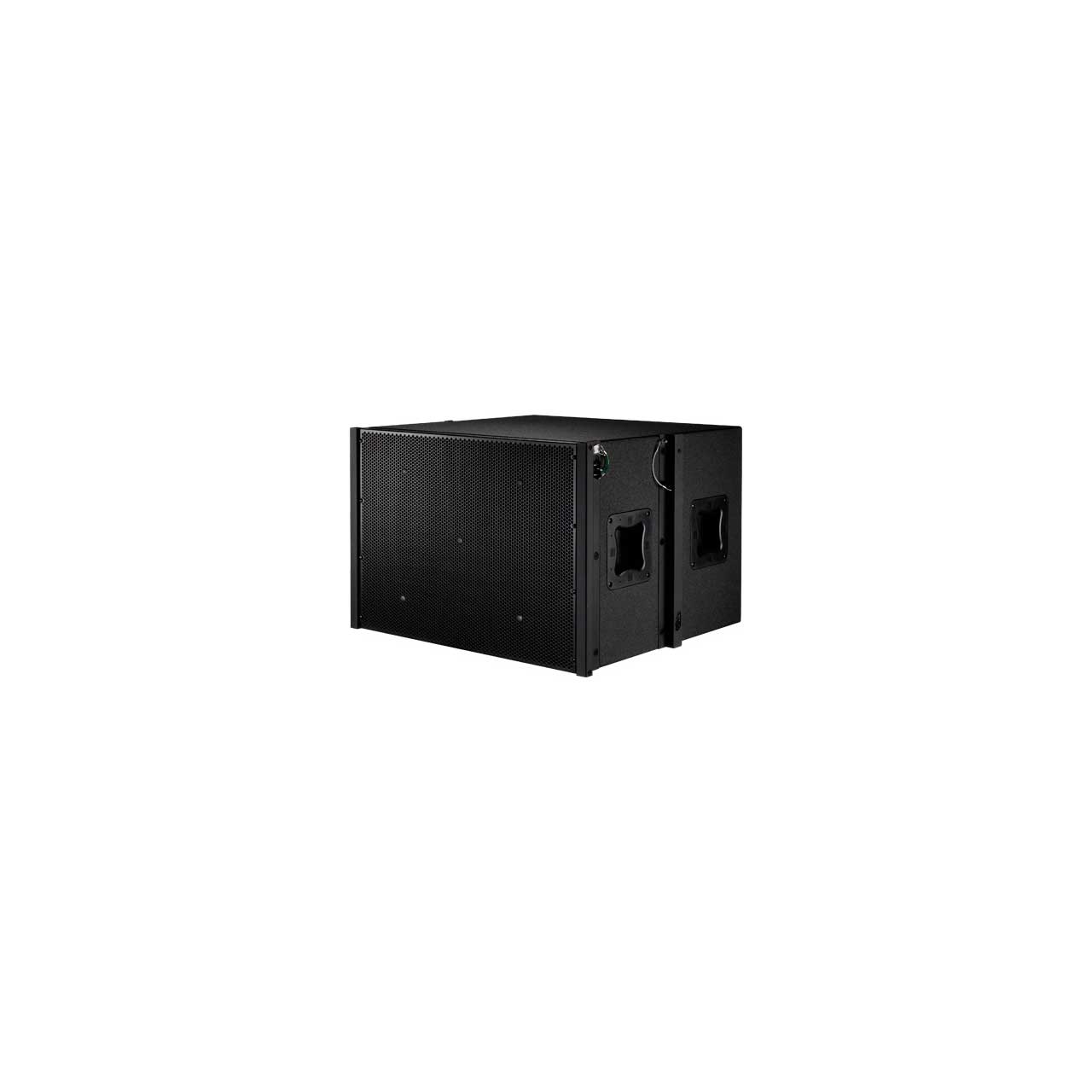

EV XCS312-BLK Triple-12 Inch Cardioid Bass Element

Manufacturer: Electro-Voice

Item #: EV-XCS312-BK   •   MFG #: XCS312-BLK




Our Price:$4,247.00

no free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • Drop-shipped (normal delivery time 2-7 business days) shipping truck freight. (Sales tax may apply)


Share!





The Electro-Voice XCS312 is designed for high-level low
frequency extension to 40 Hz in a cardioid configuration. It uses
three DVX3120 forced air-cooled 12" transducers capable of
long, linear excursion and high power handling in a two channel
configuration. XCS312's are designed to be used with a ratio
of four XLD281 or XLD291 full range systems for each XCS312
subwoofer. The XLVC family consists of two full-range Line Array
Elements with dual woofers, two full-range Line Array Elements
with single woofers and a two subwoofer systems. The dualwoofer
Line Array Element includes the XLD281 with a 120°
horizontal coverage pattern and the XLD291 with a 90° horizontal
coverage pattern. The single-woofer Line Array Element includes
the XLE181 with a 120° horizontal coverage pattern and the
XLE191 with a 90° horizontal coverage pattern. The XCS312

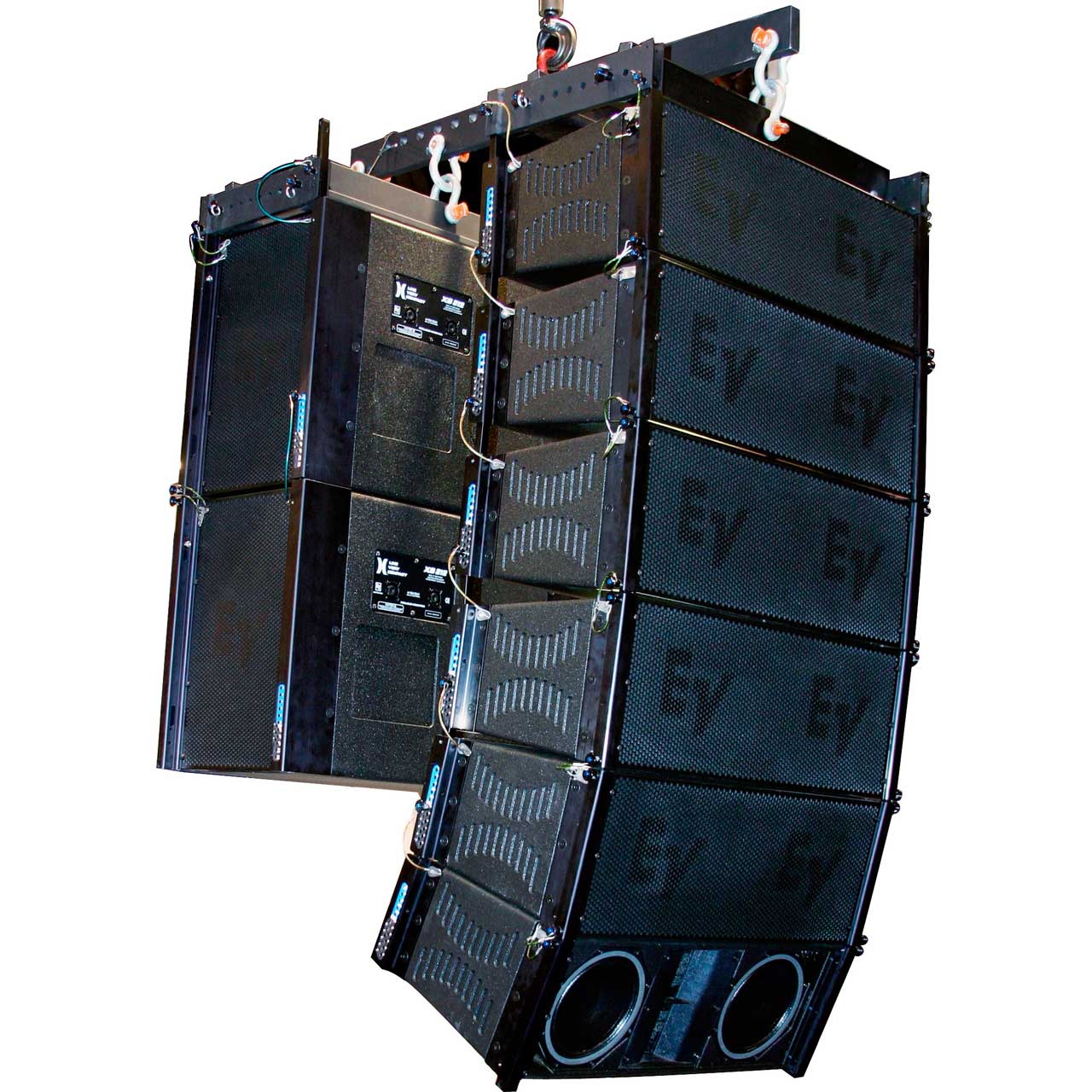

cardioid subwoofer module has the same rigging footprint as the
XLD281 and XLD291 allowing it to be directly arrayed above,
or below XLD281 or XLD291 full range systems. LAPS modeling
software quickly provides array configurations and rigging
information. XCS312 subwoofers can be used as the base for
ground-stack applications, or by using EV's XGS-4 Ground-stack
Kit for XLVC. XLVC delivers unprecedented performance in applications ranging from live reinforcement to performing arts venues,
to houses of worship.


  • Features

    • Triple 12" Cardioid Very Compact Line-Array Bass Element
    • Three DVX3120 12" Low Frequency Transducers
    • 1500 Watt Continuous, 6000 Watt Peak
    • Versatile Integration in Main Arrays
    • Self-contained Rigging Hardware
    • LAPS Aiming and Prediction Software Compatible

  • Specifications

    • Chassis Size 304.8 mm (12")
    • Color Black

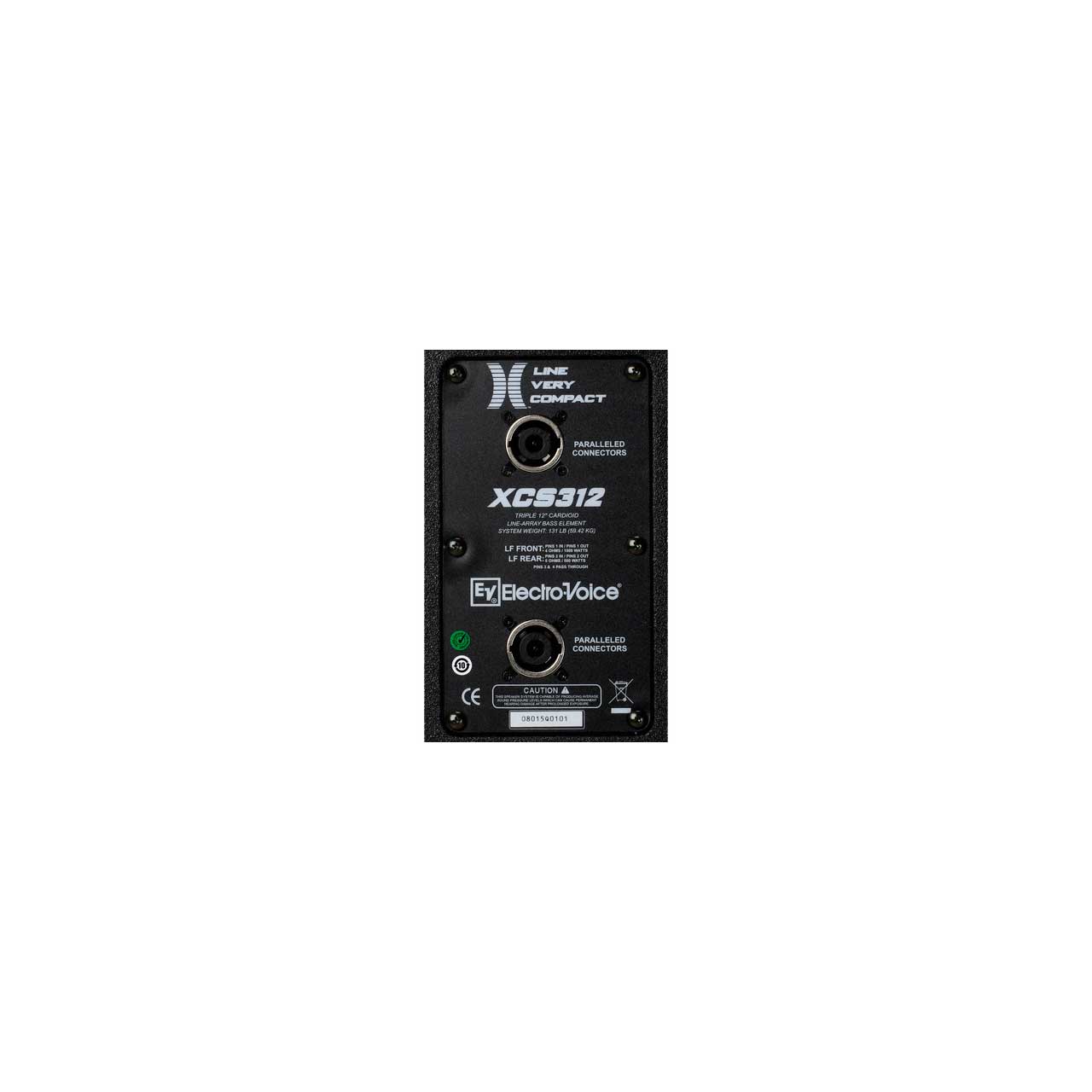

    • Input Connections 2 Neutrik NL8
    • LF2 Power Handling 500 W continuous, 2000 W peak 60-100 Hz
    • Peak SPL @ 10m 121 dB 4 Box Array @ 10 Meters
    • Speaker Type Line Arrays, Subs
    • Frequency Response (-3 dB) 45 - 100 Hz
    • Frequency Response (-10 dB) 40 - 100 Hz
    • Recommended High-Pass Frequency 40 Hz
    • Sensitivity 1 W/1 m 100 dB Half Space
    • Max. SPL/1m (calc) 136 dB Half Space
    • Coverage (Nominal -6 dB) H 200 Ý
    • LF Transducer 3 x 12-in DVX3120A
    • LF Power Handling 1000 W continuous, 4000 W peak Watts 60-100 Hz
    • LF Nominal Impedance 4 Ohm
    • HF Nominal Impedance 8 Ohm
    • Crossover Frequency 100 Hz
    • Enclosure Material EVCoat-coated birch plywood
    • Flying Included
    • Grill Powder-coated steel
    • Height 508 mm (20")
    • Width 726 mm (28.58")
    • Depth 677 mm (26.65")
    • Weight Net 67.13 kg (148 lbs)
