The Link IEC-740 audio distribution amplifier reflects the latest in the state of the art in engineering techniques. The IEC-740 is an extremely versatile audio amplifier, offering outstanding performance. The input is high impedance bridging. All inputs and outputs use multi-level screw clamp terminals located on there are panel. The IEC-740 can be configured for balanced or un-balance operation.
The versatility of the IEC-740 is illustrated by its choice of operation, mono or stereo. The IEC-740is a rugged device, intended for all applications where performance and reliability are required.

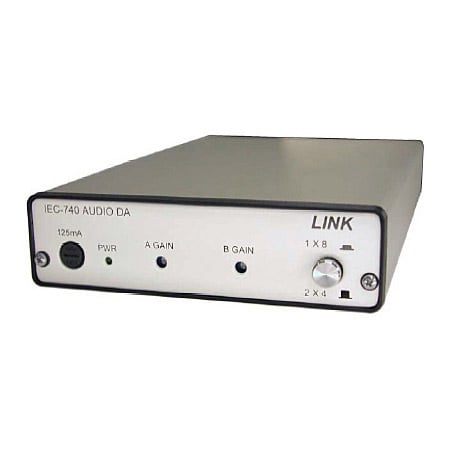

A switch on the front panel allows the unit to operate as a mono DA with one input and eight outputs. Selecting the dual 2 X 4 mode is required for stereo operation with four outputs for each of the Left and Right channels. A gain trim control for each channel allows for independent level matching to approximately 16dB.
The IEC-740 is a self contained audio DA with anon board power supply that draws only 4 watts. A fuse accessible from the front panel provides easy replacement. Up to three units can be mounted in a 1 RU mounting tray model PRT-700. All products carry a ten-year warranty including parts and labor.
