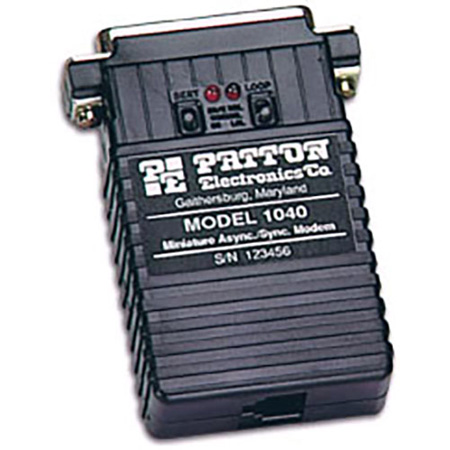

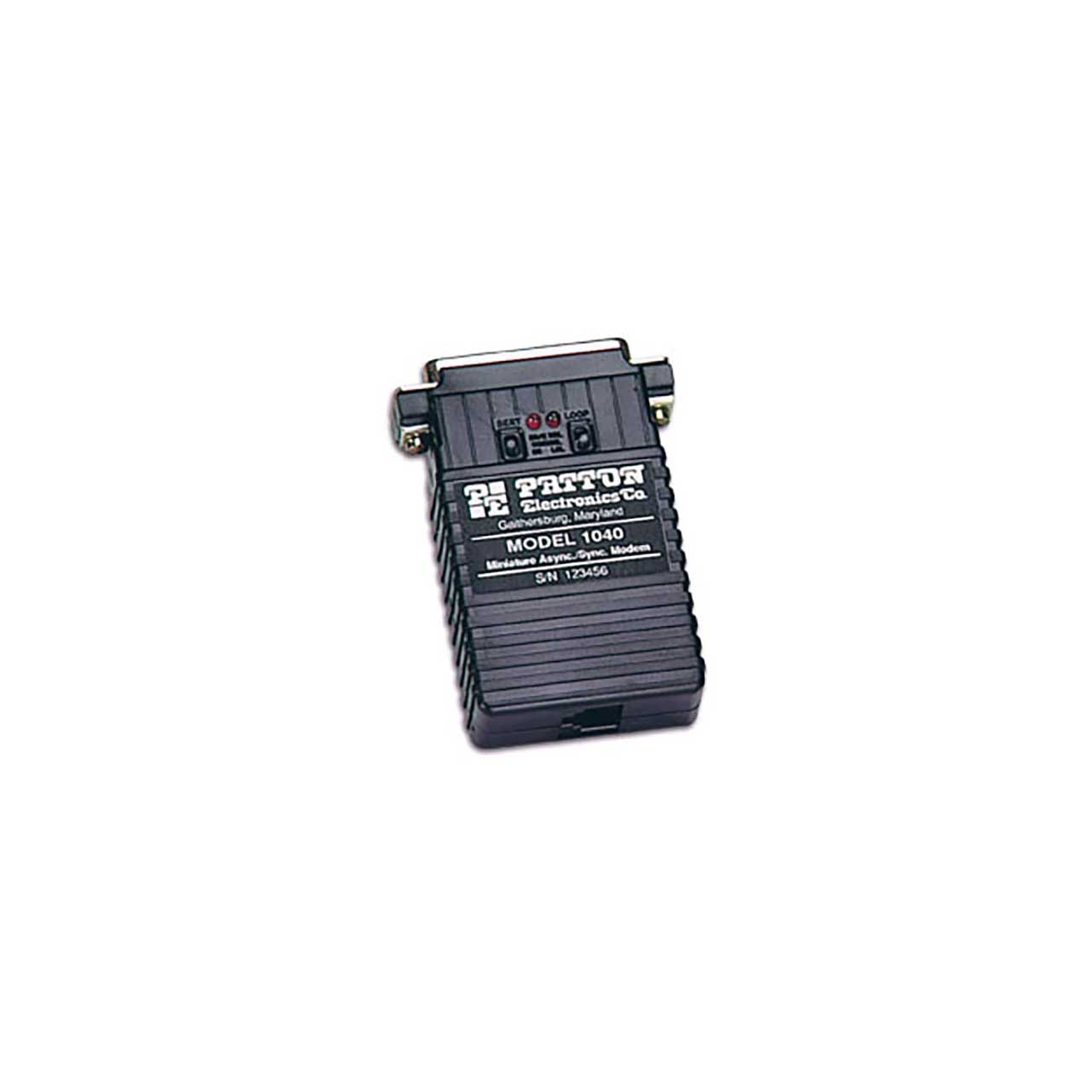

Patton 1040UF RS-232 Async/Sync Self Powered Line Driver Modem

ITEM #: 1040UF MFG #: 1040UF

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$427.36

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    1040UF - Overview

    The Model 1040 self-powered miniature short range modem packs the features of Patton's Model 1080 into a package that requires no AC power. Operating asynchronously or synchronously, the Model 1040 supports data rates to 38.4 Kbps and distances to 12 miles (19.3 Km). The Model 1040 will operate over 2 or 4 wires, in point-to-point or multipoint environments. In synchronous mode, the Model 1040 supports Internal, External or Receive loopback clocking.

    The Model 1040 incorporates two V.54 and two V.52 BER test modes, which can be activated via the RS-232 interface. Built-in LEDs let you monitor test mode operation. Additional peace of mind comes from knowing that the Model 1040 has both transformer isolation and surge protection to guard against data loss. The Model 1040 is designed to plug directly into the RS-232 interface. Twisted pair wire is connected using RJ-11, RJ-45 or terminal blocks.

    Highlights
    Now You Can Combine Miniature, Standalone, ClusterBoxTM and Rack Mount Short Haul Modems
    Patton wants you to be outfitted at every level of your UTP network: From mini short hauls that plug into PCs to 16 port racks for the control room. From single desktop standalones to cluster boxes for the wiring closet. We've got 'em!

    The Model 1040 works with the Model 1080ARC Rack Card
    The Model 1040 miniature short range modem works in conjunction with the 1080ARC rack card. The Model 1080ARC fits in Patton's 16 slot rack chassis and 2, 4 or 8-slot ClusterBoxesTM. Our compact rack system is an effective way to organize your in house network. With it's own built in power supply, the rack is an networking powerhouse.

    • Features:

      • Async or Sync Operation
      • RS-232 Data Rates to 38.4 Kbps
      • Distances to 12 Miles (19.3 Km)
      • Point-to-Point or Multipoint
      • V.54 and V.52 Test Modes
      • Automatic Line Equalization
      • Internal, External or Receive Recover Clocking (Sync Mode)
      • Transformer Isolation and Surge Protection
      • Made in the USA

    • Specifications:

      • Range: 10 miles (16.1Km) @ 1200 bps on 22 AWG 2-pair wire
      • Data Rates: Sync & Async: 1.2, 1.8, 2.4, 3.6, 4.8, 7.2, 9.6, 14.4, 19.2, 28.8,
        38.4, externally switch selection
      • Operation: Point-to-point or multipoint
      • Transmit Mode: 2-wire/half duplex, 4-wire/full duplex
      • Interface: EIA RS-232, CCITT V.2
      • Connectors: DB-25 M, F (RS-232), RJ-11 jack and terminal block
      • Diagnostics: 100% V.54 compliant and 100% V.52 compliant BER tests
      • LED Indicators: BERT indicator, Loop/Test indicator
      • Carrier: Constantly ON or controlled by RTS
      • RTS/CTS Delay: Externally strap selected to 0.7, or 50 mS
      • Receive Clock: Derived from receive signal
      • Transmit Clock: Internal, external or looped back from recovered signal
      • Isolation: Transformer, 1500V RMS
      • Surge Protection: 600 Watts power dissipation for up to 1 msec
      • Dimensions: 2.6 x .73 x 2.1 Inches
