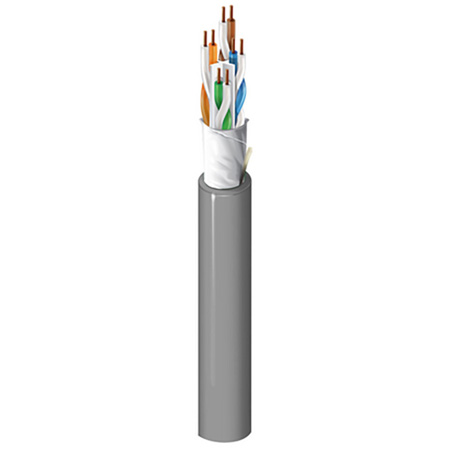

Belden 10GXW13 CMP/Plenum CAT6A 0.250-Inch Diameter U/UTP Premise Horizontal Cable - 4-Pr 23AWG - Gray - 1000 Ft

ITEM #: 10GXW130081000GY MFG #: 10GXW130081000GY

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,026.20

Our Price:

$849.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup
  • Extended Lead Time; estimated delivery in January.


10GXW130081000GY - Overview

The smallest and lightest horizontal Category 6A cable available!

Belden 10GXW13 is a Plenum-CMP, small diameter (0.250"") U/UTP Category 6A Premise Horizontal Cable (500MHz). It's 4 Pair, 23 AWG with Solid Bare Copper Conductors in a Flamarrest® PVC-LS Jacket.

Belden Category 6A Copper Cable offers a wide range of options for your CAT 6A network. 10GXW is the industry's smallest-diameter Category 6A cable designed for smart building and multi-gigabit applications with performance optimized for in-building wireless networks.

Applications
Premise Horizontal Cable
Ethernet 10GBASE-T
Wi-Fi 6, Wi-Fi 5
In-Building Wireless
In-Building Small Cells
Mobile RAN
PoE++, PoE+, PoE
HDBaseT

  • Features:

    • Reliable network performance: Designed for mission-critical situations that require constant uptime
    • Best-in-class system noise immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
    • Reduce installation time and costs: 10GXW is the smallest and lightest horizontal Category 6A cable available
    • Unparalleled performance: Full 100m channel length under 100W PoE load without derating up to 60°C using 10GXS cables

  • Specifications:

    • Conductor AWG: 23
    • Conductor Stranding: Solid
    • Conductor Material: BC-Bare Copper
    • Conductor Number of Pairs: 4
    • Conductor Count: 8
    • Insulation Material: FEP-Fluorinated Ethylene Propylene
    • Insulation Color Code: White & Blue, White & Orange, White & Green, White & Brown
    • Outer Jacket Material: LS PVC - Low Smoke Polyvinyl Chloride
    • Outer Jacket Nominal Diameter: 0.250 in (6.35 mm)
    • Outer Jacket Ripcord: Yes
    • Overall Cable Diameter (Nominal): 0.250 in (6.35 mm)
    • UL Voltage Rating: 300 V (CMP)
    • Storage Temp: -4° to 167°F (-20° to 70°C)
    • Operating Temp: -4° to 167°F (-20° to 70°C)
    • Bulk Cable Weight: 37Lbs/1000'
    • Max Recommended Pulling Tension: 25Lbs
    • Min Bend Radius/Minor Axis: 1""
    • Environmental Suitability: Plenum, Indoor
    • Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6, FT6
    • NEC / UL Compliance: Article 800, CMP;CMP-LP (0.5A);CL3P-LP (0.5A)
    • CEC / C(UL) Compliance: CMP

  • Item Includes:

    • 10GXW13 CMP/Plenum CAT6A Premise Horizontal Cable - Gray - 1000 Ft

  • Warranty:

    • Limited 10 Year Warranty
