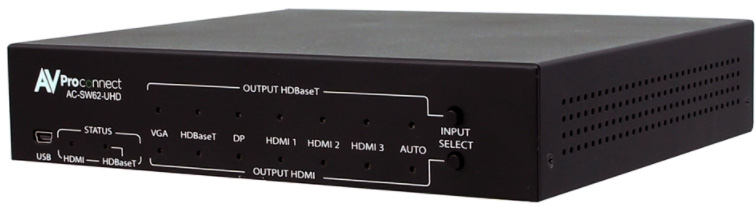

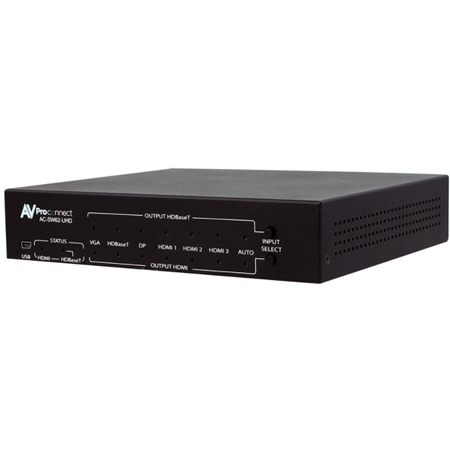

AVPro Edge AC-SW62-UHD (aka Easy Street) is a robust multi-format matrix switch designed for small offices, classrooms and conference rooms. This 6x2 matrix is designed to be an ALL-IN-ONE solution for the active office allowing for multiple input types, including HDMI (x3), VGA, DisplayPort. In addition to the local inputs, it has a HDBaseT input that is compatible with the AC-EX100WPP-UHD so you can use a Wall Plate Transmitter from anywhere in the room, or a separate room all together!
You have two outputs with this matrix, one is HDBaseT (Cat6) and the other is HDMI. Being a matrix, you have the ability to have different sources displayed on two displays at once.
You can use RS232 or IR to control the unit in addition to being able to pass RS232 and IR signals to the the remote end over the HDBaseT output. Analog audio extraction is also available for a zoned or local audio system.
Simple, intuitive and automatic control makes this unit the ideal "leave in the room" matrix. The user have an "Auto" option where the unit defaults to the last plugged in device, or simple one button control for each output. Efficiency is the name of the game with this matrix.
Key Benefits Include:
1) Ultra High Definition: This unit supports 4K resolutions for today's modern office. As displays get larger and PC's output more 4K content, 4K is ever more necessary in this environment. Utilizing high resolution allows the user to share higher quality marketing and draft images and makes presentations sharper and view-able for larger audiences.
2) Distance: By using AC-EX100WPP-UHD-T, the transmission distance for HD 1080P is 100 meters (330ft) & 4K is up to 70 meters (230ft) into the matrix! You can additionally go 70M (230ft) on 1080P, 40M (131ft) on 4K from the HDBaseT output to a display.
3) Auto Sensing: This matrix is designed to be a "Set it & forget it" piece of hardware. When the user plugs in their device (BYOD), the matrix automatically senses the signal and makes it active. If more than one inputs are in use, there is a simple button on the front to toggle inputs for each output.
4) Control: Simple front panel control, IR and RS232 control is available.
5) Power: The EasyStreet is capable of powering both the HDBaseT input device or transmitter (AC-EX100WPP-UHD or AC-EX100-UHD-T) as well as the HDBaseT receiver (AC-EX70-UHD-R). This eliminates unnecessary power supplies and cleans up the installation dramatically.
6) Multi-Format: The Multi-format design allows you to leave this "in-room" matrix comfortable without having to supply a plethora of adapters. You have input options for VGA, DisplayPort, and 3x HDMI. In addition if you use the AC-EX100-WPP Transmitter, you have another HDMI and VGA input.
