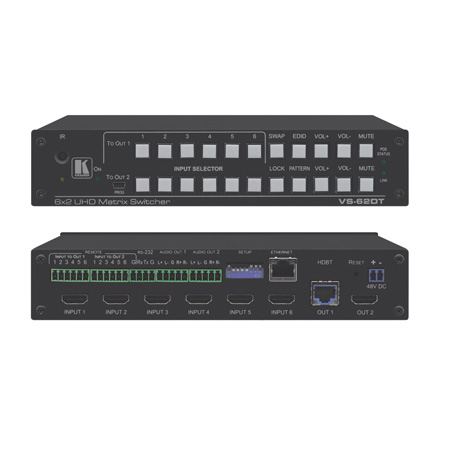

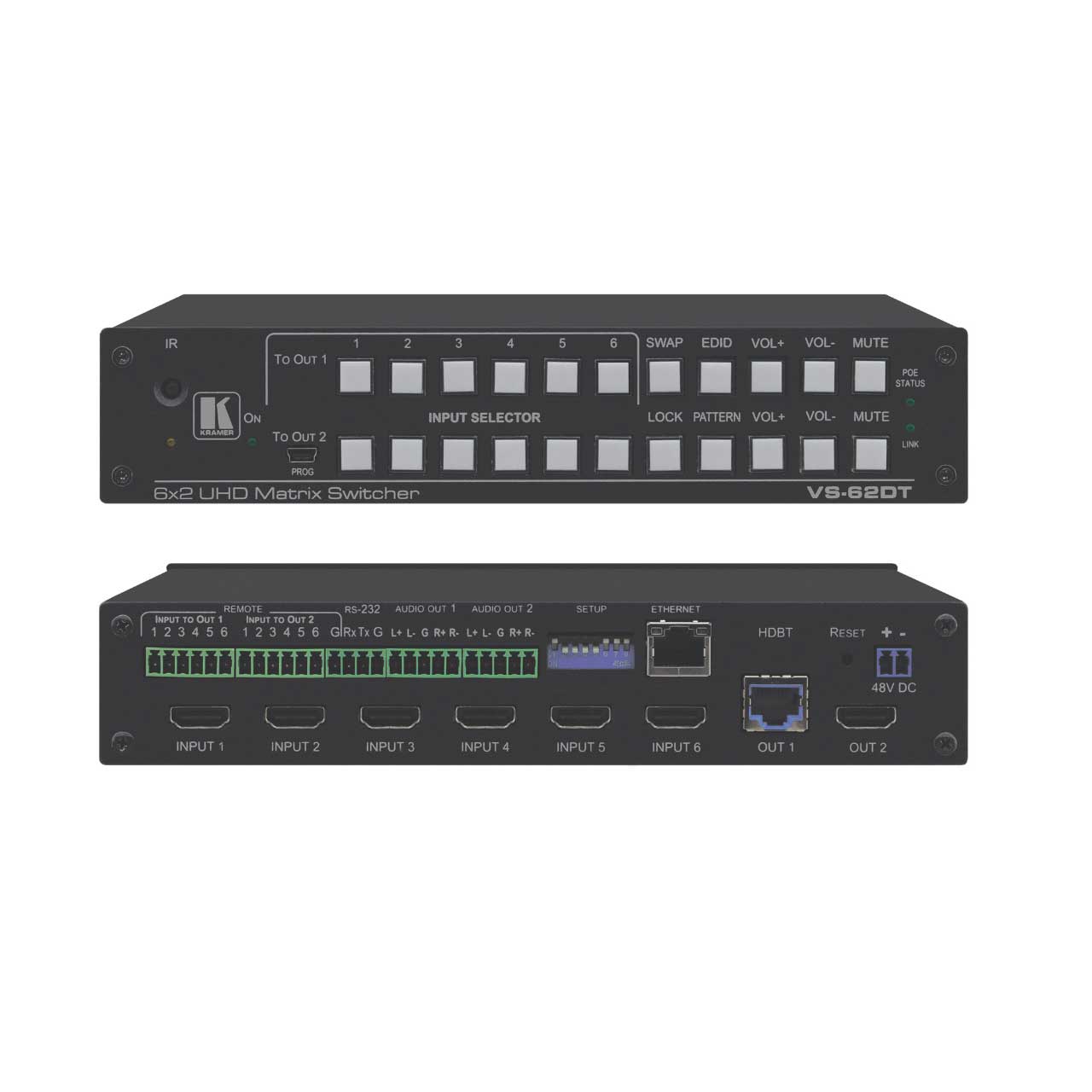

Kramer VS-62DT 6x2 4K60 4:2:0 HDMI/HDBaseT Long-Reach PoE Matrix Switcher

VS-62DT - Overview

Internal Pattern Generator

• Features:

  • Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
  • Max. Resolution - 4K@60Hz (4:2:0).
  • HDCP 1.4 Support.
  • 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1 PCM.

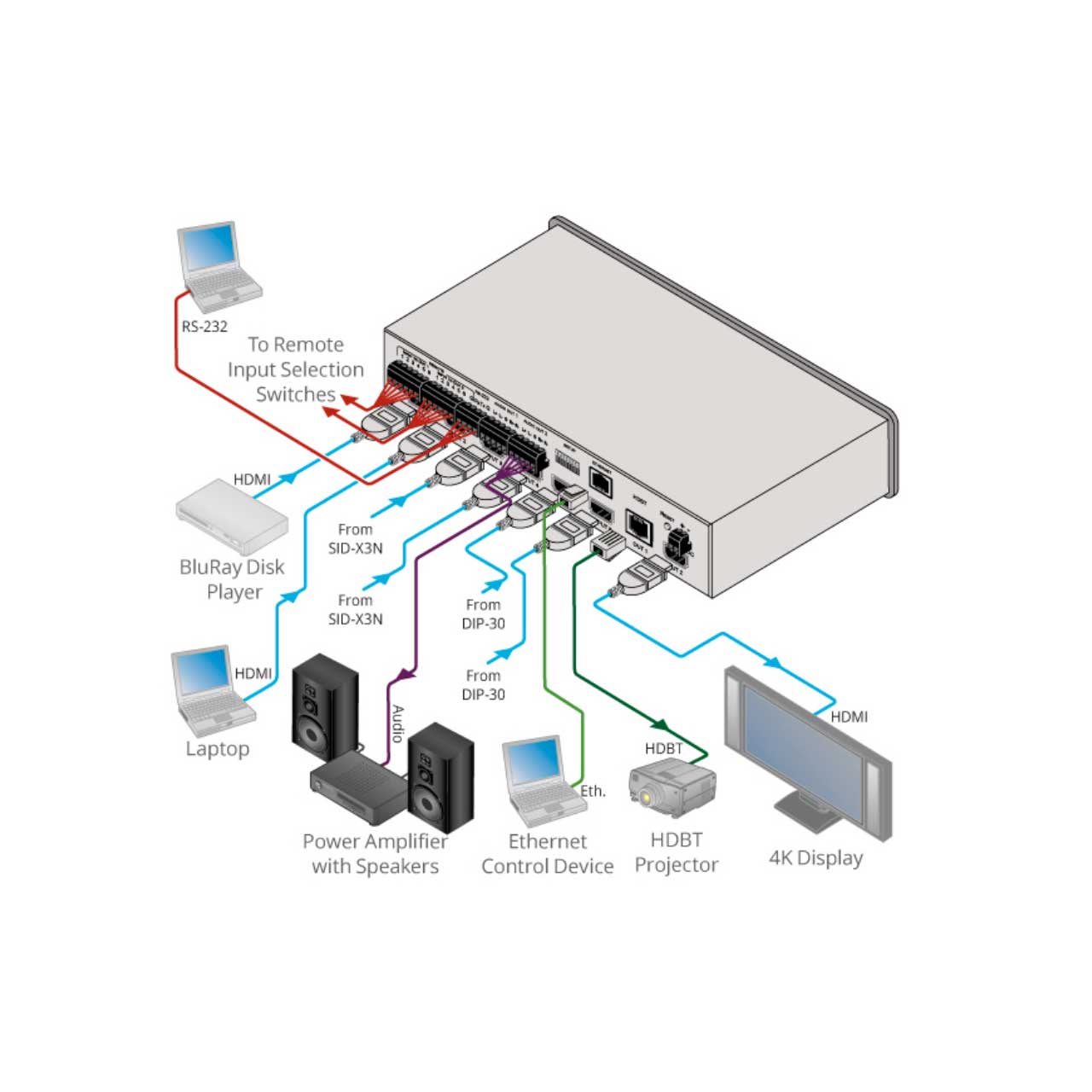

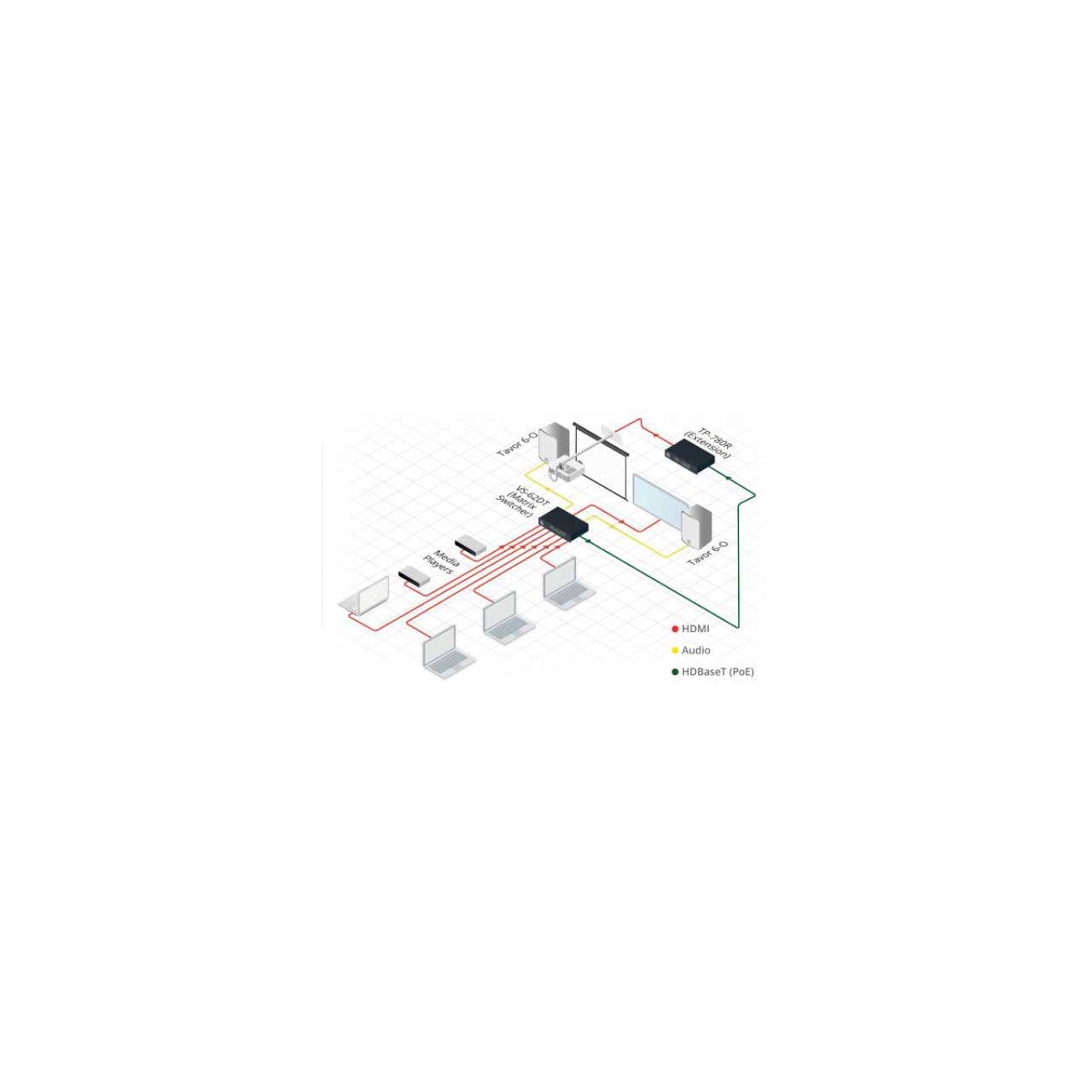

  • Routing - Six HDMI inputs can be routed to an HDMI and HDBaseT output.
  • Power-over-Ethernet - Supply of PoE to compatible receivers.
  • EDID Capture - Copies and stores the EDID from a display device per input.
  • Programmable Step-in Functionality - When used together with compatible step-in devices, such as the SID-X3N and DIP-31 (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
  • True Video Clock Detection.
  • Advanced Auto AV Switching - Last connected and priority switching modes.
  • Non-Volatile EDID Storage.
  • Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
  • Lock Button - Prevents tampering with front panel buttons.
  • Internal Pattern Generator.
  • Kramer Protocol 3000 Support.
  • Static or Dynamic DHCP IP Addressing.
  • Flexible Control Options - Front panel buttons, IR remote (available upon request) , RS-232, Ethernet, contact closure, embedded Web server and step-in.
  • Mini-USB Port - For upgrading firmware


• Specifications:

  • INPUTS
  • 6 HDMI connectors


  • OUTPUTS
  • 1 HDMI connector, 1 HDBT on an RJ-45 connector


  • PORTS
  • 1 Ethernet on an RJ-45 connector, 12 remote selection contact-closure switches on 13 terminal block pins, 1 serial port on a 3-pin terminal block, 1 program port on a mini USB


  • ANALOG AUDIO
  • 2 balanced stereo audio on 5-pin terminal blocks


  • BANDWIDTH
  • Up to 8.91Gbps data rate (2.97Gbps per graphic channel)


  • COMPLIANCE WITH HDMI STANDARD
  • HDCP 1.4


  • RESOLUTION
  • Up to 4K@60Hz UHD (4:2:0)


  • SUPPORTED BAUD RATES
  • 9600, 115200bps


  • POWER CONSUMPTION
  • 48V DC 360mA
  • 48V DC, 360mA


  • CONTROLS
  • Front panel buttons, infrared remote control transmitter, RS 232, Ethernet, remote input selection switches and LEDS, built-in Web browser


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • LED INDICATORS
  • IR active - red, ON - green


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • VS-62DT Switcher
  • Power Supply


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063080532
