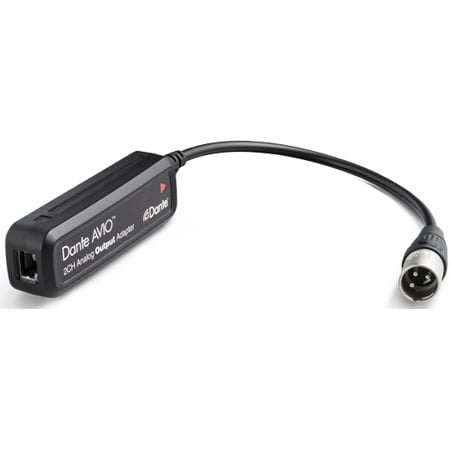

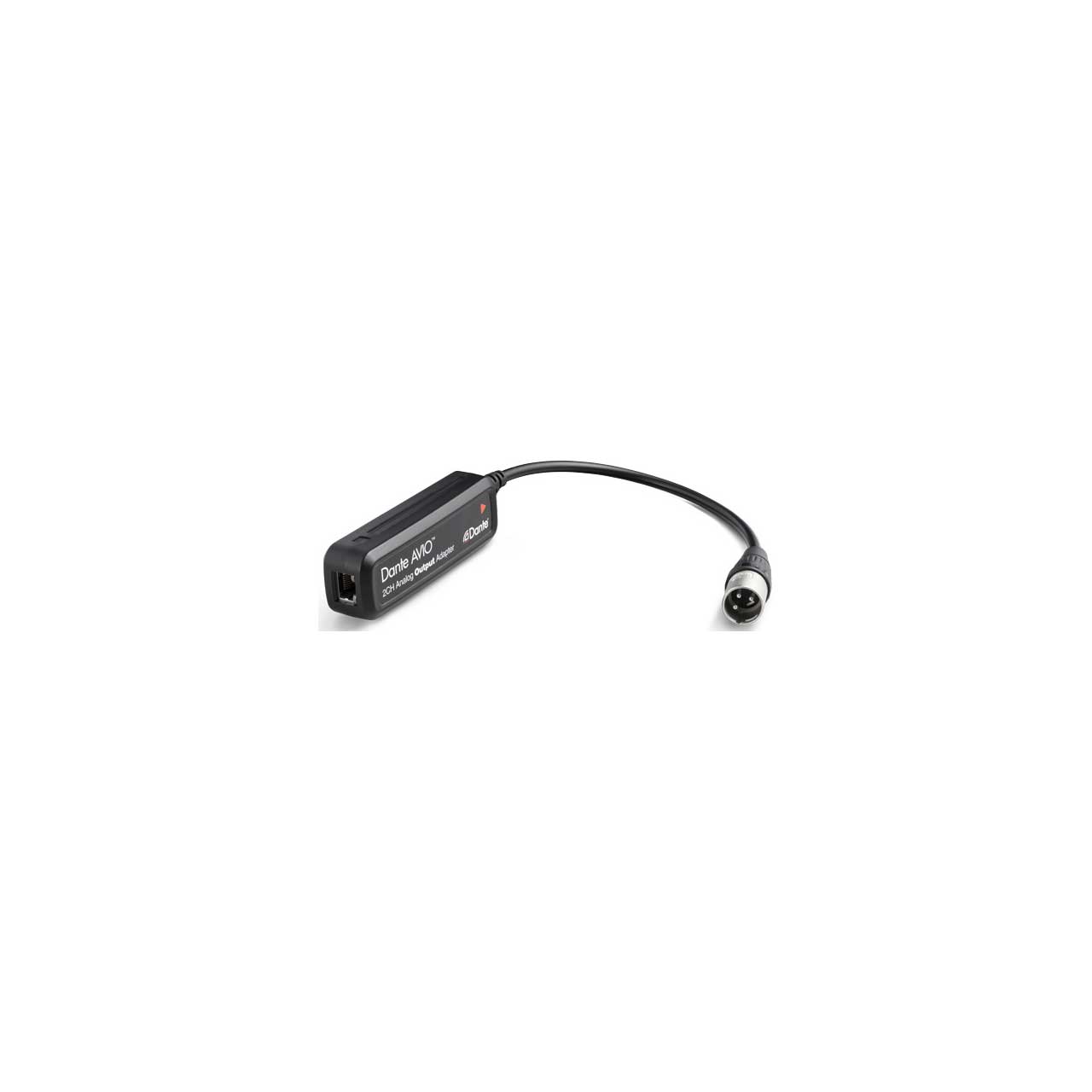

Audinate ADP-DAO-AU-0X1 Dante AVIO Analog Output Adapter with RJ45 & XLR Male Single Channel

ITEM #: ADN-ADPDAO-AU0X1 MFG #: ADP-DAO-AU-0X1

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$209.00

Our Price:

$159.00

Availability: In Stock
iAvailability Description Popup


    ADP-DAO-AU-0X1 - Overview

    The Audinate ADP-DAO-AU-0X1 Dante AVIO Analog Output Adapter allows you to use the audio gear you already own with your Dante network. Don't abandon trusted compressors, equalizers or analog power amplifiers - adapt them to the world of audio networking with Dante AVIO.

    Dante AVIO Analog Adapters are available as balanced line-level single or dual-channel input or output adapters, with high-quality XLR connectors. Use the Analog Dante AVIO Adapters to add Dante networking to analog amplifiers, powered loudspeakers, signal processors, music players or any other analog audio device, for hum-free digital signal distribution throughout your audio network.

    • Features:

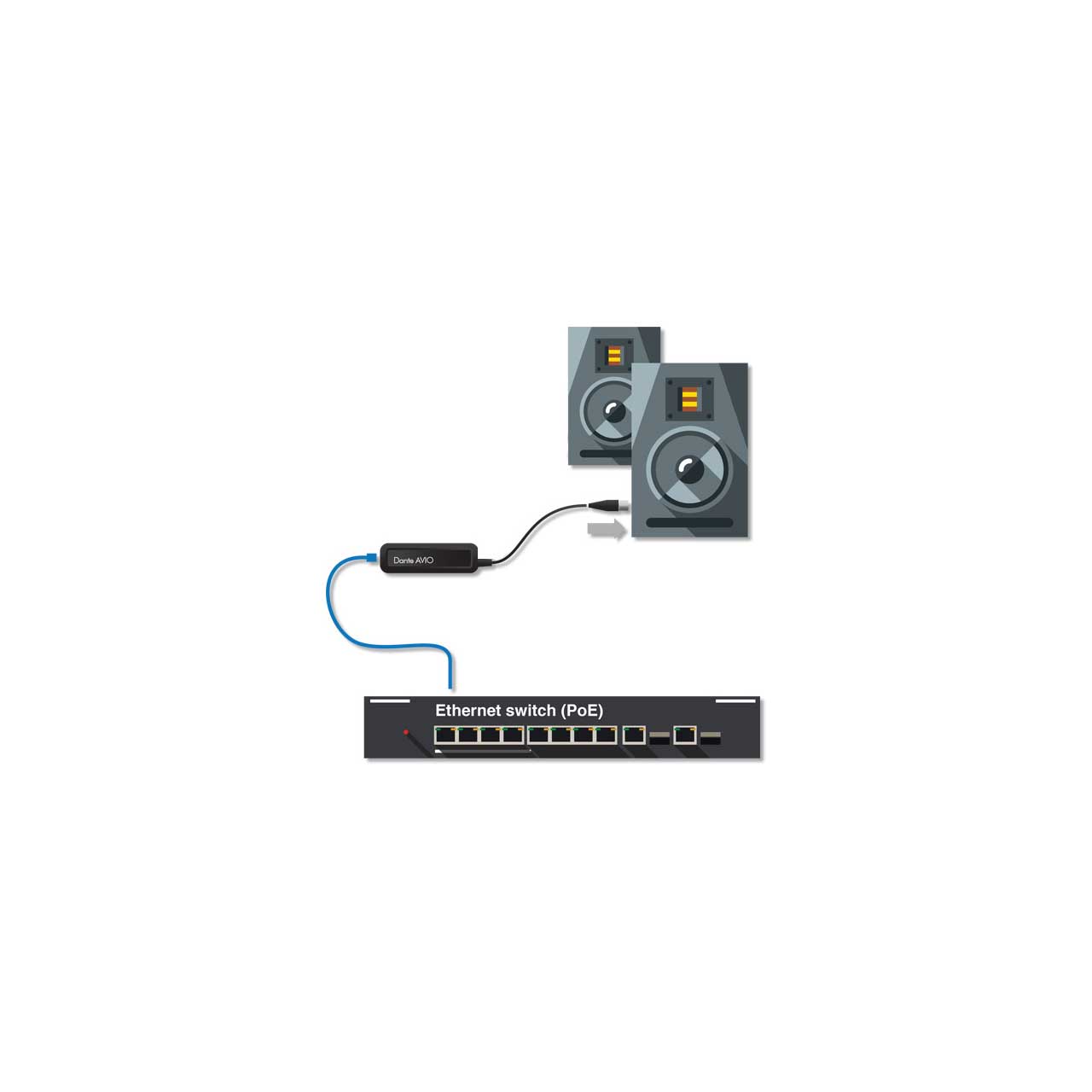

      • Send audio to analog power amplifiers and powered speakers over a Dante audio network
      • Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters
      • Create easy drop-points for connecting overflow areas to a Dante network

    • Specifications:

      • Channels: 1
      • Max Signal Level(balanced): +18dBu / +4dBu / 0dBu; 0dBV / -10dBV
      • Frequency Response: 20Hz to 20kHz (±0.5dB)
      • Impedance: 150 Ohm balanced; 75 Ohm unbalanced
      • Dynamic Range: > 100dB
      • Signal to Noise Ratio: > 100dB
      • Total Harmonic Distortion: < 0.01% at +4dBu
      • Connectors: RJ45 1 XLR-M
      • Power: Class 1 802.3af PoE
      • Sample Rates: 44.1, 48, 96 kHz
      • Bit Depth: 24
      • Network Transport: Dante Audio over IP AES67 RTP
