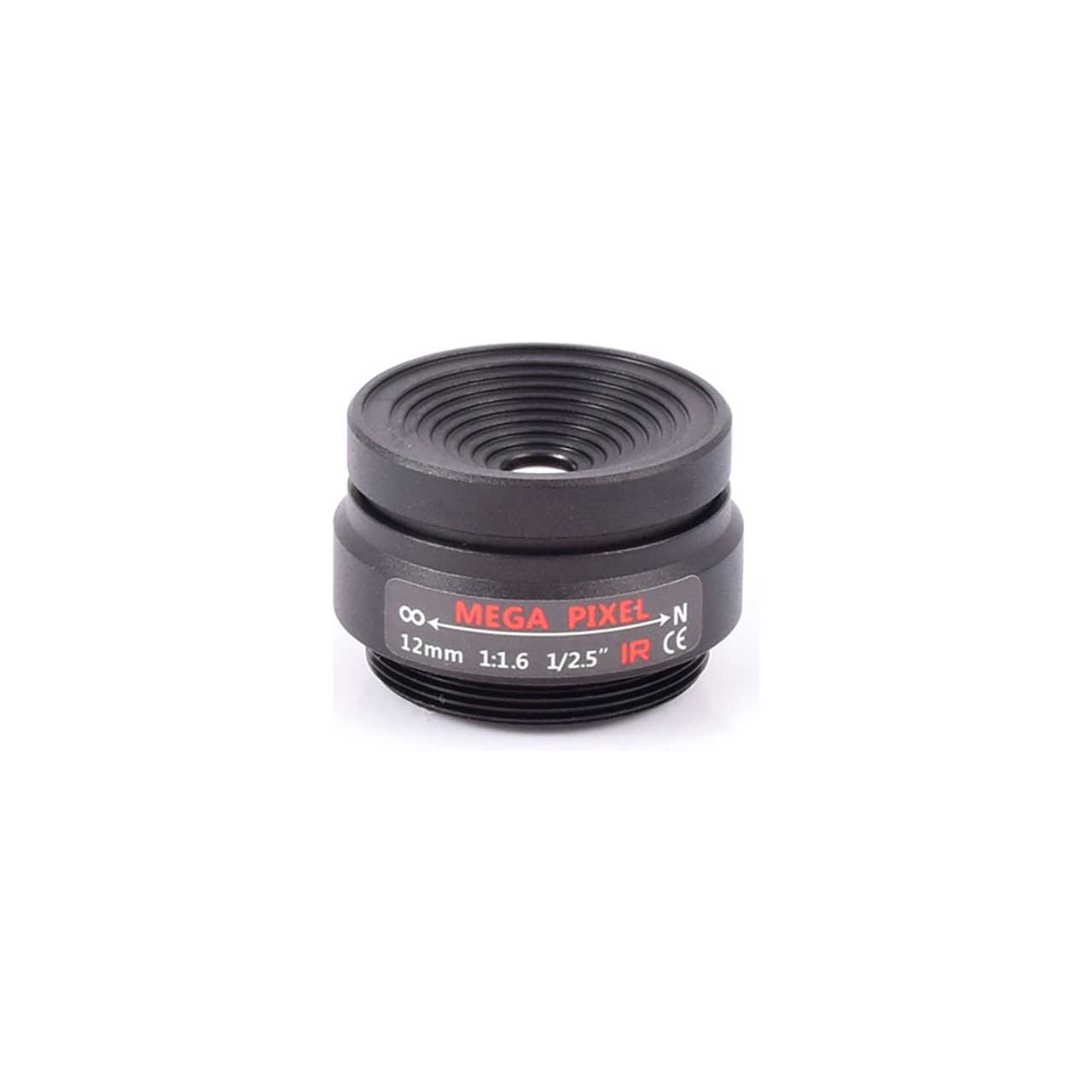

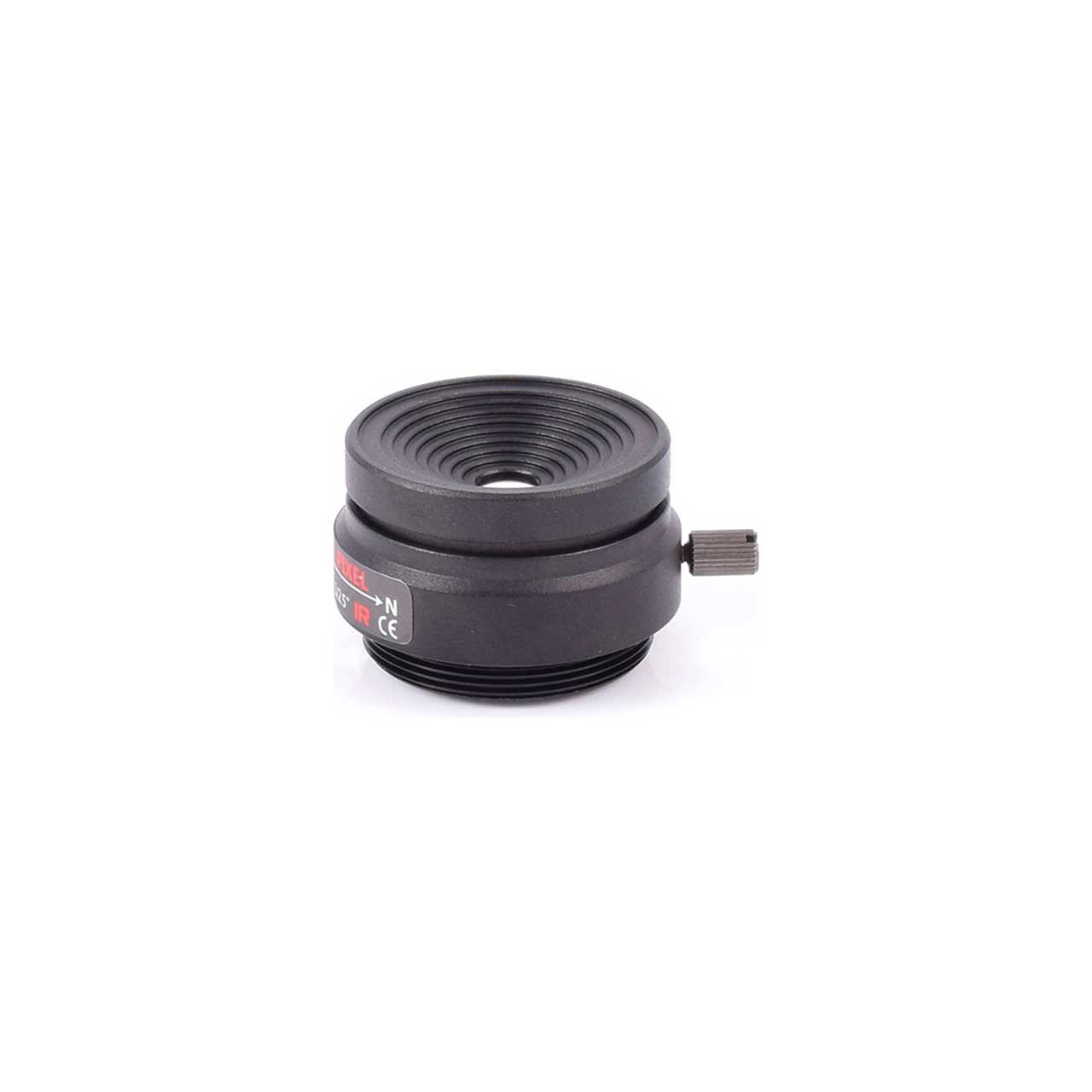

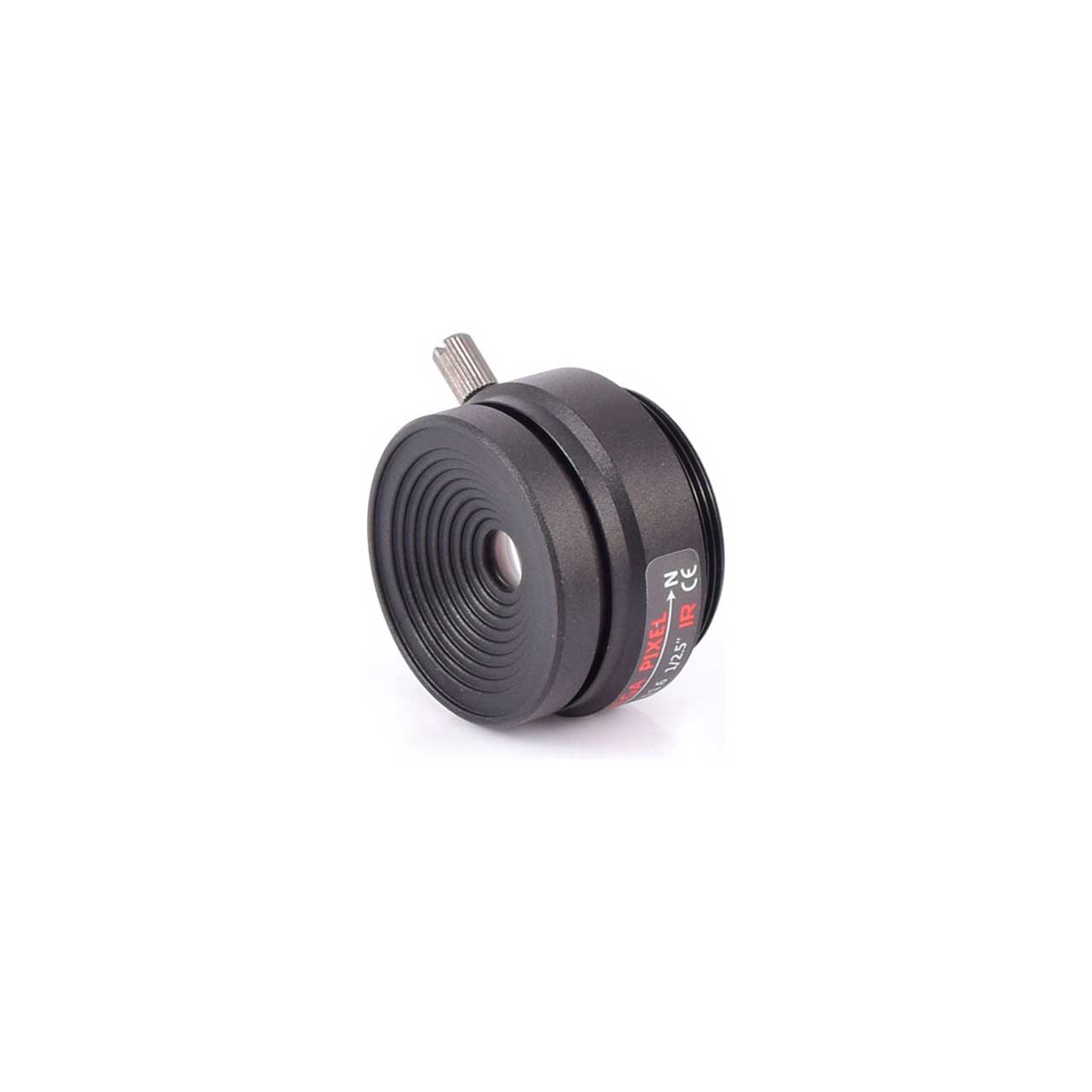

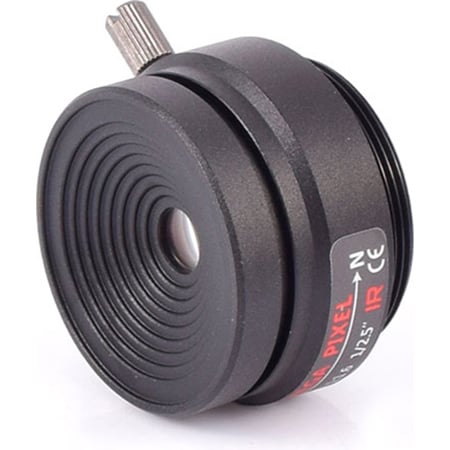

AIDA Imaging CS-12.0F 12mm HD CS Mount Lens for GEN3G Camera

ITEM #: AIDA-CS-12-0F MFG #: CS-12-0F

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:

$40.00

Our Price:

$38.00

Availability: In Stock
iAvailability Description Popup


    CS-12-0F - Overview

    The AIDA Imaging AIDA-CS-12.0F 12mm f/1.6 CS mount lens is designed for cameras that use a 1/3"-type sensor and optimized for AIDA Imaging GEN series cameras that use a CS mount. On a camera that uses a 1/2.5"-type sensor, this lens will yield a 30.8° angle-of-view.

    • Features:

      • For 1/3"-Type Cameras
      • Fixed f/1.6 Aperture
      • Optimized for GEN Series Cameras

    • Specifications:

      • Focal Length: 12mm
      • Aperture: f/1.6
      • Focus Adjustment: Manual
      • Iris: Fixed
      • Horizontal Field-of-View: 1/2.5": 30.8°, 1/2.8": 27°, 1/3.2": 15.4°
      • Image Format Max: 1/2.5" sensor
      • Distortion: 1.5% (with 1/2.5" sensor)
      • Mount Type: CS
      • Operating Temperature: -4 to 140°F / -20 to 60°C
      • Dimensions Length: 0.81" / 21 mm
      • Diameter: 1.2" / 30 mm
      • Weight: 1 oz / 27g
