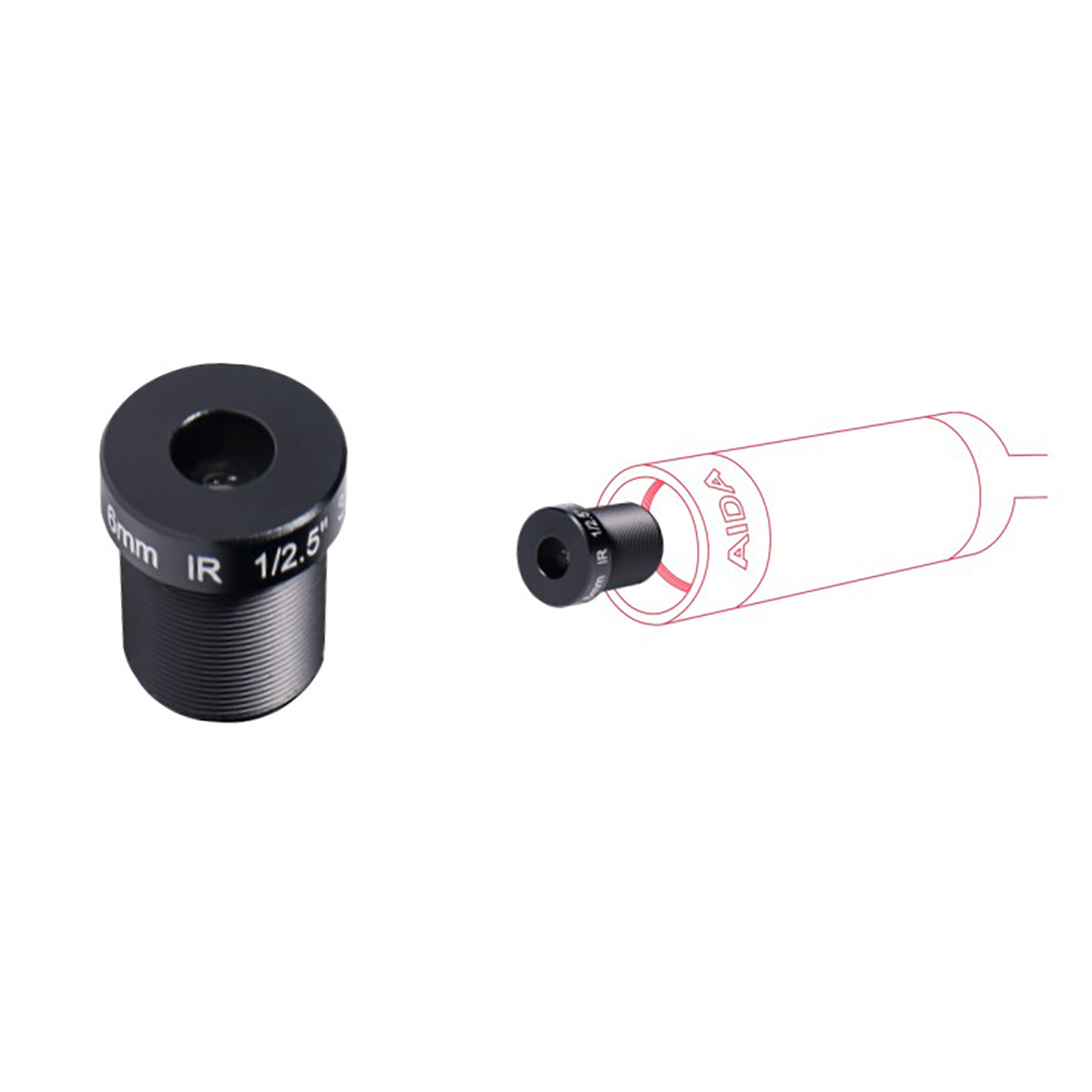

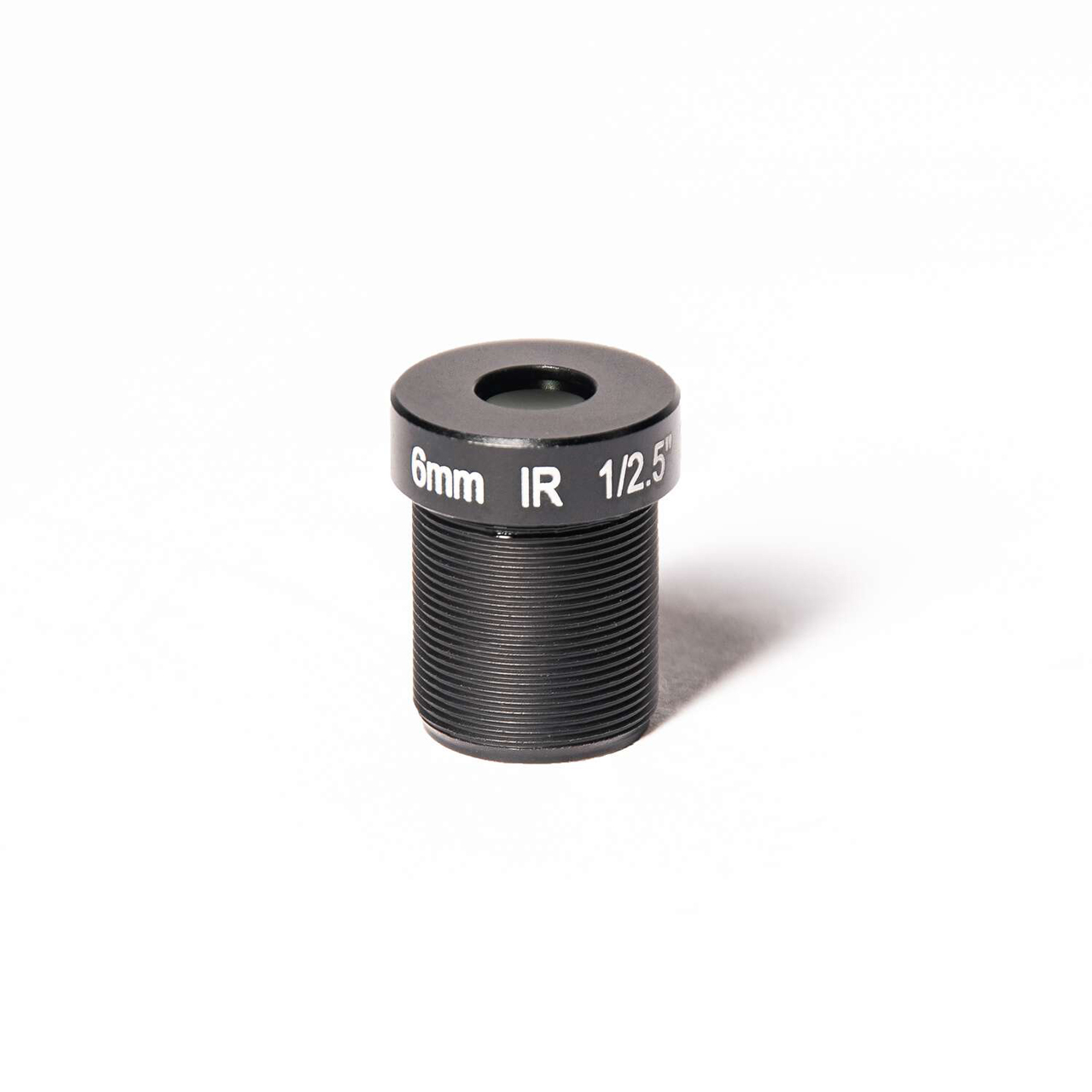

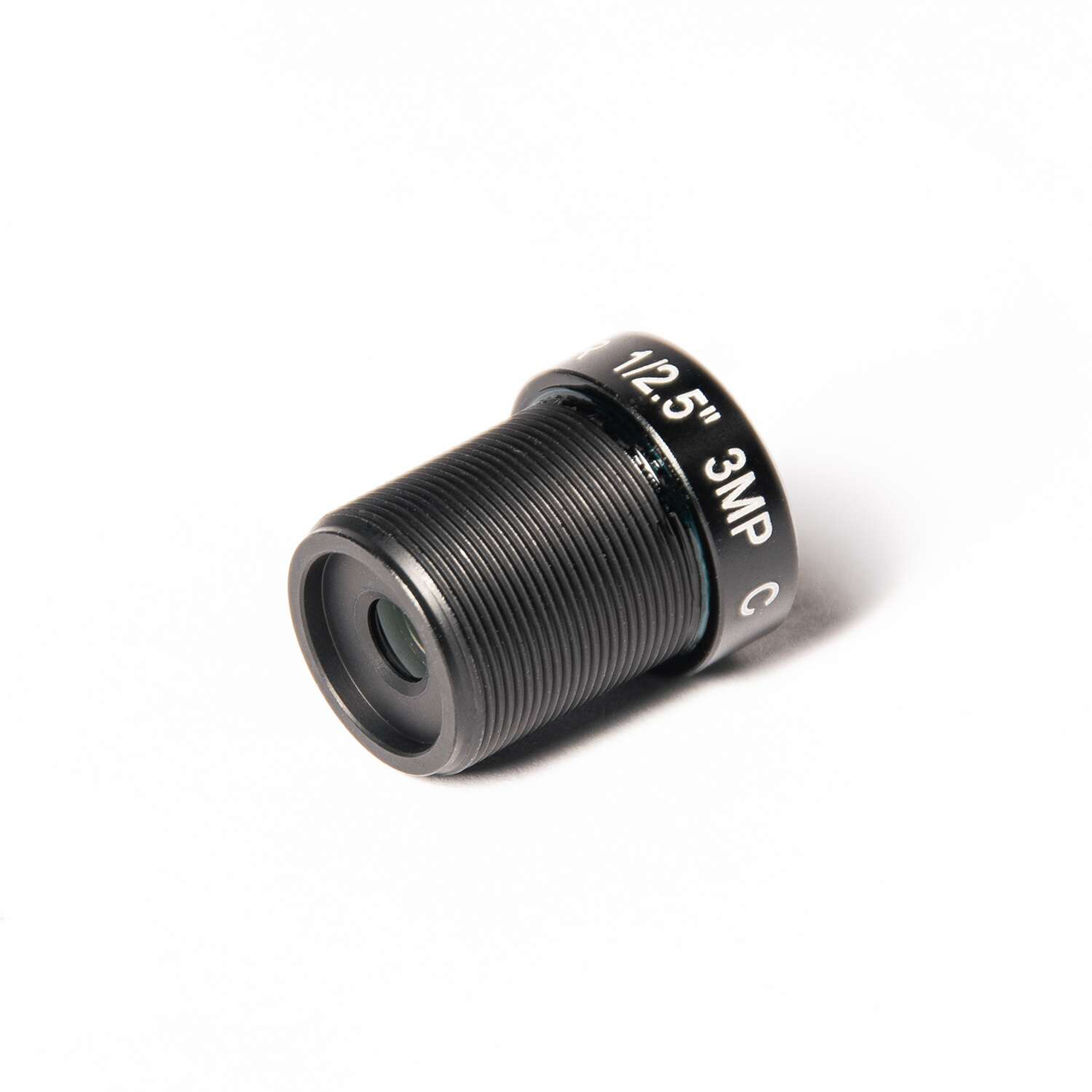

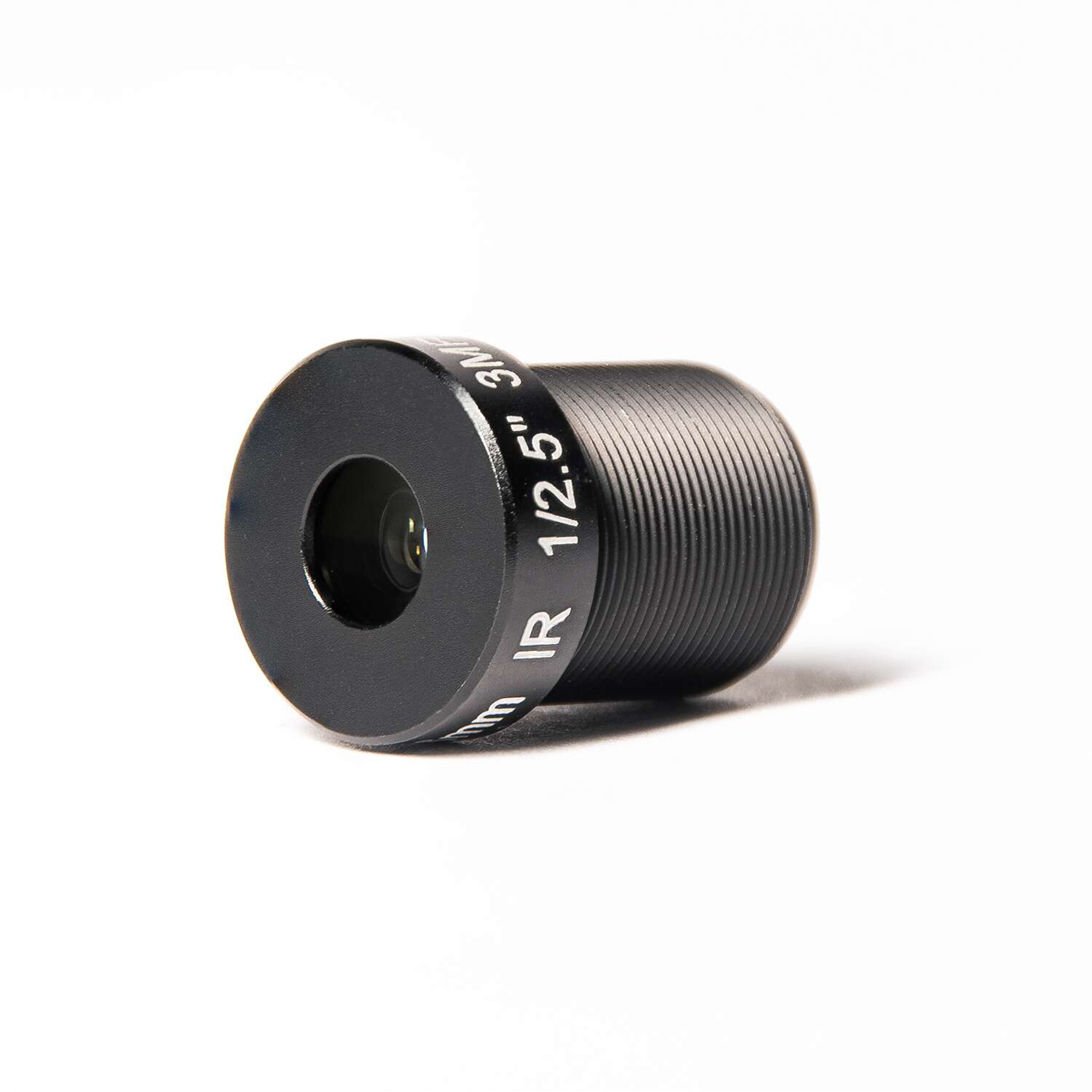

Aida Imaging M12-6.0F 6mm Manual M12 Mount Lens for AIDA HD-NDI-MINI

M12-6.0F - Overview

Made for 1/2.5" Progressive CMOS Sensor

• Features:

  • Optimized and tuned with HD Cameras
  • Compatible with 1.3 to 3MP Cameras
  • M12 Mount Type
  • Max 1/2.5" sensor size
  • Fixed Iris Range


• Specifications:

  • Back Focal Length: 8.1mm
  • Focal Length: 6mm
  • F-Stop: F2.4
  • Focus Operation: Manual
  • FOV:
    - 1/2.5": HFOV 60°
    - 1/3": HFOV 52°
  • Image Format: Max 1/2.5" Sensor
  • Megapixel Count: 3M
  • TV Distortion: -20% with 1/25" Sensor
  • Mount Type: M12
  • Operation Temp: -4°F - 140°F (-20°C - 60°C)
  • Dimension: 1.81" x 1.39" (45.9mm x 35.4mm)
  • Weight: 0.07oz (2g)
