Epiphan AV.io 4K ESP1360 HDMI to USB 4K Video Grabber/Capture Card with Hardware Scaling

ITEM #: EPIP-ESP1360 MFG #: ESP1360

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$579.95

Availability: In Stock
iAvailability Description Popup


    ESP1360 - Overview

    The easiest way to capture 4K video!

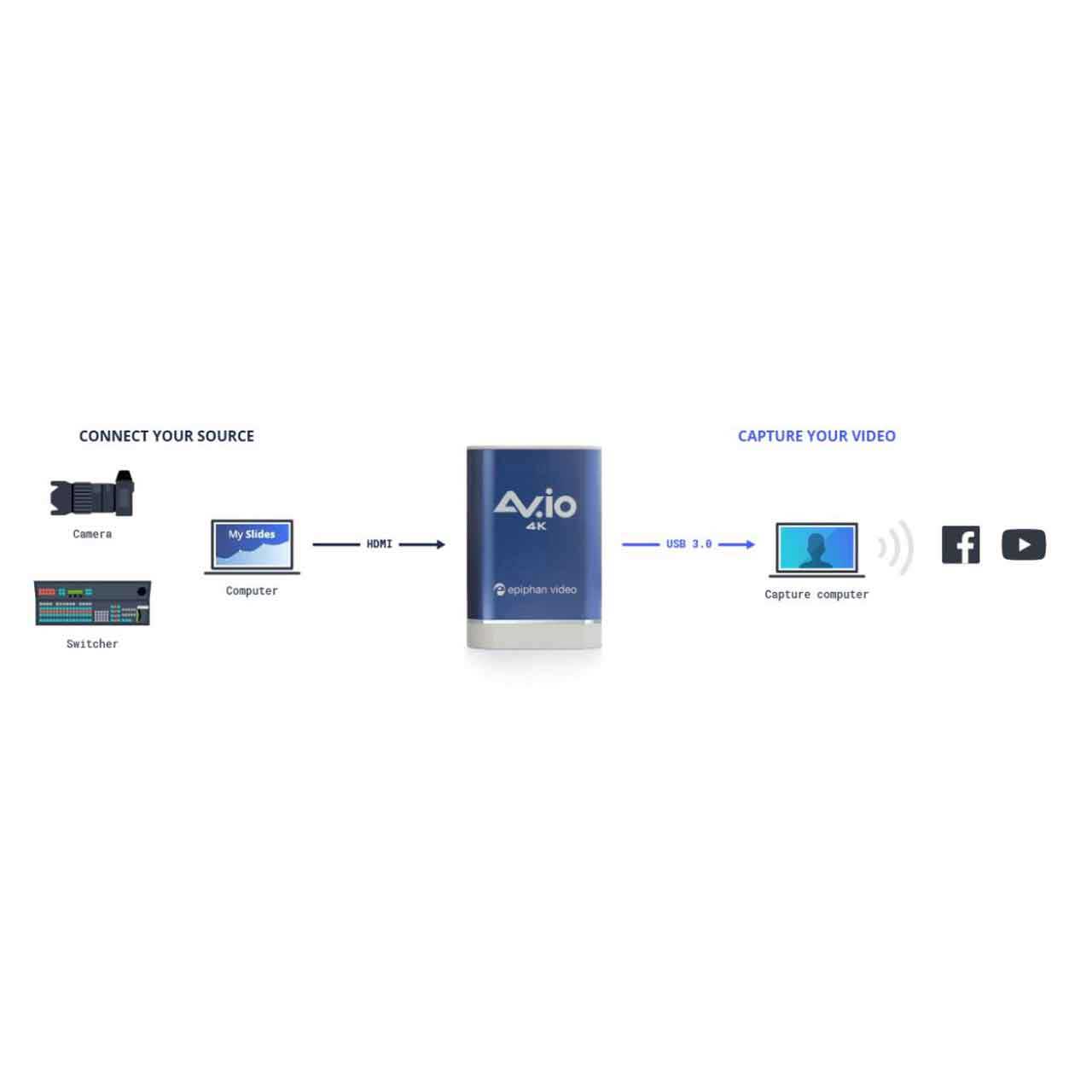

    Ephiphan AV.io 4K is a simple to use, portable video grabber with no drivers to install. Use it with your favorite consumer or commercial encoder software or USB camera capture application on Windows, Mac and Linux systems for high quality video capture for HDMI sources up to 4K and DVI sources up to 1080p. Captures HDMI audio too! AV.io 4K transfers lossless uncompressed 4K video to your computer at 30 fps, or uses hardware scaling to upscale or downscale capture video to the exact resolution you need.

    The easiest way to capture 4K video
    AV.io 4K is the easiest 4K capture card you'll ever use. It doesn't need any special drivers installed on your computer - plug it in to your USB port and start using it right away. It's as simple as using a webcam! Windows, Mac and Linux operating systems automatically detect AV.io 4K, ensuring compatibility with your favorite software, including Skype, Wirecast and QuickTime.

    Choose your resolution
    AV.io 4K captures resolutions up to 4096x2160, with 4K UHD video streaming at 30 fps and 1080p at 60 fps. Choose to use your video at its original resolution or let AV.io scale it for you to exactly what you need.

    4K streaming anywhere, anytime
    This hand-size grabber fits in any kit, or even your pocket, in a pinch. It is a USB video grabber, so its HDMI capture works perfectly up to 4K on any computer with USB 3.0.

    Crystal clear audio
    AV.io 4K captures PCM audio over HDMI at up to 24-bit 96 kHz. The two-channel stereo audio output has automatic resampling at 48 kHz and encodes in 16-bit.

    Application support
    Works seamlessly with your favorite paid or free applications such as Wirecast, Skype, Adobe FMLE, QuickTime, VLC media player and Windows Camera. Save captured content and upload to video platforms such as YouTube, Vimeo and others with ease.

    Tough as nails
    AV.io 4K capture card is perfect for reliable and repeated long-term use. It uses the same metal exterior as all other Epiphan video grabbers, which means that you could drop it down a flight of stairs and step on it, and it would still work. The same enclosure has even been used in space!

    • Features:

      • Wide range of resolutions
      • 4K streaming anywhere, anytime
      • Ultra low latency
      • Crystal-clear audio
      • Broad application support
      • Tough as nails

    • Specifications:

      • Operating System support
      • Windows 8.1, Windows 10, Mac OS X 10.10 and up, Linux distribution with kernel 3.5.0 or higher

        Drivers
      • Native UVC and UAC device auto-detected by OS

        Processor Requirements
      • Your capture computer processor equal or superior in performance to i7 6770HQ for good 4K results.

        Input Connector

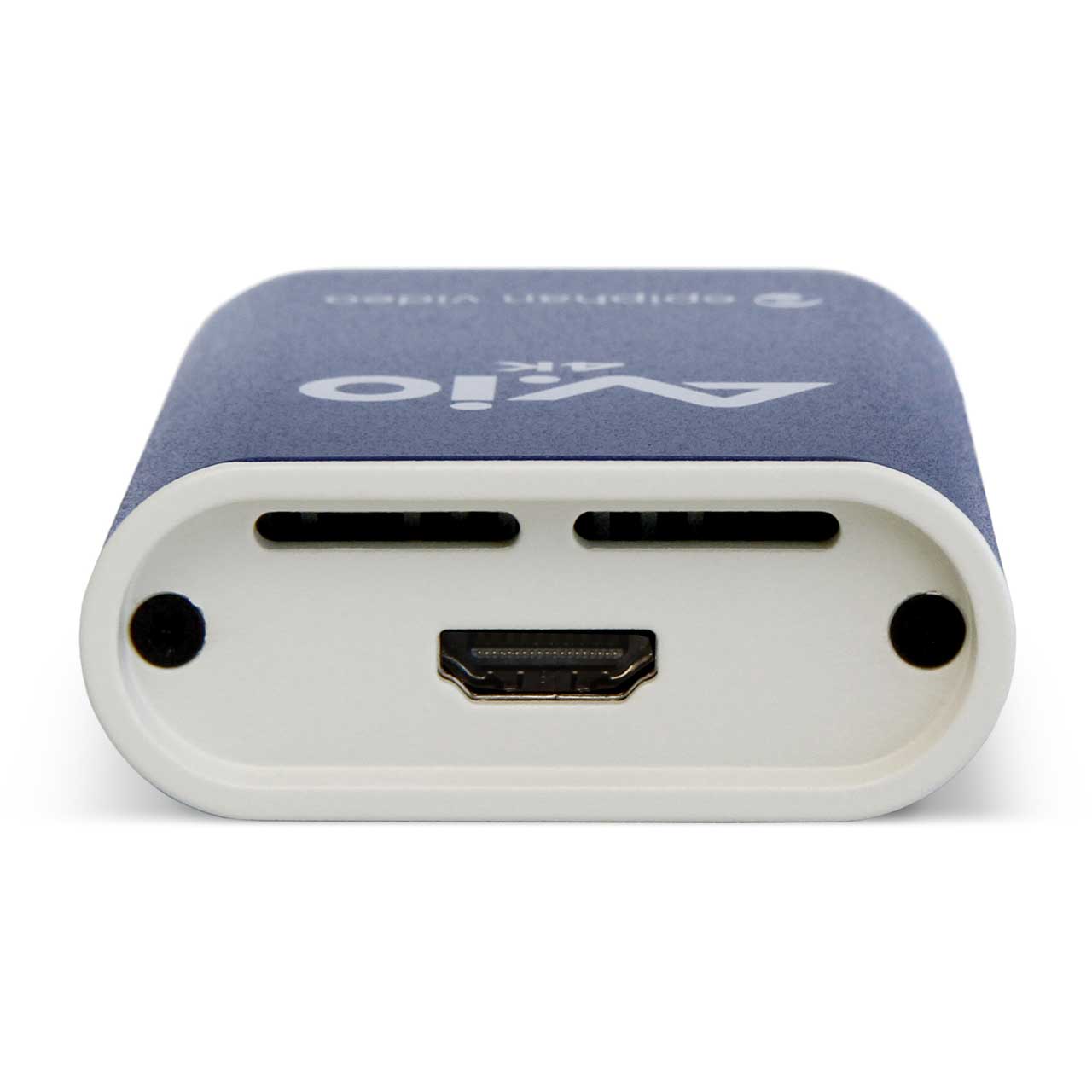

      • HDMI

        Input Resolution
      • Standard and non-standard resolution from 640x360 up to 4096x2160 (4K DCI)

        Output Connector

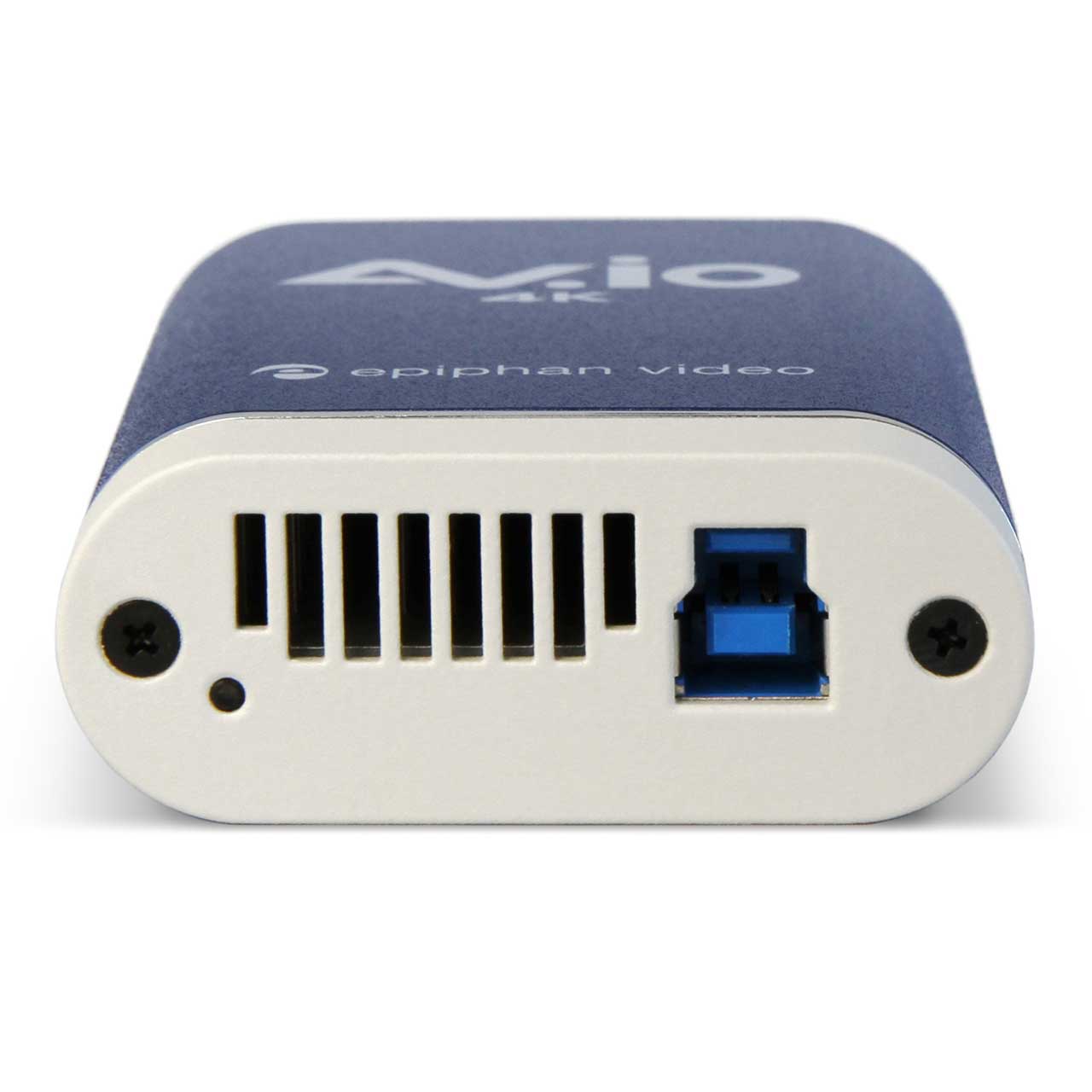

      • USB 3.0 B-Type connector with USB 2.0 backward compatibility

        Output scaling
      • Choose from: no scaling (1:1), preserve aspect ratio scaling or aspect ratio conversion scaling

        System Requirements These are the barebones technical essentials your computer needs to work with AV.io 4K.
      • System requirements to use AV.io 4K include:
      • Video source
      • Any VESA-compatible HDMI (or DVI-D) source.

        Video capture workstation
      • Any computer (laptop/desktop/other format) with a compatible USB 3.0 host controller for SuperSpeed operation and 4K functionality (for maximum performance, an Intel USB 3.0 host controller is needed); or, a USB 2.0 host controller (will limit maximum frame rate and resolution support)

        Video capture workstation operating system
      • Windows 8.1, Windows 10 Mac OS X 10.10 and up Linux distribution with kernel 3.5.0 or higher

        Processor frequency
      • Minimum recommended value: 2.4 GHz

        RAM
      • Minimum recommended value: 4 GB

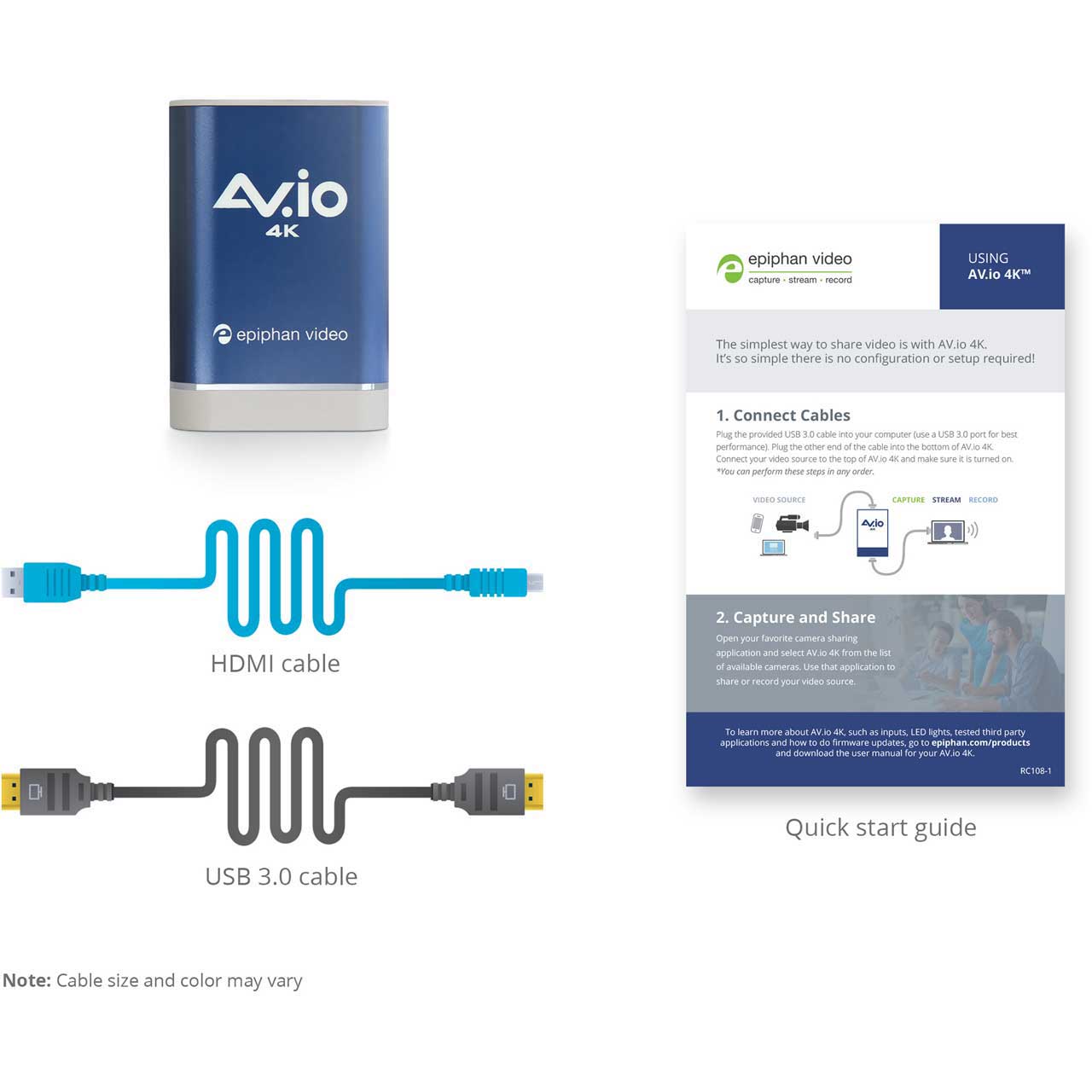

    • Item Includes:

      • 1x AV.io 4K video grabber
      • 1x HDMI connector cable (1 m / 3 ft)
      • 1x USB 3.0 cable (1 m / 3 ft)

    • Warranty:

      • One-year phone support
      • One-year limited warranty
      • Free firmware upgrades

    • GTIN:

      0019962293801
