AIDA Imaging AIDA-HD-NDI-MINI FullHD NDI HX/IP Weatherproof Cylinder POV Camera with 1/3in Progressive Scan CMOS Sensor

ITEM #: AIDA-HD-NDI-MINI MFG #: AIDA-HD-NDI-MINI

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$395.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    AIDA-HD-NDI-MINI - Overview

    The smallest NDI|HX lipstick Camera to date!
    It really doesn't get any smaller then this. Introducing the most discreet, NDI|HX camera AIDA has to offer. With its weatherproof barrel design, the HD-NDI-MINI is well protected against dust and moisture. Packed with a progressive CMOS sensor, this little camera can output 1080 60p video through your standard IP protocols, SRT, and most importantly, NDI|HX. With a tripod mount located on the bottom of the camera, there is no place the MINI can't go.

    No-Hassle Integration
    Of course the HD-NDI-MINI comes pre-loaded with its NDI|HX license key. Would it be any different?

    Weatherproof Protected
    The camera's rated IP67, which allows it to be free from dust and moisture. You can even submerge the camera up to 1M for up to 30 minutes.

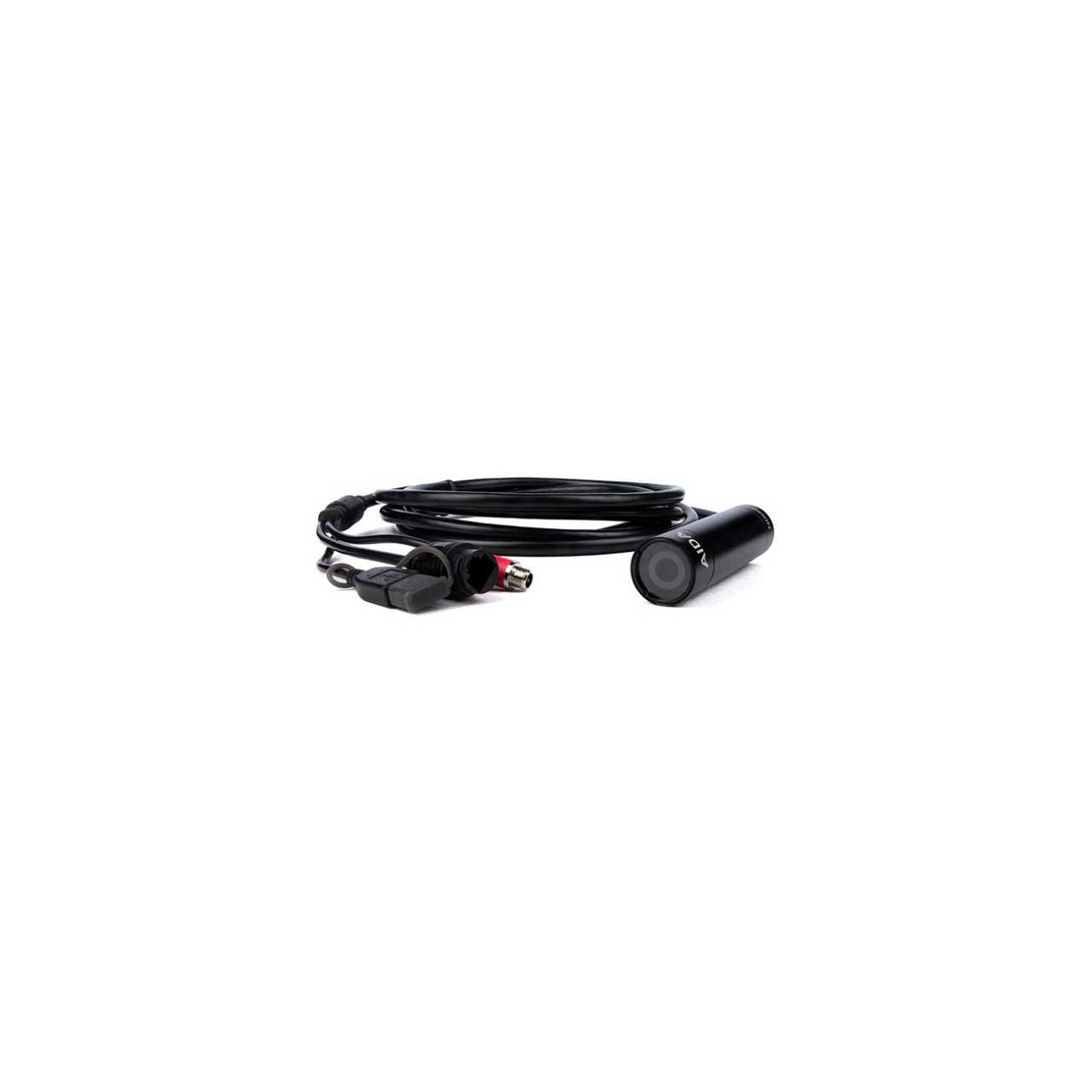

    10ft Weatherpoof I/O cable
    Just like its brother, the HD-NDI-MINI comes with a well protected 10ft/3m weatherproof cable, protecting its wires vigilantly.

    Simultaneous IP Streaming
    As always, simultaneously streaming of NDI®|HX, SRT, RTSP and RTMP is a given. That's just the way the MINI rolls.

    M12 Mount Accessibility
    The MINI comes equipped with a M12 lens for the smallest form factor possible. And yes, its interchangeable.*

    *Operable lenses are dependent on size and focal length. Not all lenses will work.

    Full Control from a Distance
    Full control the camera from the safety of of the outdoors utilizing the Web UI, or VISCA over IP.

    Tiny, but Mighty
    Don't let the MINI's size fool you. Equipped with our world renowned aircraft grade aluminum shell, you can rest easy at night know this camera is fully protected against almost anything thrown at it.

    PoE+ Adaptable
    Each purchase of the HD-NDI-MINI comes with a PoE+ adapter, allowing you to run 1 cable for video, power and control!

    • Features:

      • Full-HD 1/3" Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX Video.
      • Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
      • Compact design used for discreet, hard to reach POV shots unobtainable by larger cameras.
      • M12 type lens for an even smaller form factor
      • Weatherproof rating allows for extra protection against environmental elements.
      • Barrel design for better weatherproofing and fitment.
      • Perfectly suited for outdoor shots any new or existing NDI®|HX setup

    • Specifications:

      • Video
      • Image Sensor: 1/3" Progressive CMOS
      • Sensor Size: 5.346mm x 3.003mm (16.9)
      • Effective Pixels: Horizontal: 1920, Vertical: 1080
      • Pixel Size: 2.75 æm (H) x 2.75 æm (V)
      • Resolution: 1080p, 1080i, 720p
      • Resolution Rate: 1080 60p/59.94/50p/30p/29.97p/25p, 24p, 1080 60i/59.94i/50i, 720 60p/59.94p/50p
      • Output: IP (NDI|HX/SRT/RTMP/RTSP)
      • Color Space: 4:2:2 (YCbCr) 10bit
      • Min Illumination: 0.2Lux (day), 0.1Lux (Night)
      • White Balance: Auto & Manual (9000 - 11,000 K)

        Lens
      • Lens: M12 (Default 4mm HD Lens with WP CAP)

        Standard
      • IP Protocol: UDP|IP, RTSP|RTMP, SRT, NDI|HX

        Physical
      • Camera Control Protocol: VISCA Over IP
      • Operation Temp: 32°F - 104°F
      • Dimension: 90mm x 24mm, 3.5" x 0.94" (with default WP cap)
      • Weight: 180g / 0.39lbs (with default WP cap)
      • Power: 12VDC (+9 - +15VDC) (PoE Adapter Included)

    • Item Includes:

      • 1x PoE Dongle Adapter
      • 1x DC 12v Power Supply & Sockets Adapter
      • 1x 4mm M12 Lens (Pre-Installed)

    • GTIN:

      0686091739823
