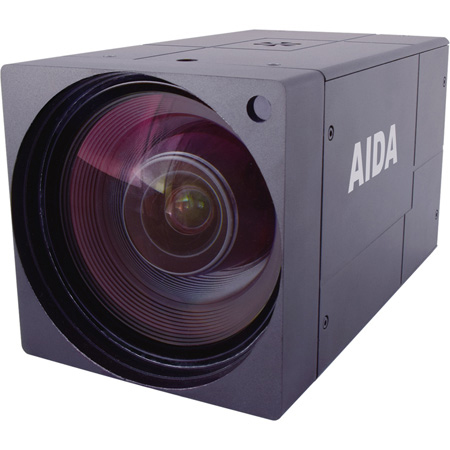

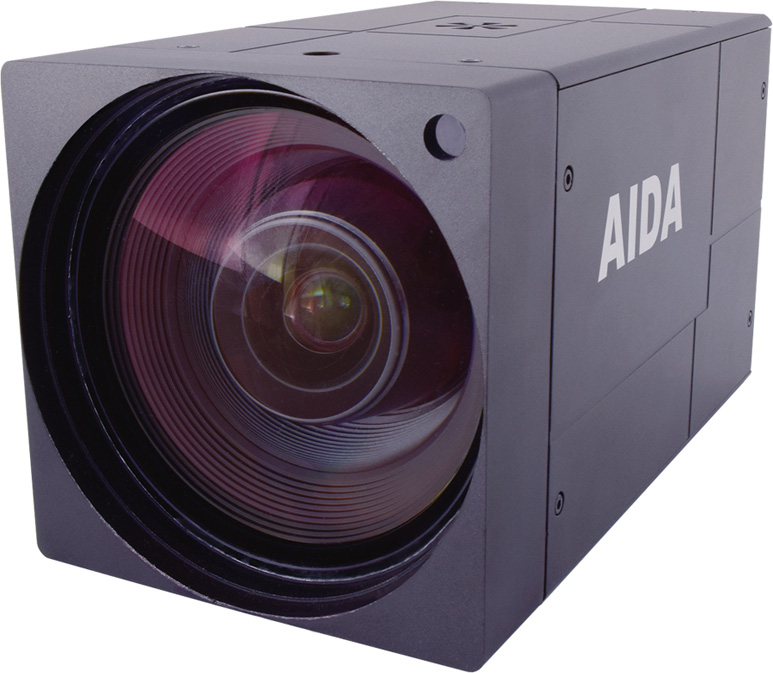

AIDA Imaging UHD6G-X12L 4K POV Camera With 12x Zoom HDMI 1.4 and 6G-SDI Outputs


  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    AIDA-UHD6G-X12L - Overview

    The UHD6G-X12L is a professional 4K POV camera solution that houses a superior 12X 4K lens zoom module. Powered by a back-illuminated pixel technology, the UHD6G-X12L realizes true cinema quality 4K image with wide dynamic range and enhanced imaging characteristics, i.e. sensitivity and greatly reduced noise under low light conditions. The UHD6G-X12L is robust in its features with expanded control sets via VISCA protocol, audio, and dual video (6G-SDI & HDMI 1.4) output. Designed for versatility, durability, and cost effectiveness for smooth integration into any broadcast, professional, or corporate AV environment.

    • Features:

      • 4K 1/1.7 Progressive Scan CMOS sensor capable of 4K (4096 x 2160) captures sharp and vivid images even under very low light conditions.
      • Power by a back-illuminated pixel technology.
      • Superior 4K 12X optical zoom.
      • Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
      • Superb motion-compensated temporal noise reduction filter for motion video without blurring.

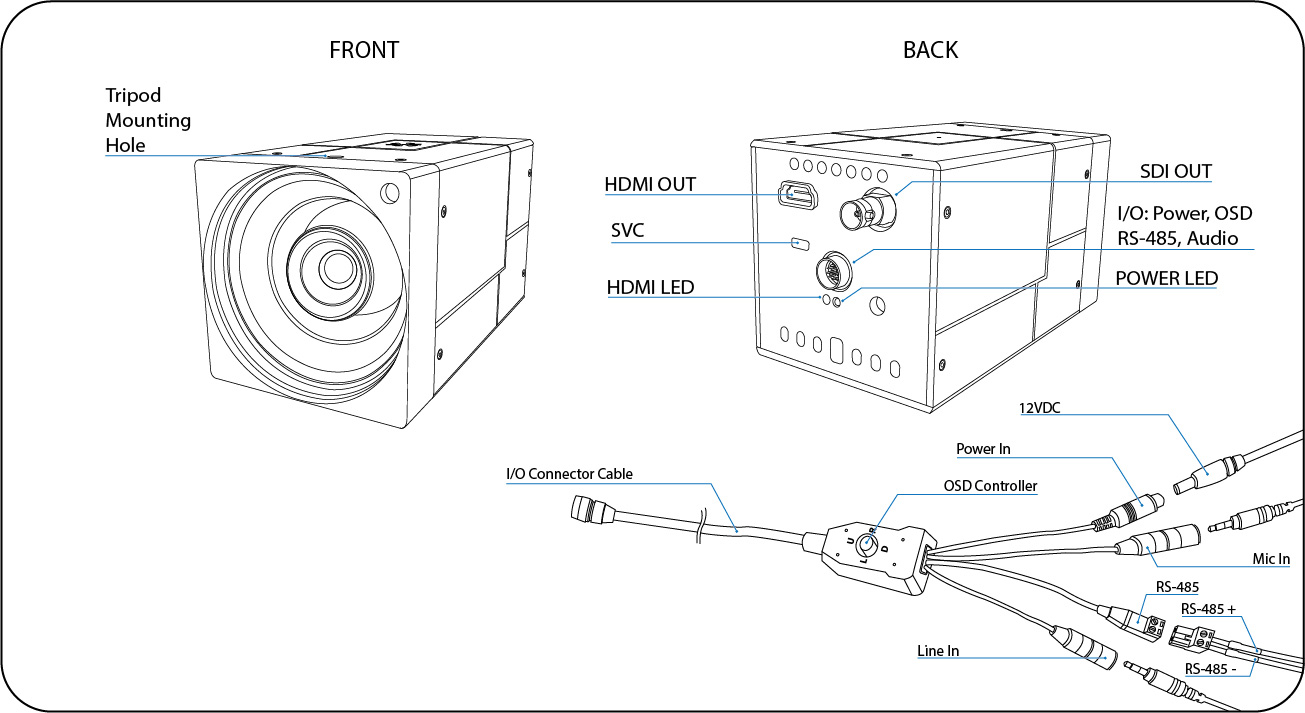

      • OSD control breakout cable with two audio inputs and RS-485 for remote communication.

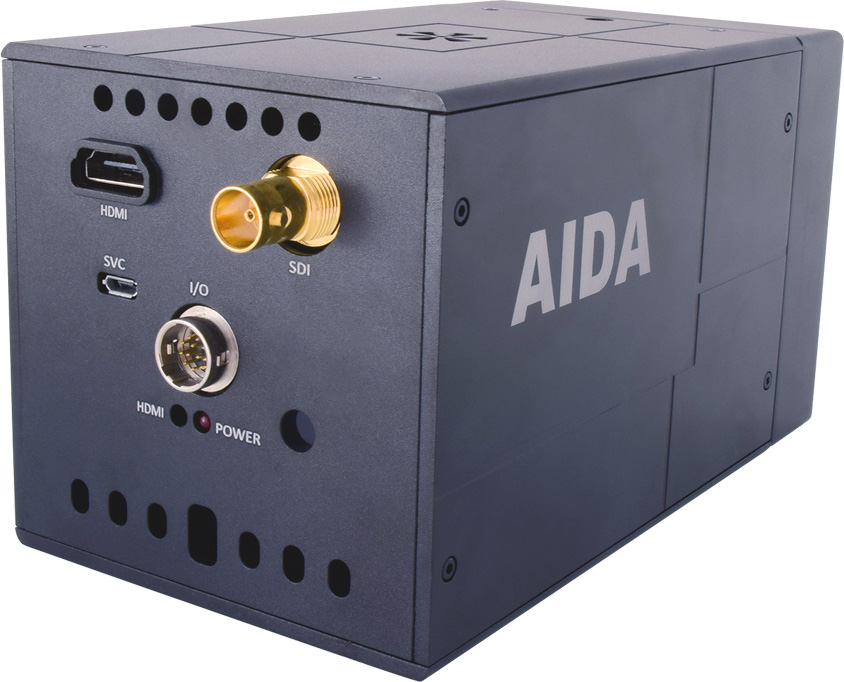

      • Dual video simultaneous output interfaces 6G-SDI & HDMI.
      • Flawlessly relays multi-channel embedded audio via 6G-SDI & HDMI.
      • Perfectly suited for broadcast, pro audio/video, and security.
      • Conforming with SMPTE 292M, 424M and 2081-10.
      • Versatile, compact, and rugged design.
    • Specifications:

      • Camera Control: RS-485 OSD Button
      • Operation Temp: 15°F - 120°F
      • Weight: 600g / 1.2lbs
      • Power: 12VDC (+9 - +15VDC)
      • Image Sensor: 1/1.7" Progressive CMOS
      • Sensor Size: Diagonal 9.93mm(17:9)
      • Effective Pixels: Horizontal: 4096, Vertical: 2160
      • Pixel Size: 1.85 µm (H) x 1.85 µm (V)
      • Resolution: 4096 x 2160, 3840 x 2160, 1920 x 1080, 1280 x 720
      • Color Space: 4:2:2 (YCbCr) 10bit
    • GTIN:
