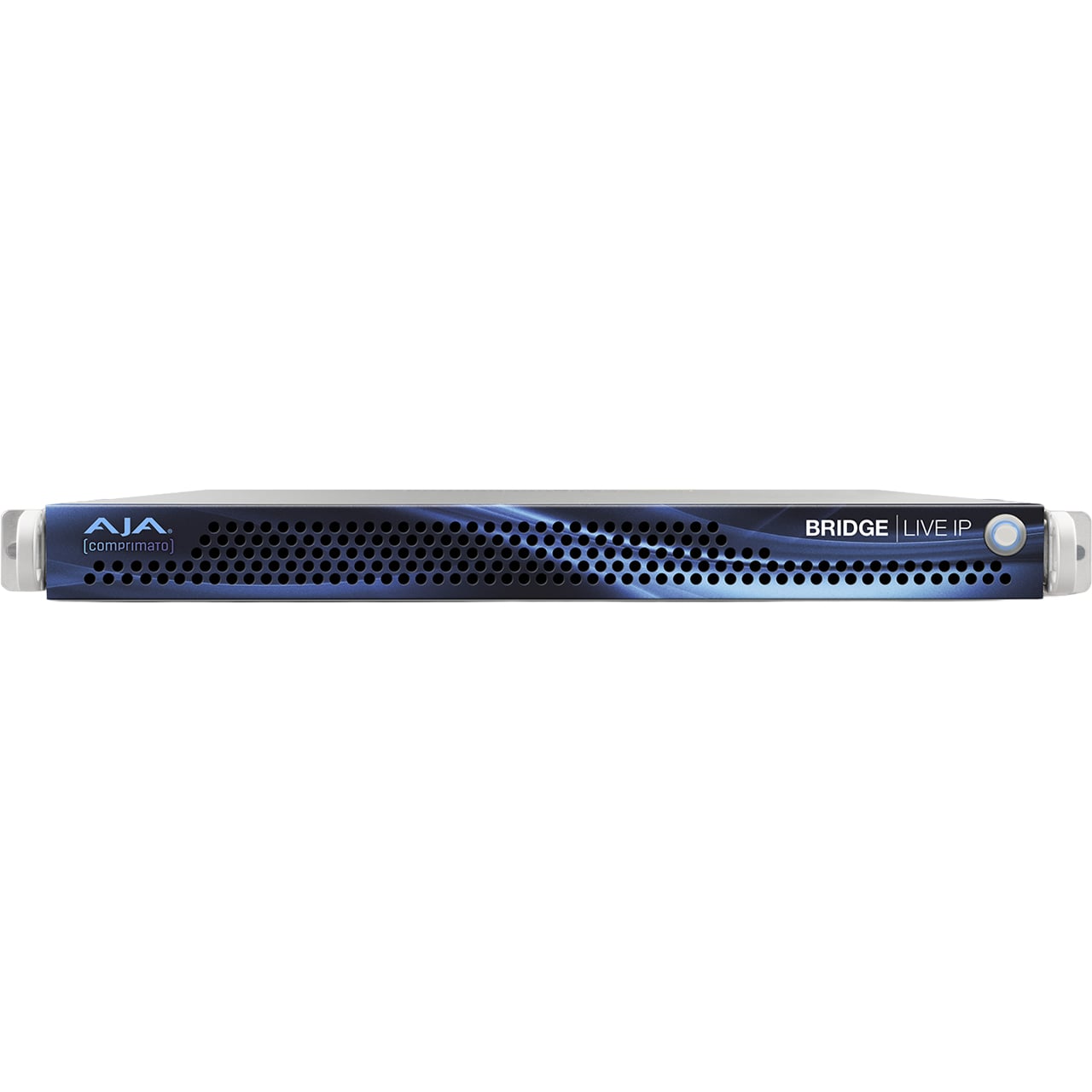

AJA BRIDGE LIVE IP 4 Channel UHD and 12 Channel HD Bidirectional ST 2110 / SFP 28 Streaming & Transcoding Turnkey System

BRIDGE-LIVE-IP - Overview

• Features:

  • Supports bidirectional multi-channel ST 2110-20 UHD (up to 4x channels) and HD (up to 16x channels)
  • ST 2110-30 audio support: up to 64x channels per stream at 48kHz or 96kHz
  • Bidirectional Encode/Decode/Transcode Codecs: H.265 (HEVC), H.264 (AVC, MPEG-4), H.262 (MPEG-2), NDI, JPEG 2000 (TR-01), and JPEG XS (TR-07)

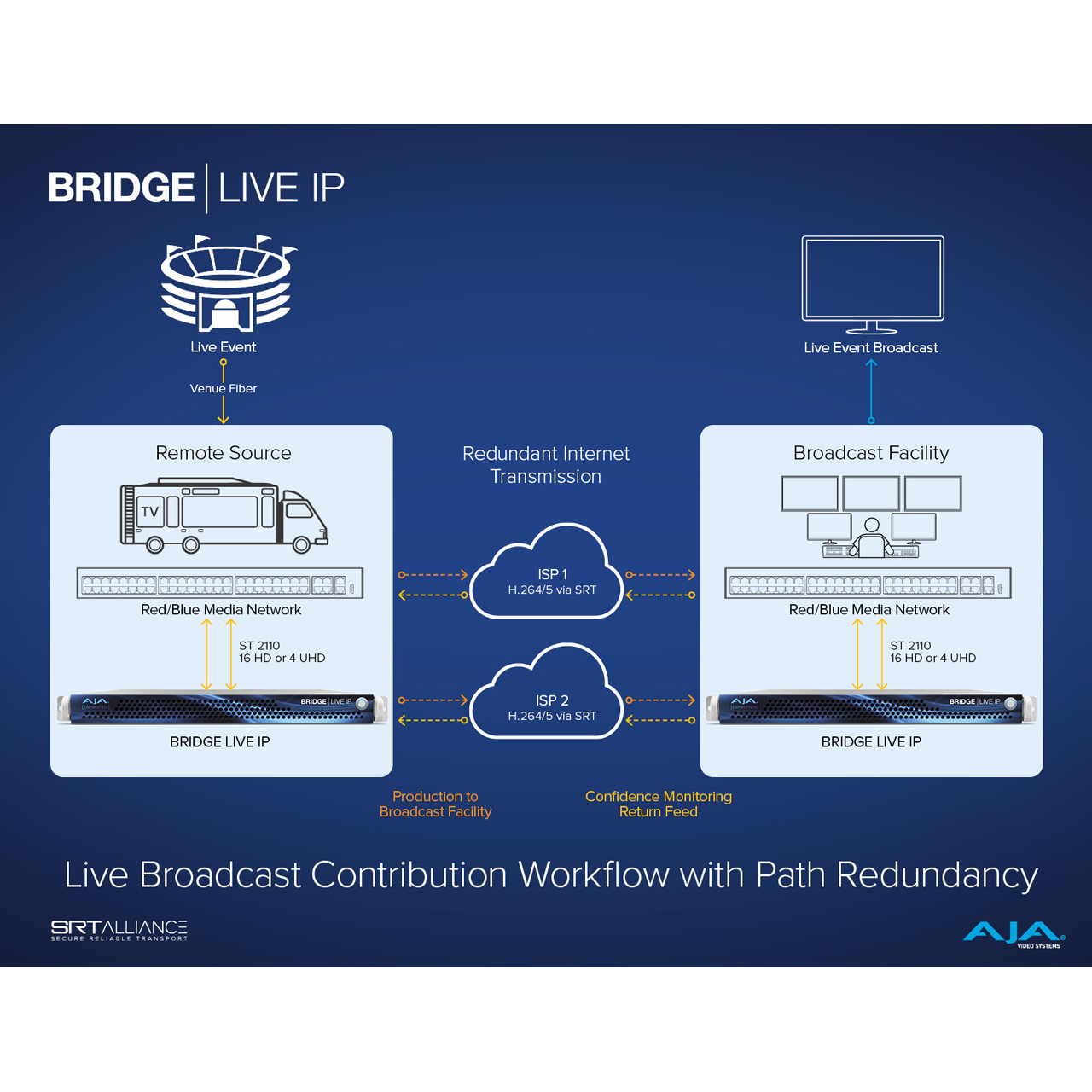

  • Synchronous Multi-Channel / Multi-System Transport Backhaul or Cloud Delivery
  • Protocols: SRT, UDP, HLS, RTP, RTMP/S, MPTS (input)
  • Transports: MPEG-TS, NDI, AVC-TS, Fragmented MP4
  • NDI 10-bit HDR manual marking, multiple Discovery Server and NDI Groups support
  • Multibitrate/format distribution, ABR Ladder Profiles for OTT hand-off
  • Selectable profiles for 8, 10, and 12-bit, 4:2:2 and 4:2:0 depending on the codec
  • Unmatched metadata capabilities including ST 2110-40, MPEG-2 ANC, SMPTE 2038, Ad insertion markers (SCTE-35/SCTE-104), CC/Subtitles (EIA-608/708, Line 21), H.264 SEI)
  • Hitless Redundancy via ST 2022-7 for ST 2110 and MPEG-TS as well as SRT Network Bonding
  • Remote WebUI or local GUI for easy administration, control, and operation
  • Monitoring, Control, and Automation supported via REST API or SNMP
  • Turnkey 1RU rack-mountable, enterprise class form factor
  • Dual 10 GigE interface for configuration, NMOS control, compressed transport
  • Dual 10/25GigE SFP cages for in-band NMOS control and ST 2110 transport
  • Dual power supplies for critical application redundancy


• Specifications:

  Video Formats
  • UltraHD: 3840x2160p 25, 29.97, 30, 50, 59.94, 60
  • HD:
    - 1920x1080p 25, 29.97, 30, 50, 59.94, 60
    - 1920x1080i 50, 59.94
    - 1280x720P 50, 59.94, 60

    Media Transport Interfaces (In-Band)
  • Uncompressed media (SMPTE ST 2110-20, 30, 40)
  • PTP
  • Configuration & Control
  • 2x SFP28 Cages (redundant only)- SFPs not included
  • Supports 10GigE and 25GigE SFPs

    Input Uncompressed IP
  • ST 2110-20 Video:
    - 16-channel input
    - RX support for Narrow and Wide Senders
    - RX support for Class-A,B,C ST 2022-7 redundancy
  • SMPTE ST 2110-30 Audio:
    - Up to 8x streams per pipeline
    - Up to 64-channel audio per stream, 16-bit or 24-bit per channel, 48kHz or 96kHz synchronous
    - 1ms and 125us timing

    Output Uncompressed IP
  • ST 2110-20 Video:
    - 16-channel output
    - TX support for ST 2022-7
    - TX senders are Narrow Gapped
  • ST 2110-30 Audio:
    - Up to 12x streams per pipeline
    - Up to 16-channel audio per stream, 16-bit or 24-bit per channel, 48kHz or 96kHz synchronous
    -1ms and 125us timing
  • ST 2110-40 Ancillary: Up to 12x streams

    Discovery, Registration and Control
  • NMOS TX/RX support according to standards IS-04 v1.3 and IS-05 v1.1
  • In-Band and Out-of Band
  • L2, L3 with SSM
  • IGMP v2, v3

    IP Clock
  • PTPv2 ST 2059-2/IEEE 1588-2008
  • In-Band only

    Video Color Component Sampling
  • ST 2110-20: YCbCr, 4:2:2, 10-bit
  • Transport Streams:
    - YCbCr, 4:2:2, 10-bit/8-bit
    - YCbCr, 4:2:0, 10-bit/8-bit
  • NDI:
    - 10-bit via P216, 4:2:2, 16-bit
    - 8-bit, UYVY, 4:2:2
    - HDR metadata Manual Marking

    Video Codecs
  • H.264 (AVC, MPEG-4)
  • H.265 (HEVC)
  • JPEG 2000 (VSF TR-01)
  • H.262 (MPEG-2)
  • NDI
  • JPEG XS (VSF TR-07)

    Audio Streams/Codecs
  • AAC-LC (ADTS, LATM)
  • AAC-HE (ADTS, LATM)
  • AAC-HE v1 & v2 (ADTS, LATM)
  • AC3
  • E-AC3 (Input)
  • Dolby E pass-through
  • MPEG-2 Audio
  • NDI (Uncompressed float)
  • Uncompressed PCM multi-channel (SMPTE 302M-2007)
  • ST 2110-30 Uncompressed audio

    Containers and Protocols
  • HLS (Input):
    - AVC TS segments
    - Fragmented MP4
  • HLS (Output): AVC TS segments
  • MPEG-TS
  • MPTS (input)
  • RTMP
  • RTMPS (output)
  • RTP, UDP
  • SRT (including encryption)
  • VSF TR-01
  • VSF TR-07

    Video Processing
  • Auto Color Component Sampling based on I/O settings
  • Cropping/Padding
  • Color adjustments
  • Deinterlacing
  • Frame rate 50% down-conversion (60p->30p, 59.94->29.97, 50p->25p)
  • Frame rate up-conversion (50i->50p)
  • Logo insertion
  • Resizing

    Audio Processing
  • Channel remapping
  • Gain
  • Sample Rate conversion
  • Up/Down-mixing (e.g., 5.1 to stereo and vice versa)
  • Audio delay

    Synchronization
  • Input PCR:
    - Global configuration (in separate transport stream)
    - Local configuration (in each transport stream)
  • Output PTS:
    - Pass-through
    - Add offset to input PTS
  • NTP: Encoder Synchronous Multi-Channel Transport
  • PCR: Decoder Synchronous Multi-Channel Transport

    Configuration and Monitoring
  • Local interface (keyboard, mouse and monitor)
  • Remote access via Browser
  • REST API
  • SNMP
  • NMOS
  • IPMI

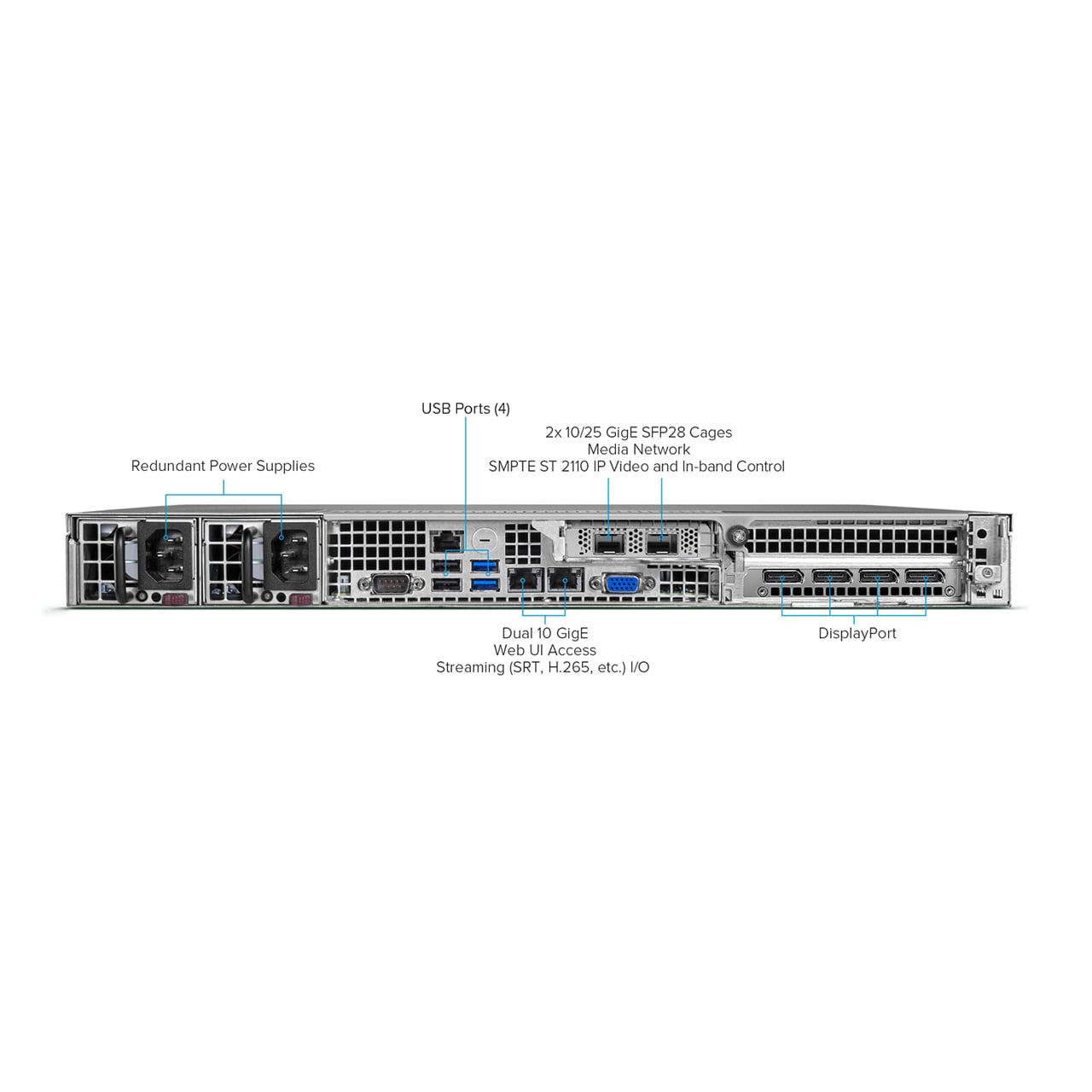

    Form Factor
  • Dimensions: 17.2" x 16.9" x 1.7" (436.88mm x 429.26mm x 43.18mm)
  • Weight:
    - 28lbs (12.7kg) in box
    - 18lbs (8.2kg) server only
  • 1RU turnkey system
  • 2x SFP28 cages (10GigE and 25GigE compatible)
  • 2x 10GigE RJ45
  • Local interface via Display Port and USB
  • OS custom image
  • Update and license via download

    Power
  • 100V - 240VAC, 50/60Hz (Dual, redundant power supplies)
  • 320W Typical
  • 600W Maximum


• Item Includes:

  • 1x BRIDGE LIVE IP


• Warranty:

  • 1 Year Limited Warranty
