The AJA OG-FiDO-4 family delivers high-density, four-channel SDI and fiber conversion for broadcast, production, sports, live events, house of worship, campus installations, and Pro AV infrastructure.

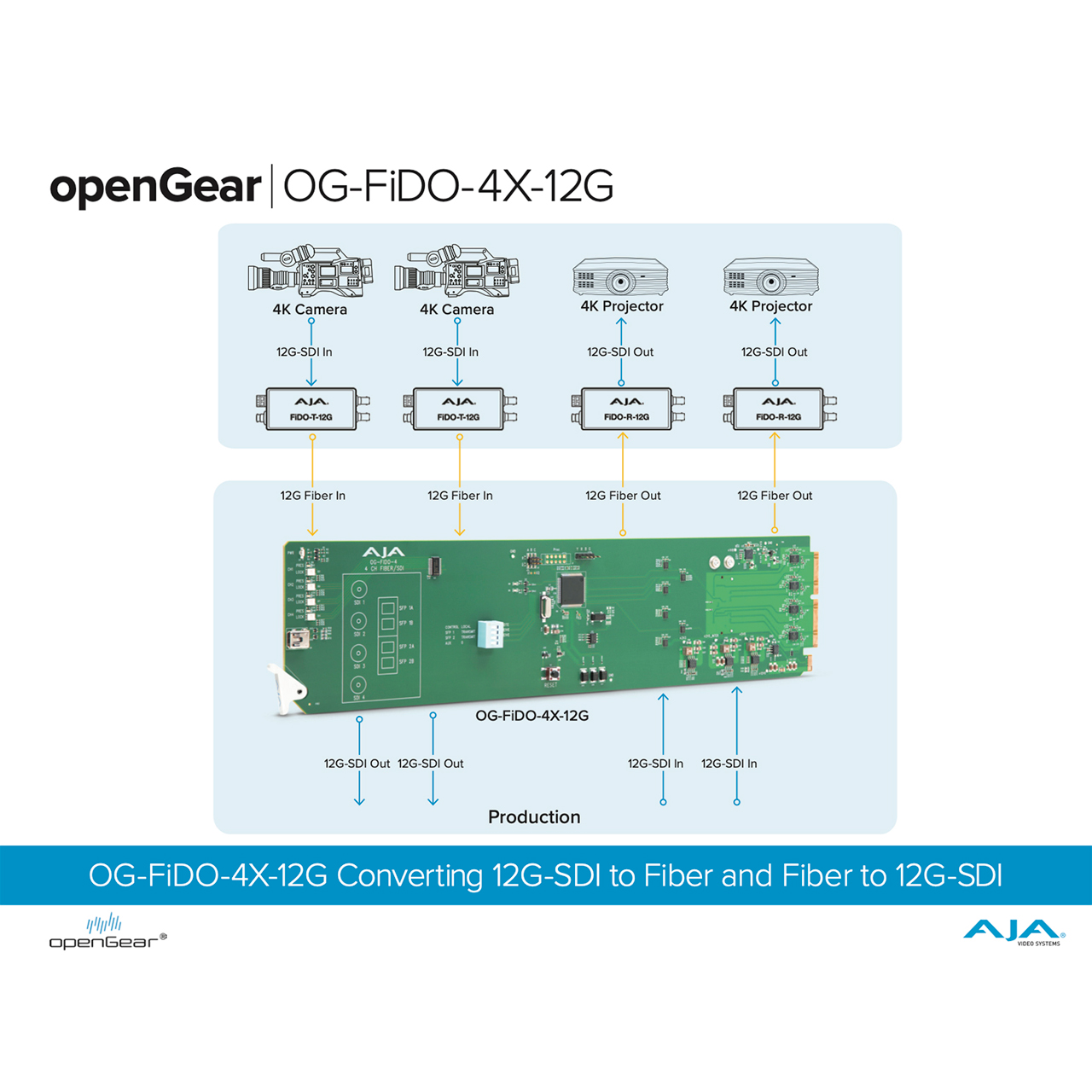

Built around a common four-channel architecture, the OG-FiDO-4 family offers nine configurations for 12G-SDI singlemode, 3G-SDI singlemode, and 3G-SDI multimode LC fiber. Choose from four-channel transmit, four-channel receive, or two-channel transmit/two-channel receive models to match the signal direction and fiber requirements of each installation.
All four SDI BNC connections are independent and fully isolated, allowing different supported SDI data rates to be carried simultaneously. Automatic data rate detection and reclocking help maintain signal integrity, while SDI ancillary data, including HDR metadata, passes transparently through the signal path. Remote monitoring via openGear DashBoard software provides centralized operational visibility, complemented by onboard Input Present and SMPTE Lock LEDs for fast local status verification.
Four Independent Channels. Nine Configurations.

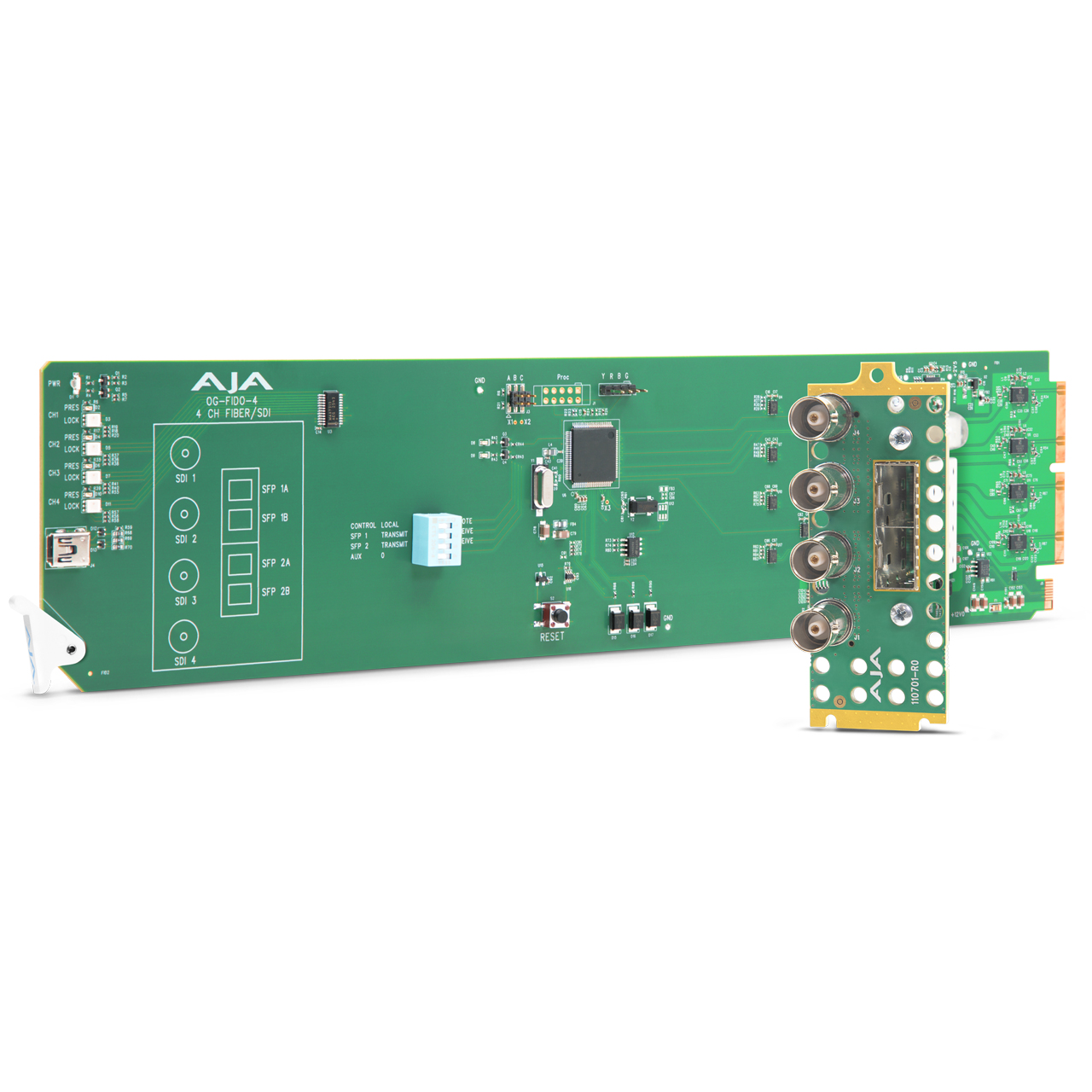

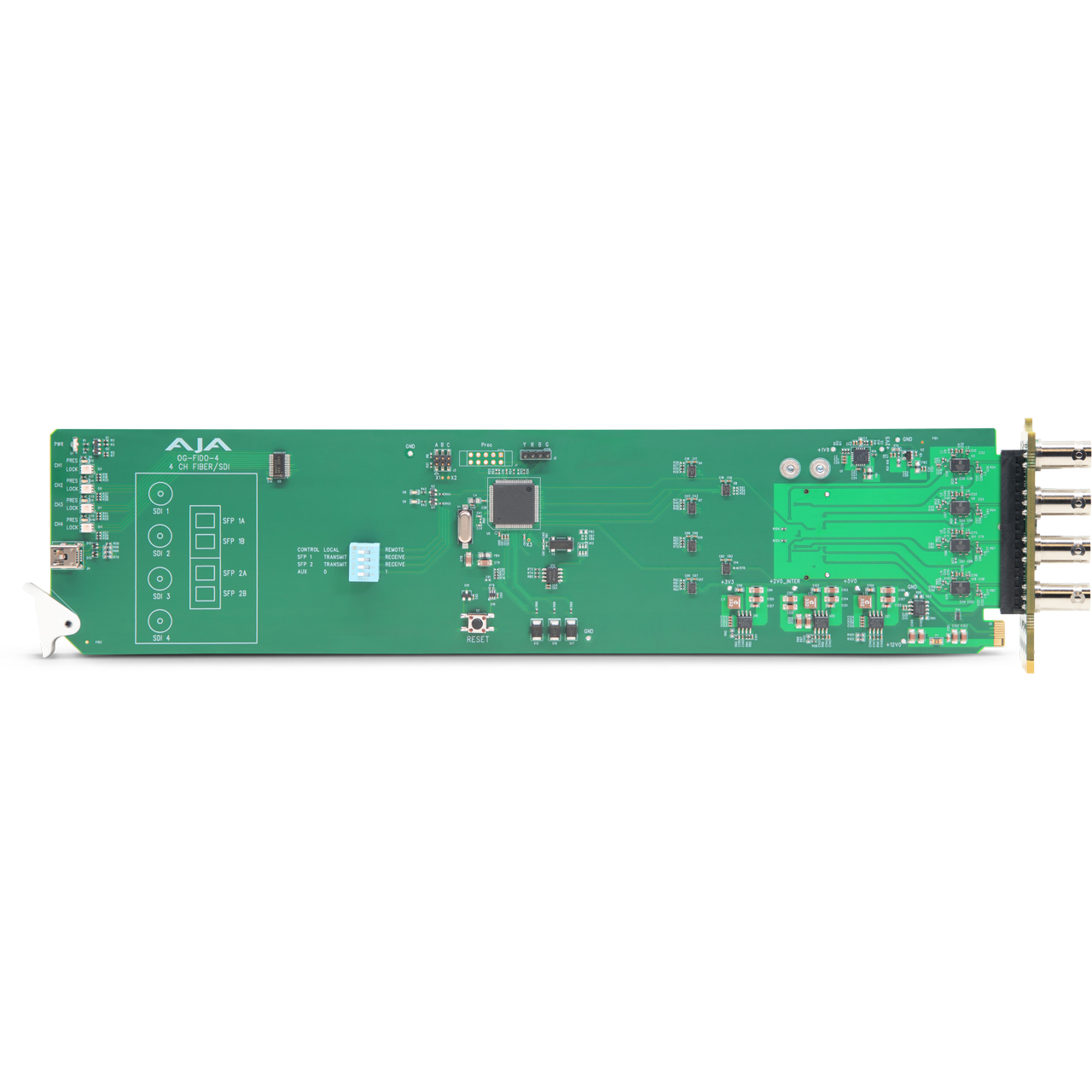

The OG-FiDO-4 architecture combines four independent SDI BNC connections with four optical fiber channels in a compact two-slot openGear design to create nine fiber configurations. This common hardware architecture provides a consistent approach to building high-density fiber transport while allowing each card configuration to be matched to the requirements of the signal path.
HDR Pass-Through Support
HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than SDR or Standard Dynamic Range signals allow. This gives your imagery a more 'dynamic' look and allows for natural true to life colors to be communicated to your audience.

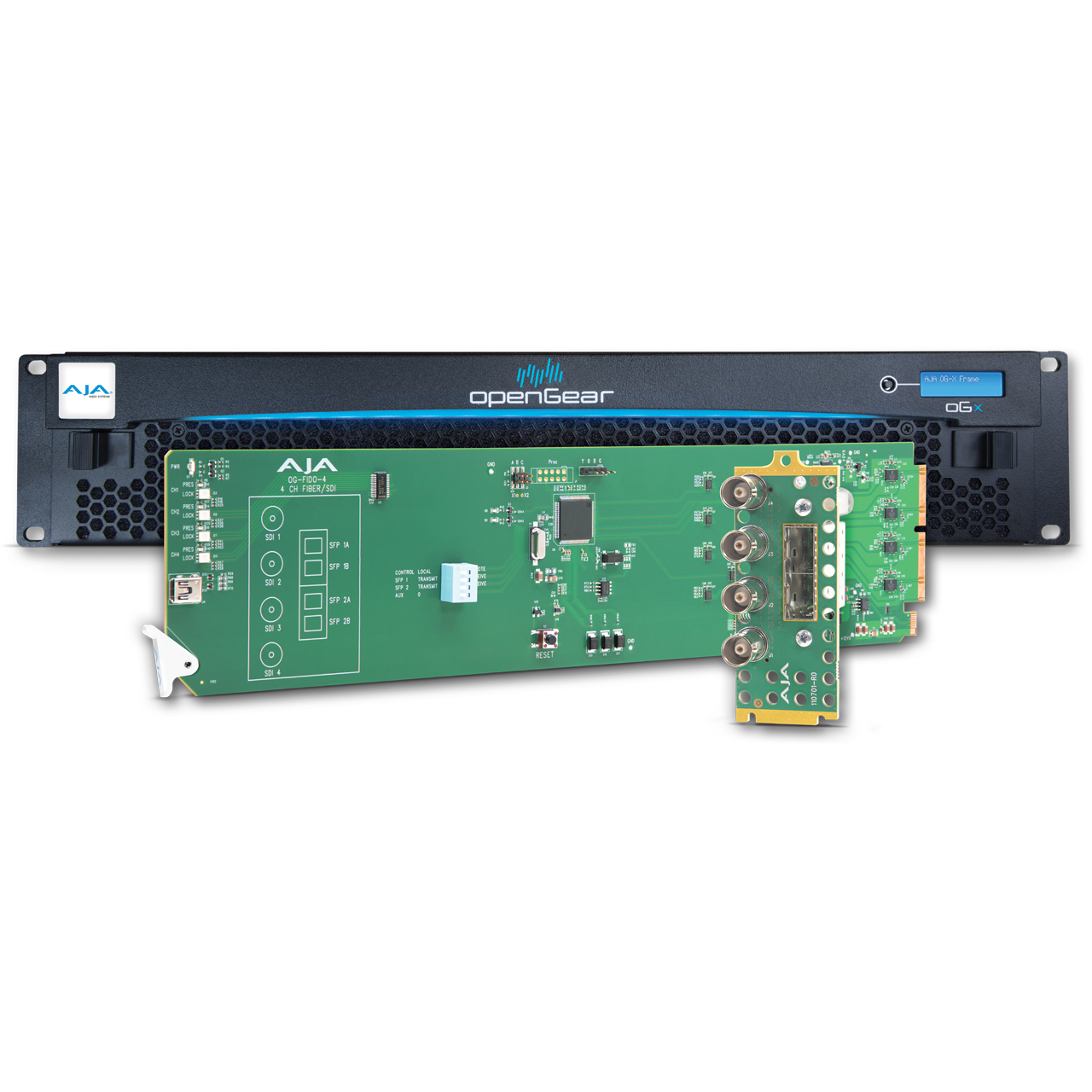

openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.
DashBoard Software
Ross DashBoard software offers quick and convenient configuration of openGear cards on macOS, Windows, and Linux..
