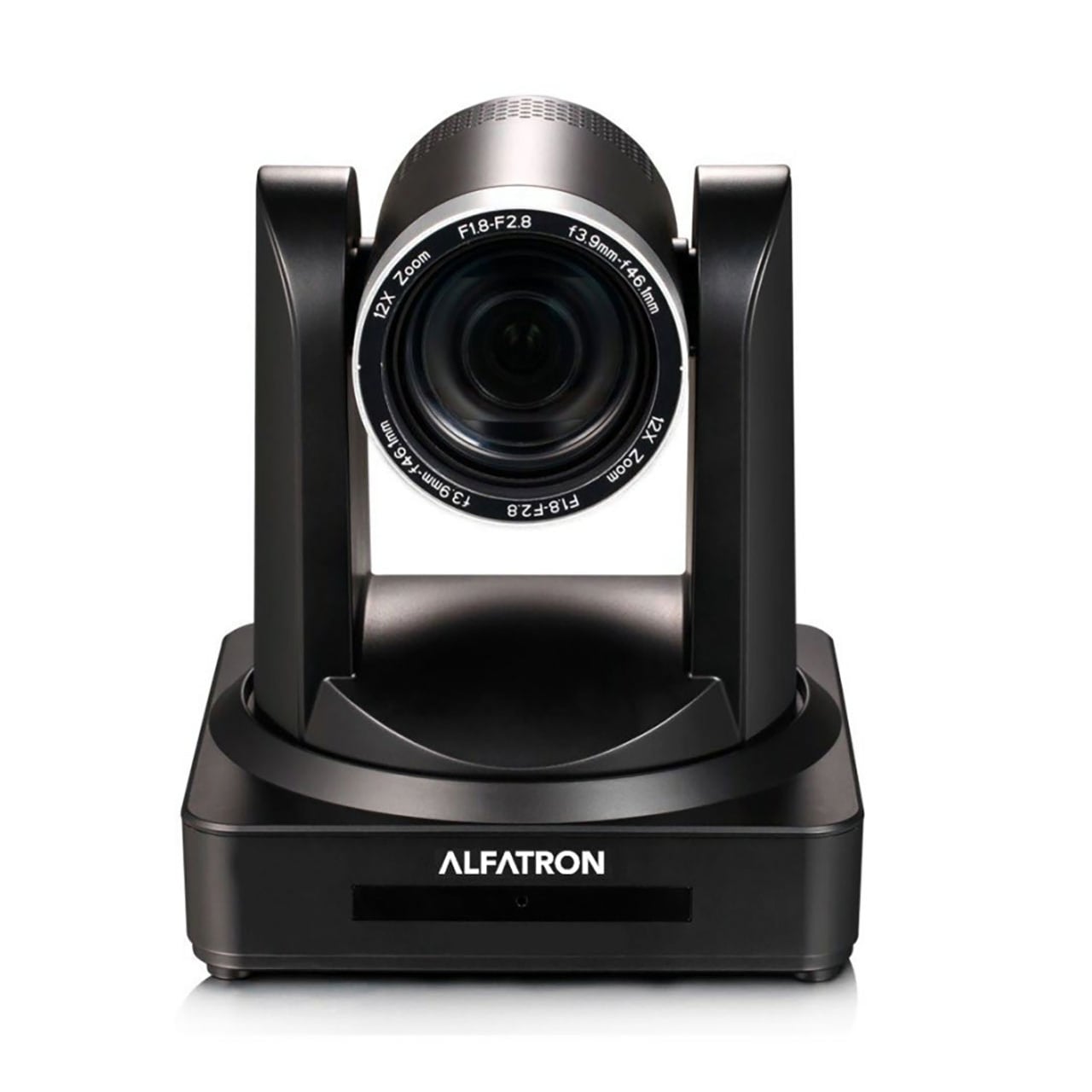

Alfatron ALF-12X-HDBaseT 1080p60 HDBaseT PoE PTZ Camera with 12x Optical Zoom with Wall / Shelf Mount Bracket and Remote

ALF-12X-HDBASET - Overview

• Features:

  • Superb High-Definition: Image Utilizes 1/2.8" high quality CMOS sensor. Resolution is up to 1920x1080 with a frame rate up to 60fps.
  • Leading Auto Focus Technology: Leading auto focus algorithm assures the lens is fast, accurate and stable at auto-focusing.
  • Low Noise and High SNR Low Noise CMOS: Effectively ensures high SNR of camera video.
  • Noise Reduction: Advanced 2D/3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.
  • Quiet PTZ: By adopting a high accuracy step driving motor, the camera works quietly and moves smoothly and quickly to a designated position.
  • Video Outputs: Supports HDBaseT.
  • Remote Controls: IR remote controller.
  • Low-Power Sleep Function: Supports low-power sleep/wake up. The consumption is lower than 500mW under sleep mode.
  • Support Multiple Control Protocol: Supports VISCA, PELCO-D and PELCO-P protocols which can also be automatically recognized. Supports VISCA control protocol via the IP port.
  • Multiple Network Protocol: Supports IP VISCA, ONVIF, RTSP & RTMP
  • Control Protocols: VISCA IP, ONVIF, PELCO-D, PELCO-C and VISCA standard protocols
  • 255 Presets Positions: Up to 255 presets (10 presets via remote Controller).
  • Wide Usage Application: Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.
  • Power: DC 12V PSU or POC


• Specifications:

  • Sensor: 1/2.8" high quality HD CMOS sensor
  • Effective Pixels: 16:9 2.07 megapixel
  • HDBaseT Video Format:
    - 1080p60/50/30/25/59.94/29.97
    - 1080i60/50/59.94
    - 720p60/50/30/25/59.94/29.97
  • Optical Zoom: 12x, f=3.9mm - f=46.1mm
  • View Angle: 6.3° (Tele), 72.5° (Wide)
  • AV: F1.8 - F2.4
  • Digital Zoom: 10x
  • Minimum Illumination: 0.5Lux (F1.8, AGC ON)
  • DNR: 2D & 3D DNR
  • White Balance: Auto/Manual/One Push/3000K/4000K/5000K/6500K
  • Focus: Auto/Manual
  • Aperture: Auto/Manual
  • Electronic Shutter: Auto/Manual
  • BLC: ON/OFF
  • WDR: OFF/Dynamic level adjustment
  • Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
  • SNR: >55dB

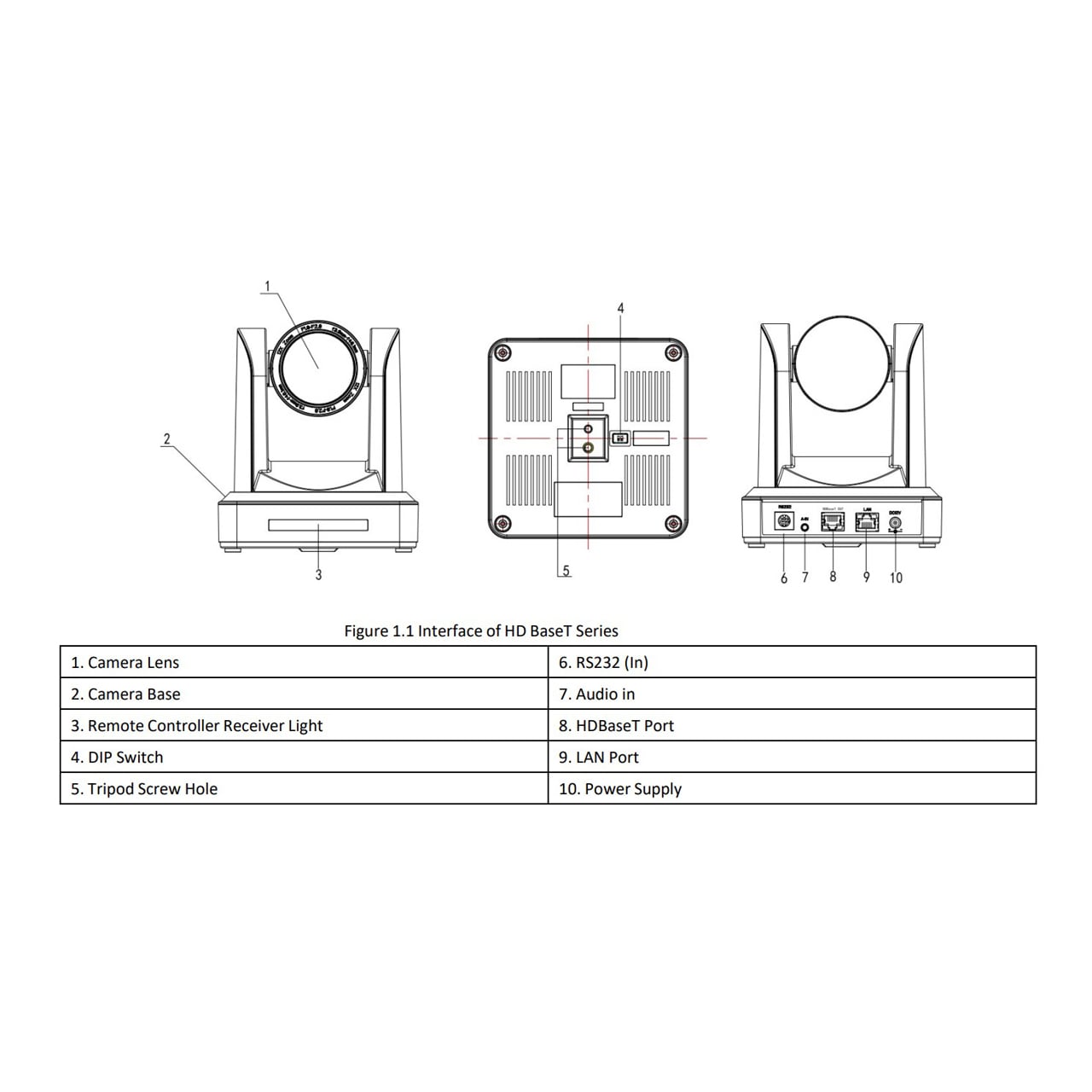

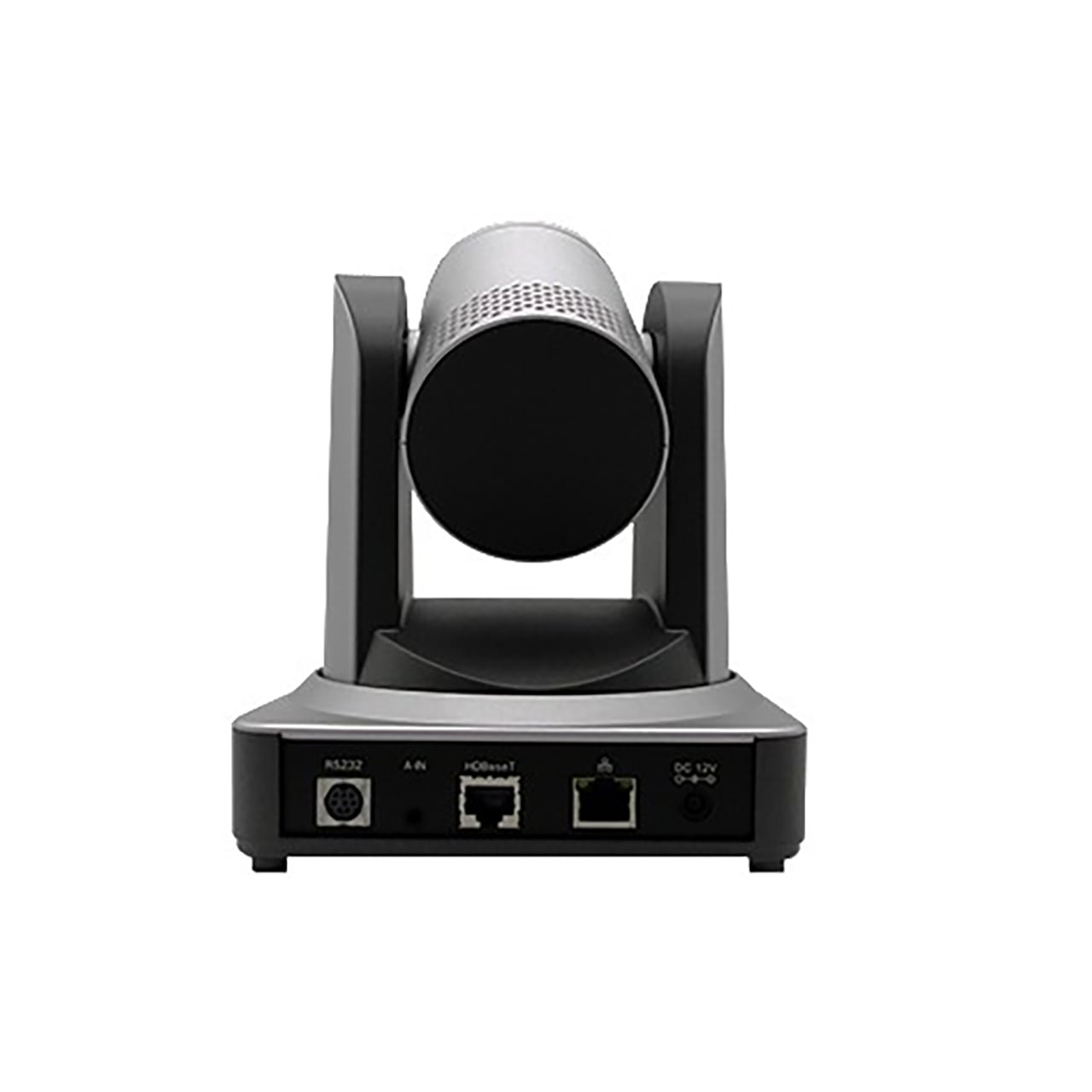

  • Video Interfaces: HDBaseT (POE), LAN, Audio-in, RS232
  • Image Code Stream: Double streams output simultaneously
  • Video Compression Format: H.264, H.265
  • Control Signal Interface: RS-232 Ring through RS232 output, RS-485
  • Control Protocol: VISCA/Pelco-D/Pelco-P
  • Baud Rate: 115200/9600/4800/2400bps
  • Audio Input Interface: Double track 3.5mm linear input
  • Audio Compression Format: AAC/MP3/PMC Audio compression
  • HD IP Interface: 100M IP port (100BASE-TX); supports IP Visca control protocol
  • Network Protocol: RTSP/RTMP,ONVIF
  • Power Interface: HEC3800 outlet (DC12V)
  • PTZ Parameter: Pan Rotation ±170°
  • Tilt Rotation: -30° - 90°
  • Pan Control Speed: 0.1° - 60°/sec
  • Tilt Control Speed: 0.1° - 30°/sec
  • Preset Speed:
    - Pan: 60°/sec
    - Tilt: 30°/sec
  • Preset Number: 255 presets (10 presets by the remote controller)
  • Supply Adapter: AC110V - AC220V to DC12V/2A
  • Input Voltage: DC12V ±10%
  • Input Current: 1A (Max)
  • Consumption: 12W (Max)
  • Store Temperature: 14°F - 140°F (-10°C - 60°C)
  • Store Humidity: 20% - 95%
  • Working Temperature: 14°F - 122°F (-10°C - 50°C)
  • Working Humidity: 20% - 80%
  • Dimension: 5.91" x 5.91" x 6.59" (150mm x 150mm x 167.5mm)
  • Weight: 3.09lbs (1.4kg)
  • Working Environment: Indoor
  • Remote Operation (IP): Remote Upgrade, Reboot and Reset


• Item Includes:

  • Power Supply
  • RS232 Control Cable
  • IR Remoter
  • Manual

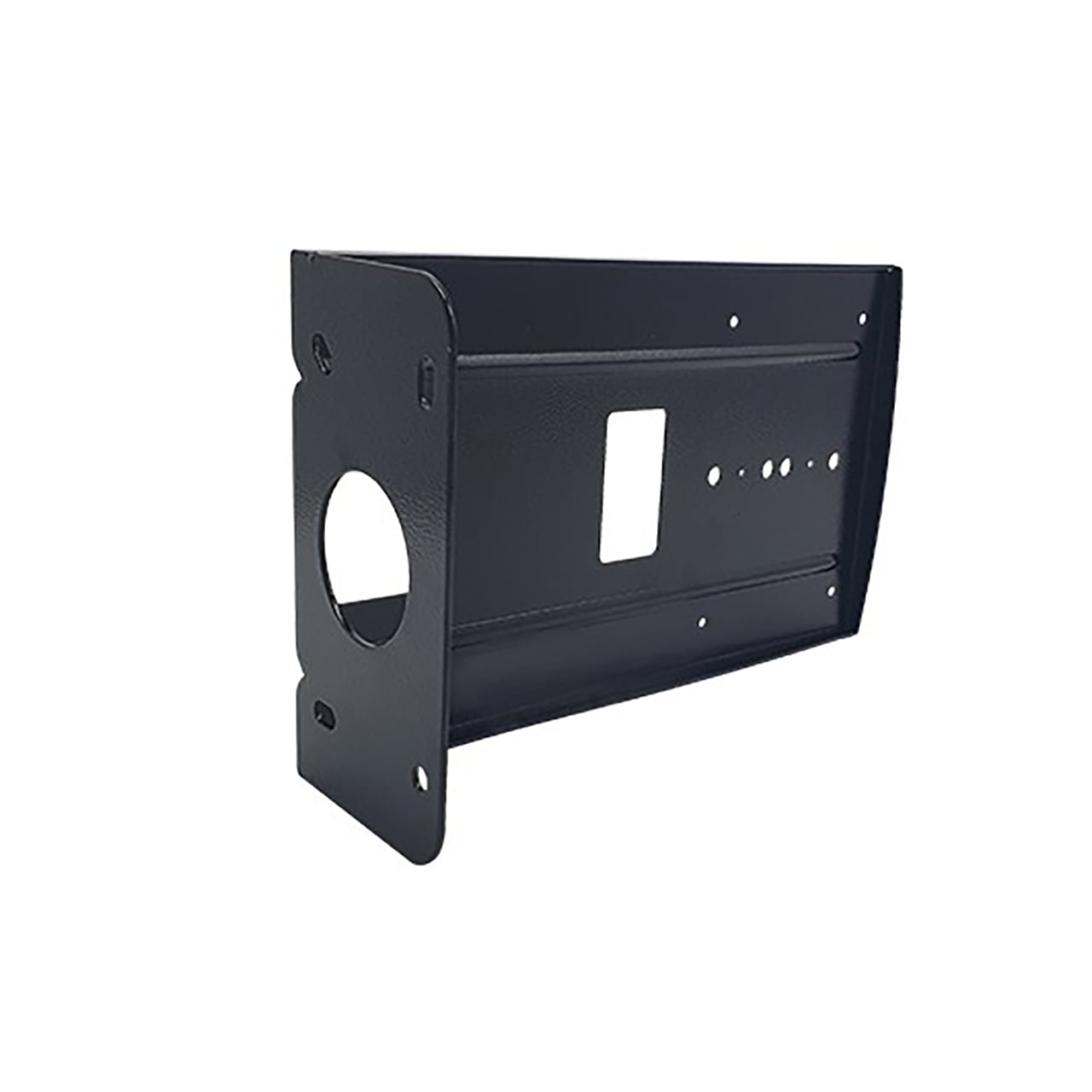

  • Wall Mount Bracket
