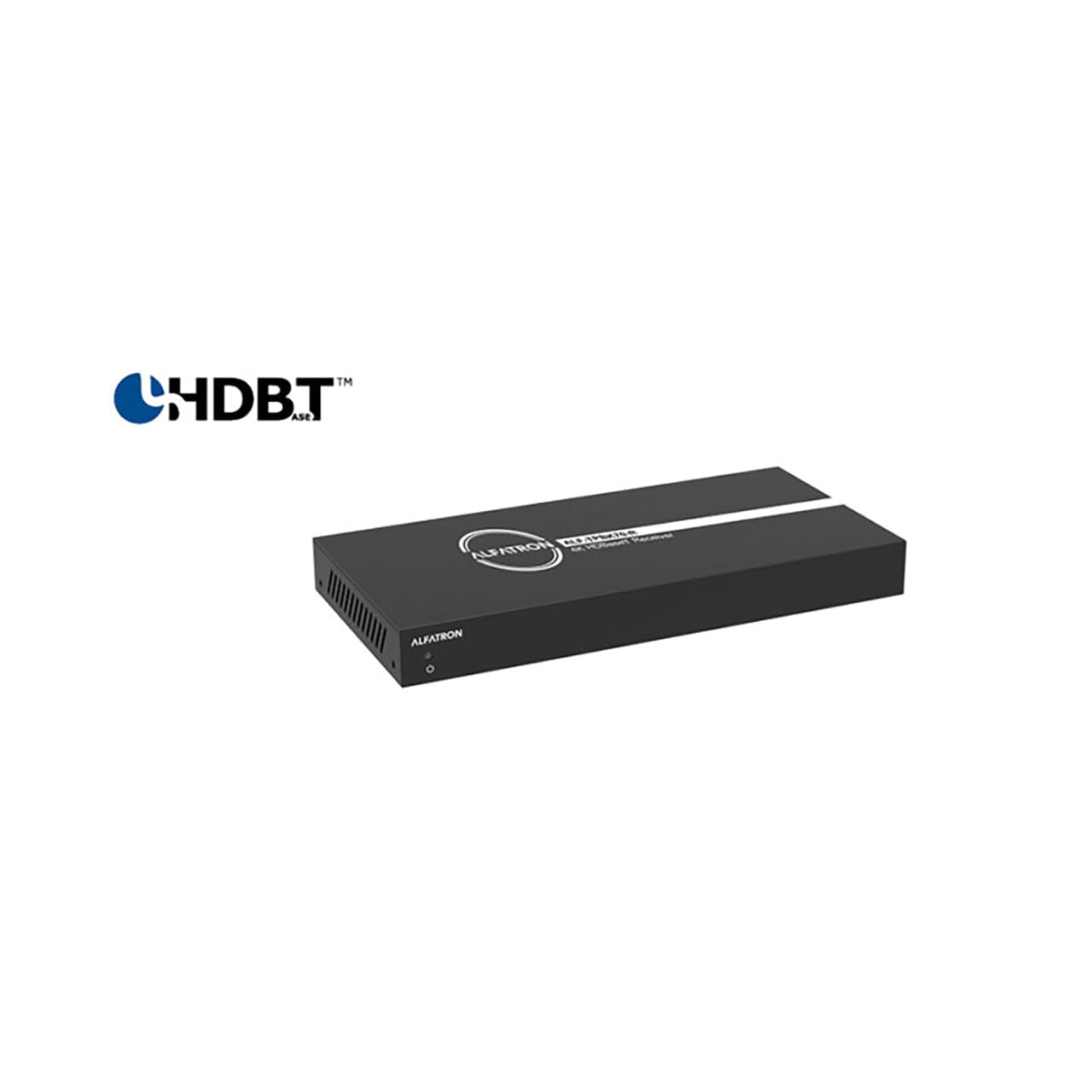

Alfatron TPBK70-R HDMI Over CAT6/6A/7 HDBaseT Receiver with HDMI In / Out - RS232 to RS232 and Audio De-embedder

ALF-TPBK70-R - Overview

• Features:

  • Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a
  • HDMI input supports 18Gbps video bandwidth,
  • Auto switching between HDBT in and local HDMI in
  • Video resolution up to 4K2K@50/60Hz 4:4:4
  • HDBaseT output can extend video transmission distance up to 230ft (70m) for 1080p@60 or 131ft (40m) for 4K@60 via a single CAT6/6a/7 cable
  • Supports 3D, HDR10
  • HDMI audio formats support LPCM, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • Supports POE function (Receiver to Transmitter only)


• Specifications:

  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2
  • DP Compliance: DisplayPort 1.2a
  • Video Bandwidth: HDMI: 18Gbps
  • Video Resolution: 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
  • Color Space: RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0
  • Color Depth: 8/10/12-bit (1080p@60Hz), 8-bit (4K@60Hz)
  • HDR: Support
  • HDMI Audio Formats: LPCM, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD, Master Audio, DSD
  • Transmission Distance:
    - Max Distance (1080p): 230ft (70m) over CAT6/6a/7
    - Max Distance (4K): 131ft (40m) over CAT6/6a/7
  • ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

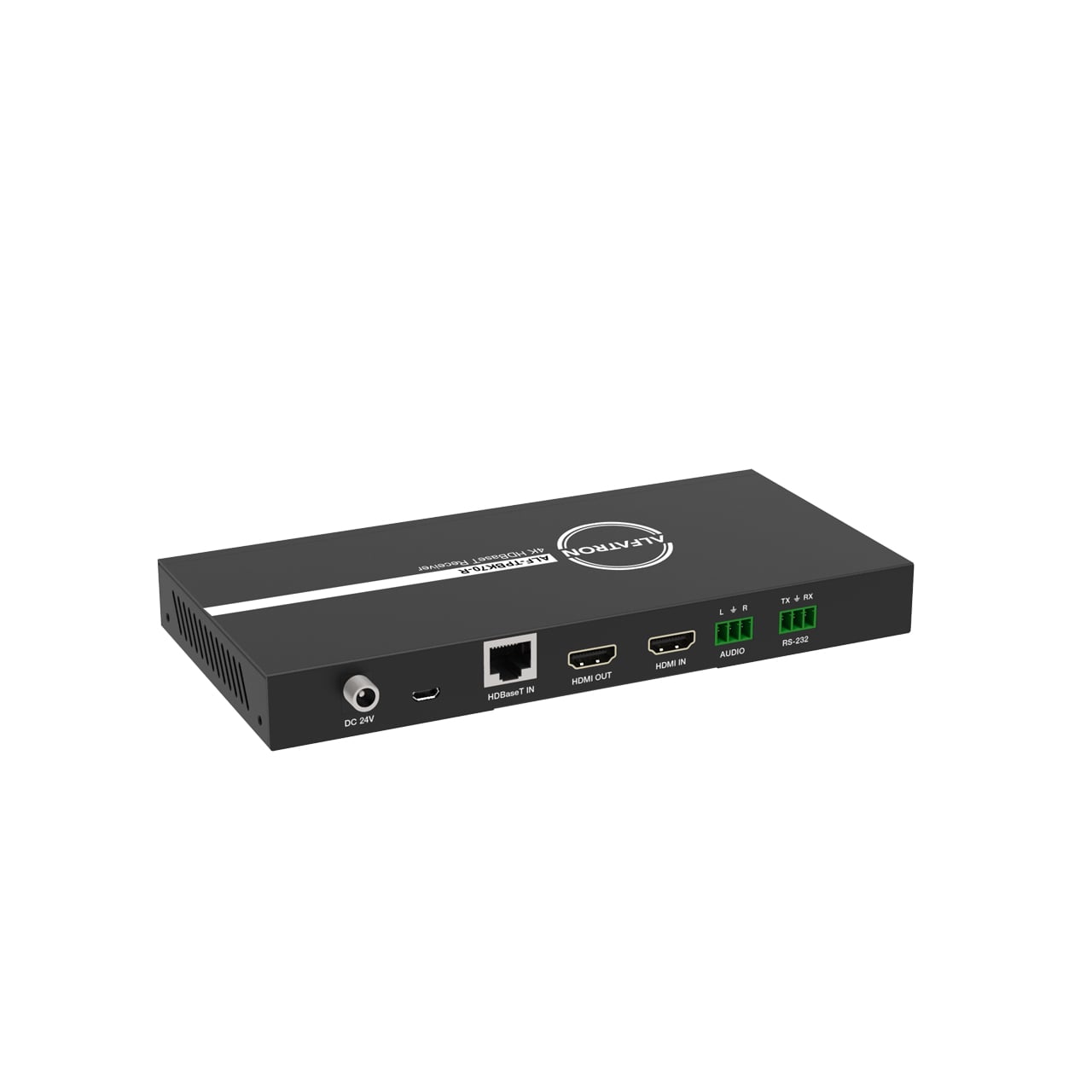

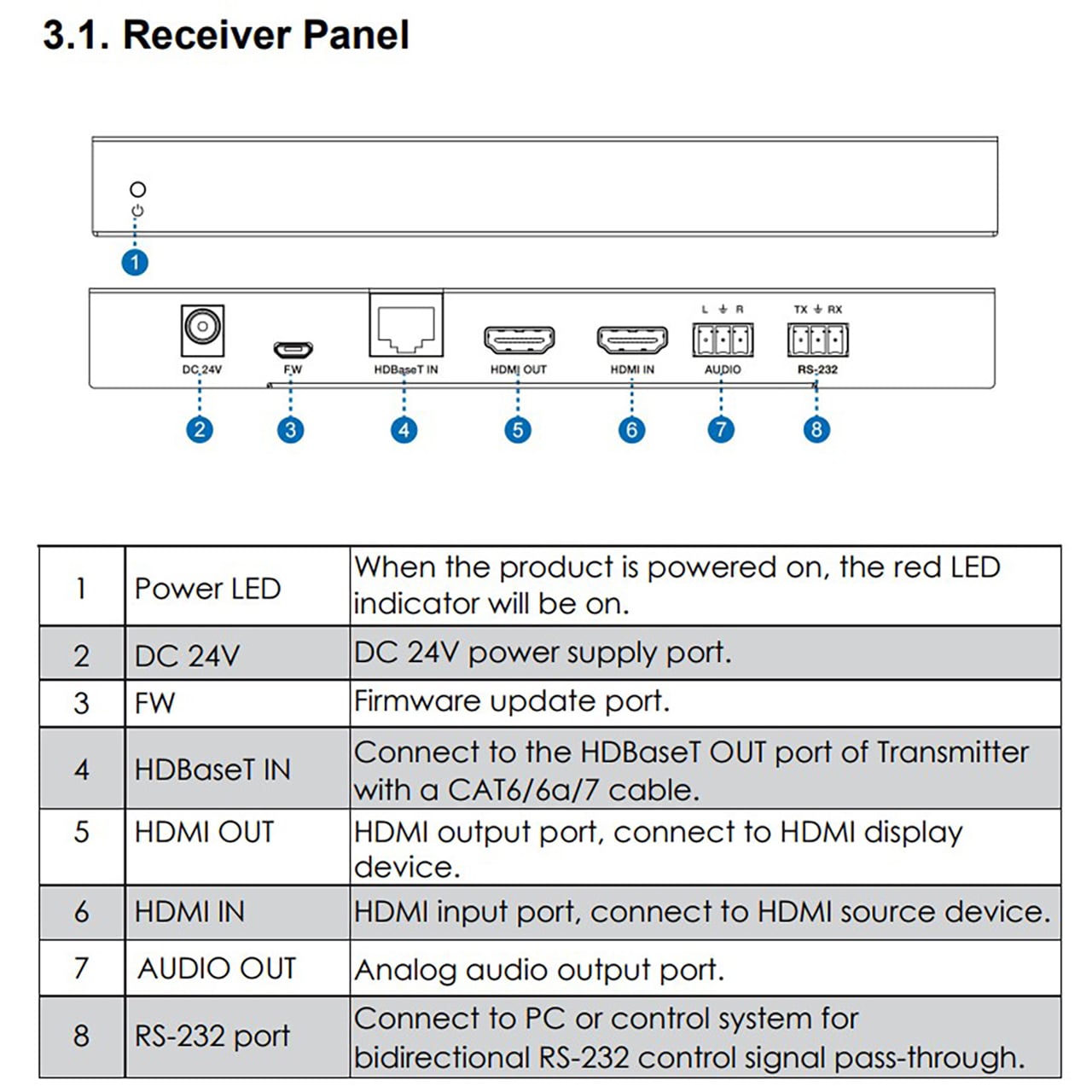

  • Receiver Input Connections:
    - 1x HDMI IN (Type A, 19-pin female)
    - 1x HDBaseT IN (RJ45, 8-pin female)
  • Receiver Output Connections:
    - 1x HDMI OUT (Type A, 19-pin female)
    - 1x AUDIO OUT (Phoenix jack)
  • Controls:
    - 1x RS-232 (3-pin phoenix connector)
    - 1x FW (Micro USB, Update port)
