BirdDog BDX4UCOMBO-B UHD 4K X4 Ultra PTZ 3-Camera Combo with 20x Zoom - KBD PTZ Controller Included - Black

ITEM #: BDS-BDX4UCOMBO-B MFG #: BDX4UCOMBO-B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$6,585.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BDX4UCOMBO-B - Overview

The Complete Toolset for Any Production
Ready to tackle any production challenge, the BDS-BDX4UCOMBO-B bundle includes 3x black X4 Ultra cameras-versatile enough to adapt to every situation-and the all-new BirdDog KBD Controller for intuitive, pro-level control. This pack is built for effortless operation in demanding environments.

Freedom to Create, Anywhere?
The True Swiss Army Knife for Live Production. A game-changing camera that combines top-tier image quality with unmatched connectivity. No cables? No problem. With a built-in battery that lasts up to 4 hours and Wi-Fi 6, X4 Ultra goes where you go. Perfect for capturing those impossible shots in places where wires can't reach. Use it solo, or wirelessly manage up to 4 cameras with Wi-Fi 6, streaming smoothly via NDI|HX3 when paired with our receiver. And when you need it, the X4 Ultra comes with: 3G-SDI, NDI, HDMI, USB-C, RTMP & RTSP. All the connections you could want, right there. It's flexible, versatile, and ready for anything. Just pick it up and start shooting.

Halo Tally. A Higher Order of Visual Queue
Professional results need professional tools. The X4 Ultra sports the most visible and effective Tally system available. Surrounding the lens with a large, daylight-visible border, it keeps your talent looking directly at the camera. Your cast and crew will always know where to look, keeping your audience engaged.

WiFi 6 and Battery
The X4 Ultra features Wi-Fi 6 for ultra-fast, reliable wireless connectivity, ensuring smooth and stable streaming. Its built-in battery provides up to 6 hours of continuous operation, giving you the freedom to shoot on the go without worrying about power. The X4 Ultra's battery can be quickly recharged via USB, and you can extend its operation time by connecting it to a portable power source for uninterrupted shooting.

BirdDog KBD PTZ Controller Included
The BirdDog KBD Controller offers PTZ camera operators a rugged, ergonomic design, a large multi-camera display, and direct access to essential functions. With a built-in tally display and physical feedback for camera switching, it's intuitive and eco-friendly, made with Ocean-Bound Plastics and recyclable Aircraft-grade Aluminum. NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity ensure versatility no matter what language you speak.

  • Features:

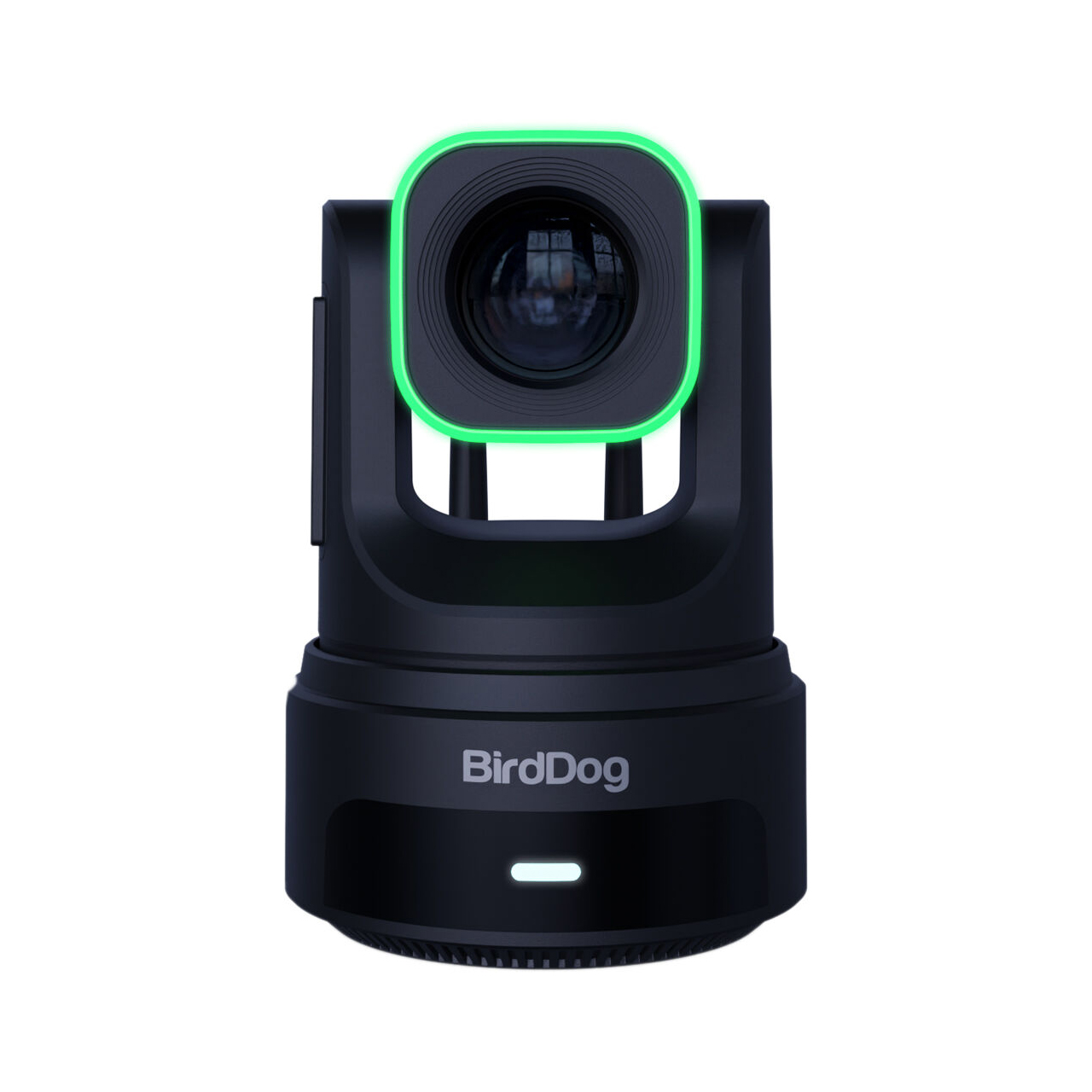

      X4 Ultra PTZ Camera
    • Smooth PTZ Motion
    • Flexible Power
    • NDI Mute
    • Ultra Low Latency
    • Dual Network Output
    • NDI Ecosystem
    • Serial Control
    • API 2.0 Support

      KBD PTZ Controller
    • 5" Multiview Display
    • Built-in Tally Borders
    • Direct Access to Key Functions
    • Ultimate Connectivity in an Eco-Friendly Design
    • Seamless Control
    • Integrated Carry Handle
    • API-based Camera Selection
    • Light & Dark Mode

  • Specifications:

      X4 Ultra PTZ Camera Specs
    • Dimensions (WxHxD): 5.5" x 7.43" x 8" (140.2mm x 188.9mm x 203.2mm)
    • Weight: 4.8lbs (2.19kg)
    • Environmental Operation: Internal
    • Input Voltage: DC 12V, POE IEEE 802.3at
    • Input Current: 5.0A (Max)
    • Battery Capacity: 9450mAh
    • Battery Operating Time (Per Charge): Up to 6 hours run time (usage dependent)

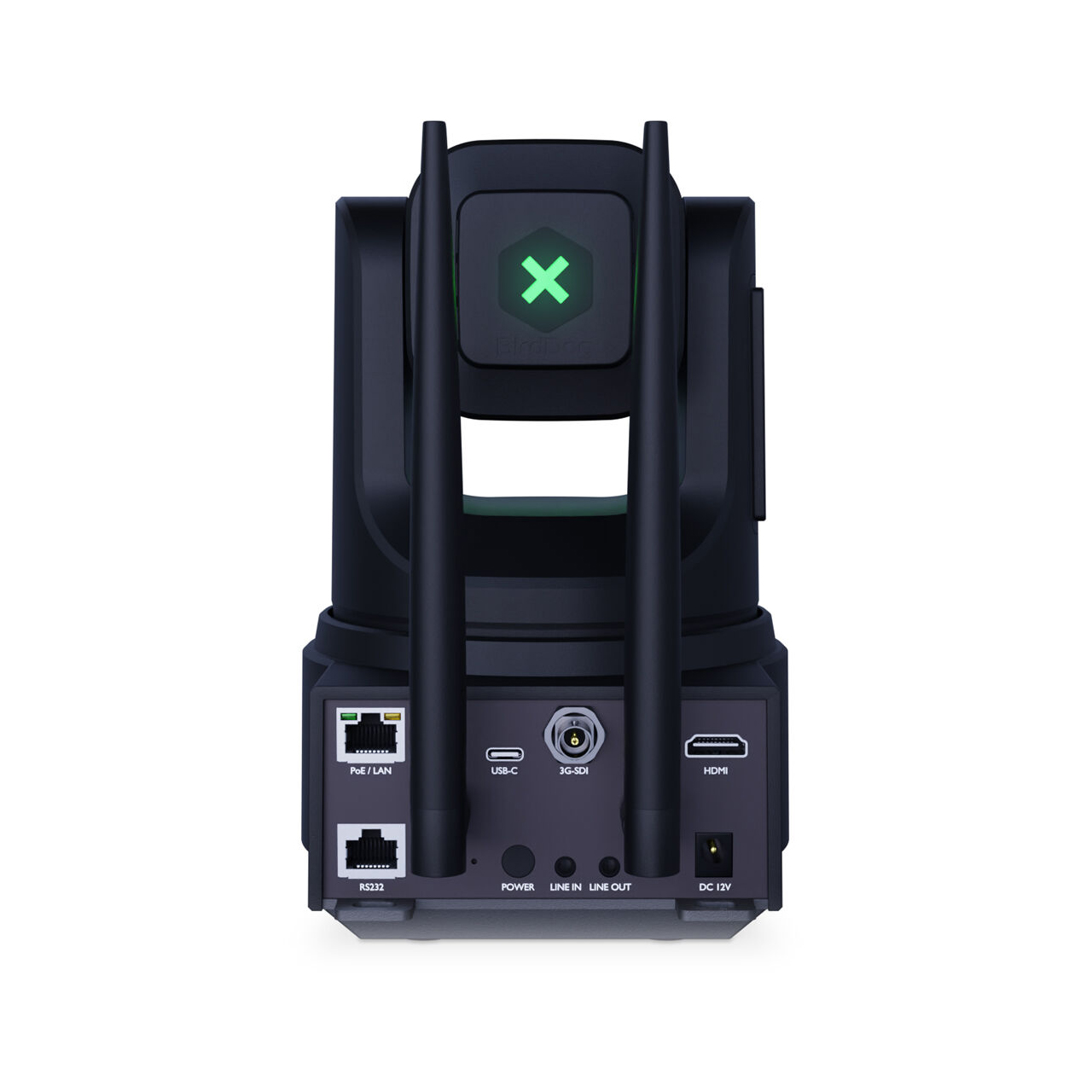

    • Video Output Interfaces:
      - 1x 3G-SDI
      - 1x HDMI
      - 1x USB-C UVC
      - 1x Network
    • Video Compression Formats: H.264, H.265
    • Network Interfaces: 1Gbps adaptive Ethernet port; PoE IEEE 802.3at, WiFi 6 2x2 MIMO
    • (Optional Base station)
    • Encoder Network Protocols: NDI HX2, NDI HX3, RTSP, RTMP, SRT
    • Control Interfaces: 1Gbps Ethernet, USB-C, RS-232
    • Control Protocols:
      - VISCA Baud Rate: 38400/9600/4800/2400
      - VISCA-IP, NDI, ONVIF
    • Analogue Audio: 3.5mm TRS Line input/Mic Input
    • Pan/Tilt Rotation: ±170°, -30° - 90°
    • Pan Control Speed: 1.7-80°/sec
    • Tilt Control Speed: 1.7-60°/sec
    • Preset Number: 255 Presets
    • Integrated Tally Light: Halo tally and rear number tally system
    • Image Sensor: Sony 1/1.8" CMOS - ULTRA HD
    • Lens: f=6.25mm-125mm
    • Optical Zoom: 20x
    • Video Format:
      - 2160p @ 60/59.94/50/30/29.97/25fps
      - 1080p @ 60/59.94/50/30/29.97/25fps
      - 1080i @ 59.94/50fps
      - 720p @ 60/59.94
    • Horizontal Angle of View: 60° (W) - 3.5° (T)
    • Vertical Angle of View: 35° (W) - 2.0° (T)
    • Diagonal Angle of View: 66.6° (W) - 4.0° (T)
    • Aperture: F1.58 (W) - 3.95 (T)
    • Focus: Auto, Manual
    • Exposure: Auto, Shutter Priority, Iris Priority, Manual
    • Shutter Speed: 1/1 - 1/10000s
    • Backlight Compensation: Yes
    • Digital Noise Reduction: 3D Noise Reduction
    • SNR: ≥ 45dB
    • Effective Pixels: 8.42 MP

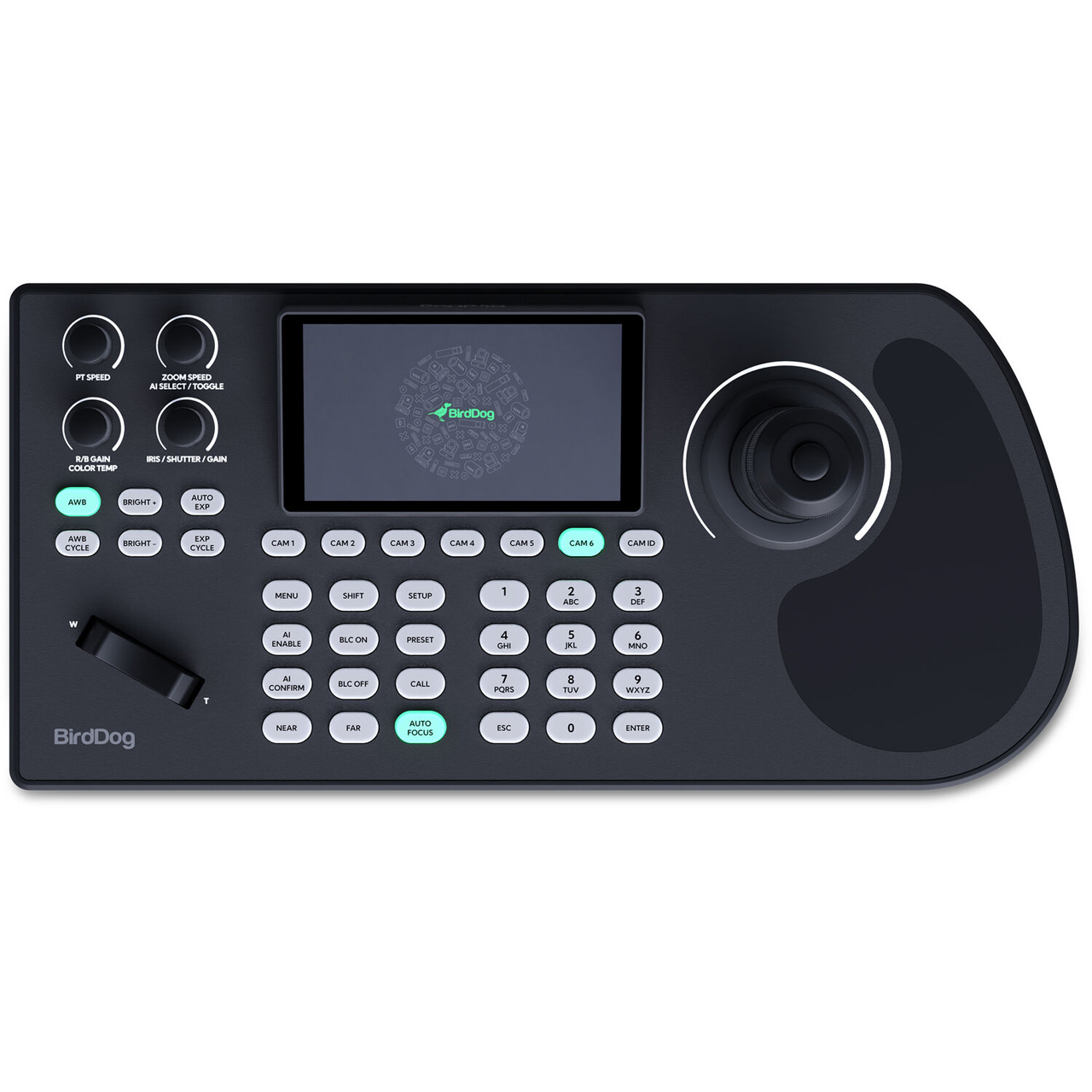

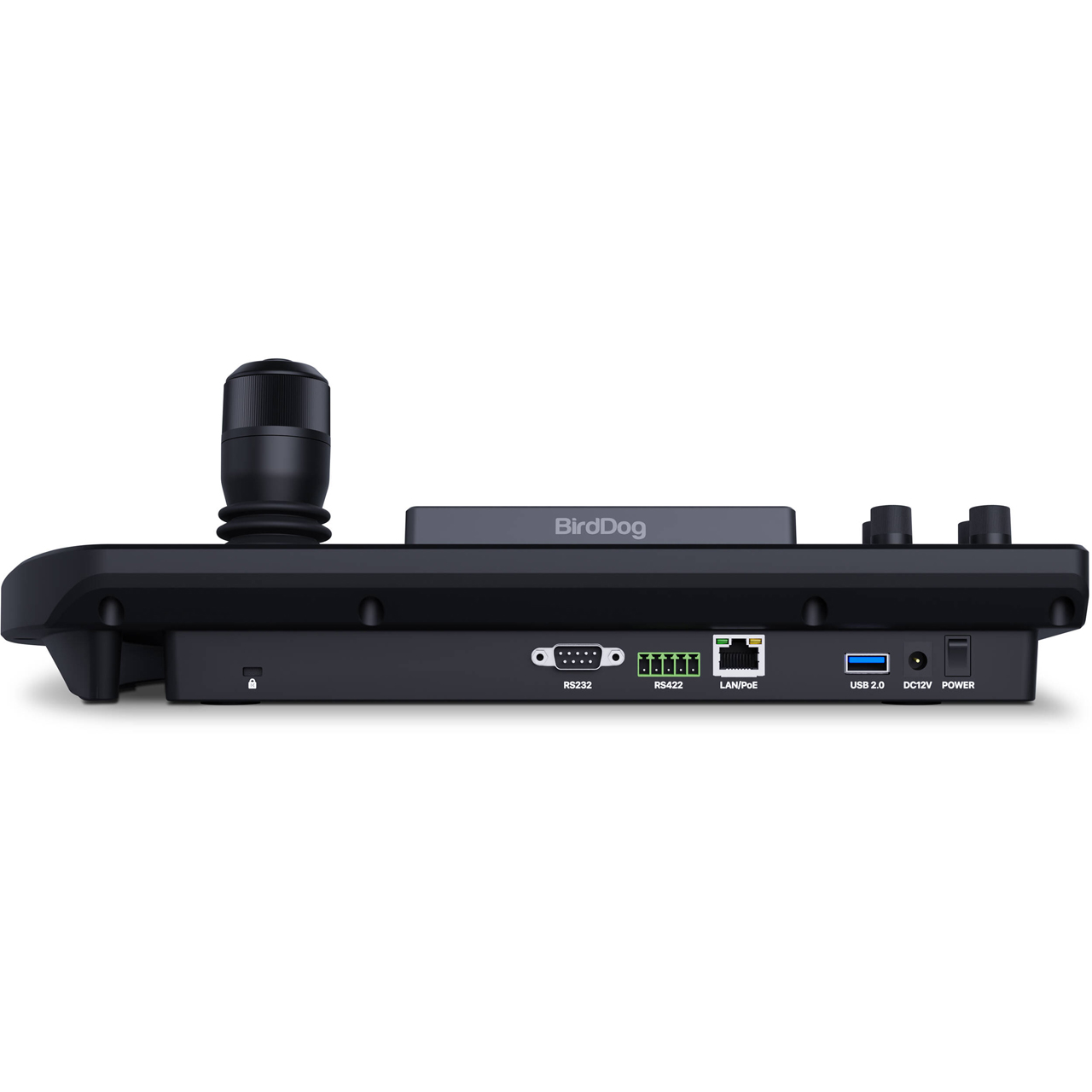

      KBD PTZ Controller
    • Dimensions (LxWxH): 14.84" x 6.96" x 4.64" (377mm x 177mmx 118mm)
    • Weight: 7.025lbs (3.1kg)
    • Joystick Type: 4D (Integrated Trigger button)
    • Power Supply: PoE (802.3af), DC12V
    • Power Consumption: ≤ 5W
    • Keys: 37 Keys; Backlit, Individual Contact, Silicon Pad
    • Toggle Dials: 4 knobs; Press Button, Graduated, 360° adjustment
    • Zoom Rocket: Spring-loaded, adjustable
    • NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
    • NDI Multiview: NDI HX2, NDI HX3
    • Display Diagonal Dimension: 5" (127mm)
    • Display Resolution: 1280x720
    • Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30fps)
    • Full Screen IP Video: Supported, NDI HX (Proxy), RTSP (max. 30fps)
    • IP Video CODEC Support: h.264, h.265
    • Max. Camera Support: 255
    • Direct Camera Access Keys: 6
    • Direct Preset Access Keys: 10
    • Max Preset Support: 255 per camera
    • PTZ Control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
    • Fine PTZ Control: VISCA-IP, NDI
    • Focus Control: Auto Focus, Manual Focus buttons
    • Auto Exposure: Direct Button
    • Manual Exposure: Toggle Dial adjustment Brightness/Shutter/Gain/Iris
    • Auto White Balance: Direct Button
    • Manual White Balance: Toggle Dial adjustment R-Gain, B-Gain, Color Temperature
    • Auto Focus: Direct Button
    • Manual Focus: Direct Button (Near/Far)
    • BLC (Backlight Compensation): Direct Button
    • Zoom Ring on Joystick: Yes (Enable/Disable)
    • Programmable Trigger on Joystick: Adjustable, One-Push Focus, AI Tracking, One-Push AWB
    • AI Camera Mode Control: Camera Dependent, Supported

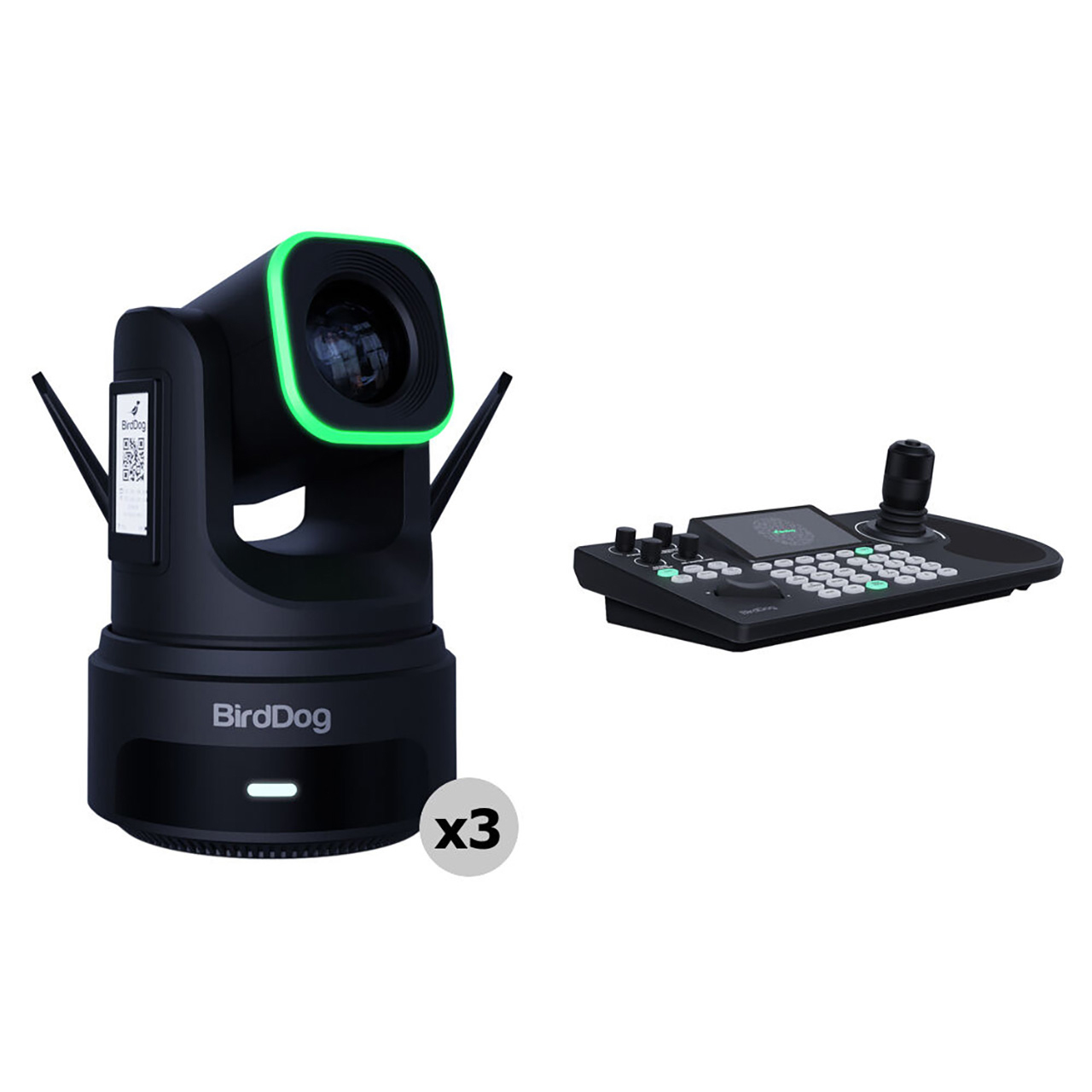

  • Item Includes:

    • 3x BirdDog Black UHD 4K X4 Ultra PTZ Camera
    • 1x BirdDog KBD PTZ Controller

  • Warranty:

    • 5 Year Limited Warranty
