ADJ DAT600 Data Distro 6-Way DMX and RDM Data Splitter - 1x 5-Pin Input/1x 5-Pin Thru and 6x 5-Pin Outputs

ITEM #: AMDJ-DAT600 MFG #: DAT600

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$339.95

Our Price:

$249.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


DAT600 - Overview

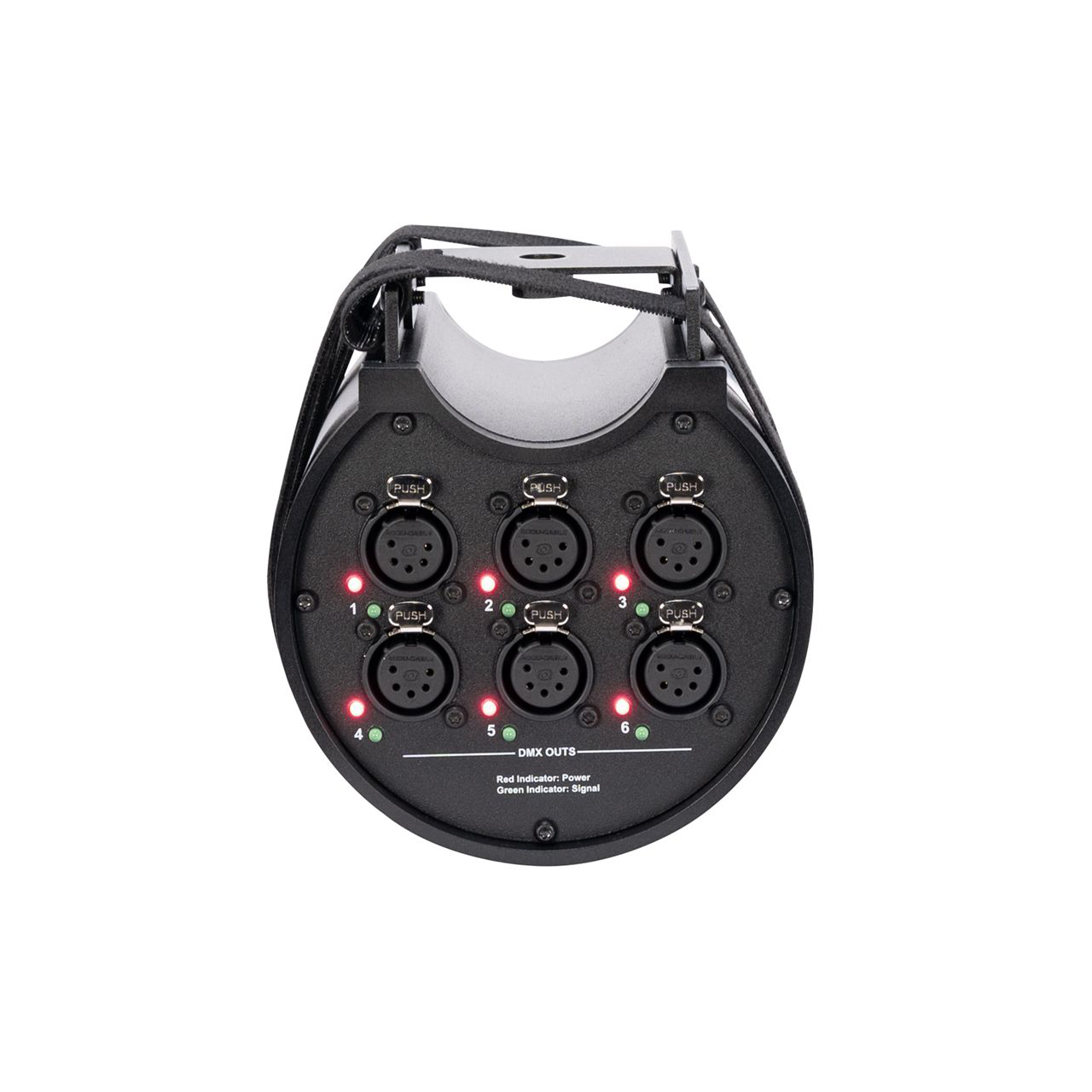

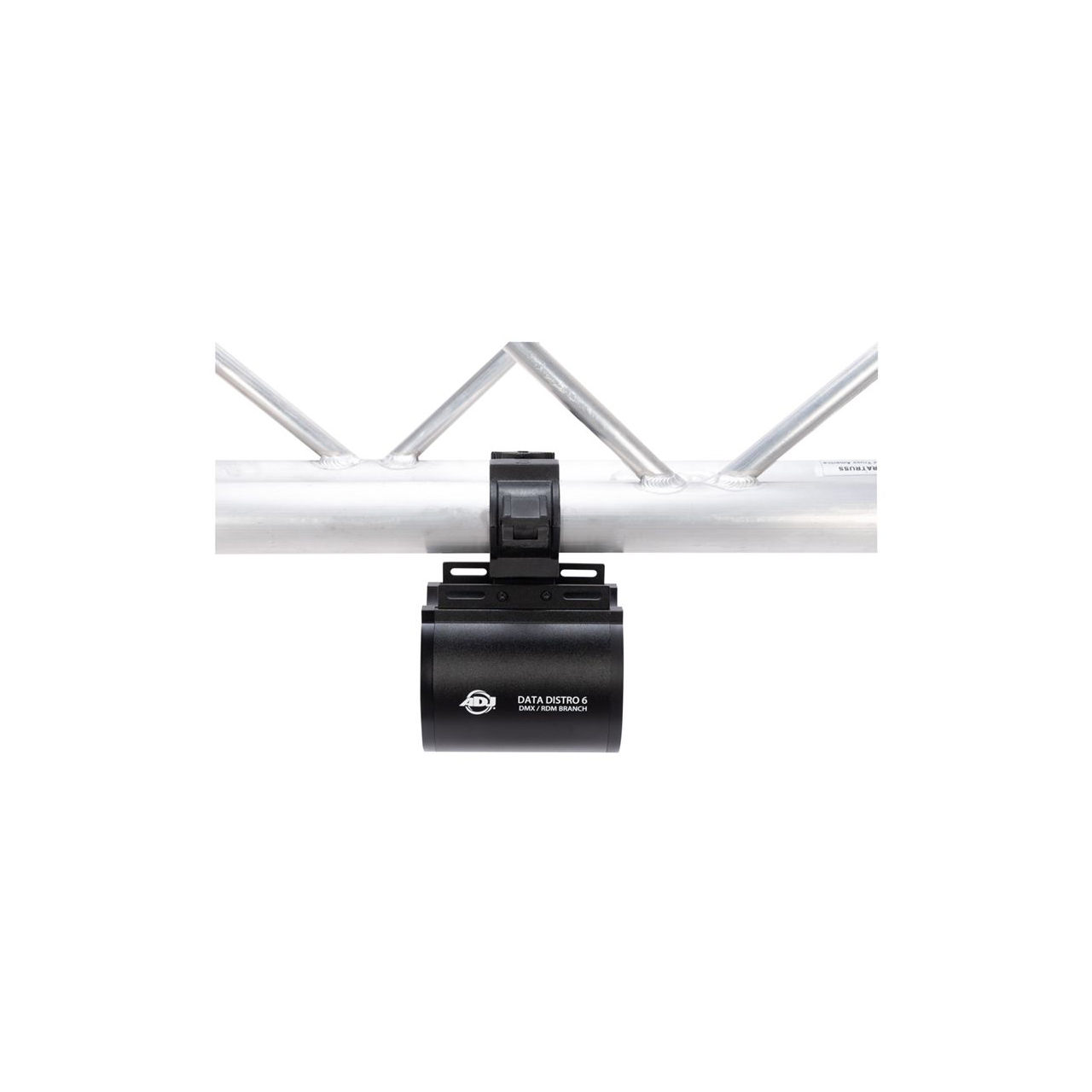

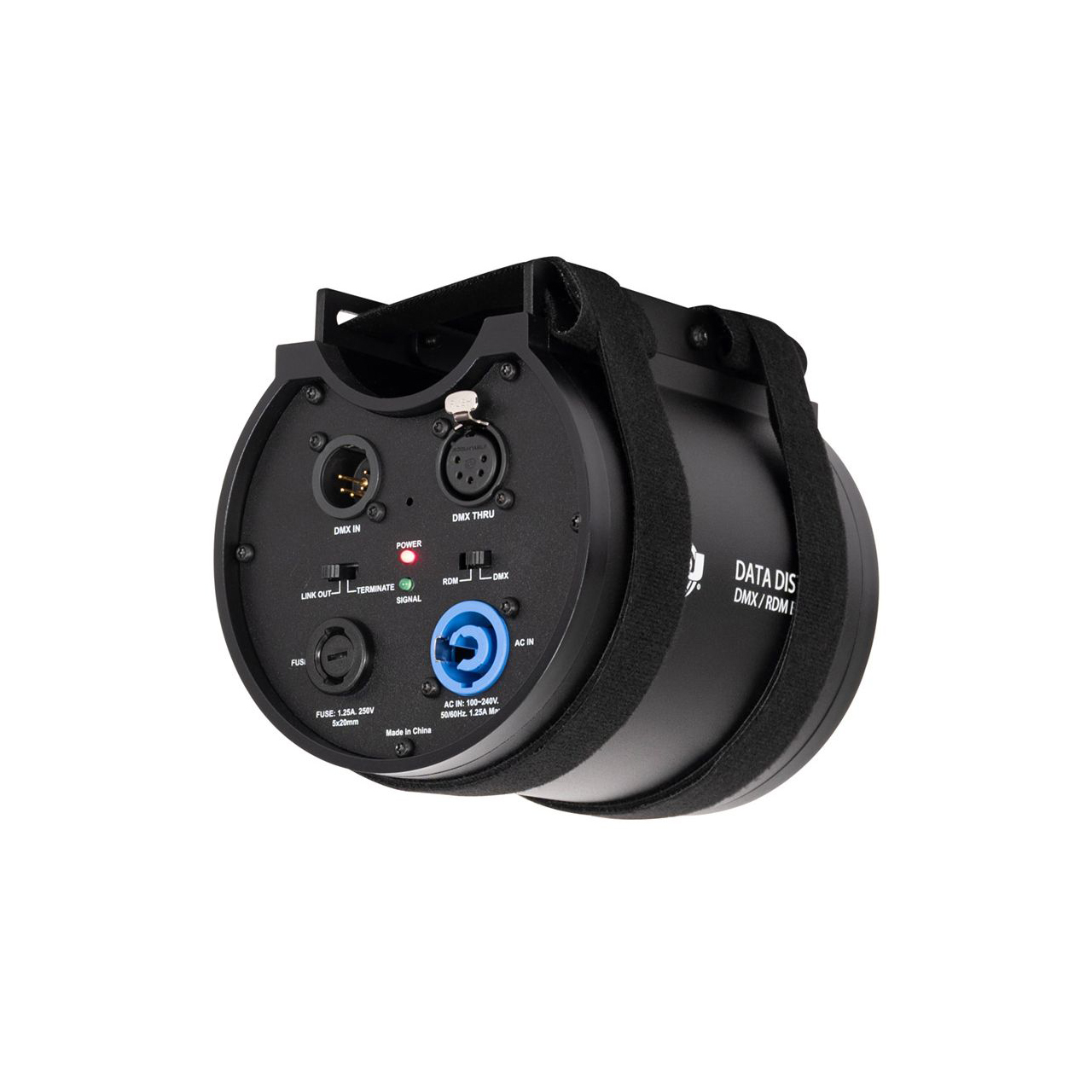

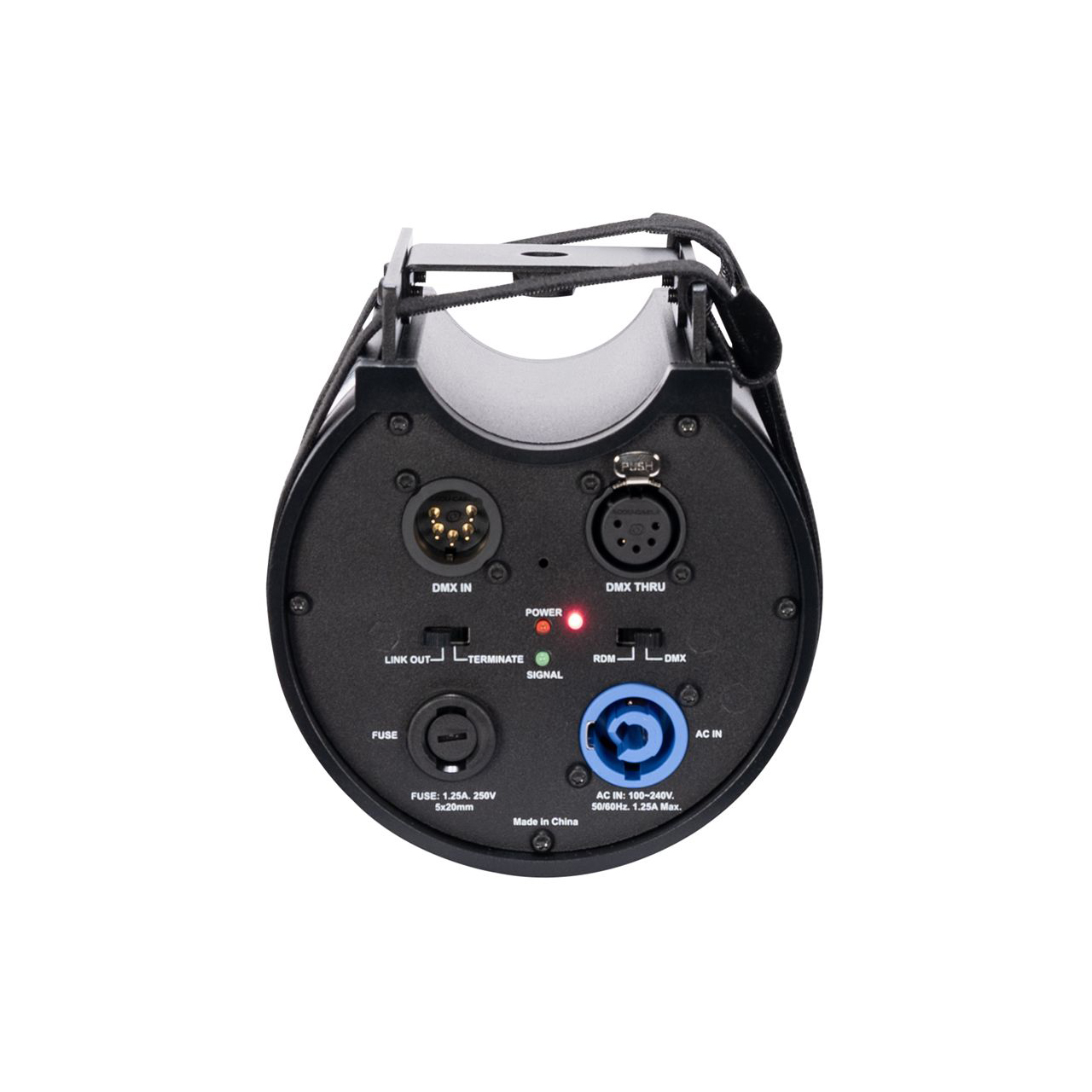

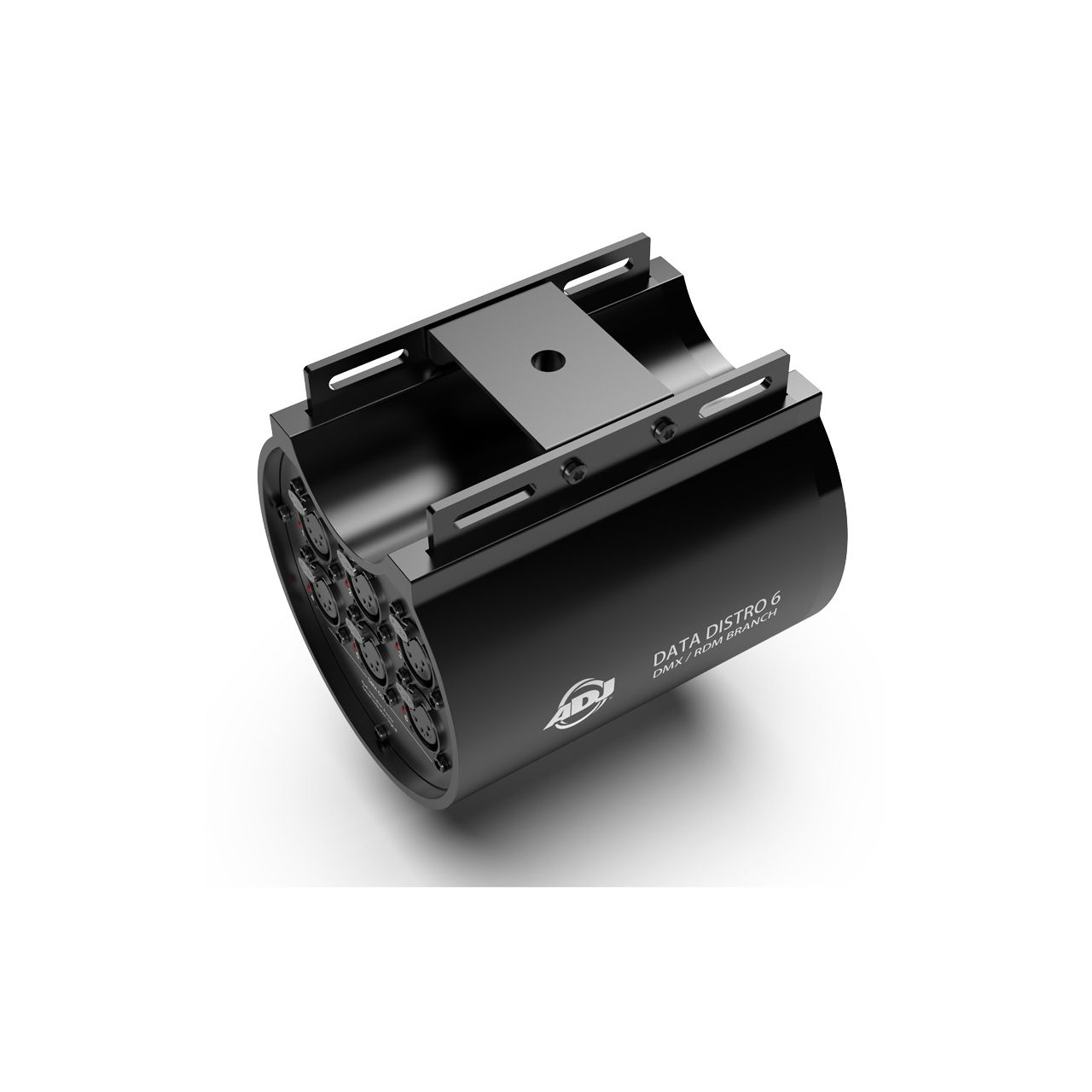

The ADJ Lighting Data Distro 6 is a versatile and compact solution for streamlined DMX512 and RDM signal distribution. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient hanging with 1 Truss Mount featuring two Velcro Straps or M10 Screw Clamp (clamp not included). Its robust physical configuration includes 1x indoor 5-pin XLR input, 1x indoor 5-pin XLR thru, and 6x indoor 5-pin XLR outputs. Equipped with a Link Out Termination Switch and a DMX/RDM Protocol Switch, it also features an indoor locking power socket for added security.

  • Specifications:

      Protocols
    • DMX512
    • RDM

      Physical
    • 1x Truss Mount with Velcro Straps or M10 Screw Clamp (Clamp Not Included)
    • 1x Indoor 5pin XLR Input
    • 1x Indoor 5pin XLR Thru
    • 6x Indoor 5pin XLR Outputs
    • Link Out/Termination Switch
    • DMX/RDM Protocol Switch
    • Indoor locking power socket

      Dimensions & Weight
    • Length: 4.73" (120mm)
    • Width: 5.43" (137.75mm)
    • Height: 5.10" (129.55mm)
    • Weight: 1.83lbs (0.83kg)

      Power
    • AC Input: 100V - 240V 50/60Hz
    • Power Consumption: 2.7W @ 120V and 2.9W @ 230V
    • Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)

      Thermal
    • Ambient Operational Temperature: 32°F - 113°F (0°C - 45°C)
    • Humidity: < 75%
    • Storage Temperature: 77°F (25°C)

      Certifications & IP Rating
    • CE
    • cETLus (Control # 5014475)
    • UKCA
    • FCC
    • IP20

  • Item Includes:

    • 1x DAT600 Data Distro 6
    • 1x Power Cable

  • Warranty:

    • 2 Year Warranty

  • GTIN:

    0810087372620
